NEW: LED ENCLOSURE LAMP MULTI WIDE VOLTAGE
LED 025

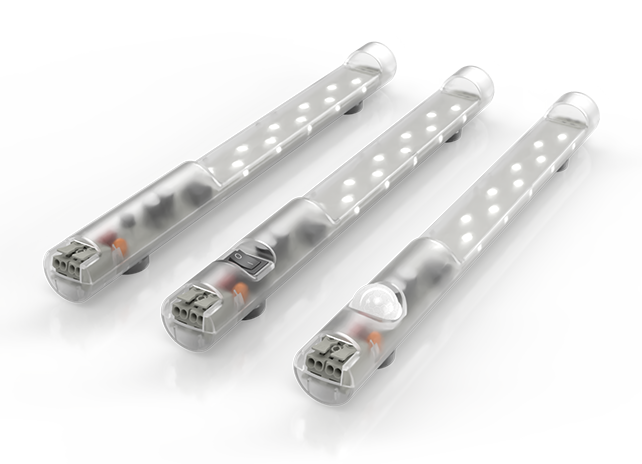

LED lights with Multi Wide Voltage are ideal for flexible use in enclosures and casings of different sizes. Multi Wide Voltage supports both AC and DC voltages, ensuring maximum flexibility in the application. Fewer versions mean optimized processes in procurement and materials management. The mounting kit supplied also enables simple and versatile installation.
- Multi-wide-range voltage (AC, DC)
- Internal power unit for easy connection
- Durable and maintenance-free thanks to LED technology
- Daisy chain (up to 10 lights)

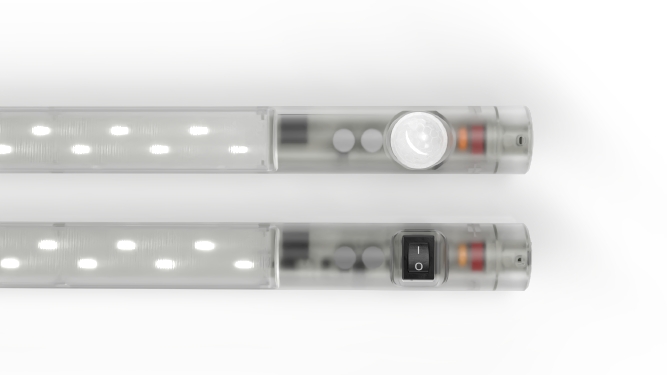

- On/off switch or motion detector
- Mounting kit for magnet, screw and clip fixing
Overview technical data
| Device name | NEW: LED ENCLOSURE LAMP MULTI WIDE VOLTAGE |
| Device type | LED enclosure lamps |
| Series | LED 025 |
| Illuminant | LED |
| Protection class | II |
| Protection type | IP20 |
| Casing | Plastic, transparent |
| AC/DC | AC DC |
| Operating voltage | 24 V - 240 V |
| Operating voltage tolerance | 20 V - 265 V |
| Frequency | 0;50;60 Hz |
| Power consumption | <4,5 W |
| Luminous colour | 6000 - 7000 K |
| Luminous flux | 560 Lm |
| Energy efficiency | E |
| Service life | >60000 h |
| Operating temperature | -40 °C - 60 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Depth | 351 mm |
| Weight | 200 g |
| Note | The light must not be used for household lighting. |
| CCC | CCC approved |
