NEW: LED ENCLOSURE LAMP MULTI WIDE VOLTAGE

LED 025

LED lights with Multi Wide Voltage are ideal for flexible use in enclosures and casings of different sizes. Multi Wide Voltage supports both AC and DC voltages, ensuring maximum flexibility in the application. Fewer versions mean optimized processes in procurement and materials management. The mounting kit supplied also enables simple and versatile installation.

Multi-wide-range voltage (AC, DC)
Internal power unit for easy connection
Durable and maintenance-free thanks to LED technology

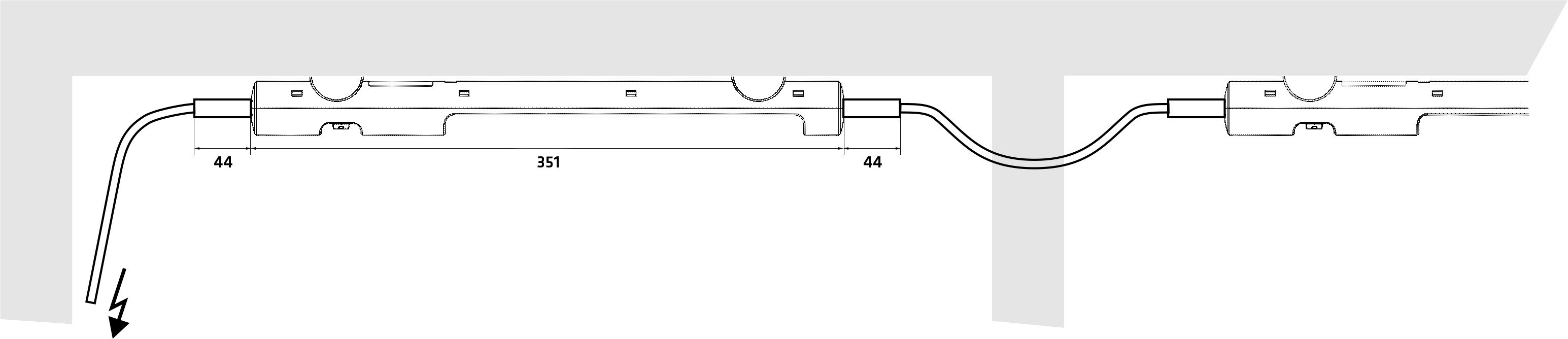

Daisy chain (up to 10 lights)
On/off switch or motion detector
Mounting kit for magnet, screw and clip fixing

Overview technical data

Device type	LED enclosure lamps
Illuminant	LED
Protection class	II
Protection type	IP20
Casing	Plastic, transparent
AC/DC	AC;DC
Operating voltage	24 V - 240 V
Operating voltage tolerance	20 V - 265 V
Frequency	0;50;60 Hz
Power consumption	<4,5 W
Luminous colour	6000 - 7000 K
Luminous flux	560 Lm
Energy efficiency	E
Service life	>60000 h
Operating temperature	-40 °C - 60 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °C - 85 °C
Depth	351 mm
Weight	200 g
Note	The light must not be used for household lighting.
CCC	CCC approved

Product variants

Article number	Switch	Connection	Mounting	Height	Width	Item number accessories 1	Item number accessories 2	Item number accessories 3	Item number accessories 4	Accessory 1	Accessory 2	Accessory 3	Accessory 4

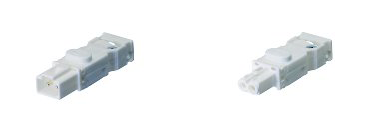

02550.0-00	On/off switch	2-pole connector with snap lock	Magnet, clip	42 mm	40 mm	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection
02550.0-01	On/off switch	2-pole connector with snap lock	Screw, clip	36 mm	52 mm	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection
02550.0-10	On/off switch	2-polige Duo-Druckklemme für Starrdrahtleitung 2,5 mm², Litzenleitung mit Aderendhülse 1,5 mm²	Magnet, clip	42 mm	40 mm
02550.0-11	On/off switch	2-polige Duo-Druckklemme für Starrdrahtleitung 2,5 mm², Litzenleitung mit Aderendhülse 1,5 mm²	Screw, clip	36 mm	52 mm
02551.0-00	Motion detector	2-pole connector with snap lock	Magnet, clip	47,3 mm	40 mm	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection
02551.0-01	Motion detector	2-pole connector with snap lock	Screw, clip	41 mm	52 mm	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection
02551.0-10	Motion detector	2-polige Duo-Druckklemme für Starrdrahtleitung 2,5 mm², Litzenleitung mit Aderendhülse 1,5 mm²	Magnet, clip	47,3 mm	40 mm
02551.0-11	Motion detector	2-polige Duo-Druckklemme für Starrdrahtleitung 2,5 mm², Litzenleitung mit Aderendhülse 1,5 mm²	Screw, clip	41 mm	52 mm
02552.0-10	Without	2-polige Duo-Druckklemme für Starrdrahtleitung 2,5 mm², Litzenleitung mit Aderendhülse 1,5 mm²	Magnet, clip	42 mm	40 mm
02552.0-11	Without	2-polige Duo-Druckklemme für Starrdrahtleitung 2,5 mm², Litzenleitung mit Aderendhülse 1,5 mm²	Screw, clip	36 mm	52 mm
