The space-saving fan heater is designed for reliable protection against condensation in enclosures and casings. High heating capacity with small dimensions is achieved by using a high-performance cartridge heater. The HVI 030 designs shown here are designed for self-installation of the fan. A suitable axial fan must be installed by the operator. Note: The heating must not be operated without a fan.
Compact, flat construction
Temperature cut-out as overheating protection
Fanless version: for self-installation of the fan by the operator
Quick electrical connection with pressure clamps
Overview technical data
Device type
Fan heater
Temperature monitoring
Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
Protection class
II
Protection type
IP20
Heating element
High-performance heating cartridge
Casing
Plastic to UL94 V-0, black
AC/DC
AC
Frequency
50;60 Hz
Axial fan
For self-assembly, not included in the scope of delivery
Operating temperature
-10 °C - 50 °C
Operating humidity
≤90 % RH
Storage humidity
≤90 % RH
Storage temperature
-45 °C - 70 °C
Connection type
Connection terminal
Connection
2-pole Duo pressure clamp for rigid wire cable 2.5 mm², stranded wire with wire end ferrule 1.5 mm²
Installation position
Airflow direction "in" vertical / connection at the bottom

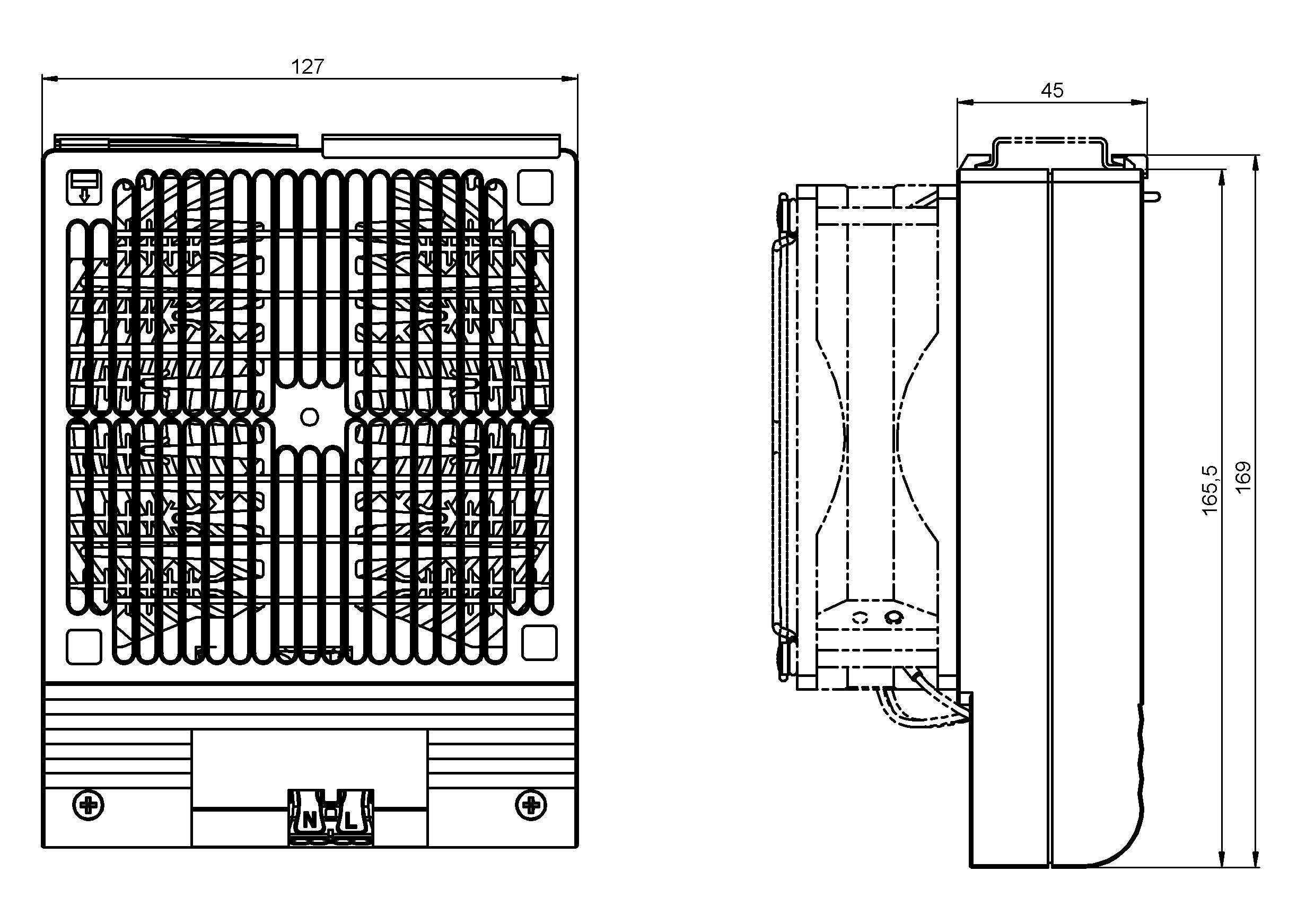

Height
45 mm
Width
127 mm
Depth
169 mm
Weight
700 g
Note
Other heating capacities and voltages on request
Other heating capacities and voltages on request
Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!
Product variants
Article number
Device name
Device type
Series
Temperature monitoring
Protection class
Protection type
Heating element
Casing
AC/DC
Operating voltage minimum
Operating voltage tolerance
Recommended backup fuse
Frequency
Heating capacity minimum
Axial fan
Operating temperature
Operating humidity
Storage humidity
Storage temperature
Connection type
Connection
Mounting
Installation position
Height
Width
Depth
Weight
Note
Request
CAD
Datasheet
03072.0-00
Enclosure heater
Fan heater
HVI 030
Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
II
IP20
High-performance heating cartridge
Plastic to UL94 V-0, black
AC
230 V
208 V - 253 V
6.3 A
50;60 Hz
700 W
For self-assembly, not included in the scope of delivery
-10 °C - 50 °C
≤90 % RH
≤90 % RH
-45 °C - 70 °C
Connection terminal
2-pole Duo pressure clamp for rigid wire cable 2.5 mm², stranded wire with wire end ferrule 1.5 mm²

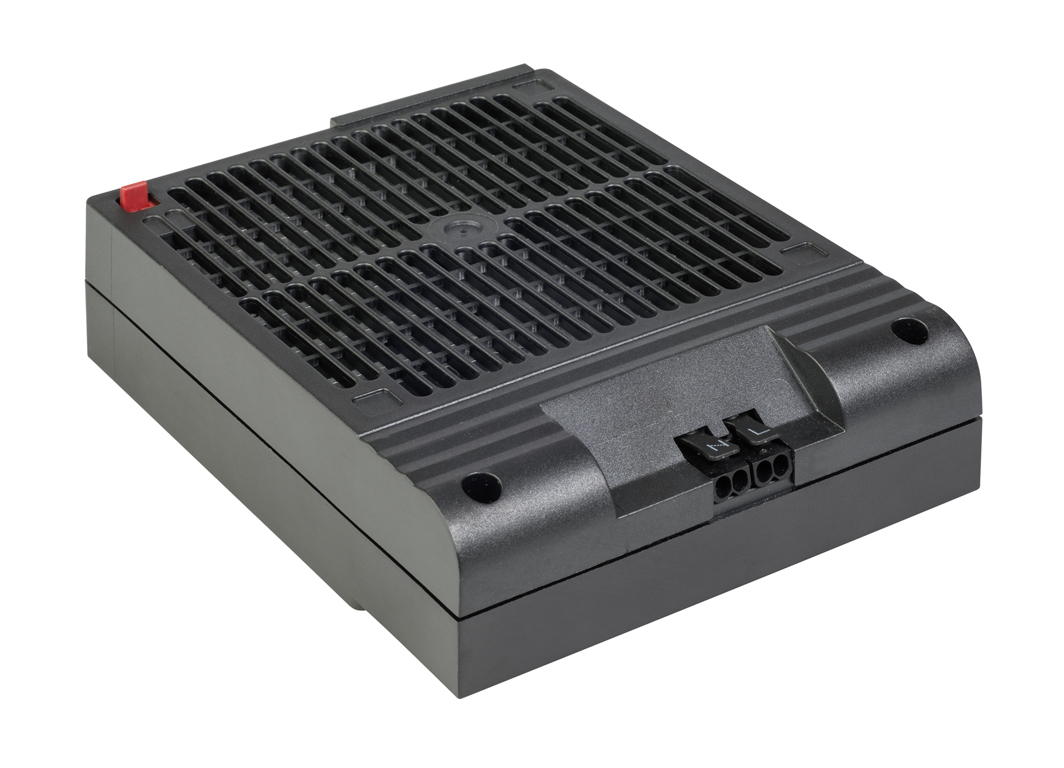

Clip for 35 mm DIN rail
Airflow direction "in" vertical / connection at the bottom
45 mm
127 mm
169 mm
700 g
Other heating capacities and voltages on request
Other heating capacities and voltages on request
Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!
Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
II
IP20
High-performance heating cartridge
Plastic to UL94 V-0, black
AC
230 V
208 V - 253 V
6.3 A
50;60 Hz
700 W
For self-assembly, not included in the scope of delivery
-10 °C - 50 °C
≤90 % RH
≤90 % RH
-45 °C - 70 °C
Connection terminal
2-pole Duo pressure clamp for rigid wire cable 2.5 mm², stranded wire with wire end ferrule 1.5 mm²

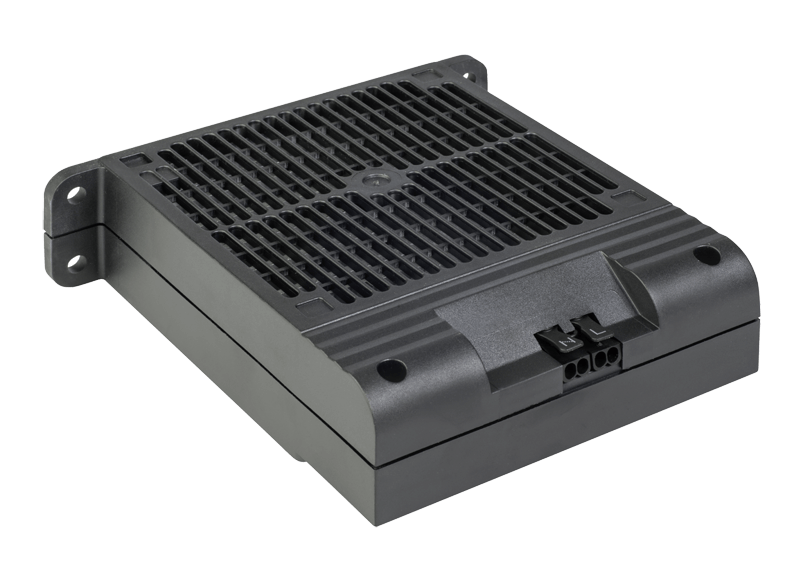

Screw fixing
Airflow direction "in" vertical / connection at the bottom
45 mm
127 mm
169 mm
700 g
Other heating capacities and voltages on request
Other heating capacities and voltages on request
Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!
Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
II
IP20
High-performance heating cartridge
Plastic to UL94 V-0, black
AC
230 V
208 V - 253 V
4 A
50;60 Hz
600 W
For self-assembly, not included in the scope of delivery
-10 °C - 50 °C
≤90 % RH
≤90 % RH
-45 °C - 70 °C
Connection terminal
2-pole Duo pressure clamp for rigid wire cable 2.5 mm², stranded wire with wire end ferrule 1.5 mm²
Clip for 35 mm DIN rail
Airflow direction "in" vertical / connection at the bottom
45 mm
127 mm
169 mm
700 g
Other heating capacities and voltages on request
Other heating capacities and voltages on request
Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!
Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
II
IP20
High-performance heating cartridge
Plastic to UL94 V-0, black
AC
230 V
208 V - 253 V
4 A
50;60 Hz
600 W
For self-assembly, not included in the scope of delivery
-10 °C - 50 °C
≤90 % RH
≤90 % RH
-45 °C - 70 °C
Connection terminal
2-pole Duo pressure clamp for rigid wire cable 2.5 mm², stranded wire with wire end ferrule 1.5 mm²
Screw fixing
Airflow direction "in" vertical / connection at the bottom
45 mm
127 mm
169 mm
700 g
Other heating capacities and voltages on request
Other heating capacities and voltages on request
Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!
Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
II
IP20
High-performance heating cartridge
Plastic to UL94 V-0, black
AC
120 V
108 V - 132 V
8 A
50;60 Hz
600 W
For self-assembly, not included in the scope of delivery
-10 °C - 50 °C
≤90 % RH
≤90 % RH
-45 °C - 70 °C
Connection terminal
2-pole Duo pressure clamp for rigid wire cable 2.5 mm², stranded wire with wire end ferrule 1.5 mm²
Clip for 35 mm DIN rail
Airflow direction "in" vertical / connection at the bottom
45 mm
127 mm
169 mm
700 g
Other heating capacities and voltages on request
Other heating capacities and voltages on request
Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!
Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
II
IP20
High-performance heating cartridge
Plastic to UL94 V-0, black
AC
230 V
208 V - 253 V
4 A
50;60 Hz
500 W
For self-assembly, not included in the scope of delivery
-10 °C - 50 °C
≤90 % RH
≤90 % RH
-45 °C - 70 °C
Connection terminal
2-pole Duo pressure clamp for rigid wire cable 2.5 mm², stranded wire with wire end ferrule 1.5 mm²
Clip for 35 mm DIN rail
Airflow direction "in" vertical / connection at the bottom
45 mm
127 mm
169 mm
700 g
Other heating capacities and voltages on request
Other heating capacities and voltages on request
Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!
