Cartridge heater
RCE 016

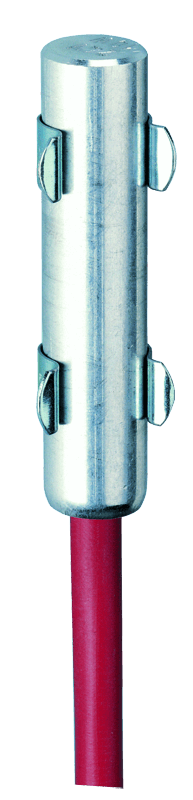

This compact cartridge heater for controlling the temperature of small casings and enclosures protects against condensation. The PTC heating element embedded in the aluminium heater body is temperature-limiting (self-regulating).
- Wide voltage range for electrical connection
- PTC heating element with dynamic response behavior
- Application: e.g. as heating for valve housings, gearboxes, servomotors
- Energy-saving contact heating
Overview technical data
| Device name | Cartridge heater |
| Device type | Convection heaters |
| Series | RCE 016 |
| Protection class | II |
| Protection type | IP54 |
| Heating element | PTC resistor (PTC) |
| Heater element | Aluminium |
| AC/DC | AC DC |
| Operating voltage | 120 V - 240 V |
| Operating voltage tolerance | 110 V - 265 V |
| Frequency | 50;60 Hz |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection type | Connection cable |
| Connection | 2x AWG 22 cable (silicone) |
| Installation position | variable |

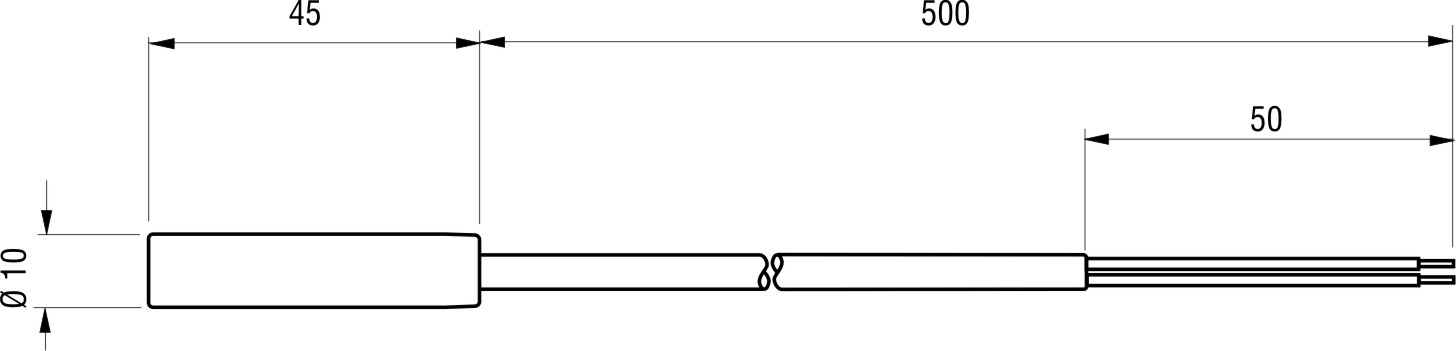

| Height | Ø10 mm |
| Width | Ø10 mm |
| Depth | 45 mm |
| Weight | 20 g |
| Item number accessories 1 | 09008.0-01 |
| Accessory 1 | Mounting clip |
| Note | Other voltages on request Heating capacity measured at +20°C (+68°F) ambient temperature When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 %. |
