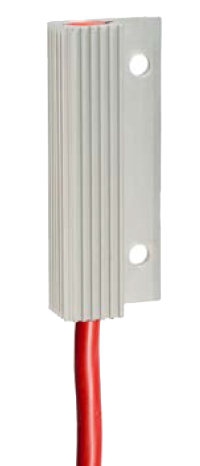

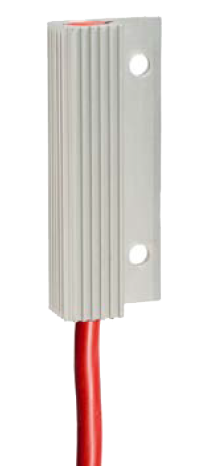

Flat enclosure heater
RC 016
Contact heater for use in small casings if the temperature must not fall below a minimum temperature and condensation is to be prevented. The heaters are designed for continuous operation.
- Wide voltage range for electrical connection
- PTC heating element with dynamic response behavior
- Compact dimensions, use: e.g. as a camera heater
- High heating capacity per volume
Overview technical data
| Device name | Flat enclosure heater |
| Device type | Convection heaters |
| Series | RC 016 |
| Protection class | II |
| Protection type | IP54 |
| Heating element | PTC resistor (PTC) |
| Heater element | Aluminium profile, anodised |
| AC/DC | AC DC |
| Operating voltage | 120 V - 240 V |
| Operating voltage tolerance | 110 V - 265 V |
| Frequency | 50;60 Hz |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection type | Connection cable |
| Mounting | Screw fixing |
| Installation position | variable |

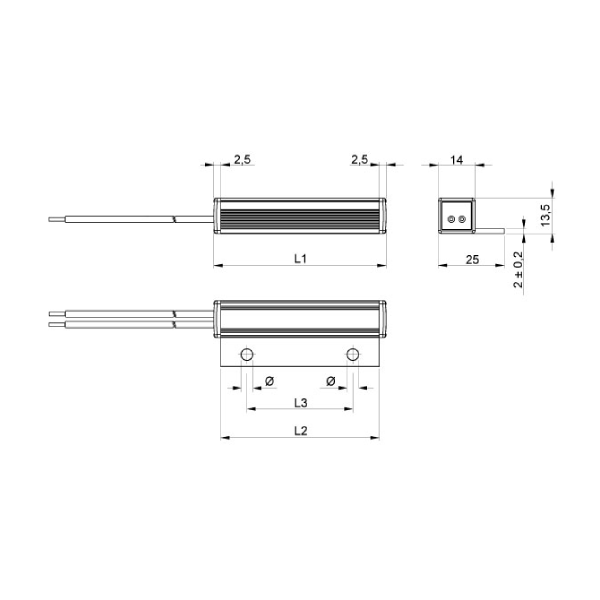

| Height | 12.5 mm |
| Width | 25 mm |
| Note | Other voltages on request Heating capacity measured at +20°C (+68°F) ambient temperature When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 %. |
