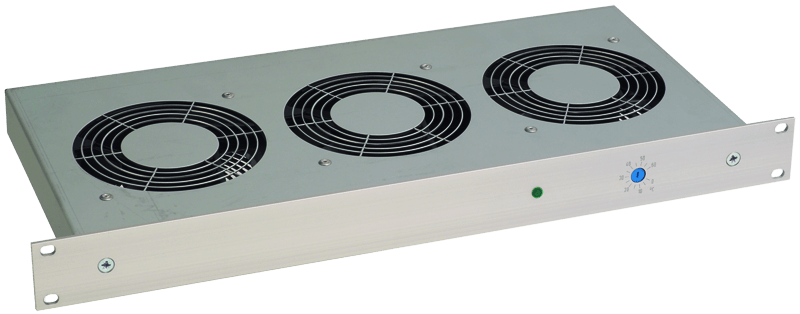

19 inch fan tray
LE 019
Compact, powerful fan tray for circulating the air in 19 inch electronic enclosures for targeted heat dissipation from assemblies. The self-convection of the cabinet surface is improved and the formation of heat pockets is prevented. Also available with integrated thermostat.
- High air flow
- Ball-bearing-mounted fans for high service life
- Supplied ready for connection
- Optical indicator
Overview technical data
| Device name | 19 inch fan tray |
| Device type | Accessories |
| Series | LE 019 |
| Protection class | I |
| Protection type | IP20 |
| Operating display | integrated in front panel |
| Casing | Steel sheet, galvanised |
| AC/DC | AC |
| Service life | >50000 h @ 25°C |
| Operating temperature | -10 °C - 60 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 70 °C |
| Connection | IEC power plug installed on the rear side |

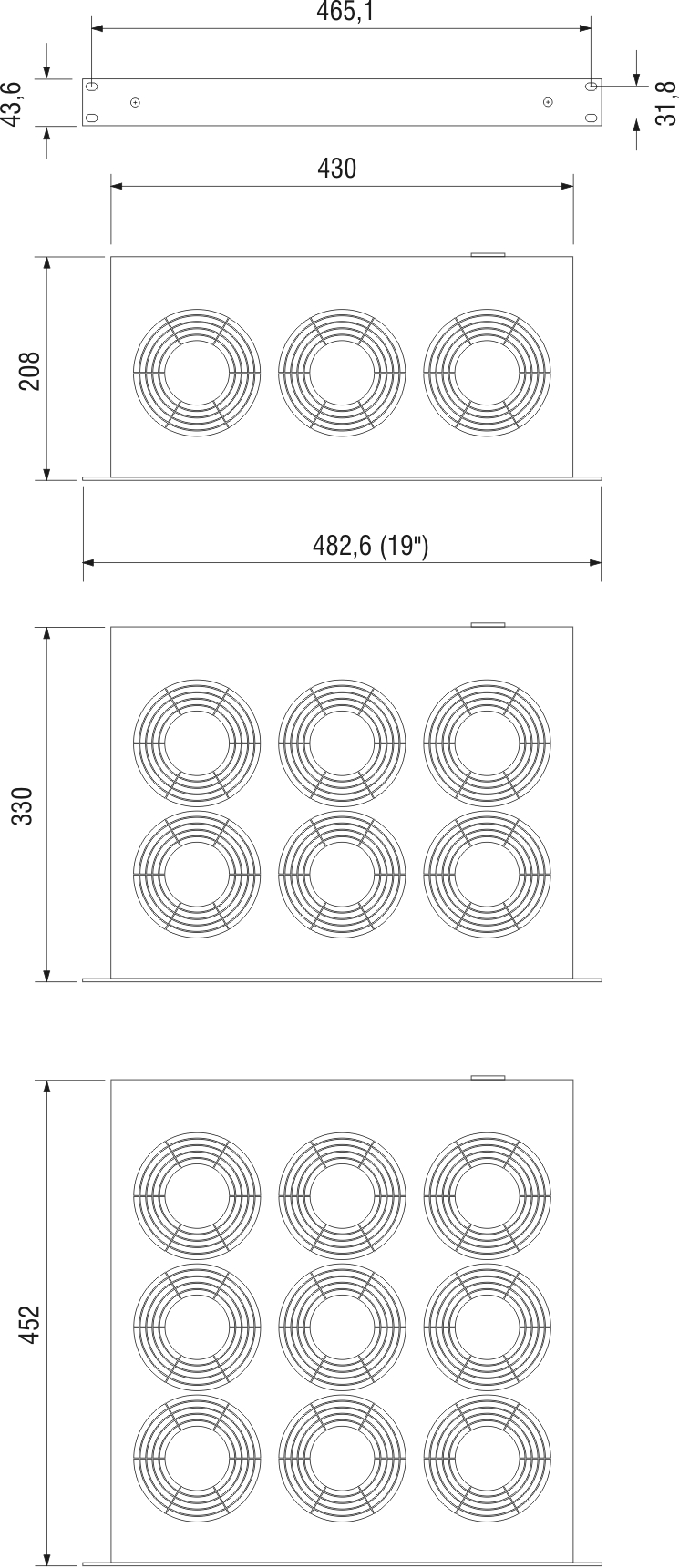

| Height | 43.6 mm |
| Width | 483 mm |
| Note | Application in 19" cabinets: For fan trays without integrated thermostat, we recommend the combination with our twin thermostat (Art. No. 01176.0-00) for temperature control and for the connection of a visual or acoustic signal transmitter as a warning function in the event of overheating in the event of a fan failure. For the fan tray with integrated thermostat, a thermostat (KTS 111 art. no. 11101.0-00) can also be switched as a warning contact for temperature monitoring, which - connected to a signal transmitter - reacts when the fans fail and gives a signal before overheating. |
