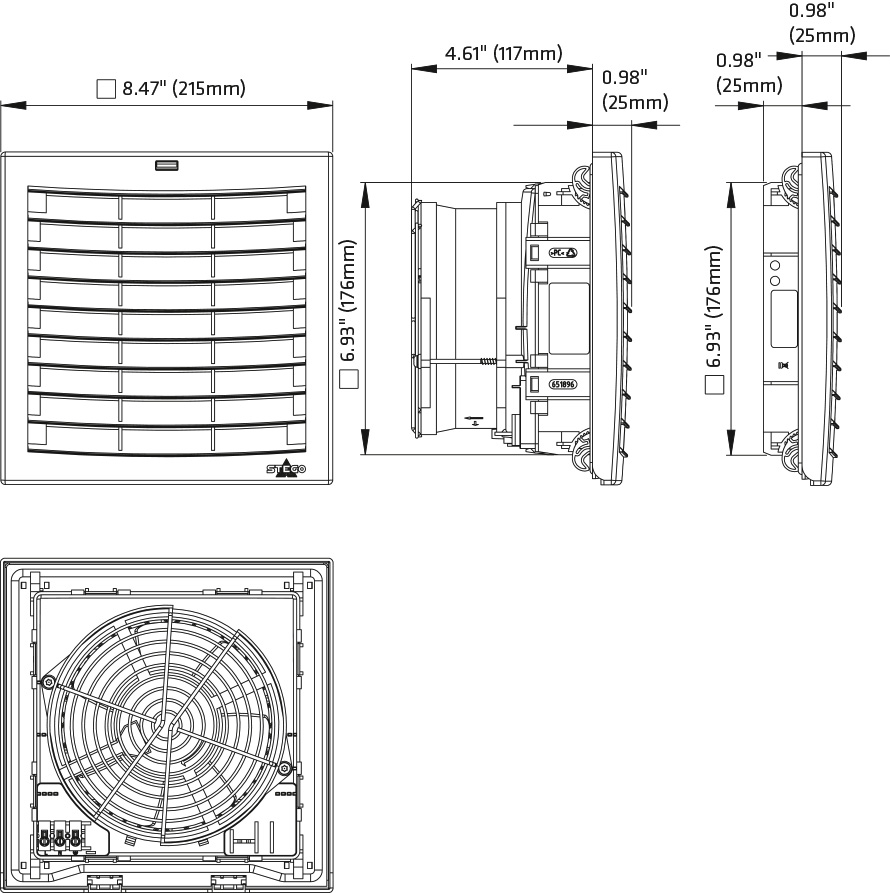

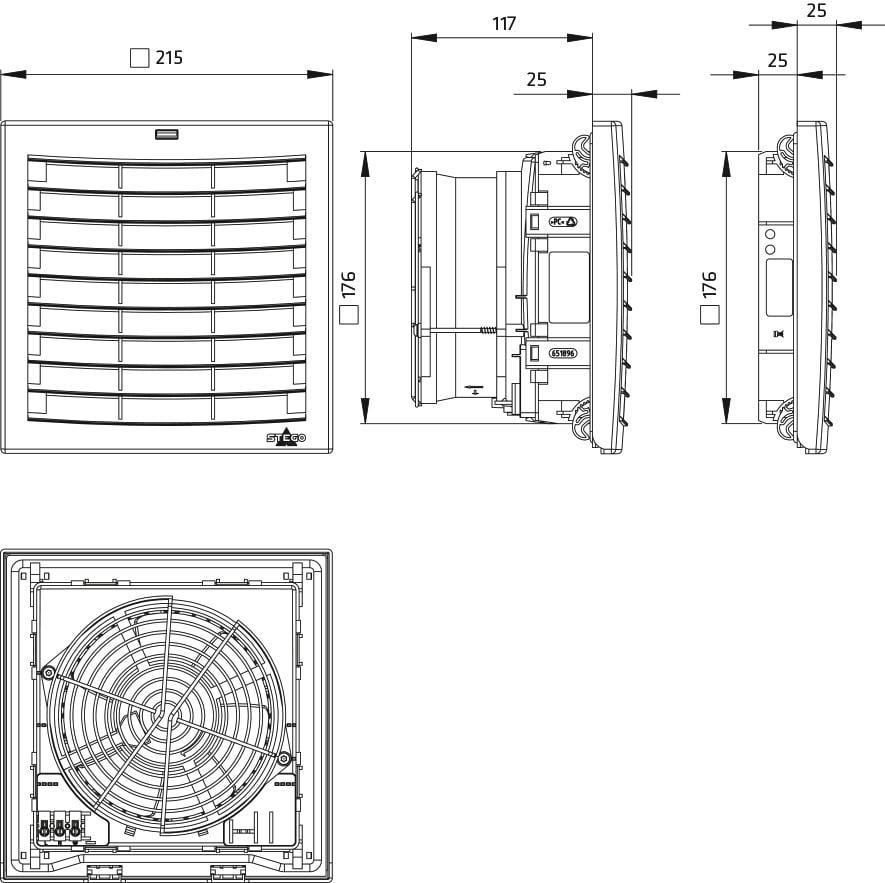

2016_10_fpo018_fpo118_ac_dc_176x176_drawing

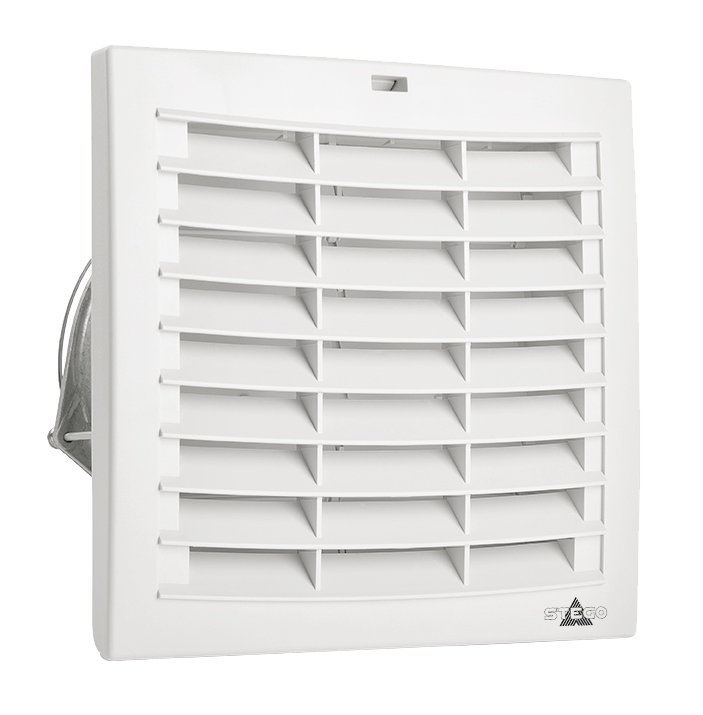

Filter fan Plus - size 3 (176 X 176 mm)

FPO 018

Filter fan FPO size 3 (176 x 176 mm) for air conditioning enclosures and casings. Configuration: FPO - airflow direction "in" (design: intaking). Optimum filter fan for enclosures: The Filter Fan Plus draws the heating air from the enclosure to the outside. Cooler outside air enters the enclosure via the inlet filter. The air flow protects the electrical components.

Filter fan with self-closing flaps as air outlet
Only one filter mat required (on the inlet filter)
Easy installation thanks to mounting frame with twist locks
Effective air circulation
Accessories: Hose-proof hood to increase the protection type to IP56

Overview technical data

Protection class	I

Product variants

Article number	Device type	Protection type	AC/DC	Operating voltage	Operating voltage tolerance	Corriente de entrada	Fusible de respaldo recomendado	Frequency	Capacidad de calefacción	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection	Height	Width	Depth	Weight	Note	Material hood	Filter material	Filter mat	Casing	Power consumption	Axial fan	Cooling airflow rate outlet filter	Cooling airflow rate blowing	Average emission sound pressure level	Service life	Torque	Installation depth	Mounting cut-out	Item number accessories 1	Item number accessories 2	Item number accessories 3	Accessory 1	Accessory 2	Accessory 3	Protection type UL
16401.0-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	2 A	4 A	50;60 Hz	20 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.
16401.9-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	2 A	4 A	50;60 Hz	20 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.
16402.0-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	2 A	4 A	50;60 Hz	30 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.
16402.9-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	2 A	4 A	50;60 Hz	30 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.
16403.0-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	4 A	6 A	50;60 Hz	40 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.
16403.9-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	4 A	6 A	50;60 Hz	40 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.
16404.0-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	4 A	6 A	50;60 Hz	50 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.
16404.9-00	Resistencias calefactoras de convección	IP20	AC;DC	120 V - 240 V	110 V - 265 V	4 A	6 A	50;60 Hz	50 W	-45 °C - 70 °C	≤90 % HR	≤90 % HR	-45 °C - 70 °C	3 x 0,5 mm² x 300 mm cable	83 mm	25 mm	76 mm	200 g	Potencia calorífica medida a una temperatura ambiente de +20 °C.

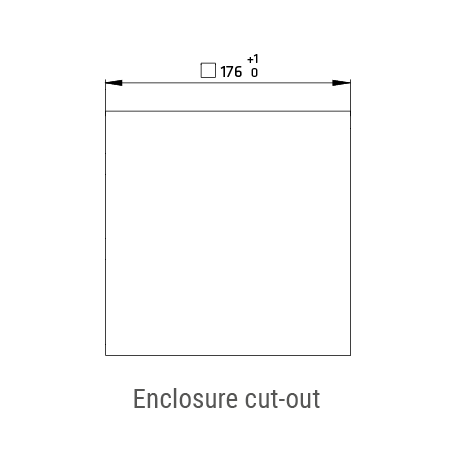

01882.0-00	Filter fan Plus (AC)	IP54	AC	230 V	208 V - 253 V	2 A	4 A	50 Hz	10 W	-25 °C - 50 °C	≤90 % RH	≤90 % RH	-40 °C - 70 °C	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.	215 mm	215 mm	142 mm	1600 g	Drilling pattern for screw fixing marked on mounting frame.	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	Flaps	Plastic to UL94 V-0, light grey	45 W	Fan body aluminium, rotor metal	137 m³/h	263 m³/h	56 dB(A)	>65000 h	0,8 Nmmax.	117 mm	176 x 176 mm	08635.0-00	11882.0-30	08672.0-00	Replacement filter mat FM 086	Exit filter FP0 118 with filter mat G3	Water jet protection hood FFH 086	NEMA Type 12
01882.9-00	Filter fan Plus (AC)	IP54	AC	115 V	104 V - 126 V	2 A	4 A	60 Hz	10 W	-25 °C - 70 °C	≤90 % RH	≤90 % RH	-40 °C - 70 °C	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.	215 mm	215 mm	142 mm	1600 g	Drilling pattern for screw fixing marked on mounting frame.	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	Flaps	Plastic to UL94 V-0, light grey	38 W	Fan body aluminium, rotor metal	166 m³/h	313 m³/h	60 dB(A)	>65000 h	0,8 Nmmax.	117 mm	176 x 176 mm	08635.0-00	11882.0-30	08672.0-00	Replacement filter mat FM 086	Exit filter FP0 118 with filter mat G3	Water jet protection hood FFH 086	NEMA Type 12
