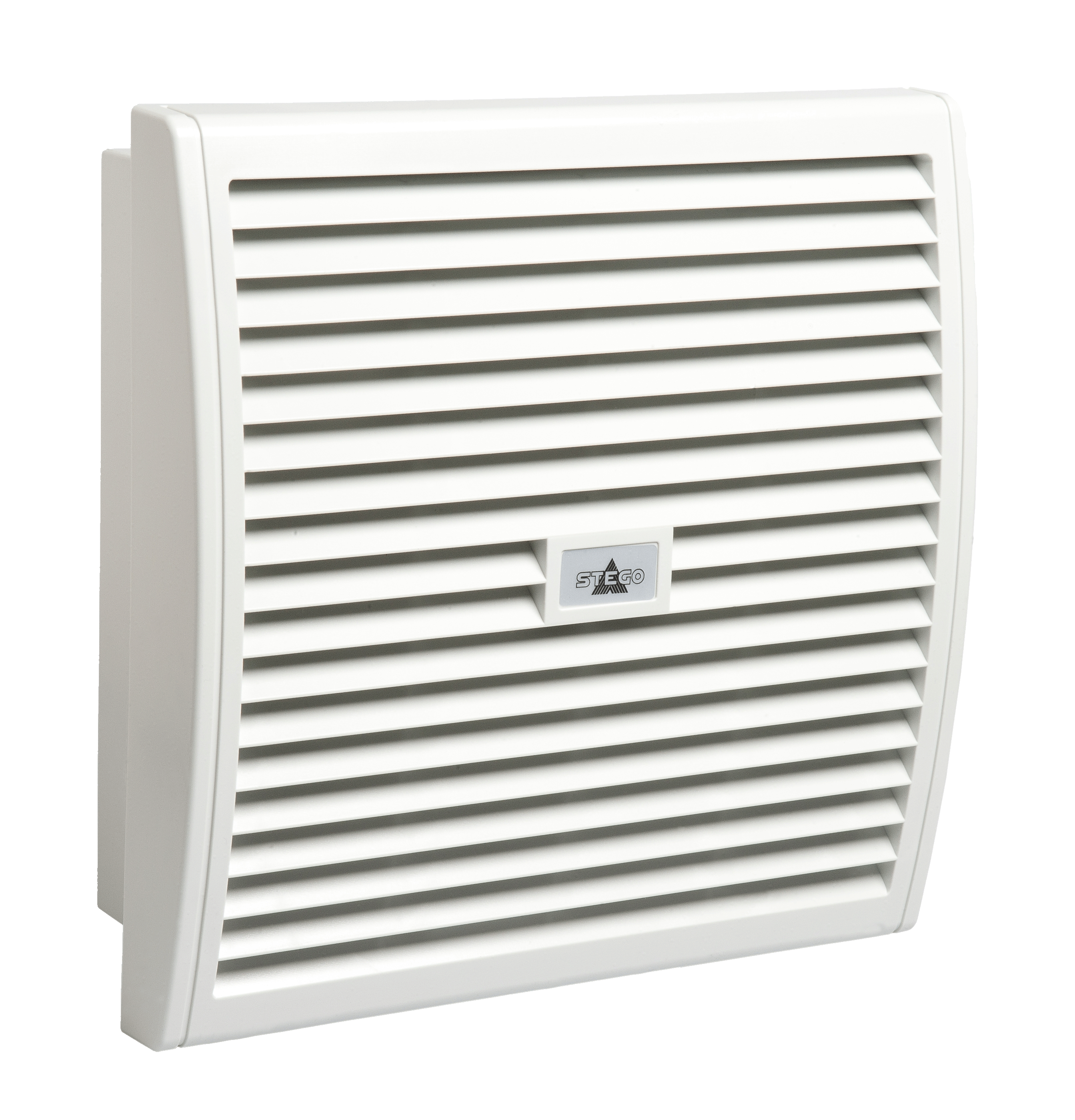

Filter fan - size 3

FF 018

Size 3 filter fan for optimum ventilation of enclosures and casings with electrical/electronic installations. The supply of filtered, cold ambient air and the removal of heated internal air reduces the internal temperature. The resulting air flow prevents the formation of hot pockets and protects the components from overheating. With four integrated, quiet in operation axial fans, this filter fan achieves a particularly high, uniform air circulation and thus offers high operational reliability with a very low installation depth. This filter fan series is intended for indoor use. The plastic used for the hood material is highly UV light resistant.

Quiet in operation, easy to maintain
Low installation depth
high air through-flow
Uniform air circulation
High operational reliability
UV light resistant

Overview technical data

Device type	Filter fan
Protection class	I
Protection type	IP54
Material hood	Plastic to UL94 V-0, light grey
Filter material	Plastic fibre with progressive structure
Filter mat	G4
Casing	UL94 V-0 plastic, light grey
AC/DC	AC
Axial fan	Fan body aluminium, rotor plastic
Service life	>50000 h
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Drill hole spacing	188 mm
Height	226 mm
Width	209 mm
Depth	136 mm
Mounting cut-out	176 x 176 mm
Item number accessories 1	08602.0-00
Item number accessories 2	11802.0-00
Accessory 1	Replacement filter mat FM 086 (3 pcs.)
Accessory 2	Exit filter EF 118

Product variants

Article number	Device name	Device type	Series	Follow-up article	Protection class	Protection type	Material hood	Filter material	Filter mat	Casing	AC/DC	Operating voltage minimum	Operating voltage tolerance	Frequency	Power consumption	Axial fan	Cooling airflow rate outlet filter	Cooling airflow rate blowing	Average emission sound pressure level	Service life	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Torque	Connection	Drill hole spacing	Height	Width	Depth	Installation depth	Weight	Mounting cut-out	Item number accessories 1	Item number accessories 2	Accessory 1	Accessory 2	Datasheet
01802.0-00	Filter fan - size 3	Filter fan	FF 018	01871.0-30	I	IP54	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G4	UL94 V-0 plastic, light grey	AC	230 V	208 V - 253 V	50 Hz	15 W	Fan body aluminium, rotor plastic	68 m³/h	102 m³/h	39 dB(A)	>50000 h	-10 °C - 70 °C	≤90 % RH	≤90 % RH	-40 °C - 70 °C		2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps	188 mm	226 mm	209 mm	136 mm	86 mm	1300 g	176 x 176 mm	08602.0-00	11802.0-00	Replacement filter mat FM 086 (3 pcs.)	Exit filter EF 118	FF018-01802.0-00-Datasheet-EN.pdf
01802.0-01	Filter fan - size 3	Filter fan	FF 018	01872.9-30	I	IP54	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G4	UL94 V-0 plastic, light grey	AC	120 V	108 V - 132 V	60 Hz	15 W	Fan body aluminium, rotor plastic	78 m³/h	117 m³/h	39 dB(A)	>50000 h	-10 °C - 70 °C	≤90 % RH	≤90 % RH	-40 °C - 70 °C		2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps	188 mm	226 mm	209 mm	136 mm	86 mm	1300 g	176 x 176 mm	08602.0-00	11802.0-00	Replacement filter mat FM 086 (3 pcs.)	Exit filter EF 118	FF018-01802.0-01-Datasheet-EN.pdf
01804.0-00	Filter fan - size 3	Filter fan	FF 018	01871.0-30	I	IP54	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G4	UL94 V-0 plastic, light grey	AC	230 V	208 V - 253 V	50 Hz	45 W	Fan body aluminium, rotor plastic	125 m³/h	200 m³/h	52 dB(A)	>50000 h	-25 °C - 50 °C	≤90 % RH	≤90 % RH	-25 °C - 50 °C	0.8 Nmmax.	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.	188 mm	226 mm	209 mm	136 mm	95 mm	1700 g	176 x 176 mm	08602.0-00	11802.0-00	Replacement filter mat FM 086 (3 pcs.)	Exit filter EF 118	FF018-01804.0-00-Datasheet-EN.pdf
01804.0-01	Filter fan - size 3	Filter fan	FF 018	01872.9-30	I	IP54	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G4	UL94 V-0 plastic, light grey	AC	120 V	108 V - 132 V	60 Hz	39 W	Fan body aluminium, rotor plastic	143 m³/h	230 m³/h	52 dB(A)	>50000 h	-25 °C - 60 °C	≤90 % RH	≤90 % RH	-25 °C - 60 °C	0.8 Nmmax.	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.	188 mm	226 mm	209 mm	136 mm	95 mm	1700 g	176 x 176 mm	08602.0-00	11802.0-00	Replacement filter mat FM 086 (3 pcs.)	Exit filter EF 118	FF018-01804.0-01-Datasheet-EN.pdf
