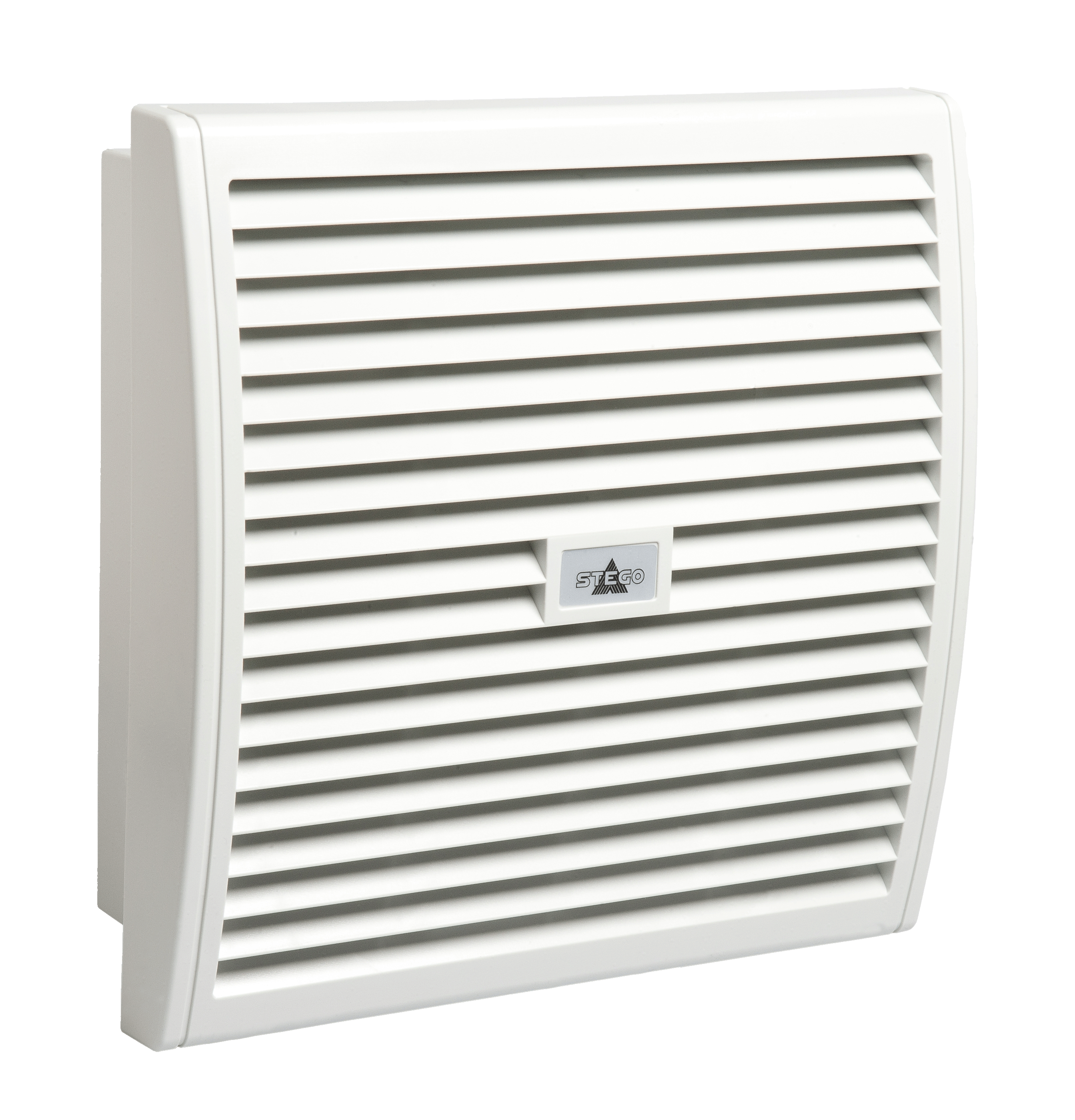

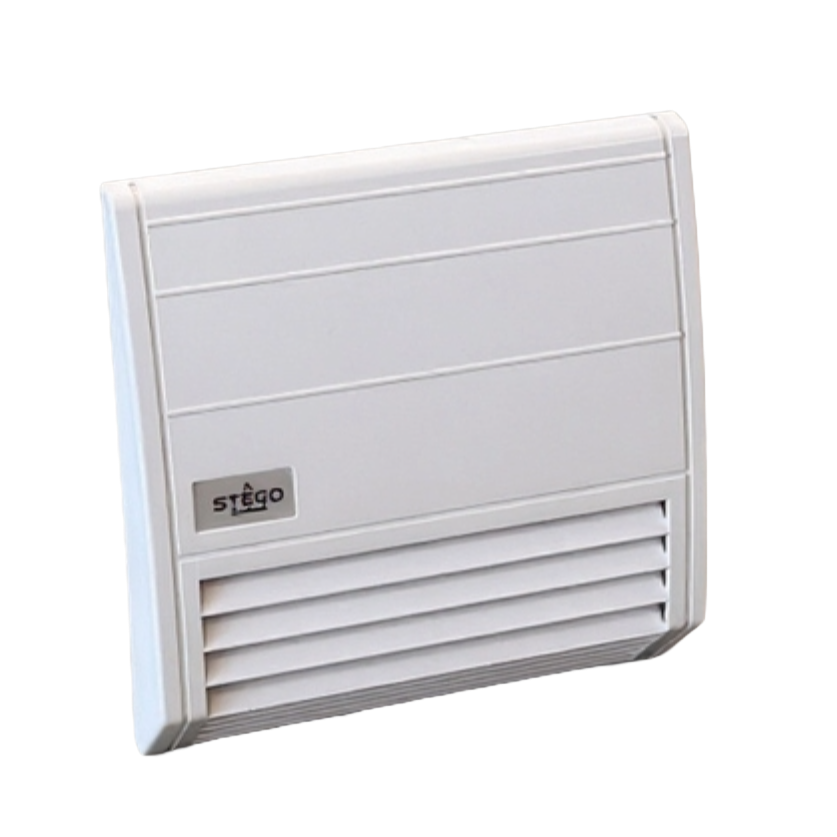

Filter fan - size 3

FF 018

Size 3 filter fan for optimum ventilation of enclosures and casings with electrical/electronic installations. The supply of filtered, cold ambient air and the removal of heated internal air reduces the internal temperature. The resulting air flow prevents the formation of hot pockets and protects the components from overheating. With four integrated, quiet in operation axial fans, this filter fan achieves a particularly high, uniform air circulation and thus offers high operational reliability with a very low installation depth. This filter fan series is intended for indoor use. The plastic used for the hood material is highly UV light resistant.

Quiet in operation, easy to maintain
Low installation depth
high air through-flow
Uniform air circulation
High operational reliability
UV light resistant

Overview technical data

Device type	Filter fan
Protection class	I
Protection type	IP54
Material hood	Plastic to UL94 V-0, light grey
Filter material	Plastic fibre with progressive structure
Filter mat	G4
Casing	UL94 V-0 plastic, light grey
AC/DC	AC
Axial fan	Fan body aluminium, rotor plastic
Service life	>50000 h
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH

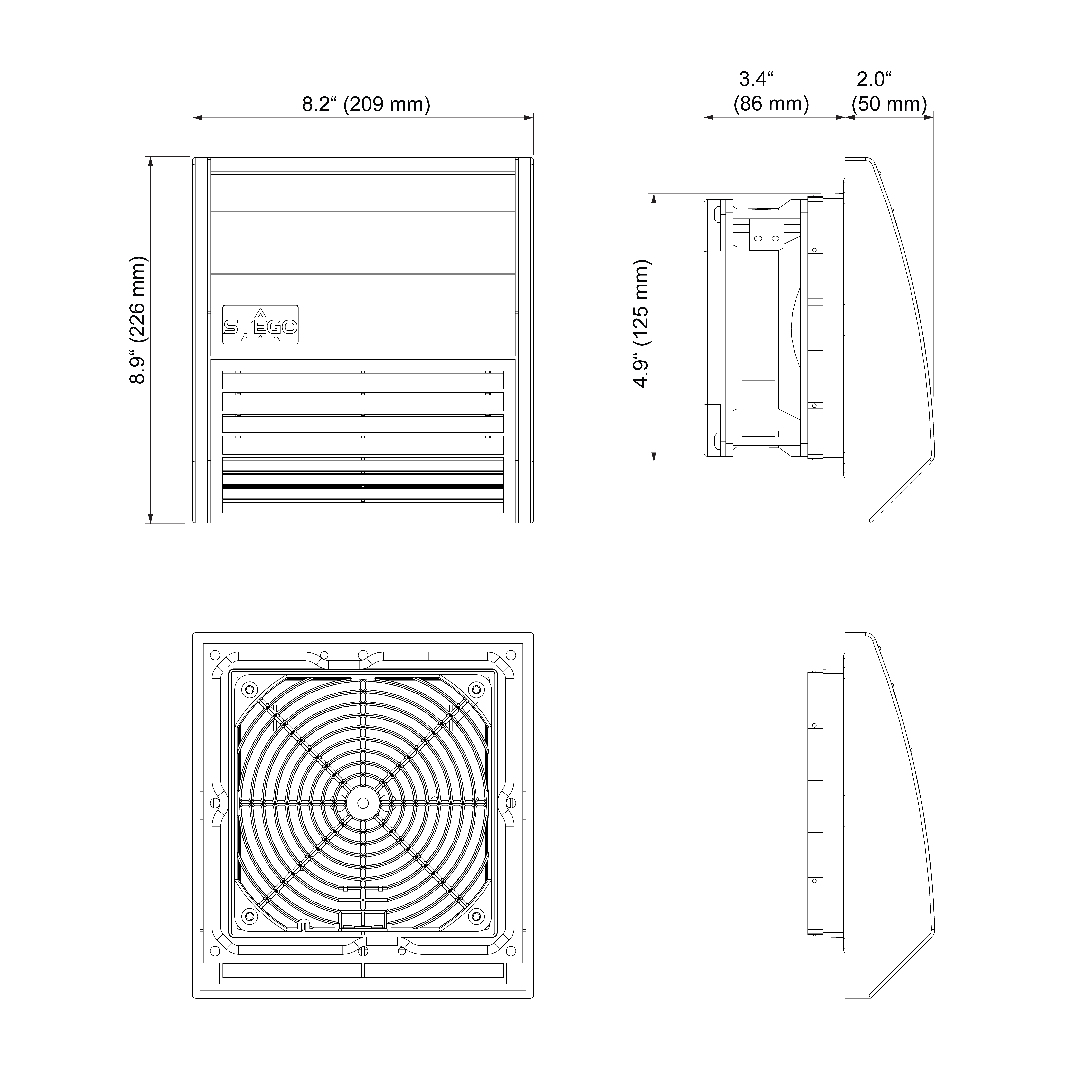

Drill hole spacing	7.4 in
Height	8.9 in
Width	8.2 in
Depth	5.4 in

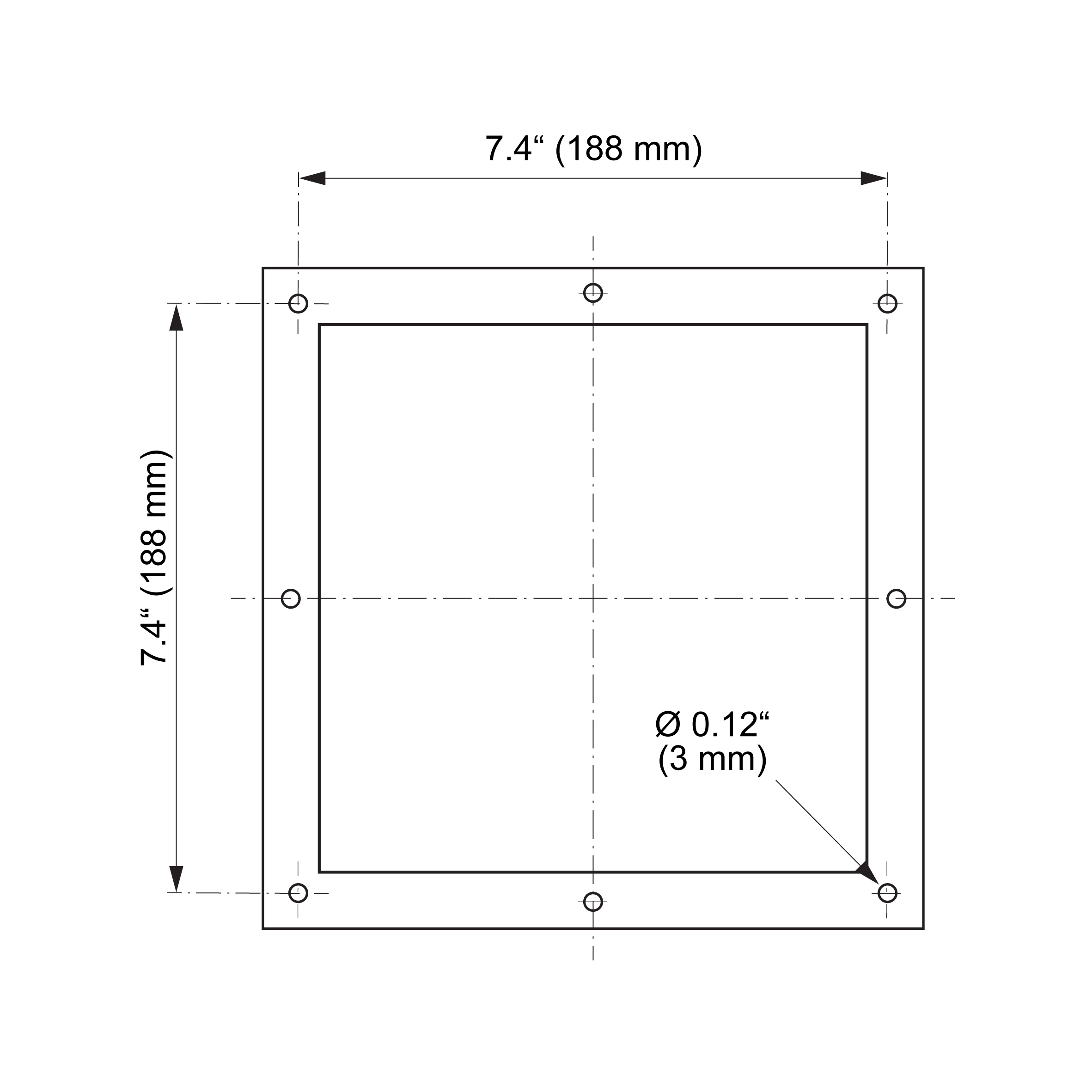

Mounting cut-out	176 x 176 mm
Item number accessories 1	08602.0-00
Item number accessories 2	11802.0-00
Accessory 1	Replacement filter mat FM 086 (3 pcs.)
Accessory 2	Exit filter EF 118

Product variants

Article number	Follow-up article	Minimum operating voltage	Operating voltage tolerance	Frequency	Power consumption	Cooling airflow rate outlet filter	Cooling airflow rate blowing	Average emission sound pressure level	Operating temperature	Storage temperature	Torque	Connection	Installation depth	Weight	Datasheet
01802.0-00	01871.0-30	230 V	208 V - 253 V	50 Hz	15 W	40 cfm	60 cfm	39 dB(A)	14 °F - 158 °F	-40 °F - 158 °F		2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps	3.4 in	45.9 oz	FF018-01802.0-00-Datasheet-EN-US.pdf
01802.0-01	01872.9-30	120 V	108 V - 132 V	60 Hz	15 W	45.9 cfm	68.9 cfm	39 dB(A)	14 °F - 158 °F	-40 °F - 158 °F		2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps	3.4 in	45.9 oz	FF018-01802.0-01-Datasheet-EN-US.pdf
01804.0-00	01871.0-30	230 V	208 V - 253 V	50 Hz	45 W	73.6 cfm	117.7 cfm	52 dB(A)	-13 °F - 122 °F	-13 °F - 122 °F	0.8 Nmmax.	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.	3.7 in	60 oz	FF018-01804.0-00-Datasheet-EN-US.pdf
01804.0-01	01872.9-30	120 V	108 V - 132 V	60 Hz	39 W	84.2 cfm	135.4 cfm	52 dB(A)	-13 °F - 140 °F	-13 °F - 140 °F	0.8 Nmmax.	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.	3.7 in	60 oz	FF018-01804.0-01-Datasheet-EN-US.pdf
