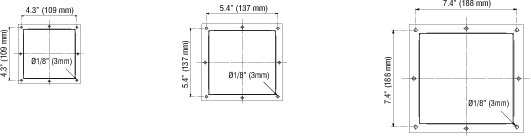

2013_FF018_14to69cfm_Drawing_Frames_Inches

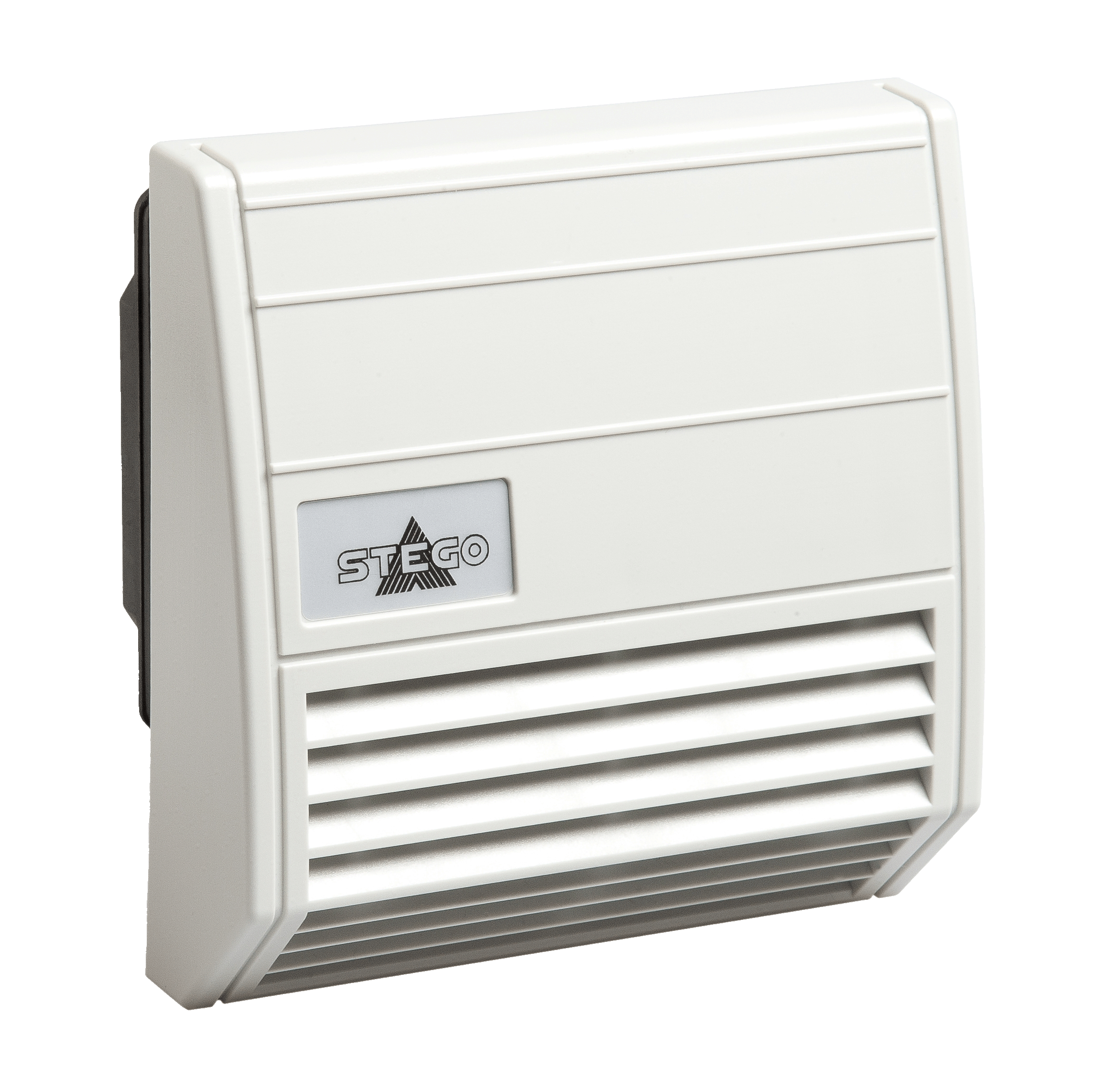

Filter fan - size 1

FF 018

Size 1 filter fan for optimum ventilation of enclosures and casings with electrical/electronic installations. The internal temperature is lowered by supplying filtered, cooler outside air and discharging heated inside air. The resulting air flow prevents the formation of hot pockets and protects the components from overheating. This filter fan series is intended for indoor use. The plastic used for the hood material is highly UV light resistant.

Quiet in operation
Low installation depth
Functional design
Time-saving installation and maintenance
UV light resistant

Overview technical data

Device type	Filter fan
Protection class	I
Protection type	IP54
Material hood	Plastic to UL94 V-0, light grey
Filter material	Plastic fibre with progressive structure
Filter mat	G4
Casing	UL94 V-0 plastic, light grey
AC/DC	AC
Power consumption	13 W
Axial fan	Fan body aluminium, rotor plastic
Average emission sound pressure level	31 dB(A)
Service life	>50000 h
Operating temperature	-10 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °C - 70 °C
Connection	2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps

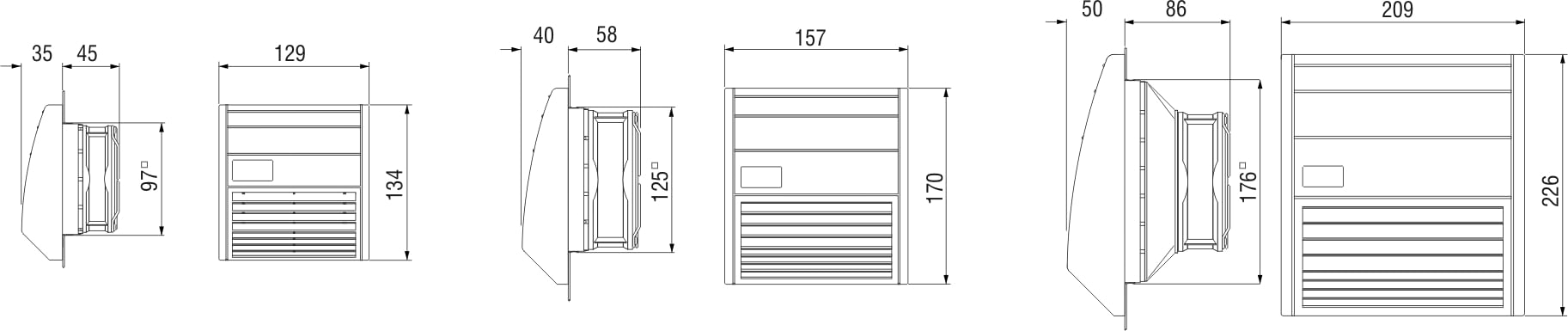

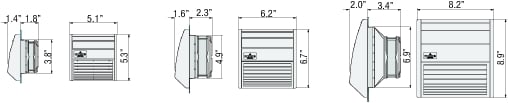

Drill hole spacing	109 mm
Height	134 mm
Width	129 mm
Depth	80 mm
Installation depth	45 mm
Weight	600 g

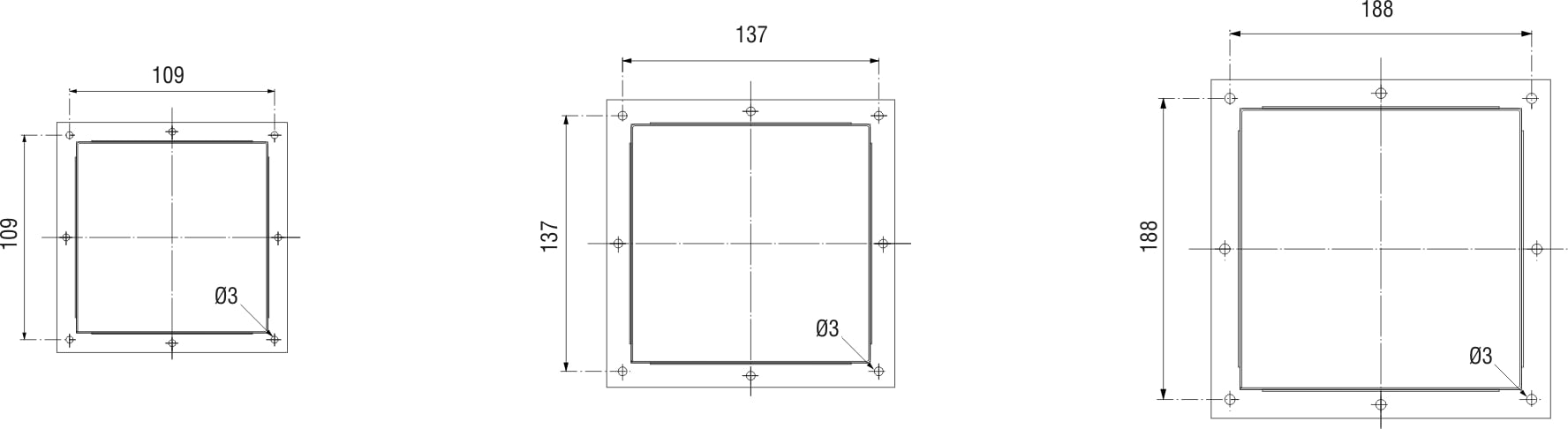

Mounting cut-out	97 x 97 mm
Item number accessories 1	08600.0-00
Item number accessories 2	11800.0-00
Accessory 1	Replacement filter mat FM 086 (3 pcs.)
Accessory 2	Exit filter EF 118

Product variants

Article number	Device name	Device type	Series	Follow-up article	Protection class	Protection type	Material hood	Filter material	Filter mat	Casing	AC/DC	Operating voltage minimum	Operating voltage tolerance	Frequency	Power consumption	Axial fan	Cooling airflow rate outlet filter	Cooling airflow rate blowing	Average emission sound pressure level	Service life	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection	Drill hole spacing	Height	Width	Depth	Installation depth	Weight	Mounting cut-out	Item number accessories 1	Item number accessories 2	Accessory 1	Accessory 2	Request	CAD	Datasheet
01800.0-00	Filter fan - size 1	Filter fan	FF 018	01870.0-30	I	IP54	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G4	UL94 V-0 plastic, light grey	AC	230 V	208 V - 253 V	50 Hz	13 W	Fan body aluminium, rotor plastic	16 m³/h	21 m³/h	31 dB(A)	>50000 h	-10 °C - 70 °C	≤90 % RH	≤90 % RH	-40 °C - 70 °C	2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps	109 mm	134 mm	129 mm	80 mm	45 mm	600 g	97 x 97 mm	08600.0-00	11800.0-00	Replacement filter mat FM 086 (3 pcs.)	Exit filter EF 118			FF018-01800.0-00-Datasheet-EN.pdf
01800.0-01	Filter fan - size 1	Filter fan	FF 018	01870.9-30	I	IP54	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G4	UL94 V-0 plastic, light grey	AC	120 V	108 V - 132 V	60 Hz	13 W	Fan body aluminium, rotor plastic	18 m³/h	24 m³/h	31 dB(A)	>50000 h	-10 °C - 70 °C	≤90 % RH	≤90 % RH	-40 °C - 70 °C	2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps	109 mm	134 mm	129 mm	80 mm	45 mm	600 g	97 x 97 mm	08600.0-00	11800.0-00	Replacement filter mat FM 086 (3 pcs.)	Exit filter EF 118			FF018-01800.0-01-Datasheet-EN.pdf
