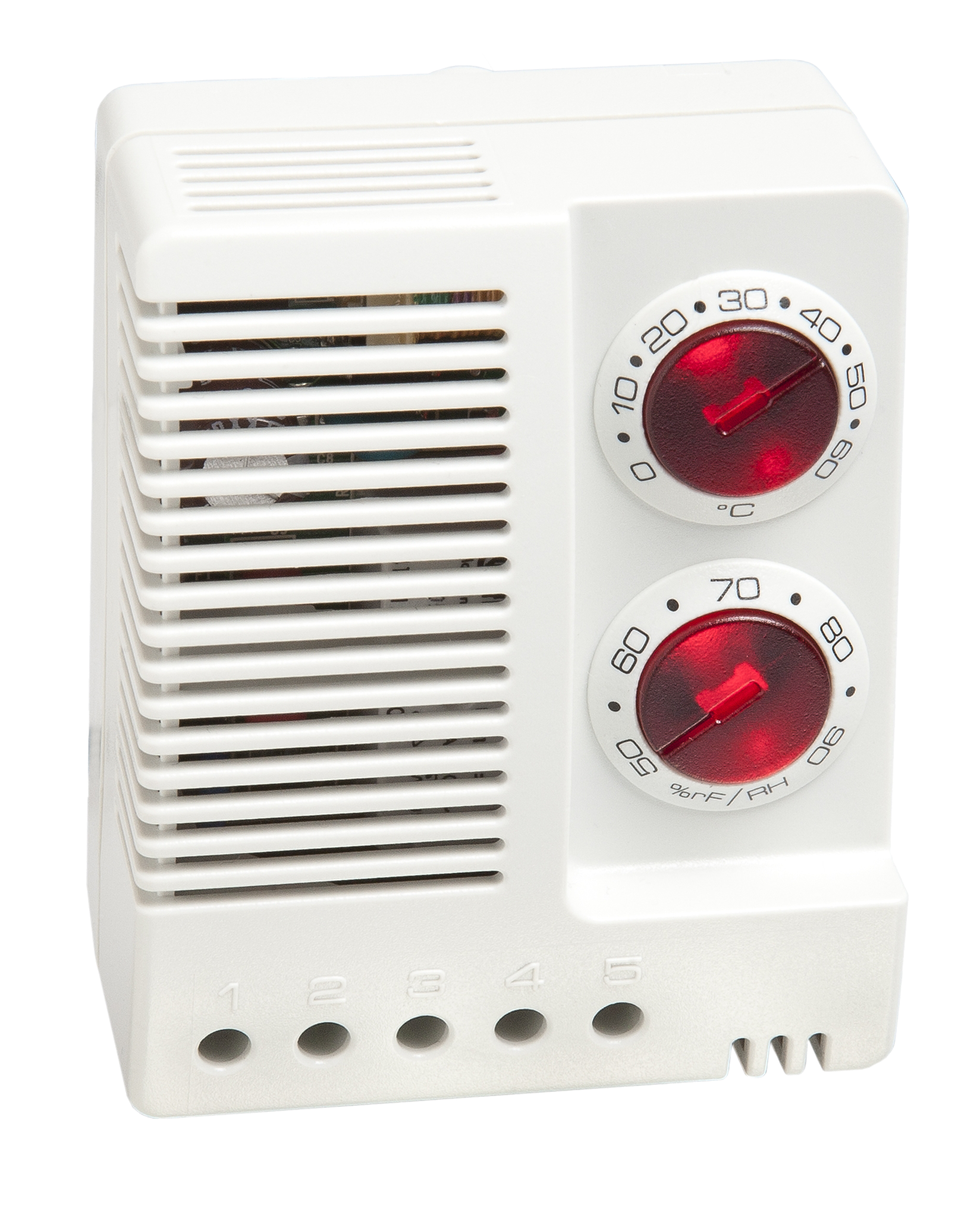

Electronic hygrotherm
ETF 012

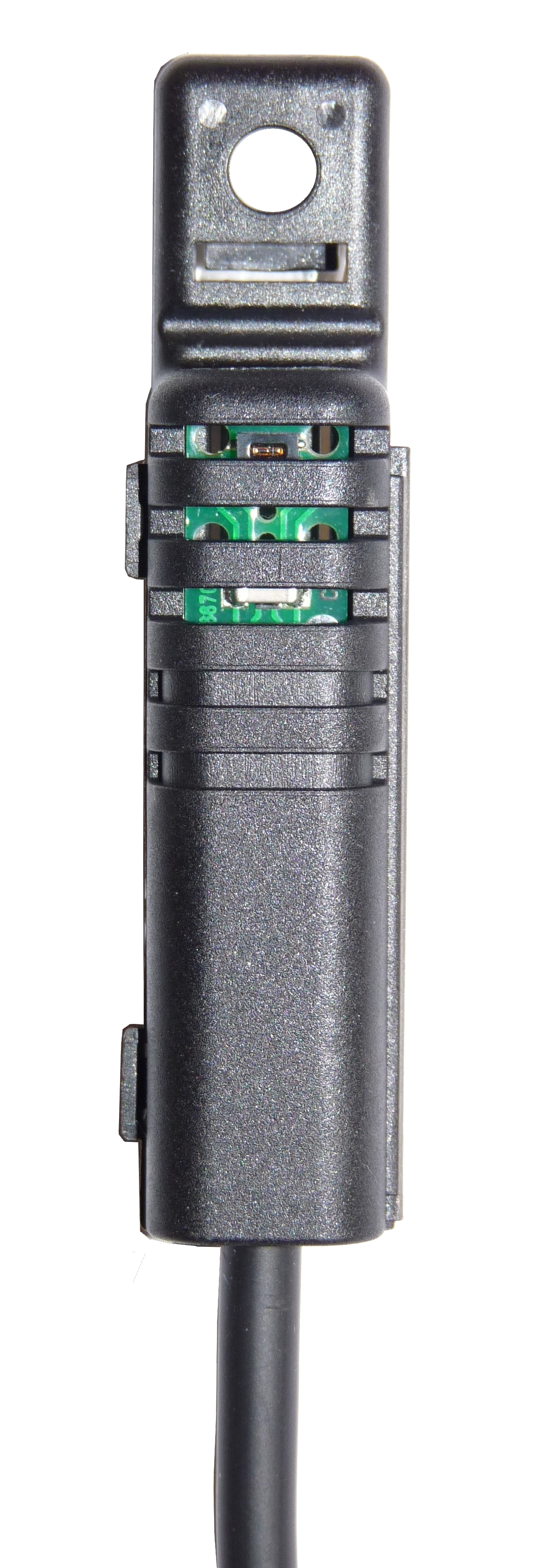

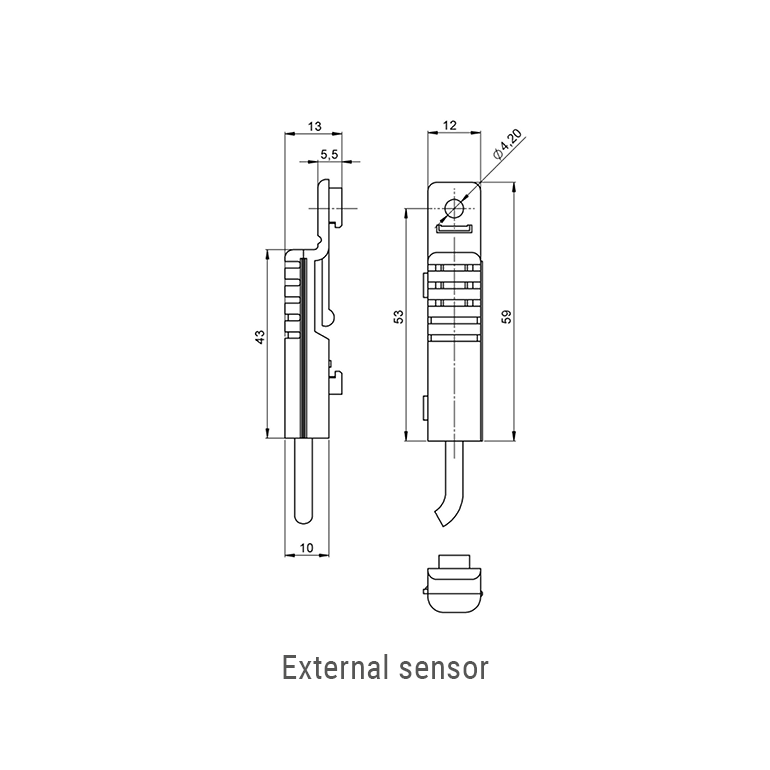

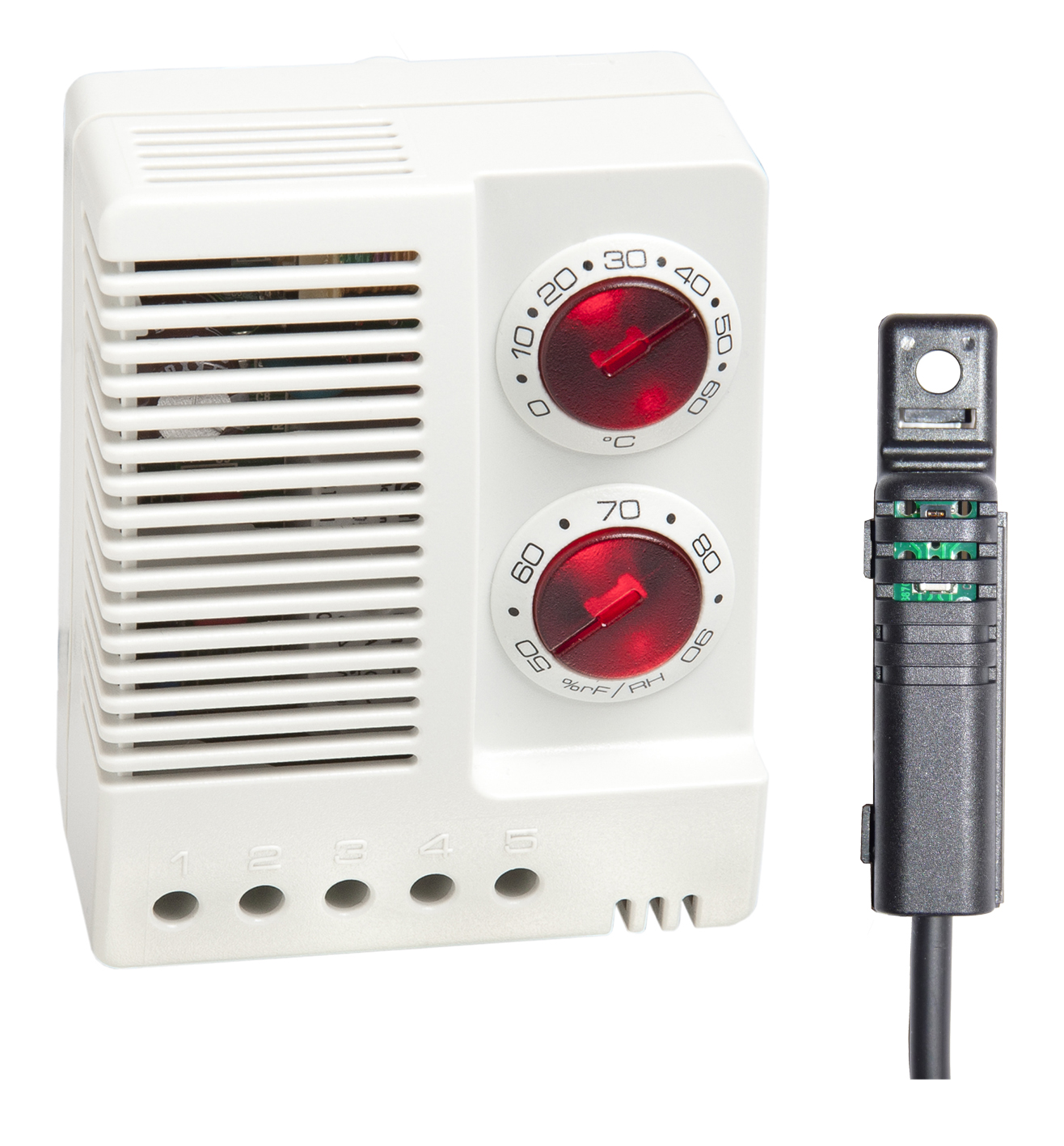

The electronic hygrotherm simultaneously monitors temperature and air humidity in enclosures and cabinets. Condensation is avoided by switching the heating and fans as required. In the design with an external sensor, this can be placed anywhere in the enclosure, enabling precise measurement.
- Adjustable temperature and air humidity
- Wide-range voltage
- High switching capacity
- Operating temperature down to -40 °C
- Optical status display
Overview technical data
| Device name | Electronic hygrotherm |
| Device type | Hygrostat |
| Series | ETF 012 |
| Contact type | Relay |
| Protection type | IP20 |
| Operating display | LED |
| Casing | Plastic to UL94 V-0, light grey |
| Inrush current maximum | 30 A |
| Inrush current duration | 10 s |
| Power consumption | 1 W |
| Switching capacity | AC 240 V, 10 (1.6) A DC 30 W, DC 60 V, 0.6 A |
| Switching current ohmic | 10 A |
| Reference voltage ohmic maximum | 240 VAC |
| Reference voltage 2 ohmic maximum | 120 VAC |
| Switching current inductive | 1.6 A |
| Reference voltage inductive maximum | 240 VAC |
| Reference voltage 2 maximum | 120 VAC |
| Switching current dc ohmic | 0.6 A |
| Reference voltage dc ohmic maximum | 60 VDC |
| Reaction time | 5 s |
| Service life | VDE: >15000 cycles UL: >30000 cycles |
| setting_range_2 | 50 % RH - 90 % RH |
| Switching differential | 2 K |
| Switching differential tolerance | ± 1 K |
| Switching differential 2 | 4 % RH |
| Switching differential 2 tolerance | ± 1 % RH |
| Operating temperature | -40 °C - 60 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 60 °C |
| Torque | 0.5 Nmmax. |

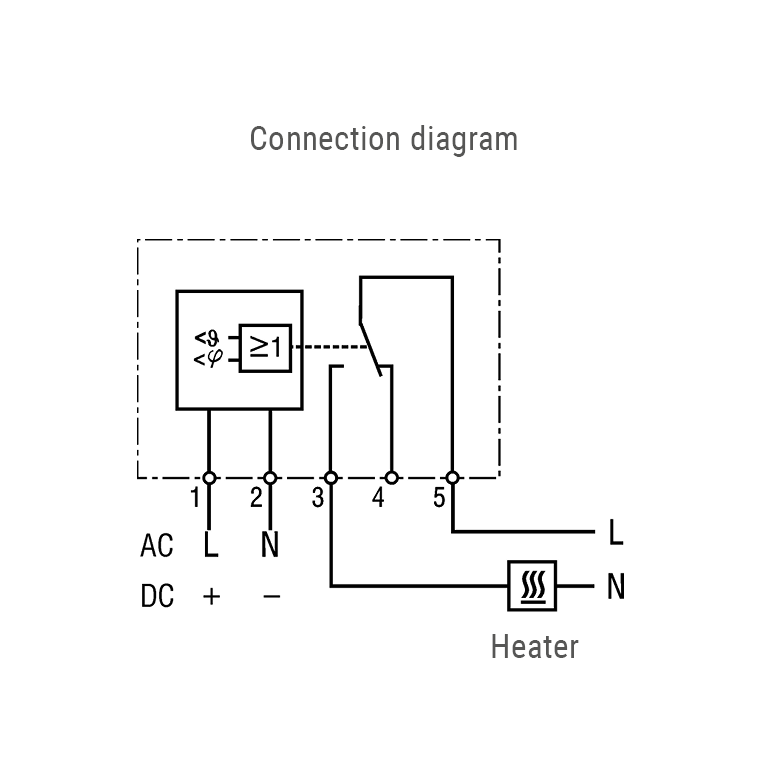

| Connection | 5-pole clamp, torque 0.5 Nm max.: Rigid wire/stranded wire with 2.5 mm² wire end ferrule (AWG 14) |
| Design | Changer |
| Mounting | Clip for 35 mm DIN rail, EN 60715 |

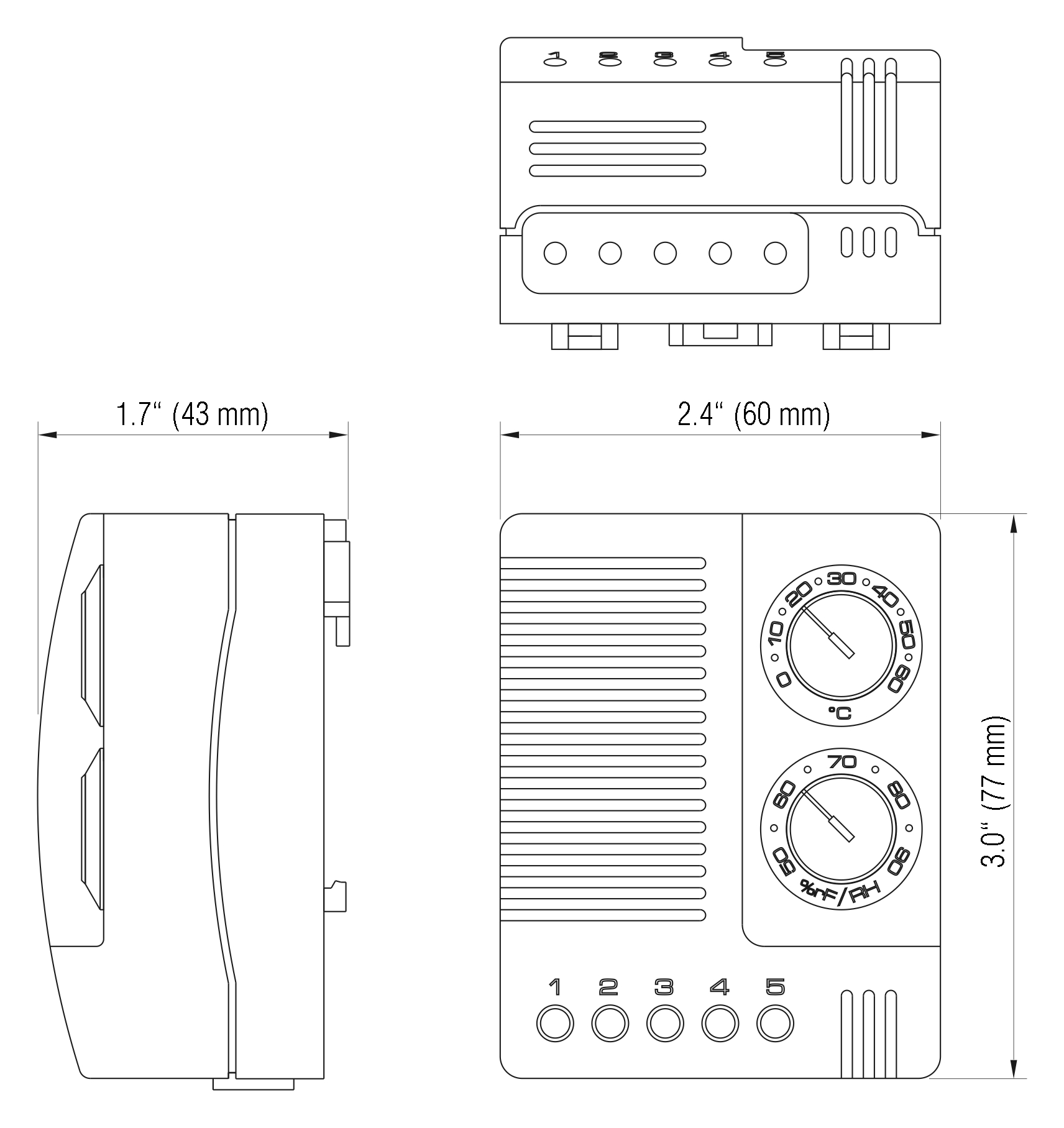

| Height | 77 mm |
| Width | 60 mm |
| Depth | 43 mm |
| Weight | 200 g |
| Note | Switching resistive load (switching inductive load). Wire end ferrules must be used for connections with stranded wires. |
