Pressure compensation device
DA 084
In tightly sealed enclosures and casings, internal or external heat influences cause temperature fluctuations due to different pressure ratios. Pressure compensation devices compensate for pressure changes while maintaining a high protection type and preventing the ingress of dust and air humidity. The pressure compensation devices are suitable for use in enclosures and casings in accordance with DIN EN 62208.
- NBR sealing gasket
- Protection type IP55
Overview technical data
| Device name | Pressure compensation device |
| Device type | Pressure compensation element |
| Series | DA 084 |
| Article number | 08400.0-02-9002 |
| Protection type | IP55 |
| Material sealing | NBR |
| Material hood | Plastic, light grey |
| Casing | Plastic, light grey |
| Operating temperature | -45 °C - 70 °C |
| Storage temperature | -45 °C - 70 °C |
| Torque | 5 Nmmax. |
| Connection | Torque 5 Nm |

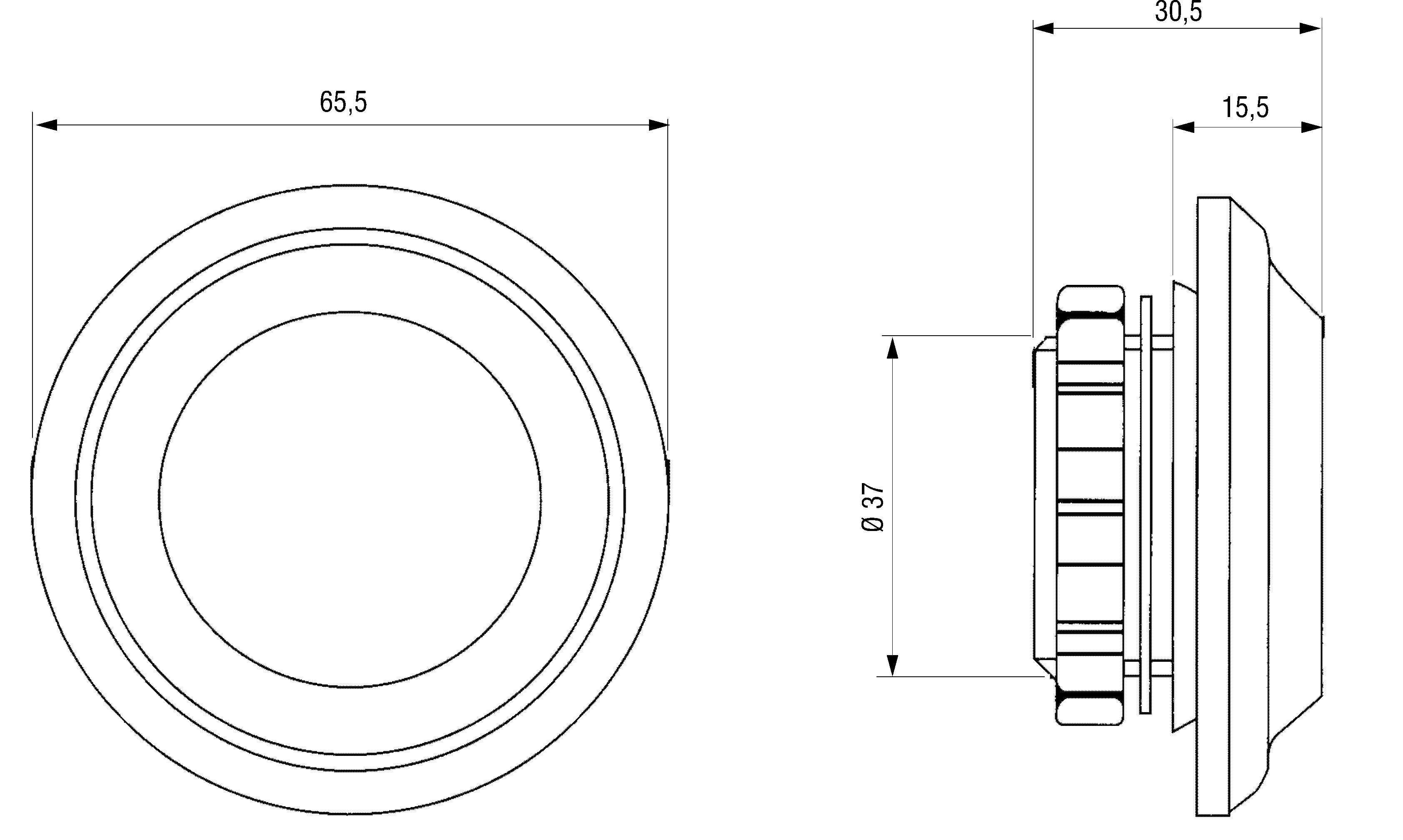

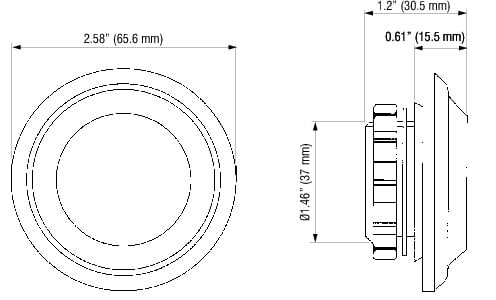

| Cut-out dimension | Ø40,5 +0,5 mm |
| Mounting | M40 x 1.5 |
| Height | Ø65,5 mm |
| Width | Ø65,5 mm |
| Depth | 30.5 mm |
| Installation depth | 15 mm |
| Weight | 31 g |
| Note | Packaging unit: 2 pieces If the DA 084 is not installed vertically, the protection type is reduced to IP54. |
