Enclosure heater with fan

CS 030

The high-performance fan heater is designed for uniform temperature control of enclosures and enclosures to protect against harmful condensation. Designs with integrated thermostat are available. Heating technology: PTC for dynamic response behavior. Touch-safe for users thanks to touch-safe plastic casing.

Versions with integrated thermostat
Version for screw fixing to the base of the enclosure
Versions with tamper-proof thermostat
User protection: Toch-safe sheathing

Overview technical data

Device type	Fan heater; Integrated control; Touchsafe
Temperature monitoring	Overheating protection in the event of fan failure with automatic reset
Protection class	II
Protection type	IP20
Heating element	PTC resistor (PTC)
Casing	Plastic to UL94 V-0, black
AC/DC	AC
Frequency	50;60 Hz

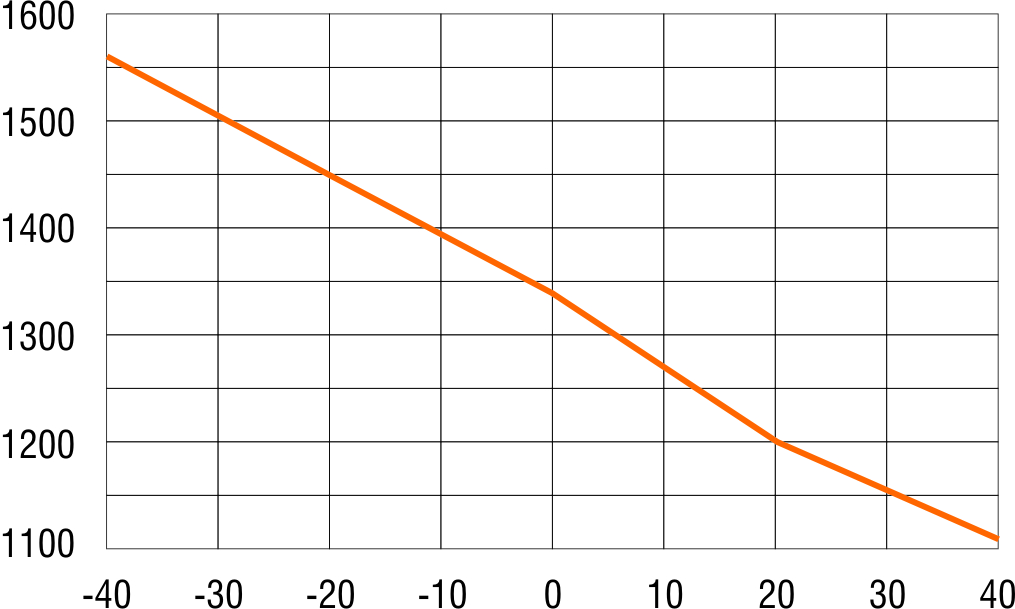

Heating capacity	1200 W
Axial fan	160 m³/h
Service life	>50000 h
Switching differential tolerance
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C
Connection type	Connection terminal
Torque	0,8 Nm max.

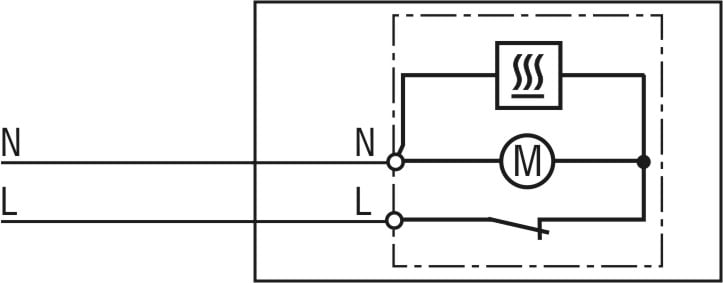

Connection	2-pole max. 2.5 mm² with strain relief
Mounting	Screw fixing
Installation position	Airflow direction "in" vertical / connection at the bottom

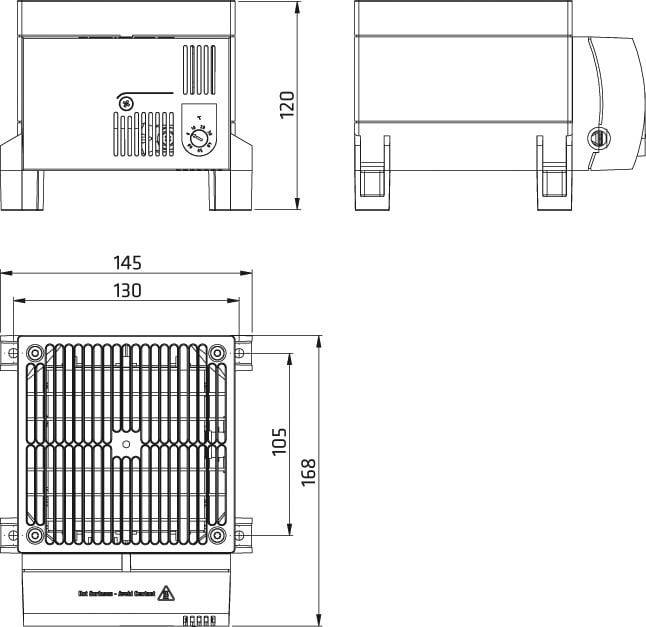

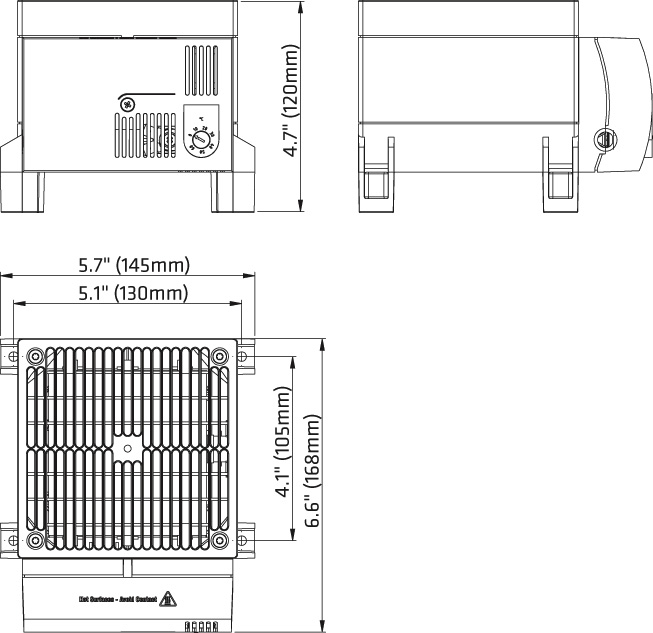

Height	120 mm
Width	145 mm
Depth	168 mm
Weight	1200 g

Product variants

Article number	Operating voltage	Inrush current	Setting range	Switching differential	Design	Note	Operating voltage tolerance	Recommended backup fuse
03060.0-00	230 V	13 A	0 °C - 60 °C	7 K	Fan heater with thermostat	Tolerance ±4 K;Heating capacity at +20°C (+68°F) ambient temperature; setting range of switching temperature differential 7K (+4K tolerance); to UL 508A, NITW file on request.	208 V - 253 V	10 A
03060.0-01	230 V	13 A			Fan heater without thermostat	Heating capacity at +20°C (+68°F) ambient temperature; setting range of switching temperature differential 7K (+4K tolerance); to UL 508A, NITW file on request.	208 V - 253 V	10 A
03060.9-00	120 V	16 A	32 °F - 140 °F	7 K	Fan heater with thermostat	Tolerance ±4 K;Heating capacity at +20°C (+68°F) ambient temperature; setting range of switching temperature differential 7K (+4K tolerance); to UL 508A, NITW file on request.	108 V - 132 V	16 A
03060.9-01	120 V	16 A			Fan heater without thermostat	Heating capacity at +20°C (+68°F) ambient temperature; setting range of switching temperature differential 7K (+4K tolerance); to UL 508A, NITW file on request.	108 V - 132 V	16 A
