Flat enclosure heater

CP 061

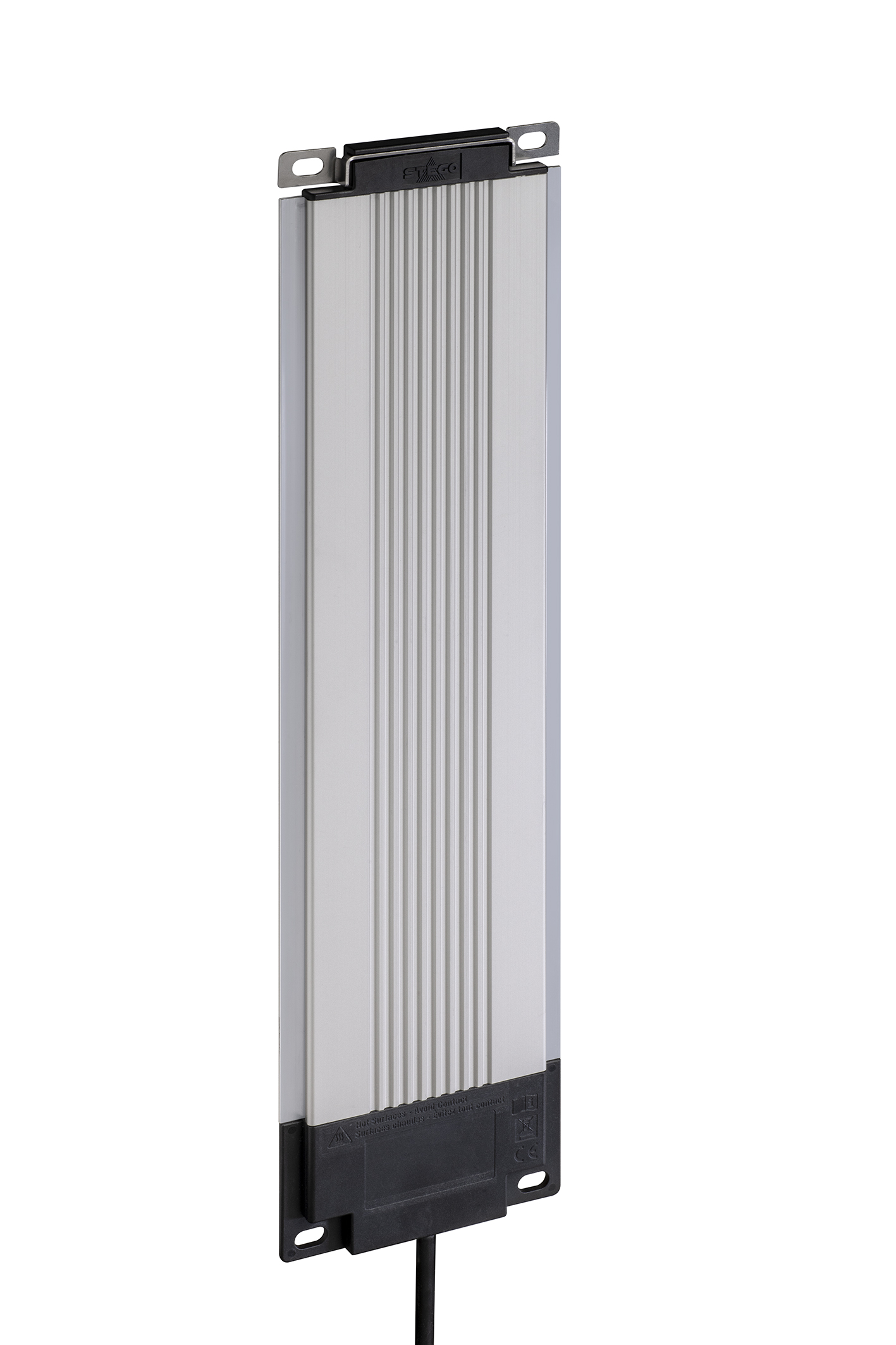

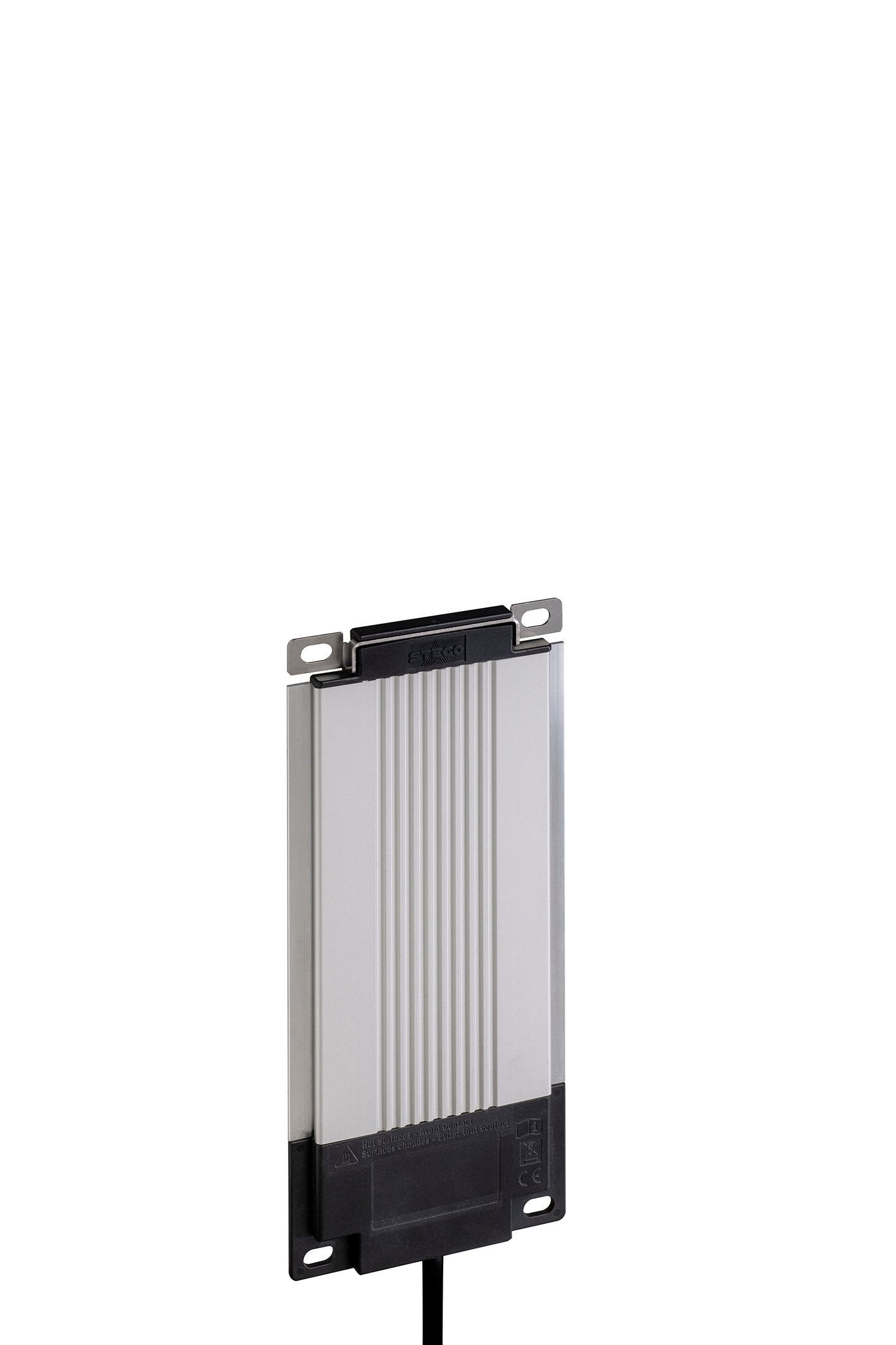

Flat heater: This flat enclosure heater can be used in enclosures and casings. The resistance heater is suitable for convection and contact heat dissipation. The space-saving, flat form factor makes it ideal for use in installation spaces with a high component density.

Space-saving thanks to compact, flat construction
Screw fixing for simple and stable installation
Integrated temperature safety cut-out
Linear expansion compensation; strain relief

Overview technical data

Device type	Convection heaters
Temperature monitoring	Overheating protection in the event of failure with automatic reset
Protection class	I
Protection type	IP30
Connection case	Plastic to UL94 V-0, black
Heating element	Resistance heater
Heater element	Aluminum profile
AC/DC	AC
Frequency	50;60 Hz
Surface temperature	< + 150 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °C - 85 °C

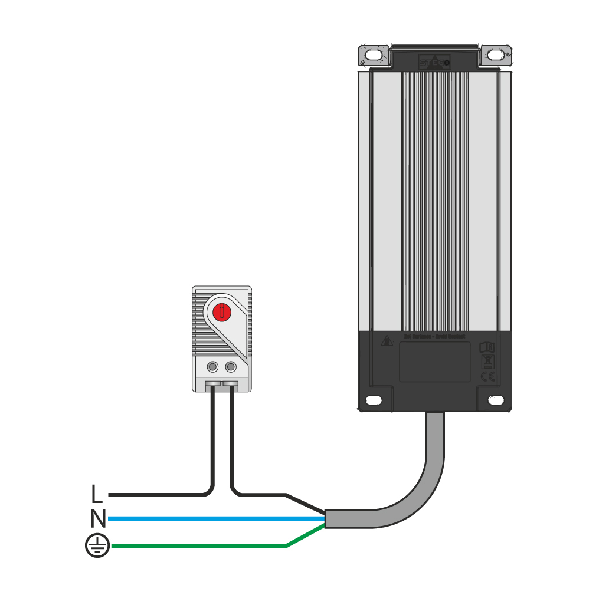

Connection type	Connection cable
Connection	Halogen-free silicone cable 3 x 0.75 mm²(3 x AWG 19), 1 m
Mounting	Screw fixing
Installation position	horizontal \| airflow direction "in" vertical / connection at the bottom

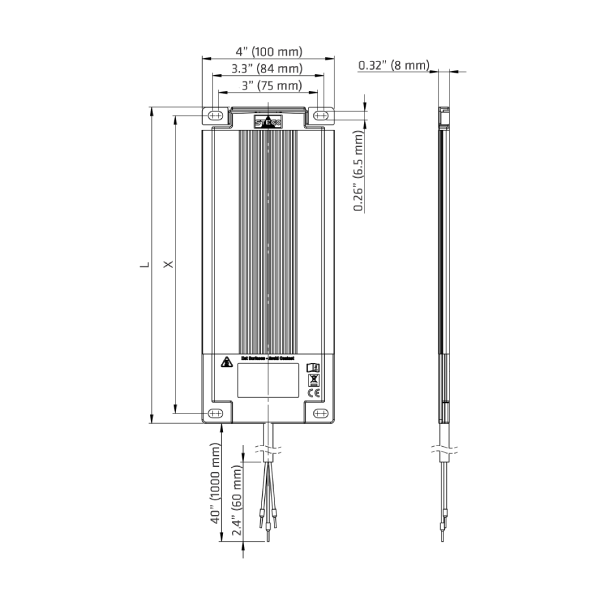

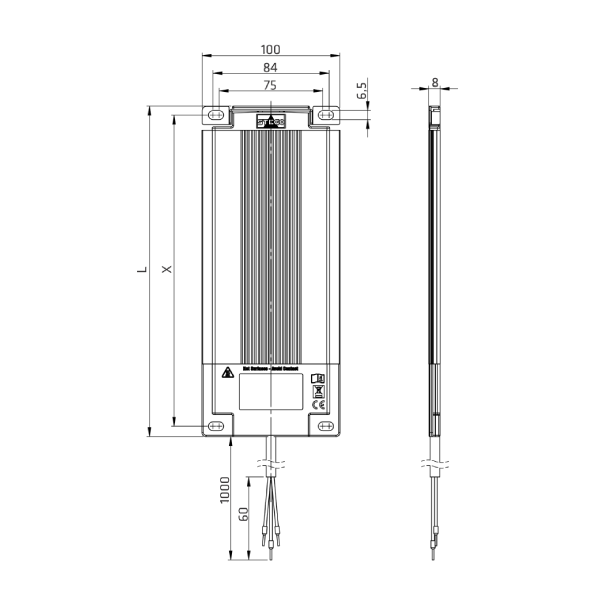

Height	8 mm
Width	100 mm

Product variants

Article number	Operating voltage minimum	Operating voltage tolerance	Inrush current maximum	Heating capacity minimum	Operating temperature	Drill hole spacing	Depth	Weight	Datasheet
06100.0-00	230 V	208 V - 253 V	0.3 A	50 W	-40 °C - 60 °C	225 mm	239 mm	400 g	CP061-06100.0-00-Datasheet-EN.pdf
06100.9-00	120 V	108 V - 132 V	0.5 A	50 W	-40 °C - 40 °C	225 mm	239 mm	400 g	CP061-06100.9-00-Datasheet-EN.pdf
06101.0-00	230 V	208 V - 253 V	0.5 A	100 W	-40 °C - 60 °C	400 mm	414 mm	700 g	CP061-06101.0-00-Datasheet-EN.pdf
06101.9-00	120 V	108 V - 132 V	0.9 A	100 W	-40 °C - 40 °C	400 mm	414 mm	700 g	CP061-06101.9-00-Datasheet-EN.pdf
