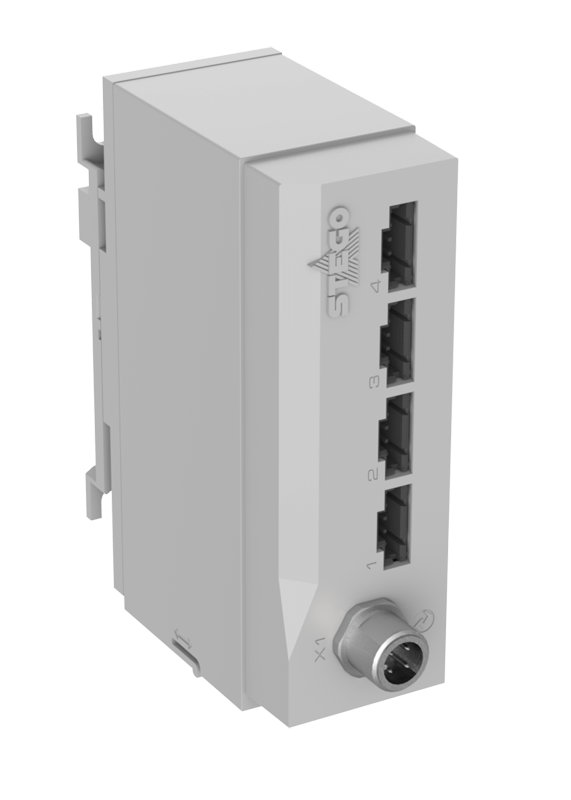

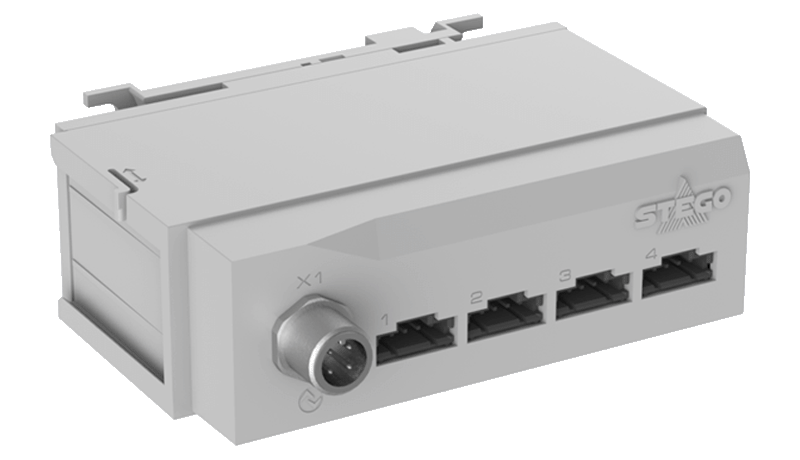

Sensor hub

SHC 071

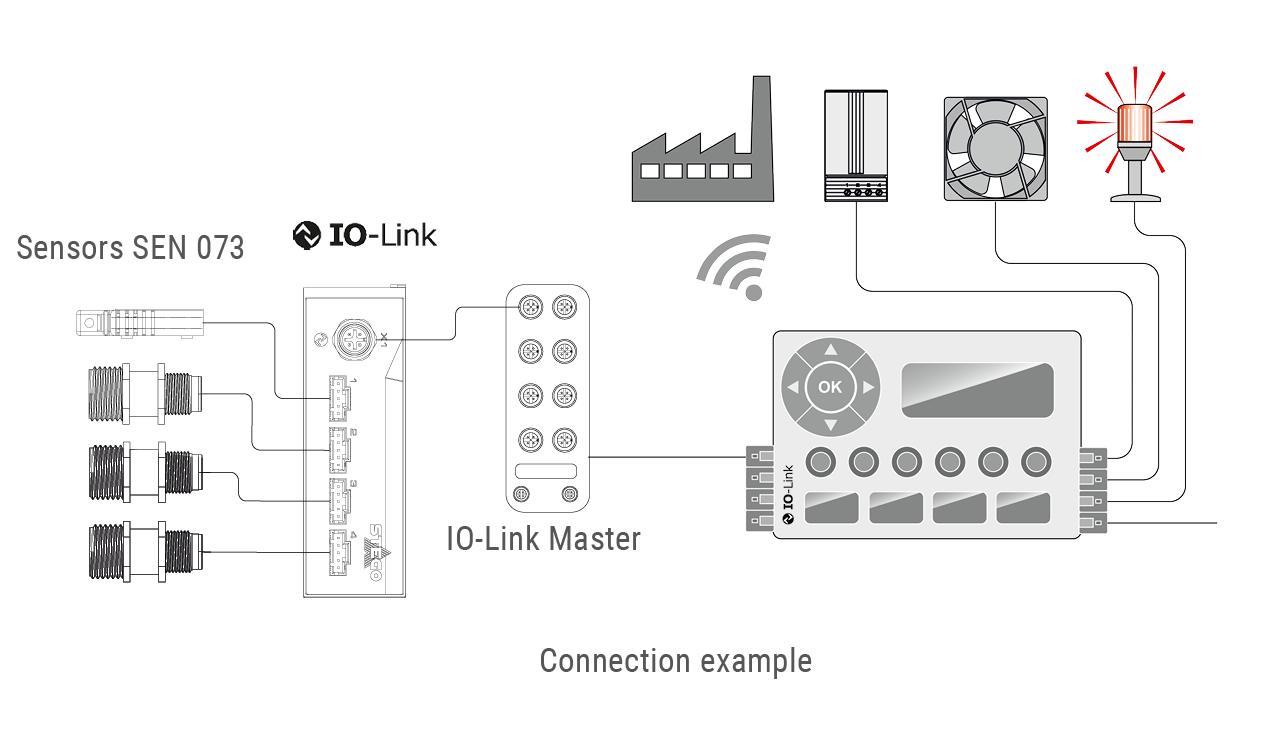

This interface adds IO-Link functionality to digital STEGO sensors. Measurement data from up to four external, non-IO-Link-capable sensors is transmitted to an IO-Link master. The sensor hub thus quadruples the capacity of a port on the IO-Link master. That's how easy it is to turn a digital STEGO sensor into an IO-Link sensor.

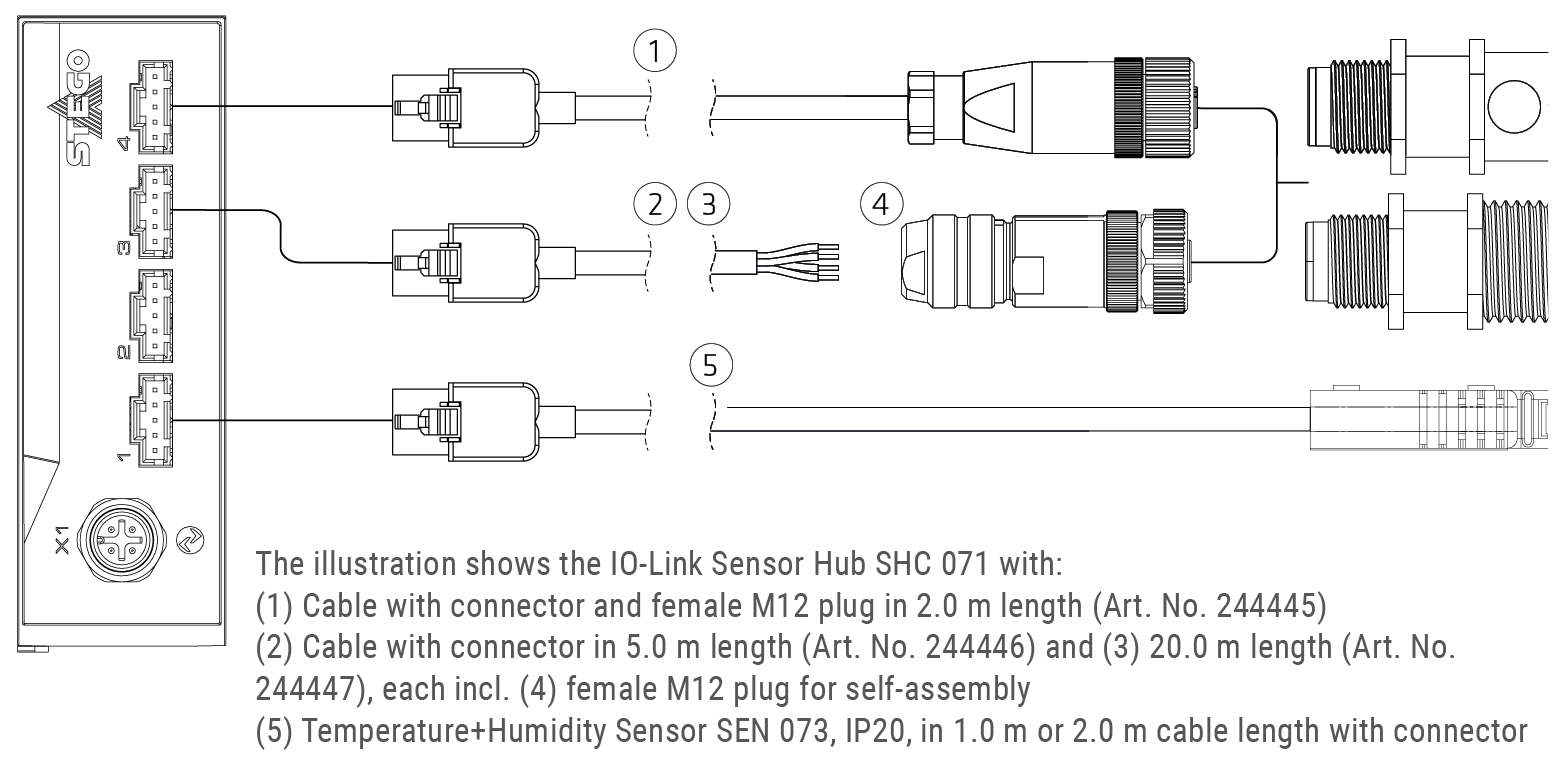

  • Connection of up to four digital STEGO sensors (see version table below) to an IO-Link master
  • Quick connection: M12 male connector
  • Connector for sensors
IO-LINKCEUKCA

Overview technical data

Device typeIO-Link products

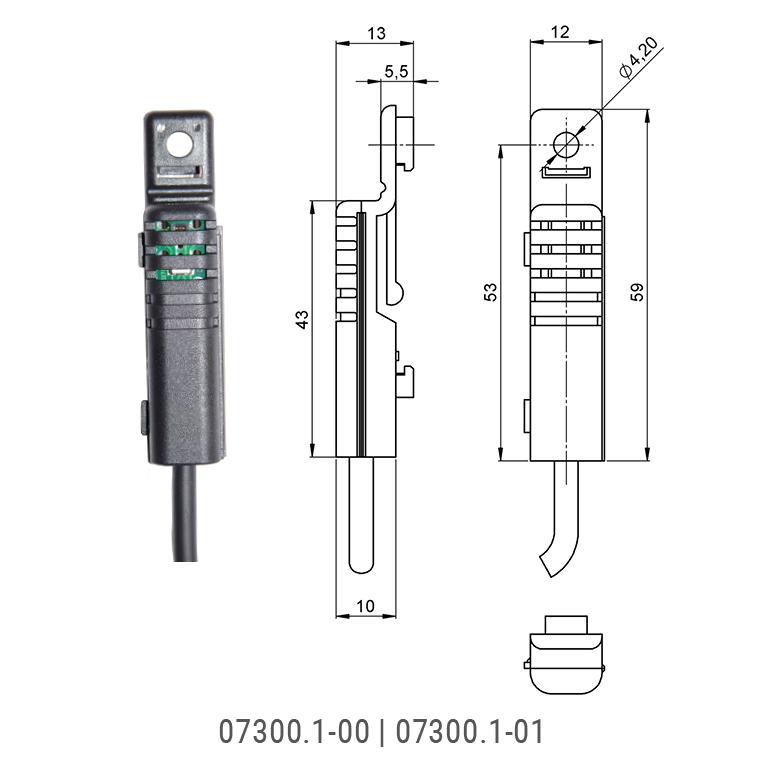

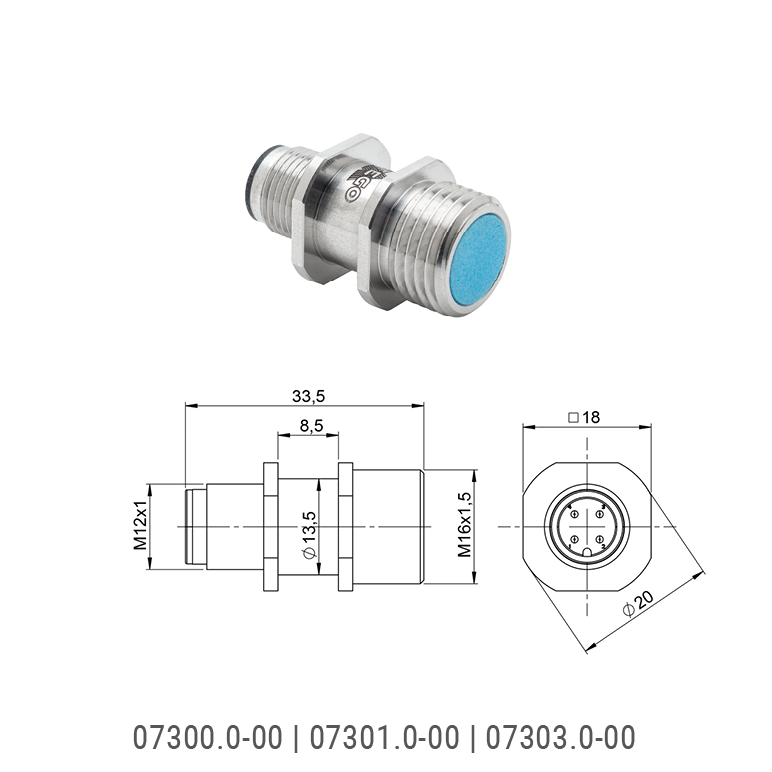

Measurement signal4 slots SEN 073
Electrical protectionReverse polarity protection, short-circuit proof, overvoltage protection
Protection classIII
Protection typeIP40
CasingPlastic to UL94 V-0, light grey
AC/DCDC
Minimum operating voltage24 V
Operating voltage tolerance18 V - 30 V
Power consumption 0.5 W
Operating temperature-40 °F - 176 °F
Operating humidity ≤90 % RH
Storage humidity ≤90 % RH
Storage temperature-40 °F - 185 °F
ConnectionM12 round plug, IEC 61076-2-101, 4-pin, A-coded, shielded
DesignIO-Link (Version 1.1)
MountingClip for 35 mm DIN rail, EN 60715 and M5 screw fixing
Setup height ≤4000 m

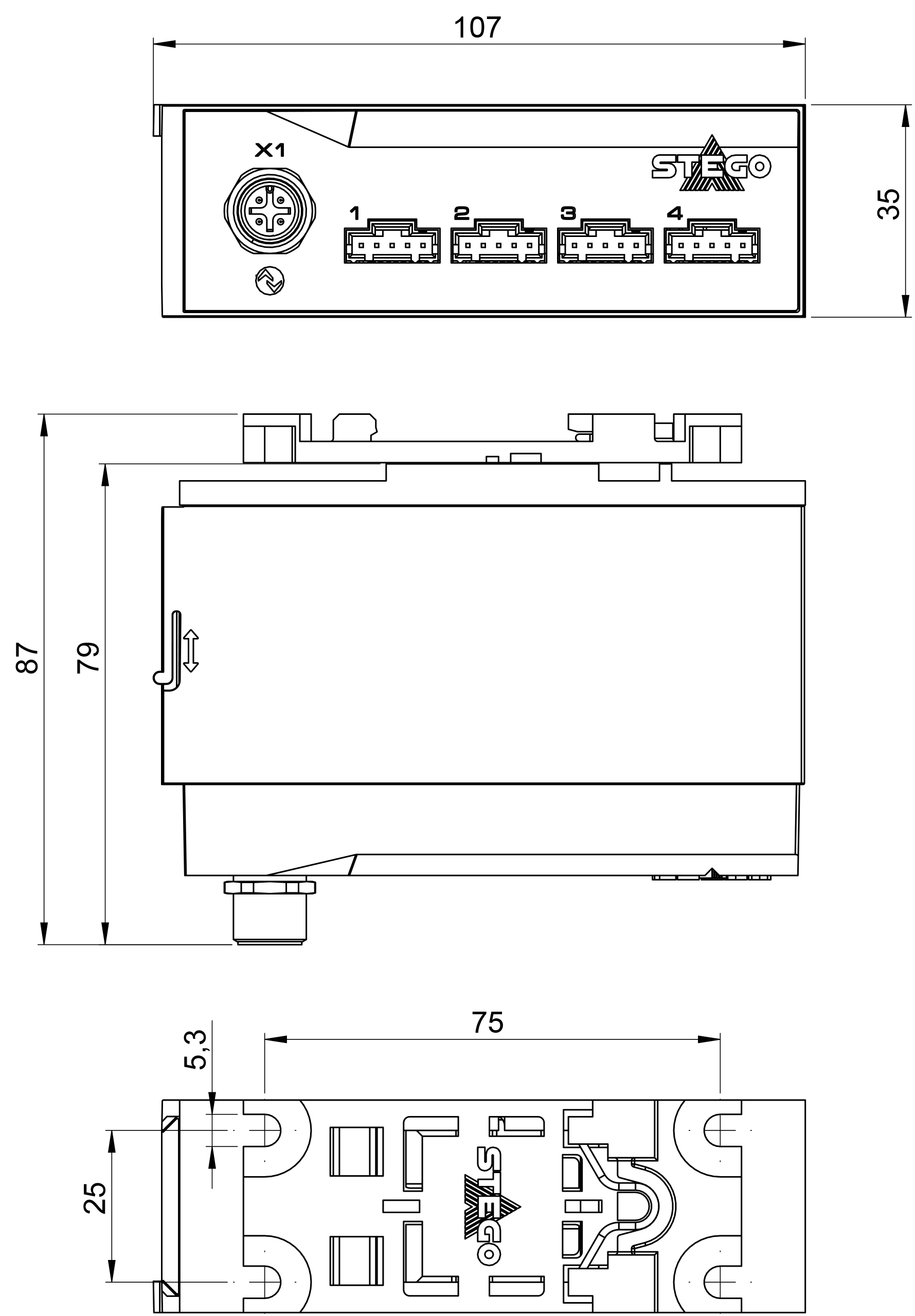

Height 1.4 in
Width 4.2 in
Depth 3.4 in
Weight 3.9 oz
NoteSensors SEN 073 not included in article number Sensors SEN 073 not included in article number

Product variants

Article numberRequestCADDatasheet
07100.2-00
SHC071-07100.2-00-Datasheet-EN-US.pdf
