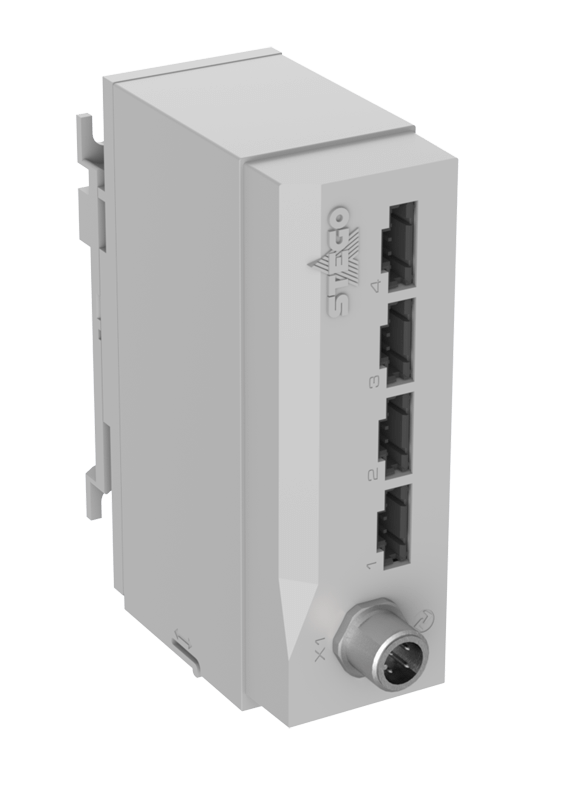

Sensor hub
SHC 071

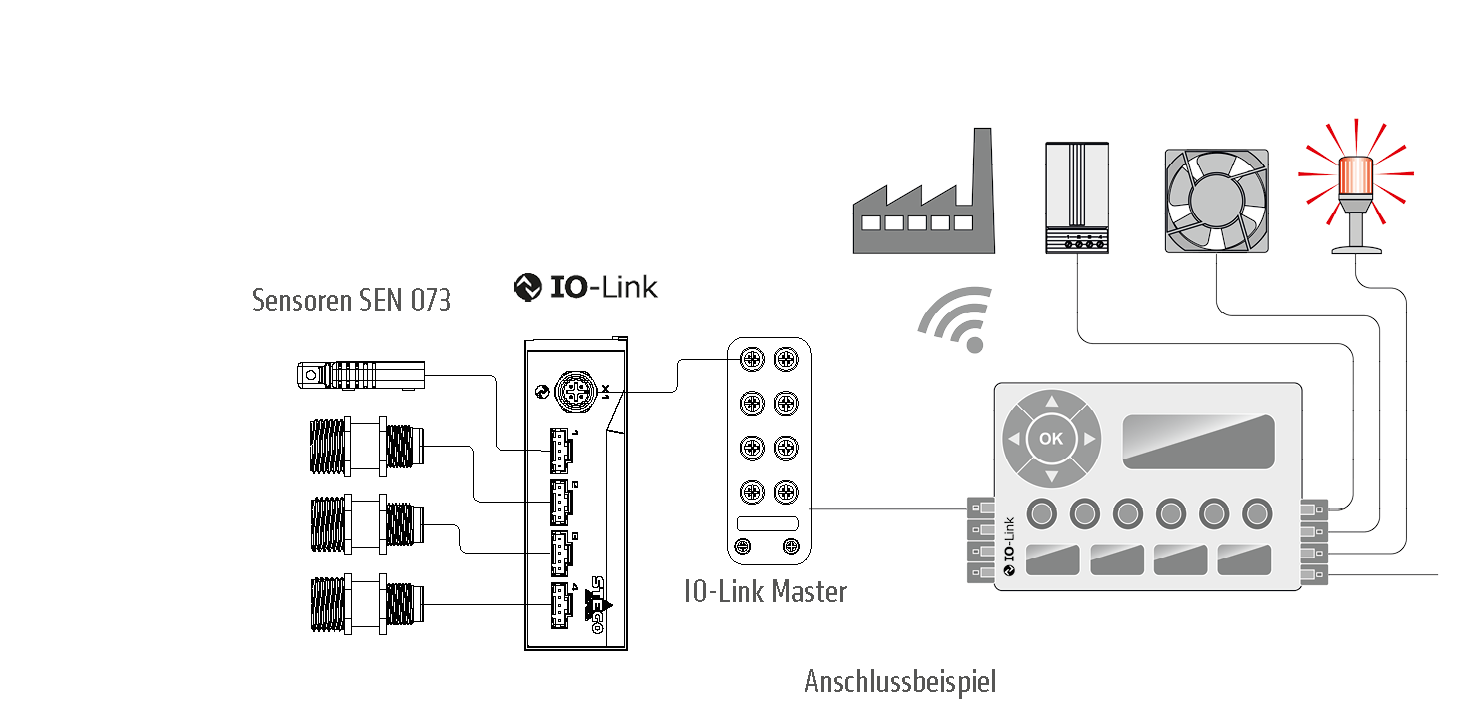

This interface adds IO-Link functionality to digital STEGO sensors. Measurement data from up to four external, non-IO-Link-capable sensors is transmitted to an IO-Link master. The sensor hub thus quadruples the capacity of a port on the IO-Link master. That's how easy it is to turn a digital STEGO sensor into an IO-Link sensor.

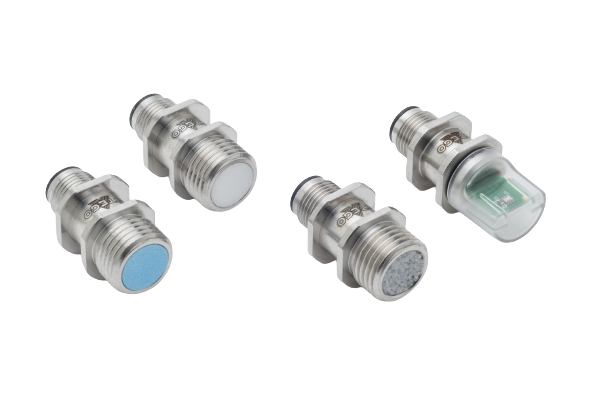

- Connection of up to four digital STEGO sensors (see version table below) to an IO-Link master

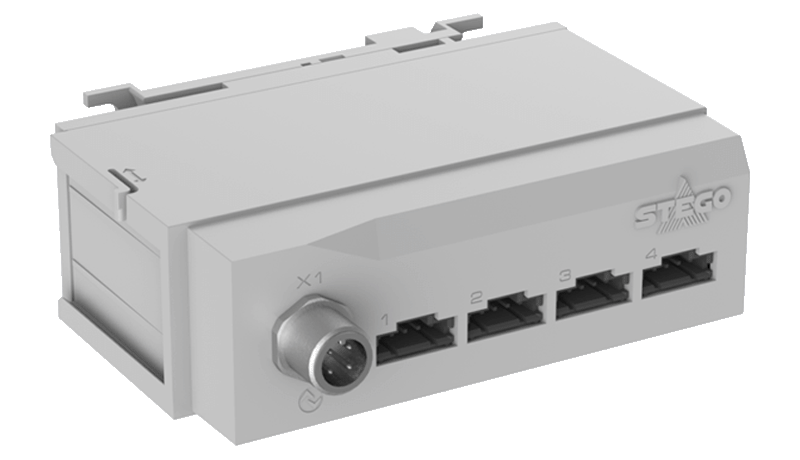

- Quick connection: M12 male connector
- Connector for sensors
Overview technical data
| Device name | Sensor hub |
| Device type | IO-Link products |
| Series | SHC 071 |
| Article number | 07100.2-00 |
| Measurement signal | 4 slots SEN 073 |
| Electrical protection | Reverse polarity protection, short-circuit proof, overvoltage protection |
| Protection class | III |
| Protection type | IP40 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | DC |
| Operating voltage minimum | 24 V |
| Operating voltage tolerance | 18 V - 30 V |
| Power consumption | 0.5 W |
| Operating temperature | -40 °C - 80 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection | M12 round plug, IEC 61076-2-101, 4-pin, A-coded, shielded |
| Design | IO-Link (Version 1.1) |
| Mounting | Clip for 35 mm DIN rail, EN 60715 and M5 screw fixing |
| Setup height | ≤4000 m |

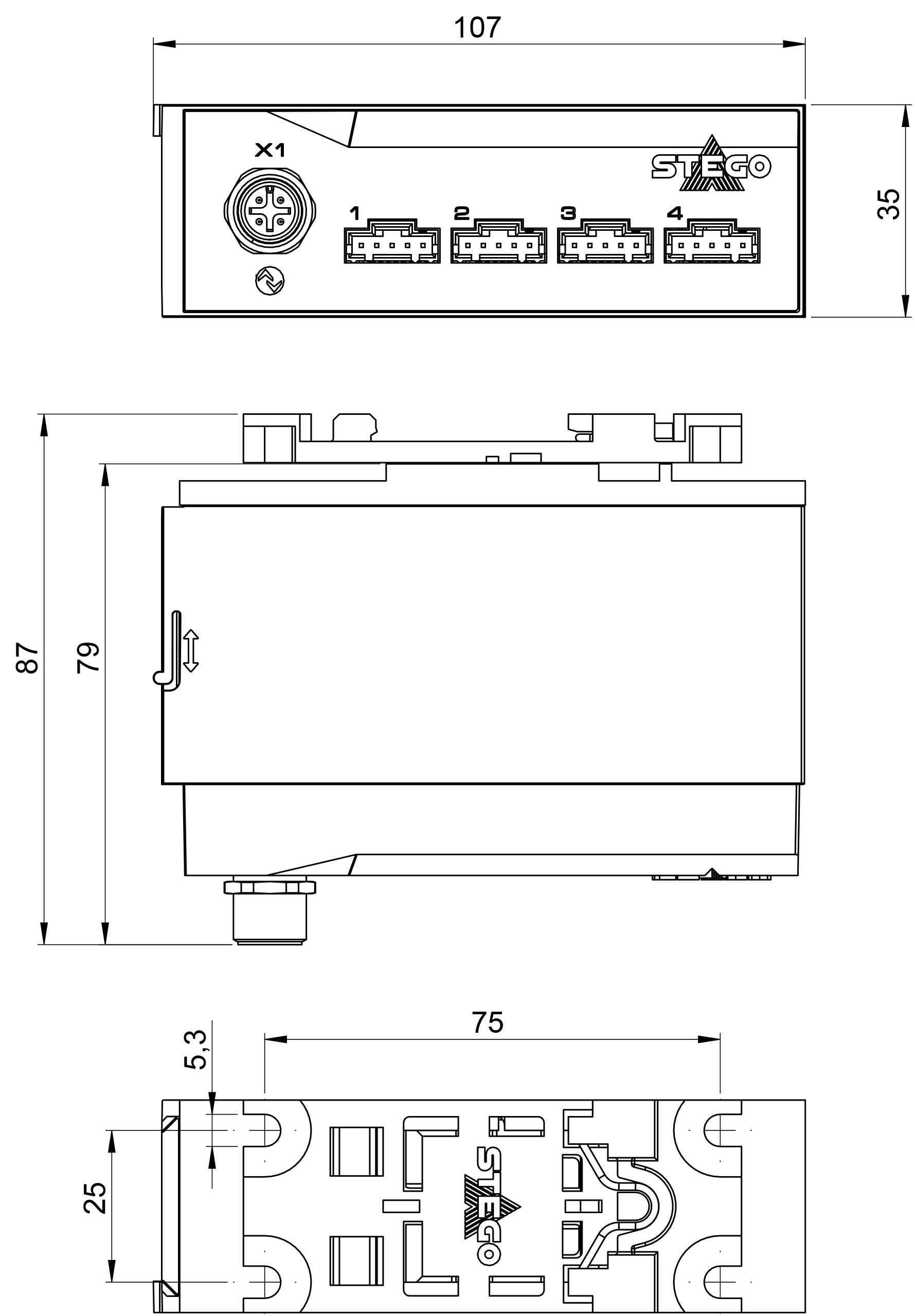

| Height | 35 mm |
| Width | 107 mm |
| Depth | 87 mm |
| Weight | 110 g |
| Note | Sensors SEN 073 not included in article number Sensors SEN 073 not included in article number |
