| Device type | Thermostats |
| Setting range | firm |
| Contact type | Snap-action contact |
| Sensor | Thermostatic bimetal |
| Protection type | IP20 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | AC;DC |
| Operating voltage tolerance | AC 250 V (VDE), AC 120 V (UL) V |
| Inrush current | 16 A |
| Inrush current duration | 10 s |
| Switching capacity | AC 250 V: 5 (1.6) A;
AC 120 V: 10 (2) A;
DC 24-72V: 30 W |
| Switching current ohmic | 5 A |
| Switching current 2 ohmic | 10 A |
| Reference voltage ohmic | 250 VAC |
| Reference voltage 2 ohmic | 120 VAC |
| Switching current inductive | 1.6 A |
| Switching current 2 inductive | 2 A |
| reference_voltage_inductive | 250 VAC |
| Reference voltage 2 | 120 VAC |
| Switching current dc ohmic | 1 A |
| Reference voltage dc ohmic | 30 VDC |
| Minimal switching capacity | 0.48 W |
| Reference voltage | 24 V |
| Switching current | 20 mA |
| Service life | >100000 cycles |
| Switch-off temperature | 59 °F |
| Switch-off temperature tolerance | ± 5 K |
| Switch-off temperature 2 tolerance | ± 6 K |
| Switch-on temperature | 41 °F |
| Switch-on temperature tolerance | ± 5 K |
| Switch-on temperature 2 tolerance | ± 7 K |
| Operating temperature | -40 °F - 176 °F |
| Operating humidity | ≤90 % rF |
| Storage humidity | ≤90 % rF |
| Storage temperature | -49 °F - 176 °F |
| Torque | 0.8 Nmmax. |

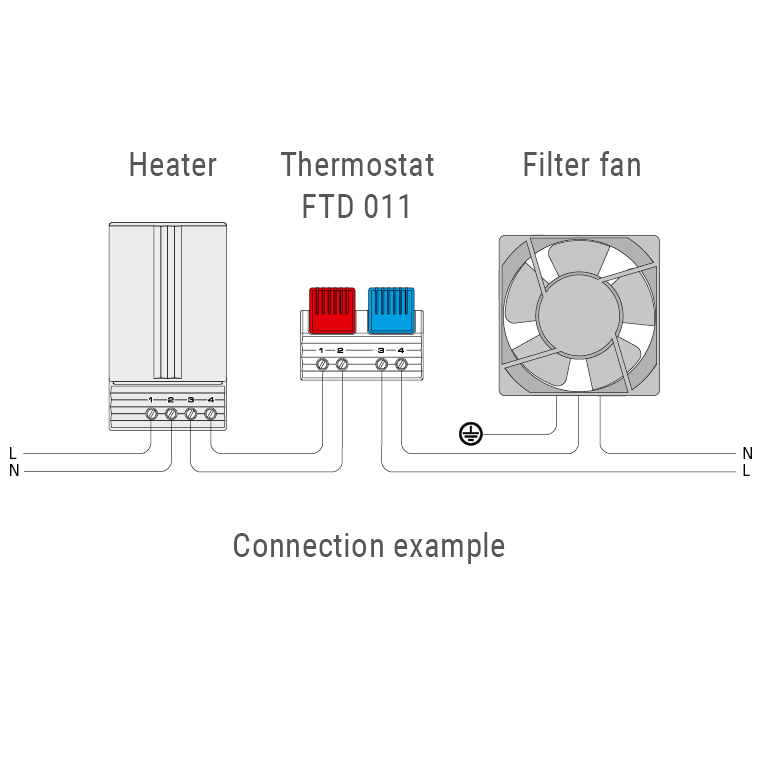

| Connection | 2-pole clamp, torque 0.8 Nm max:
Rigid wire/stranded wire 2.5 mm² (AWG 14) |

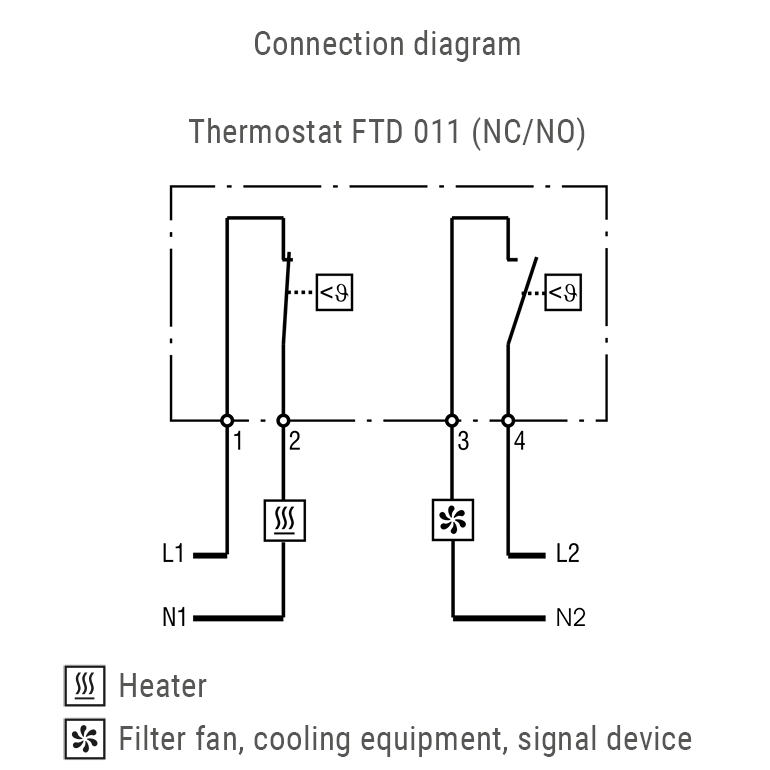

| Design | Normally closed (NC); Normally open (NO) |
| Mounting | Clip for 35 mm DIN rail, EN 60715 |
| Height | 1.9 in |
| Width | 2.5 in |
| Depth | 1.3 in |
| Weight | 1.4 oz |
| Note | Other switch-on/switch-off temperatures on request. Wire end ferrules must be used for connections with stranded wires. Switching of resistive load (switching of inductive load). |
Heating
Cooling
Regulating
Lighting
