Enclosure heater with fan

CSF 028

This PTC enclosure heater with fan and fixed thermostat provides condensation protection in the enclosure and casing. It is particularly space-saving. The integrated fixed thermostat is available in two temperature presets. The heating is touch-safe for the application thanks to the touch-safe plastic coating of the heater body.

PTC heating element: temperature-limiting, direct response behavior
Toch-safe heat protection, therefore safe to touch
Screw fixing and mounting with clip fixing for DIN rail 35 mm possible
Electrical connection via pressure clamps
Temperature safety cut-out to prevent overheating

Overview technical data

Device type	Fan heater Integrated control Touchsafe
Protection class	II
Protection type	IP20
Heating element	PTC resistor (PTC)
Casing	Plastic to UL94 V-0, black
AC/DC	AC
Frequency	50;60 Hz
Operating temperature	-49 °F - 158 °F
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-49 °F - 158 °F
Connection type	Connection terminal
Torque	0.8 Nmmax.
Connection	2-pole clamp 2.5 mm², max. torque 0.8 Nm
Installation position	Airflow direction "in" vertical / connection at the bottom

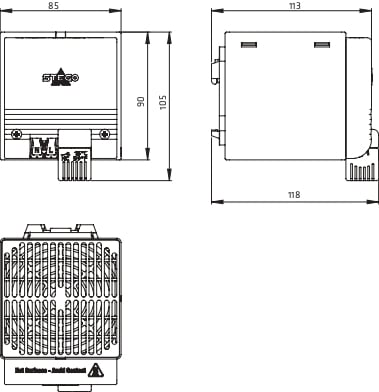

Height	3.5 in
Width	3.3 in
Depth	4.4 in
Weight	17.6 oz
Item number accessories 1	252017
Accessory 1	Air routing for improved heat distribution

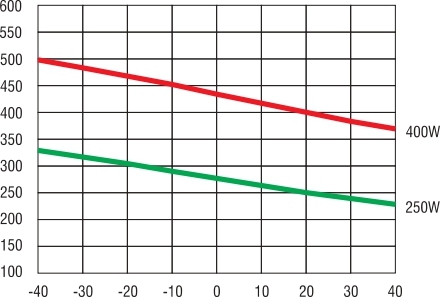

Note	Other voltages on request Tolerance ±5 K Heating capacity at +20°C (+68°F) ambient temperature switch-on temperature tolerance at +5K, other switch-off and switch-on temperatures on request.

Product variants

Article number	Minimum operating voltage	Operating voltage tolerance	Maximum inrush current	Recommended backup fuse	Minimum heating capacity	Switch-off temperature	Switch-on temperature	Mounting	Datasheet
02820.0-06	230 V	208 V - 253 V	15 A	16 A	400 W	59 °F	41 °F	Clip for 35 mm DIN rail	CSF028-02820.0-06-Datasheet-EN-US.pdf
02820.0-08	230 V	208 V - 253 V	15 A	16 A	400 W	59 °F	41 °F	Screw fixing	CSF028-02820.0-08-Datasheet-EN-US.pdf
02820.0-09	230 V	208 V - 253 V	15 A	16 A	400 W	77 °F	59 °F	Clip for 35 mm DIN rail	CSF028-02820.0-09-Datasheet-EN-US.pdf
02820.0-11	230 V	208 V - 253 V	15 A	16 A	400 W	77 °F	59 °F	Screw fixing	CSF028-02820.0-11-Datasheet-EN-US.pdf
02820.9-06	120 V	108 V - 132 V	9 A	10 A	400 W	59 °F	41 °F	Clip for 35 mm DIN rail	CSF028-02820.9-06-Datasheet-EN-US.pdf
02820.9-08	120 V	108 V - 132 V	9 A	10 A	400 W	59 °F	41 °F	Screw fixing	CSF028-02820.9-08-Datasheet-EN-US.pdf
02820.9-09	120 V	108 V - 132 V	9 A	10 A	400 W	77 °F	59 °F	Clip for 35 mm DIN rail	CSF028-02820.9-09-Datasheet-EN-US.pdf
02820.9-11	120 V	108 V - 132 V	9 A	10 A	400 W	77 °F	59 °F	Screw fixing	CSF028-02820.9-11-Datasheet-EN-US.pdf
02821.0-06	230 V	208 V - 253 V	9 A	10 A	250 W	59 °F	41 °F	Clip for 35 mm DIN rail	CSF028-02821.0-06-Datasheet-EN-US.pdf
02821.0-08	230 V	208 V - 253 V	9 A	10 A	250 W	59 °F	41 °F	Screw fixing	CSF028-02821.0-08-Datasheet-EN-US.pdf
02821.0-09	230 V	208 V - 253 V	9 A	10 A	250 W	77 °F	59 °F	Clip for 35 mm DIN rail	CSF028-02821.0-09-Datasheet-EN-US.pdf
02821.0-11	230 V	208 V - 253 V	9 A	10 A	250 W	77 °F	59 °F	Screw fixing	CSF028-02821.0-11-Datasheet-EN-US.pdf
02821.9-06	120 V	108 V - 132 V	6 A	10 A	250 W	59 °F	41 °F	Clip for 35 mm DIN rail	CSF028-02821.9-06-Datasheet-EN-US.pdf
02821.9-08	120 V	108 V - 132 V	6 A	10 A	250 W	59 °F	41 °F	Screw fixing	CSF028-02821.9-08-Datasheet-EN-US.pdf
02821.9-09	120 V	108 V - 132 V	6 A	10 A	250 W	77 °F	59 °F	Clip for 35 mm DIN rail	CSF028-02821.9-09-Datasheet-EN-US.pdf
02821.9-11	120 V	108 V - 132 V	6 A	10 A	250 W	77 °F	59 °F	Screw fixing	CSF028-02821.9-11-Datasheet-EN-US.pdf
