This digital IO-Link hub switches up to three actuators or loads via relays. The switching commands are issued via an IO-Link interface from higher-level field devices such as: Edge computer, cloud, PLC controller, etc.
| Device type | IO-Link products |
| Electrical protection | Reverse polarity protection, short-circuit proof, overvoltage protection |
| Protection class | III |
| Protection type | IP40 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | DC |
| Operating voltage | 24 V |
| Inrush current | 16 A |
| Inrush current duration | 10 s |
| Power consumption | 1.4 W |
| Measurement range | |
| Switching capacity | AC 240 V,10 AC DC 30 V, 10 A |
| Operating temperature | -40 °F - 158 °F |
| Operating humidity | ≤90 % rF |
| Storage humidity | ≤90 % rF |
| Storage temperature | -40 °F - 185 °F |
| Connection | M12 round plug, IEC 61076-2-101, 4-pin, A-coded, shielded Connections for 3 actuators 2-pole push-in terminals, stranded wire with wire end ferrule 1.5 mm²/AWG 18 |
| Design | IO-Link (Version 1.1) |
| Mounting | Clip for 35 mm DIN rail, EN 60715 and M5 screw fixing |
| Setup height | ≤4000 m |
| Height | 1.4 in |
| Width | 4.2 in |
| Depth | 4.6 in |
| Weight | 5.6 oz |

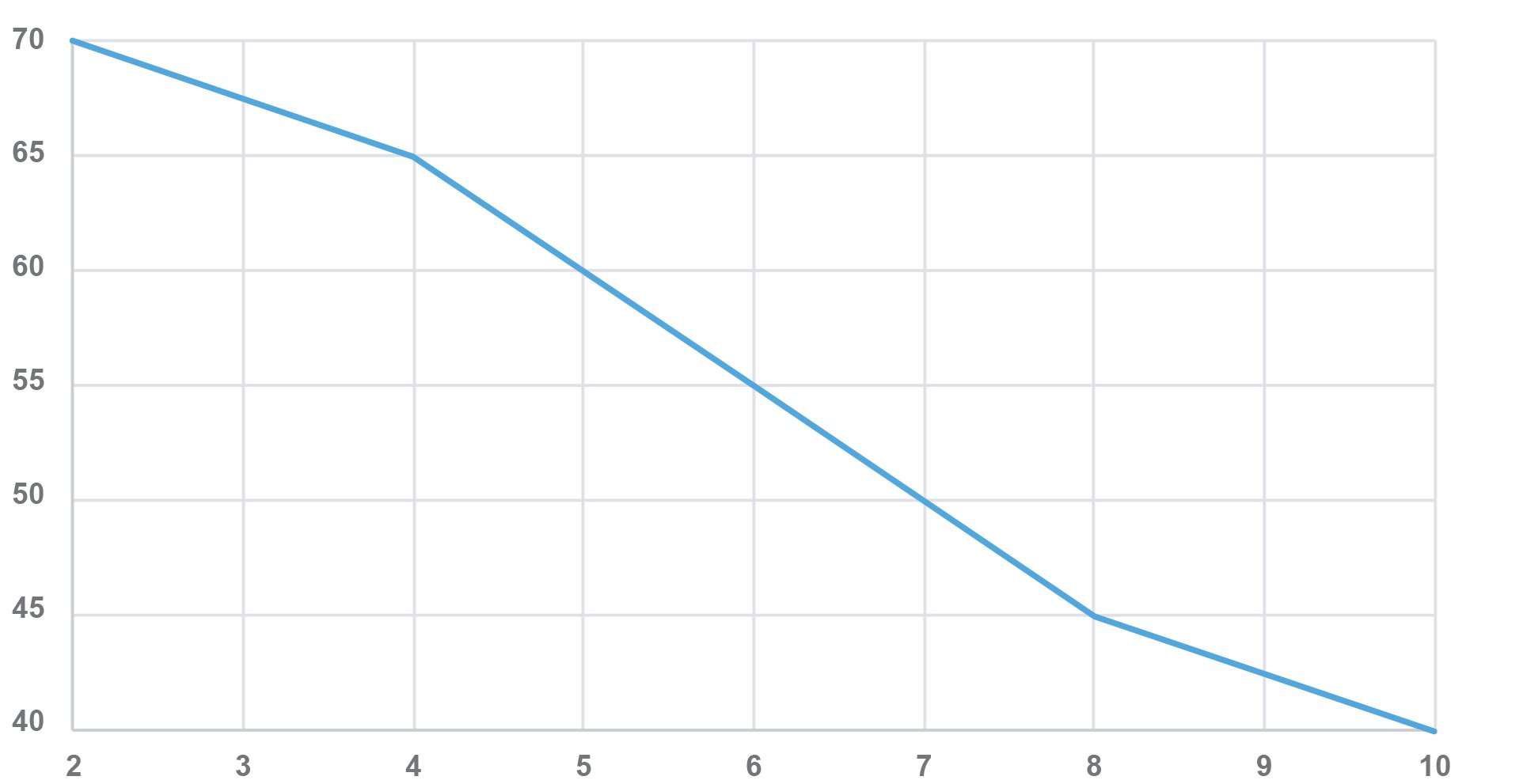

| Note | The maximum operating temperature depends on the current (see diagram) and the number of loads. |
| Operating voltage tolerance | 18 V - 30 V |
Heating
Cooling
Regulating
Lighting
