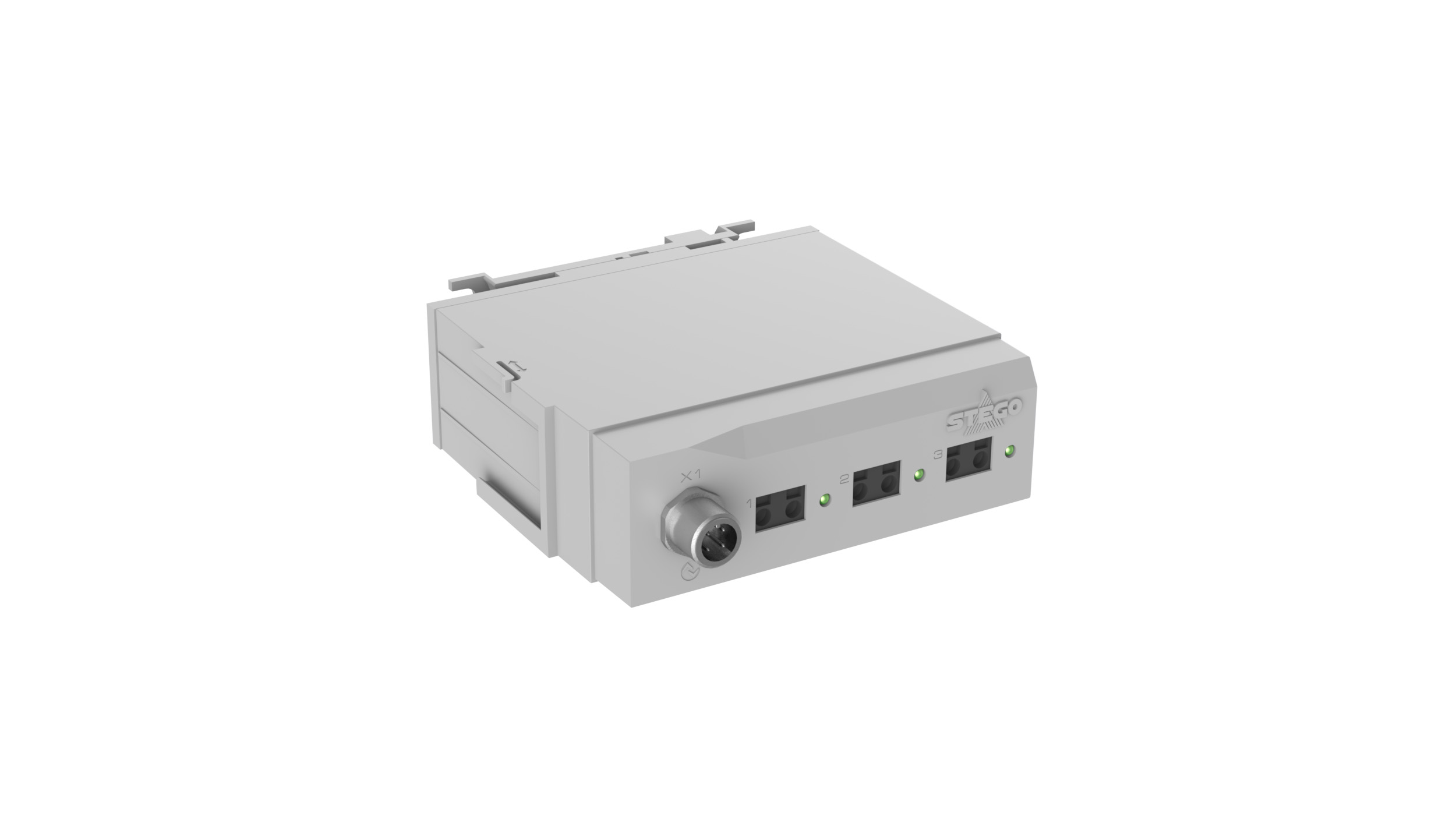

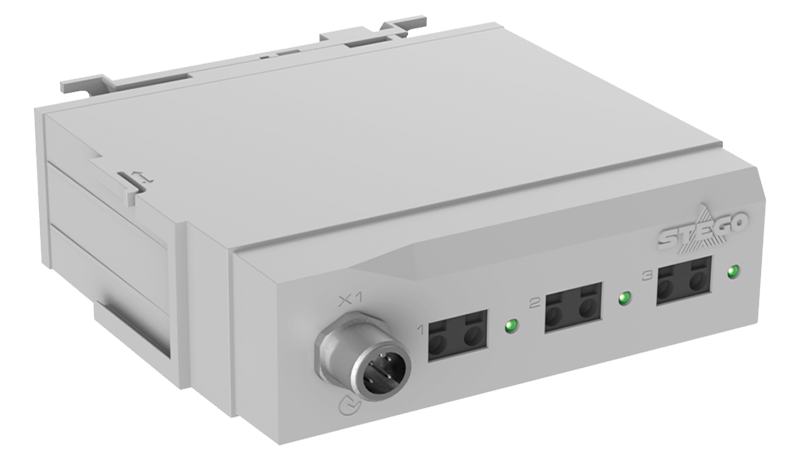

Actuator hub
AHC 072

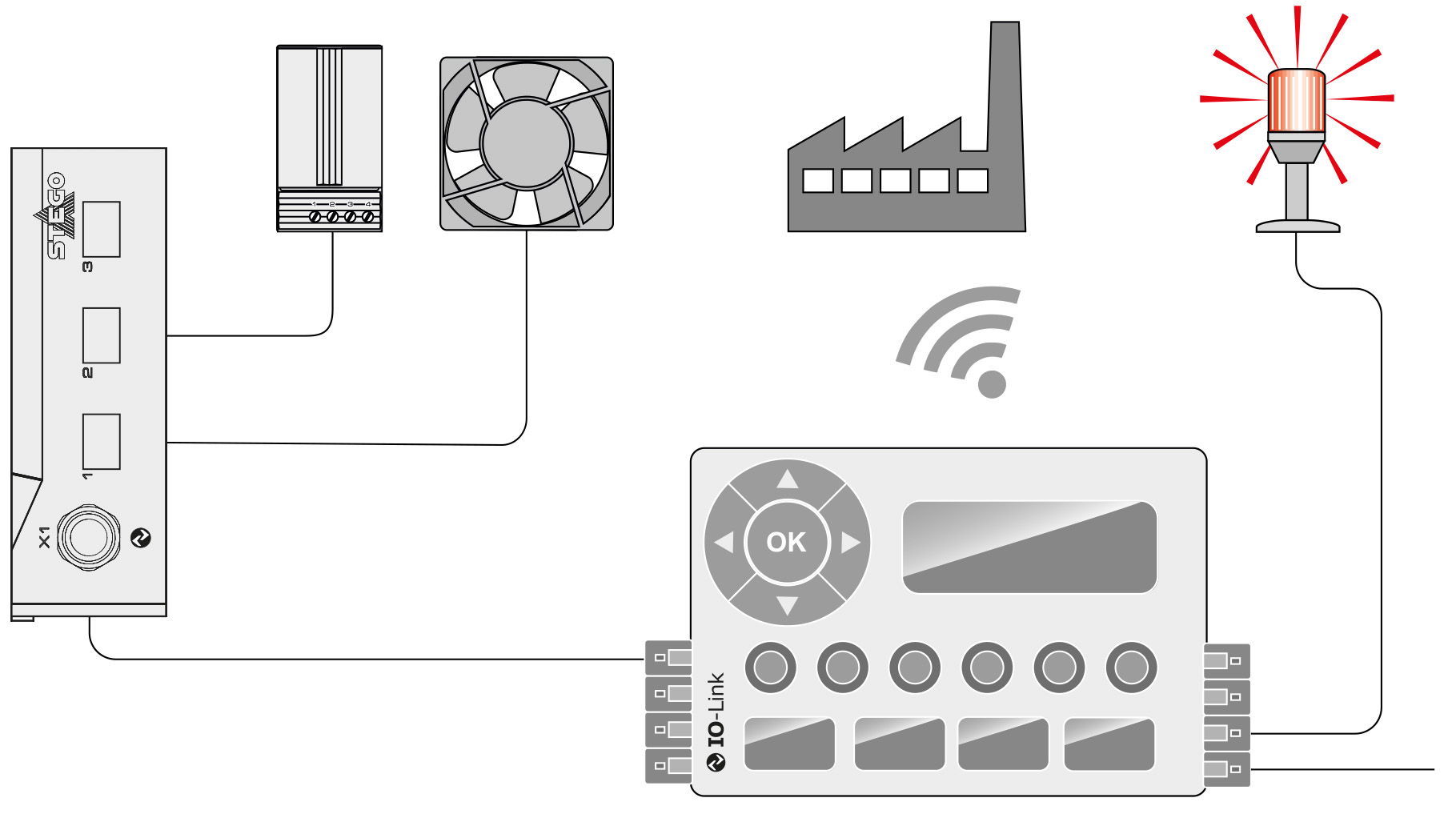

This digital IO-Link hub switches up to three actuators or loads via relays. The switching commands are issued via an IO-Link interface from higher-level field devices such as: Edge computer, cloud, PLC controller, etc.
- Connection for up to three actuators
- Quick connection of actuators with push-in terminals
- Quick connection to the master with M12 plug connector
- Simple clip and screw fixing
- Optical indicators (LEDs) for each port
Overview technical data
| Device name | Actuator hub |
| Device type | IO-Link products |
| Series | AHC 072 |
| Article number | 07200.2-00 |
| Electrical protection | Reverse polarity protection, short-circuit proof, overvoltage protection |
| Protection class | III |
| Protection type | IP40 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | DC |
| Operating voltage minimum | 24 V |
| Operating voltage tolerance | 18 V - 30 V |
| Inrush current maximum | 16 A |
| Inrush current duration | 10 s |
| Power consumption | 1.4 W |
| Measurement range | |
| Switching capacity | 10 A |
| Operating temperature | -40 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection | M12 round plug, IEC 61076-2-101, 4-pin, A-coded, shielded Connections for 3 actuators 2-pole push-in terminals, stranded wire with wire end ferrule 1.5 mm²/AWG 18 |
| Design | IO-Link (Version 1.1) |
| Mounting | Clip for 35 mm DIN rail, EN 60715 and M5 screw fixing |
| Setup height | ≤4000 m |

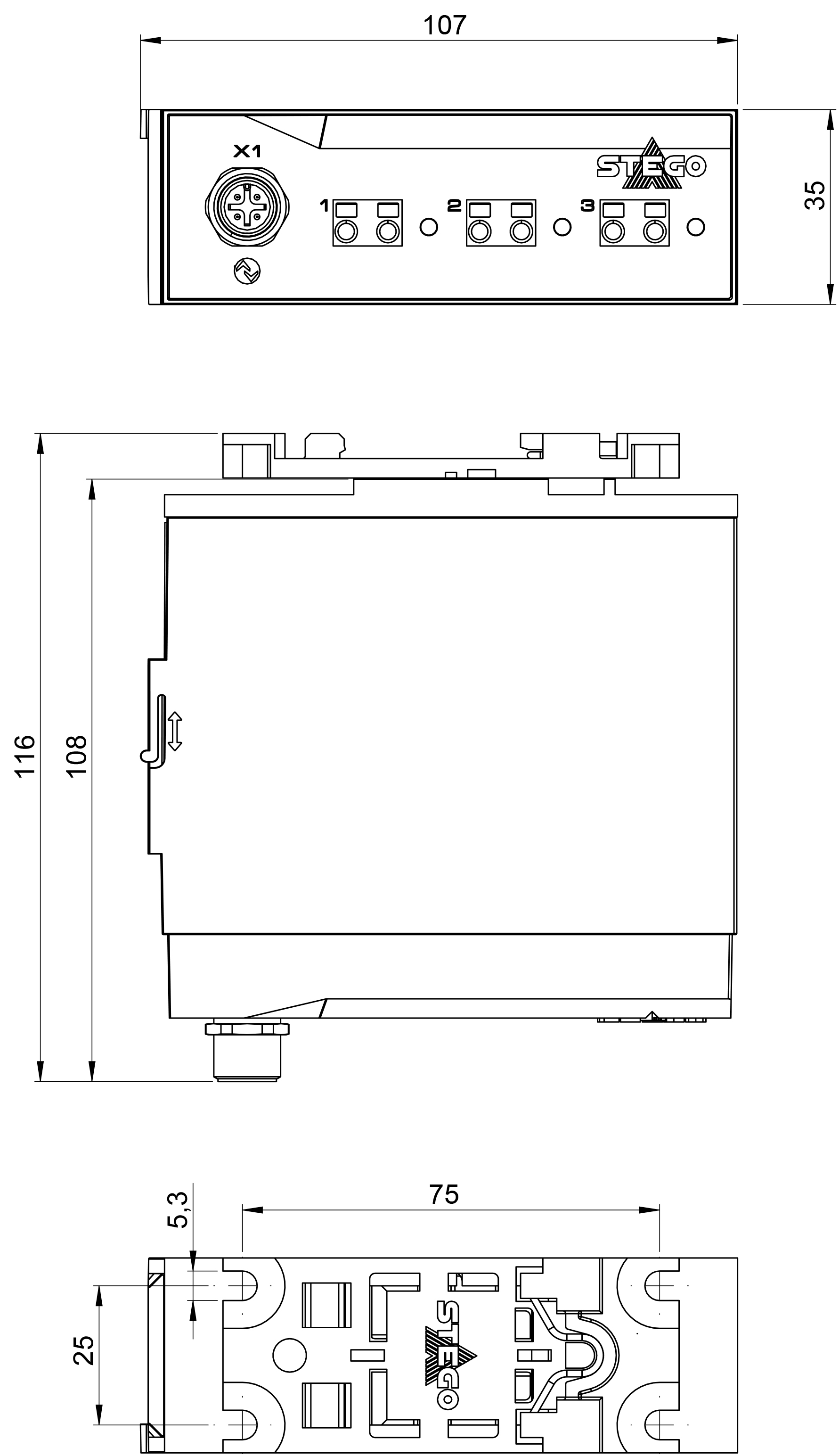

| Height | 35 mm |
| Width | 107 mm |
| Depth | 116 mm |
| Weight | 160 g |
| Note | The maximum operating temperature depends on the current (see diagram) and the number of loads. |
