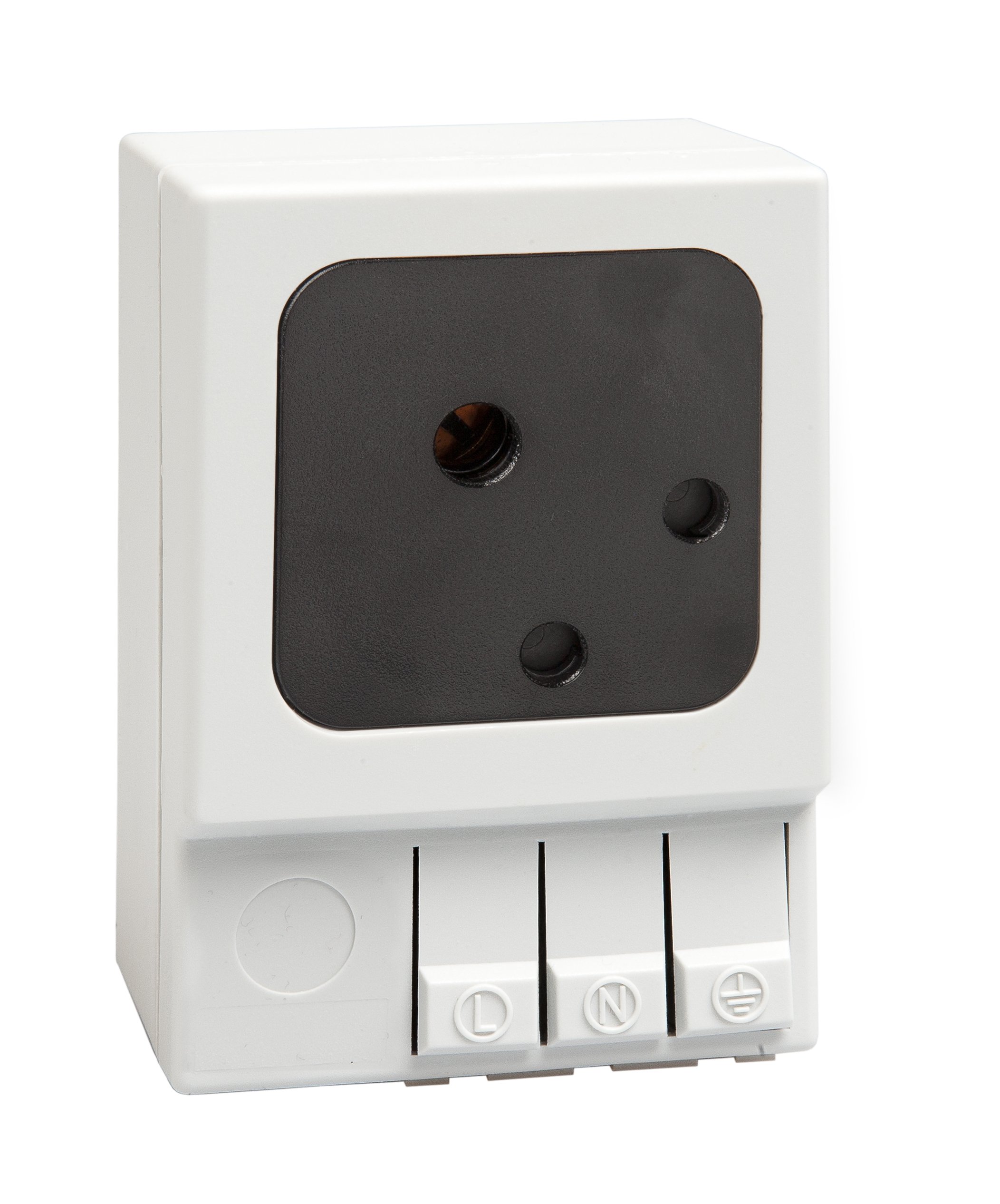

Electrical socket
SD 035
Electrical socket for installation on 35 mm DIN rail. Quick, screwless electrical connection using pressure clamps. Designs with and without fuse are available.

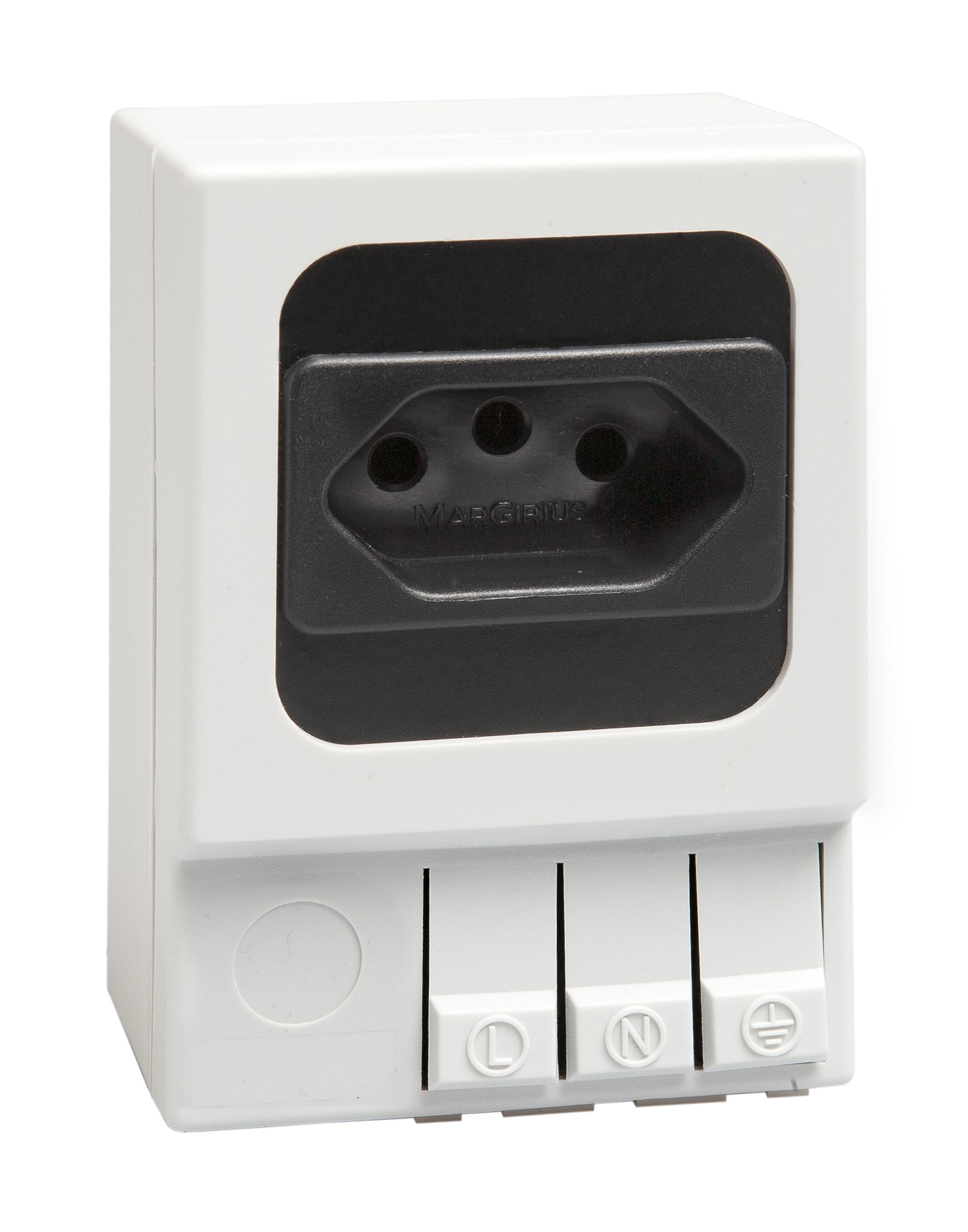

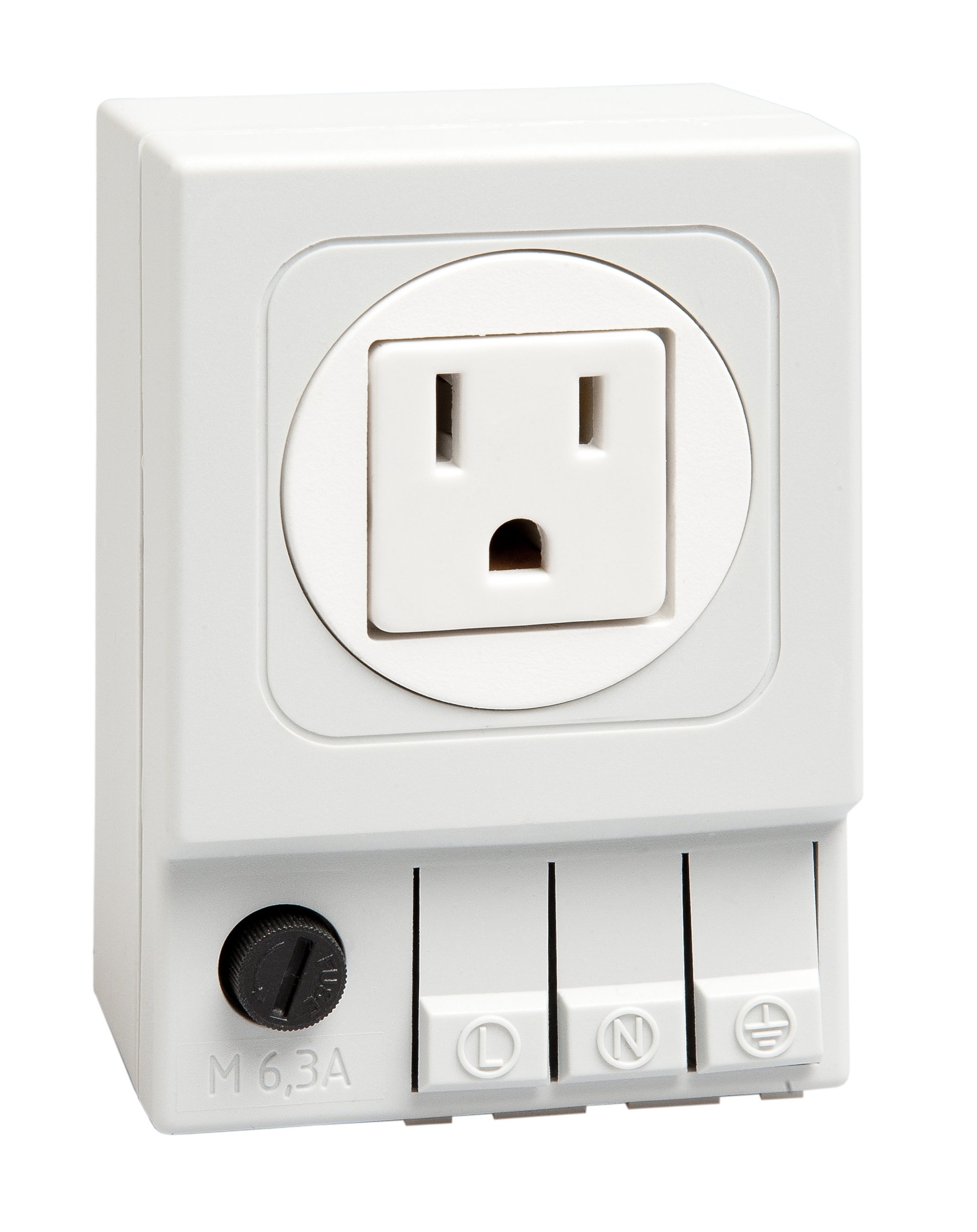

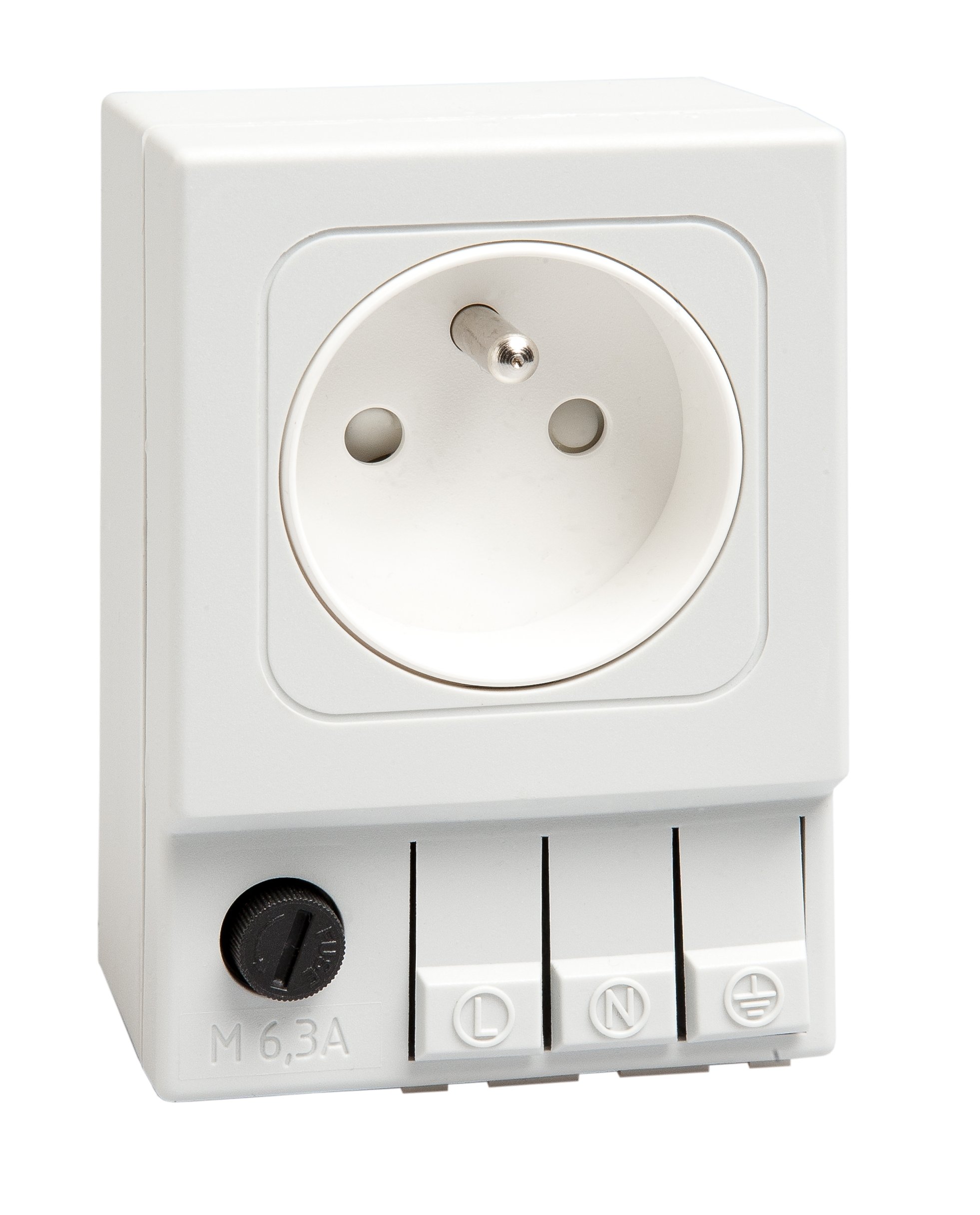

- Versions with and without fuse
- Quick mounting
- Electrical connection with pressure clamps

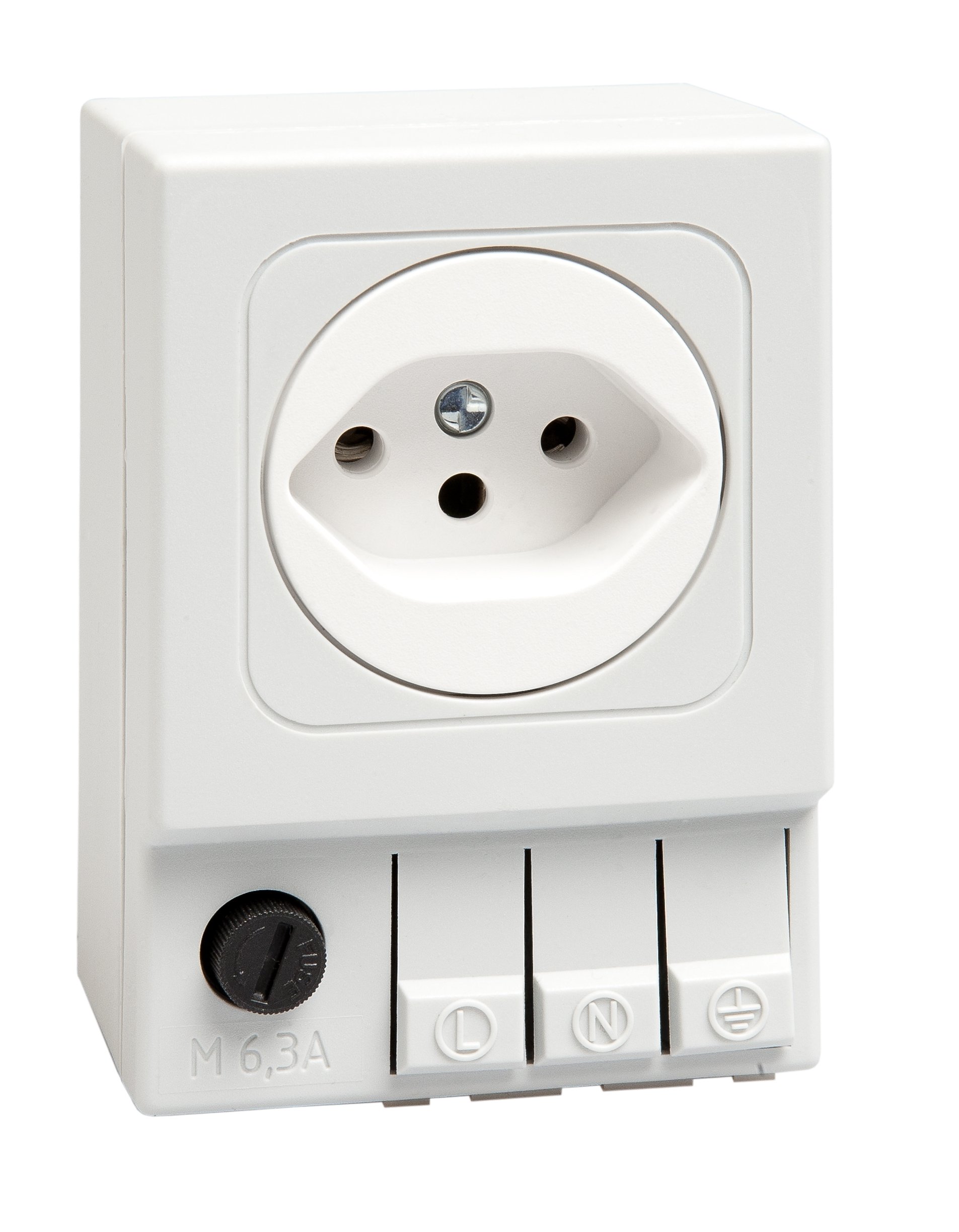

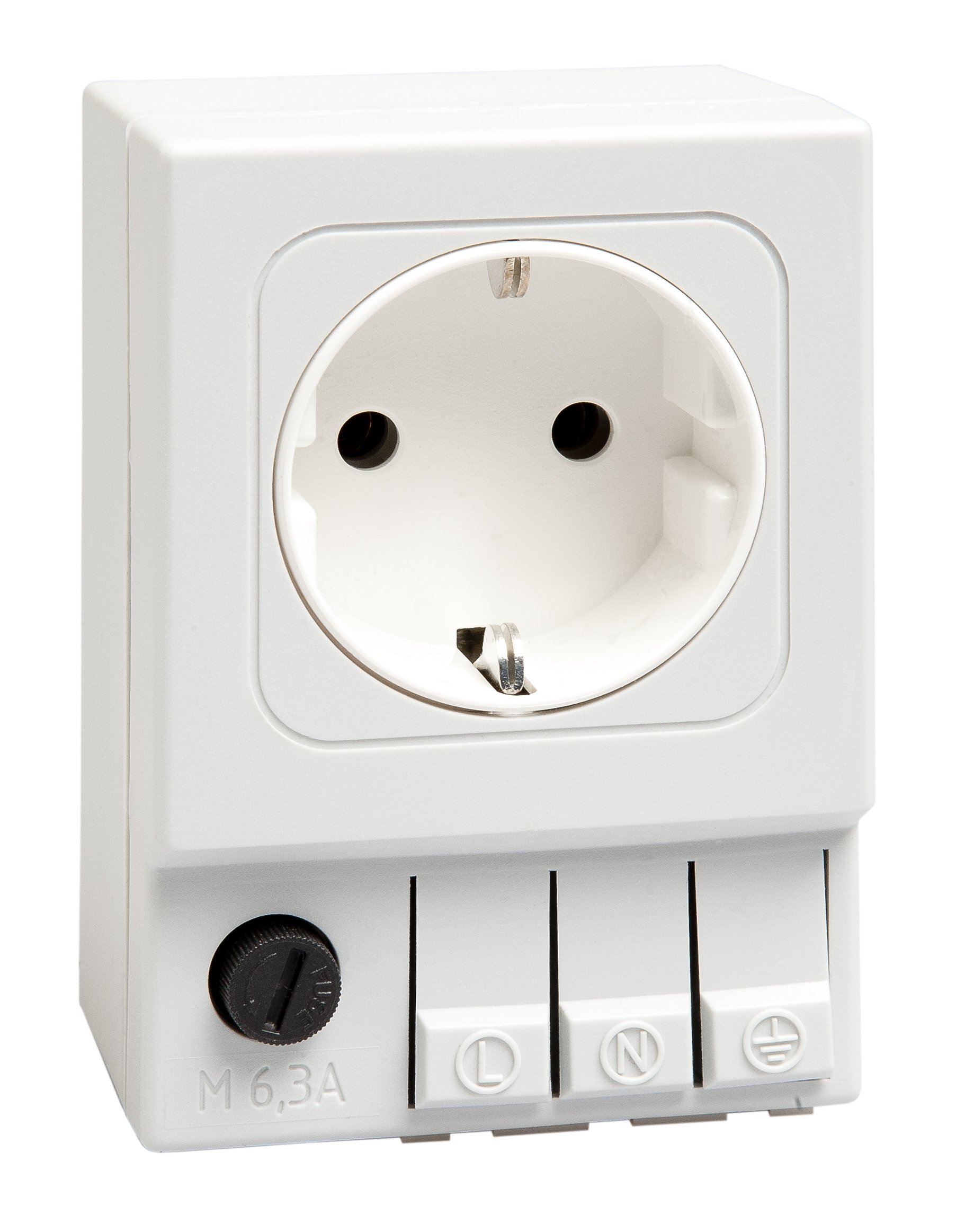

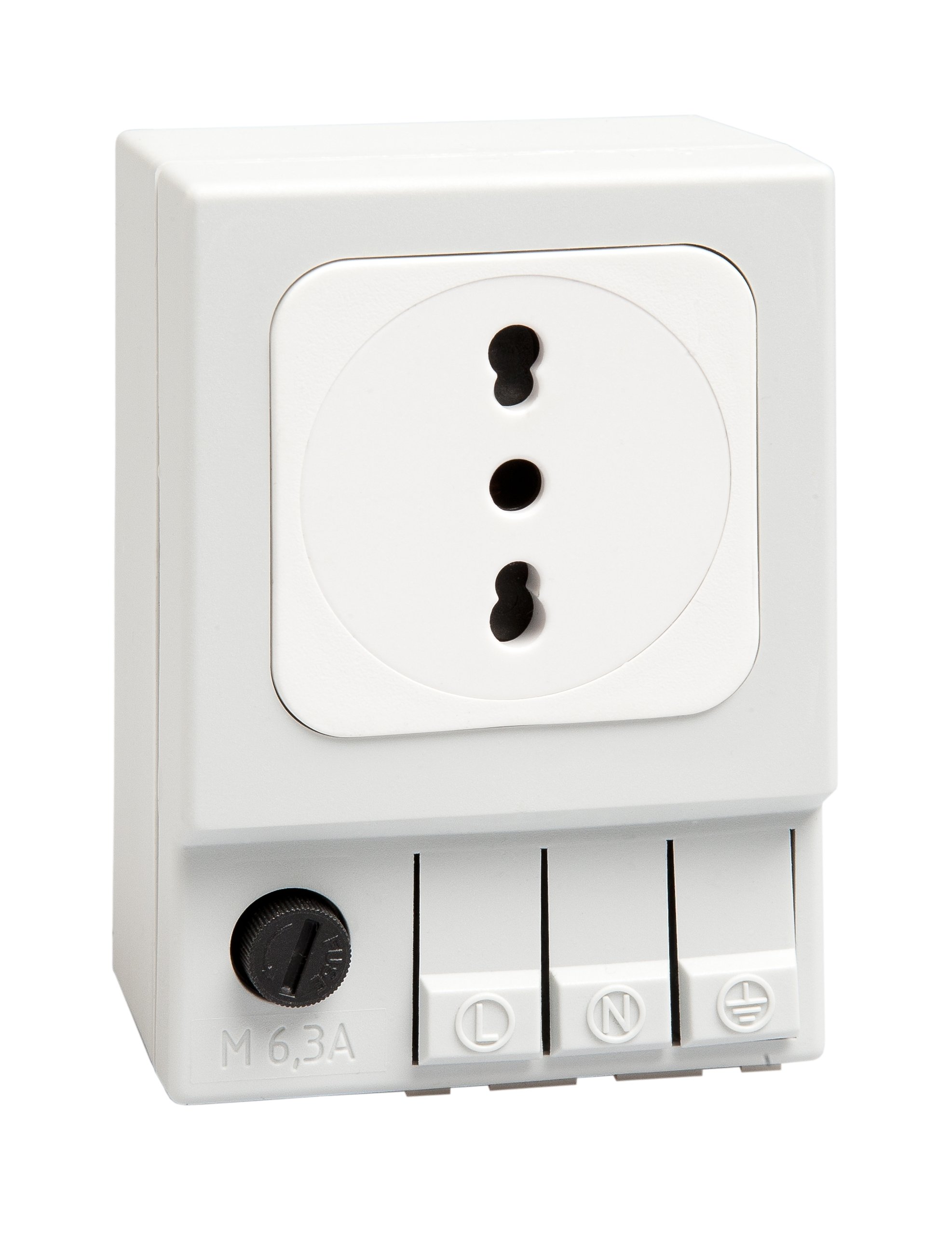

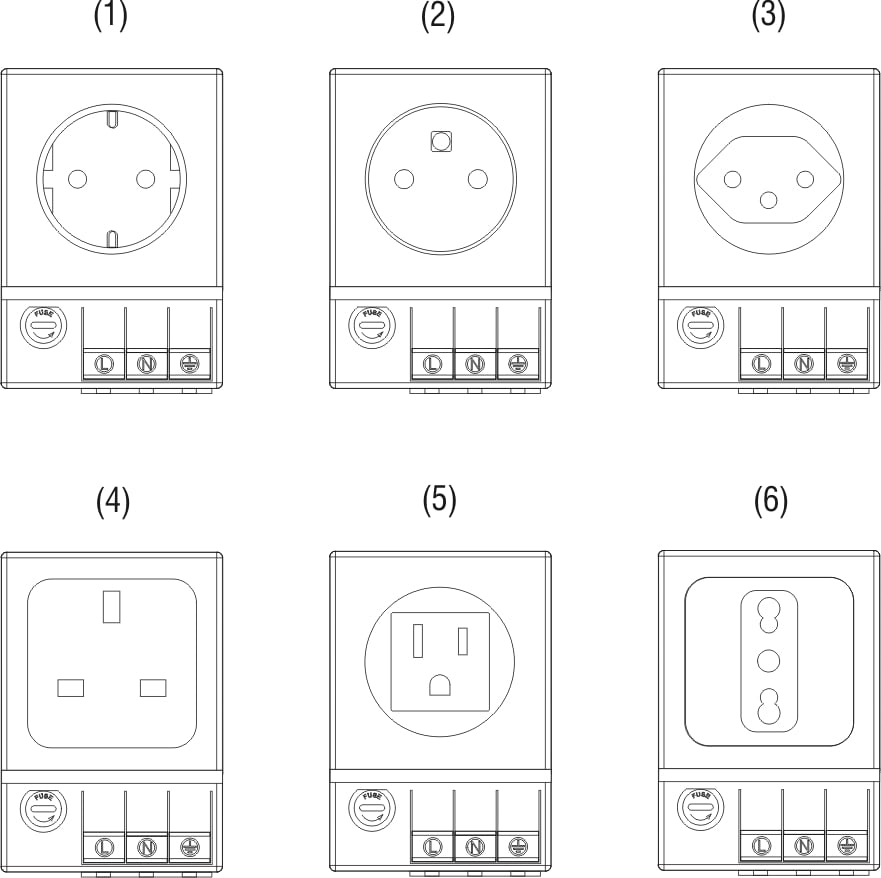

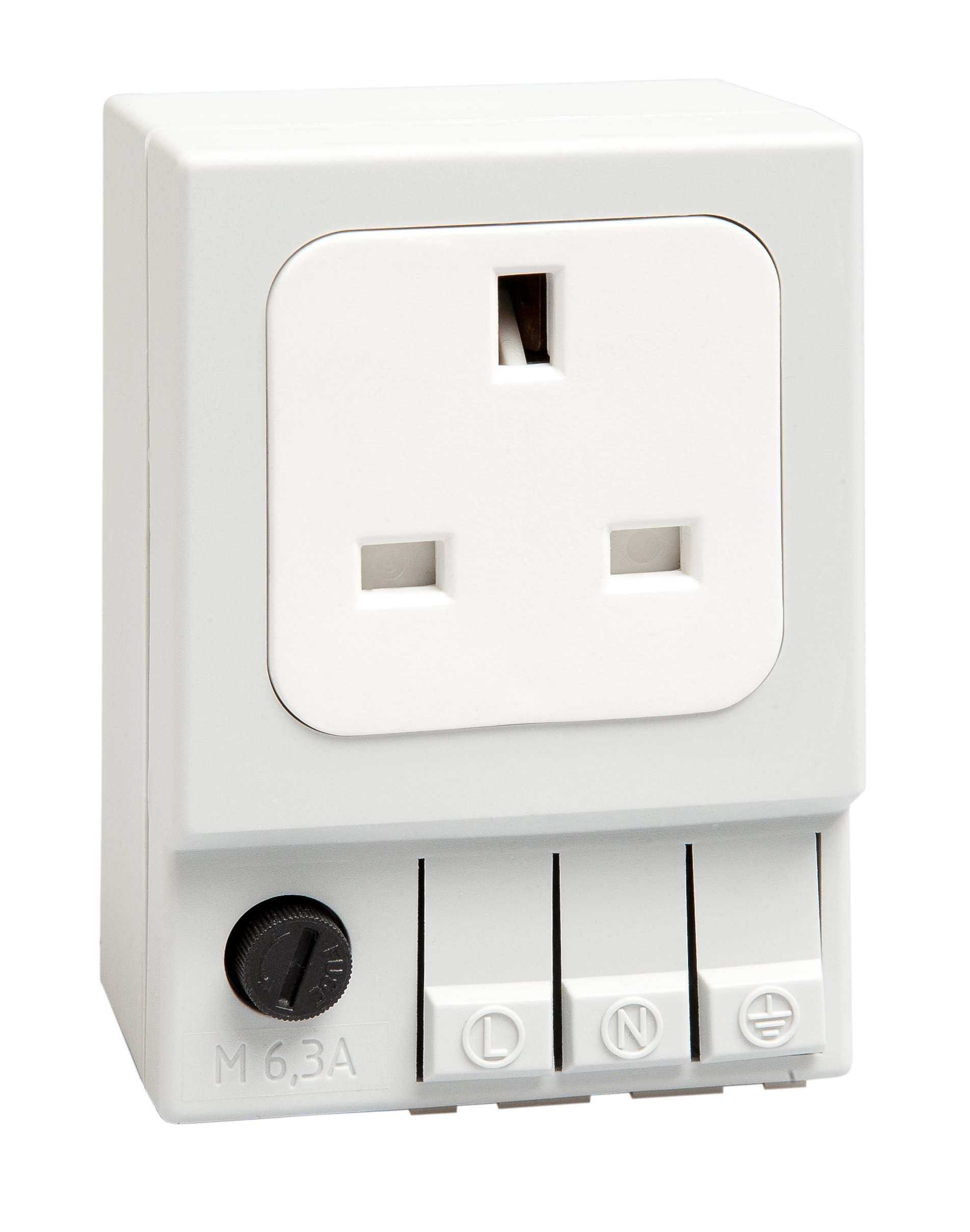

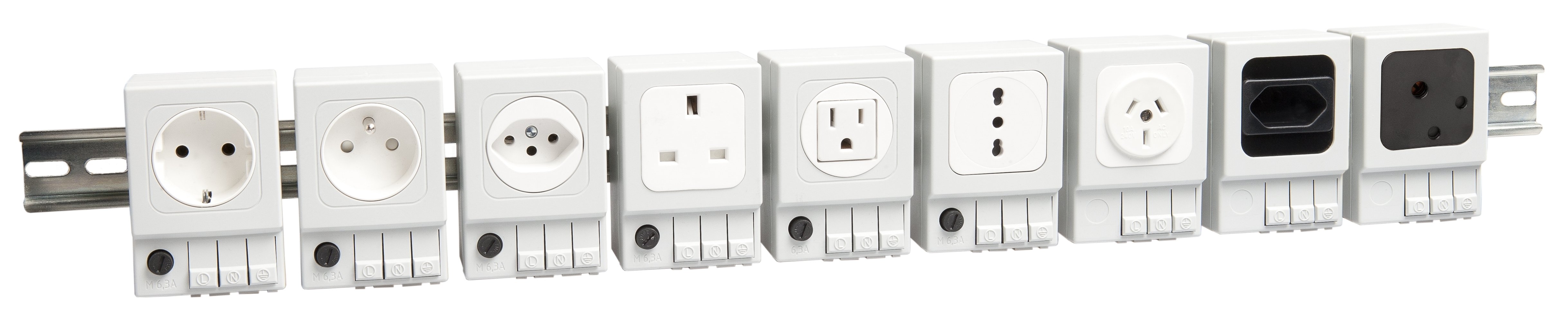

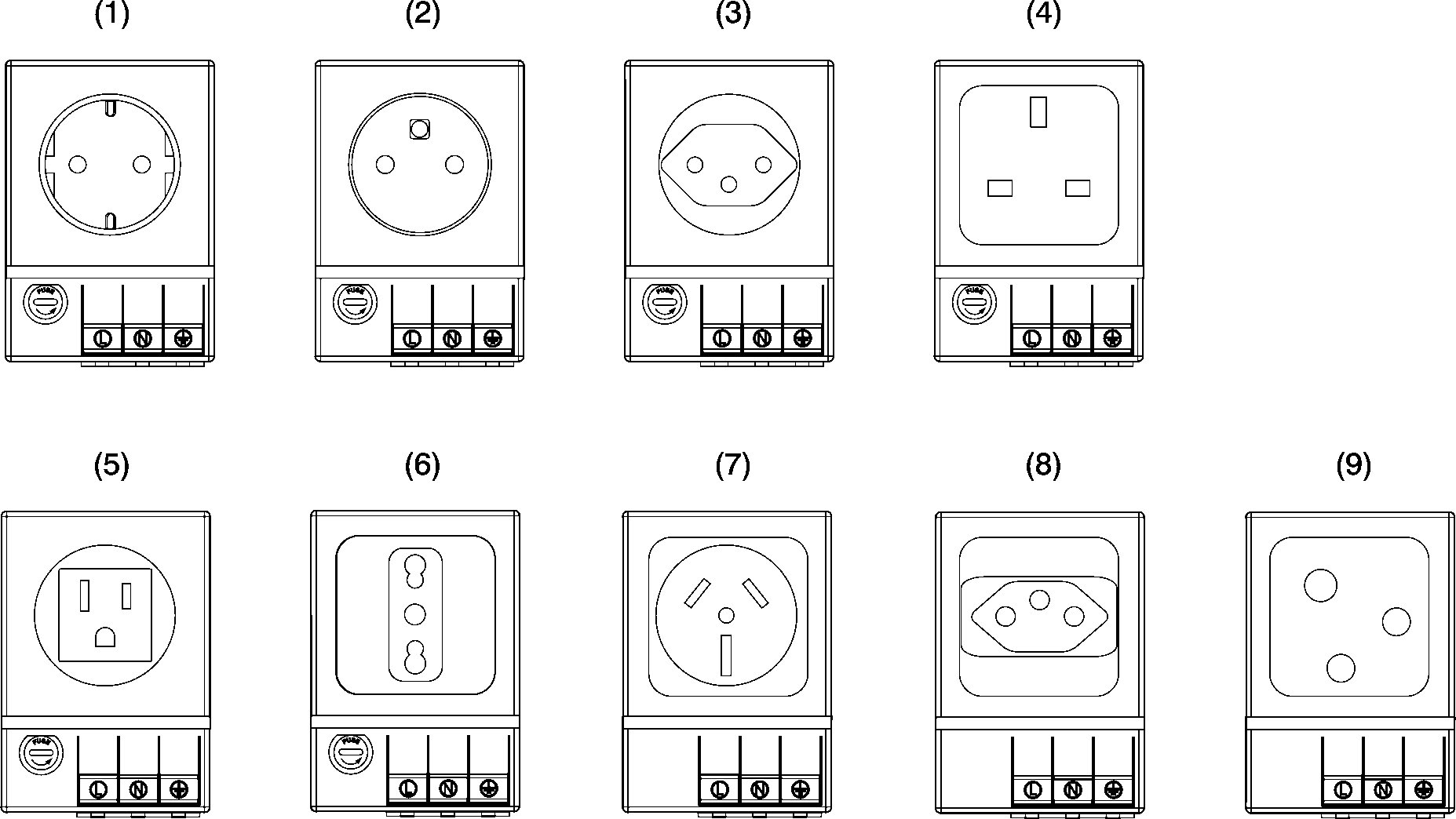

- Large variety of country-specific versions
Overview technical data
| Device name | Electrical socket |
| Device type | Sockets |
| Series | SD 035 |
| Protection class | I |
| Protection type | IP20 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | AC |
| Frequency | 50;60 Hz |
| Operating socket | |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection | 3 x pressure clamps for stranded wire and rigid wire 0.5 - 2.5 mm² |
| Mounting | Clip for 35 mm DIN rail, EN 60715 |

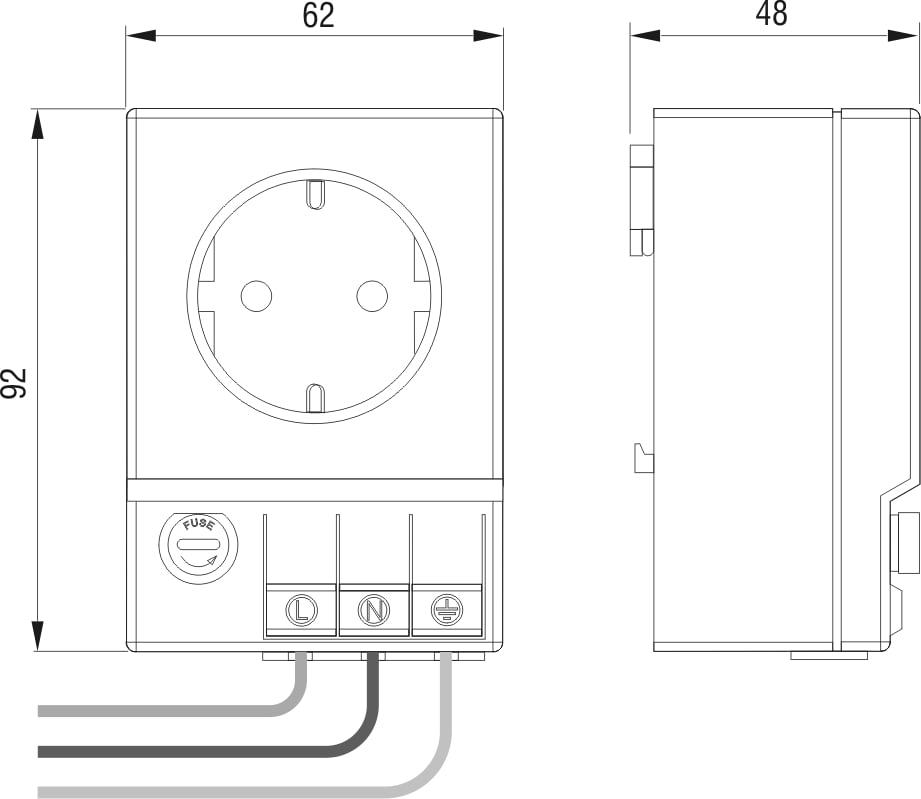

| Height | 92 mm |
| Width | 62 mm |
| Depth | 48 mm |
| Weight | 200 g |
| Note | With fuse: Microfuse Ø 5 x 20mm |
