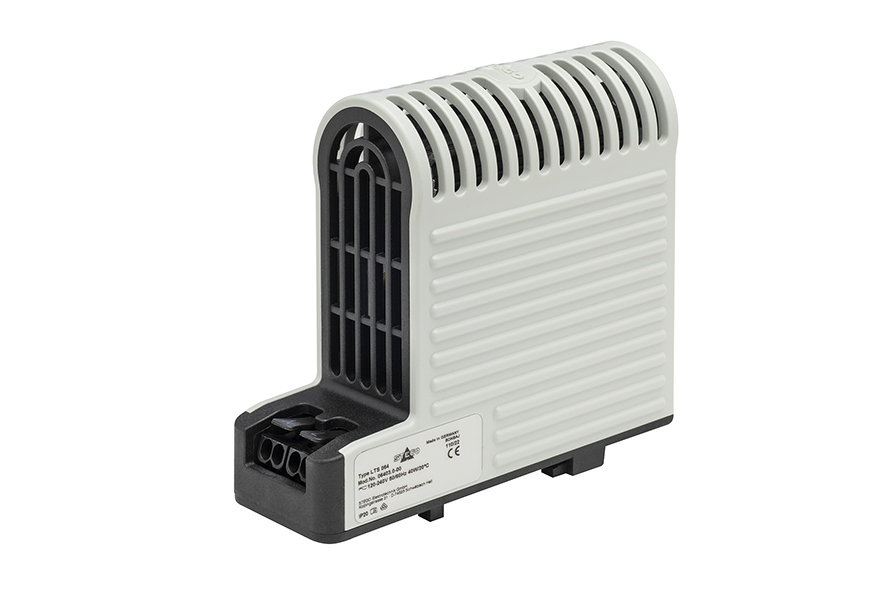

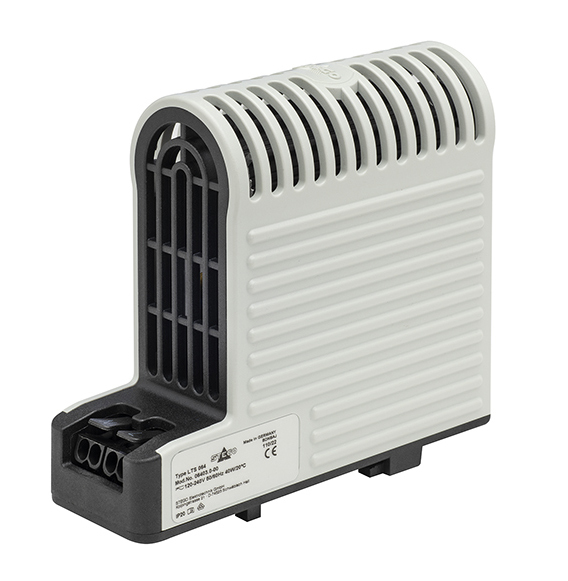

Enclosure heater

LTS 064

Compact heating for casings with electrical and electronic installations. The heater body in loop design improves convection. The plastic casing is designed so that the surface temperature on the touchable side surfaces does not exceed 80 °C. Pressure clamps enable quick and easy electrical connection.

Quick installation with clip fixing and pressure clamp
Low surface temperature
Double insulated (plastic housing)
Wide voltage range

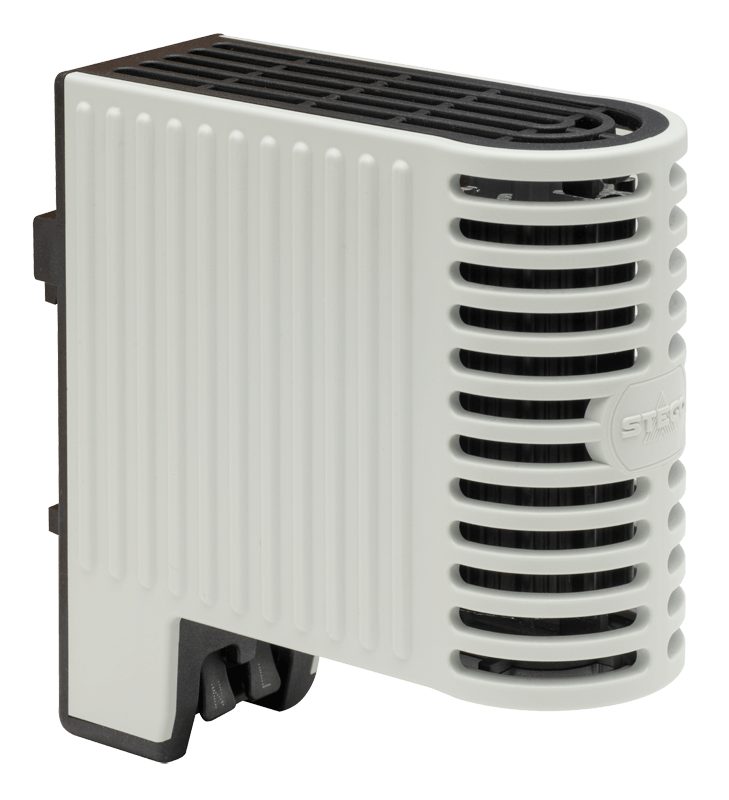

Heater body in loop design for optimum temperature distribution
Shock and vibration proof

Overview technical data

Device type	Convection heaters Touchsafe
Protection class	II
Protection type	IP20
Heating element	PTC resistor (PTC)
Casing	Plastic to UL94 V-0, black and white
AC/DC	AC DC
Operating voltage	120 V - 240 V
Operating voltage tolerance	110 V - 265 V
Frequency	50;60 Hz
Surface temperature	< + 80 °C
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C

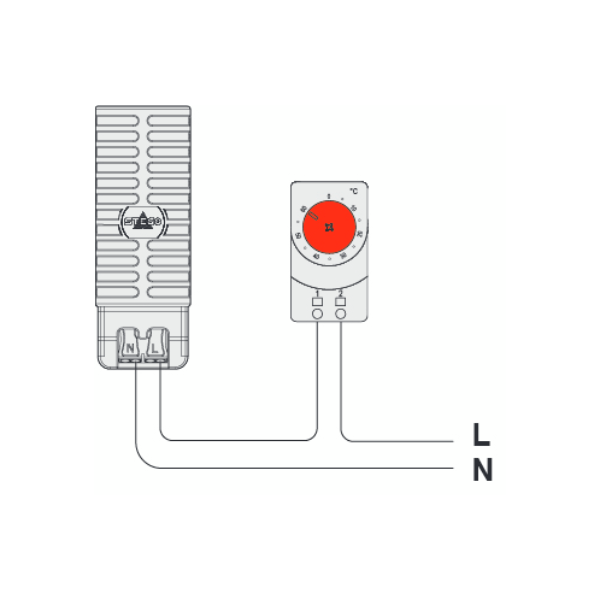

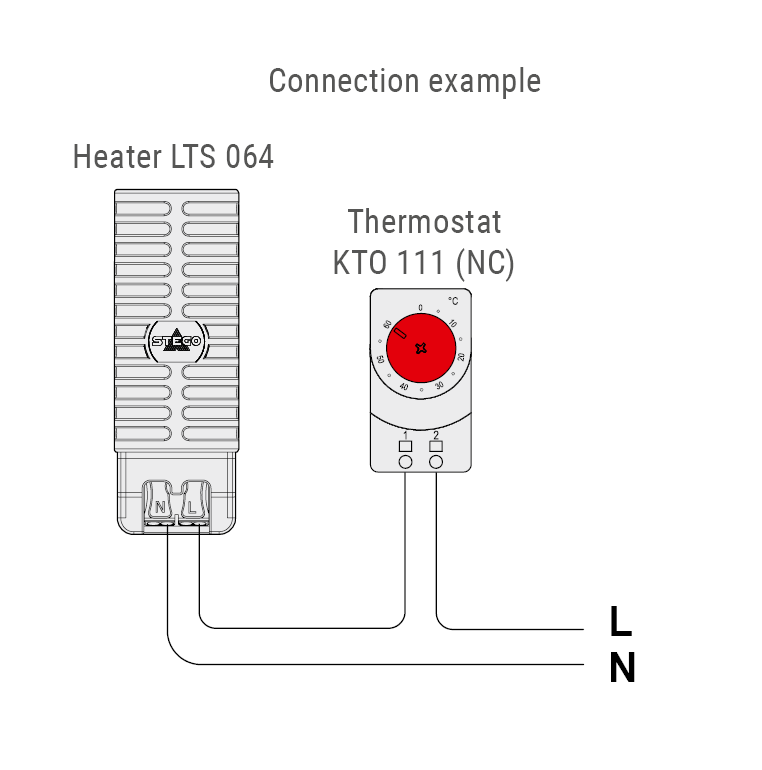

Connection type	Connection terminal
Connection	2 x pressure clamps for 0.5 - 1.5 mm² stranded wire (with wire end ferrule) and 0.5 - 2.5 mm² rigid wire
Mounting	Clip for 35 mm DIN rail
Installation position	Airflow direction "in" vertical / connection at the bottom

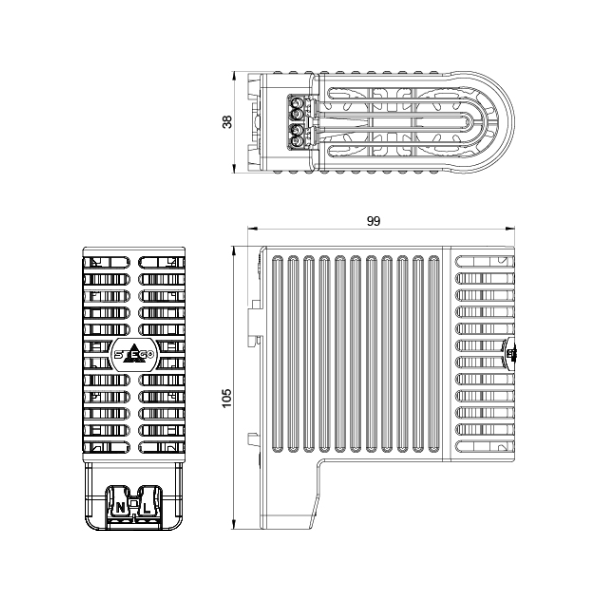

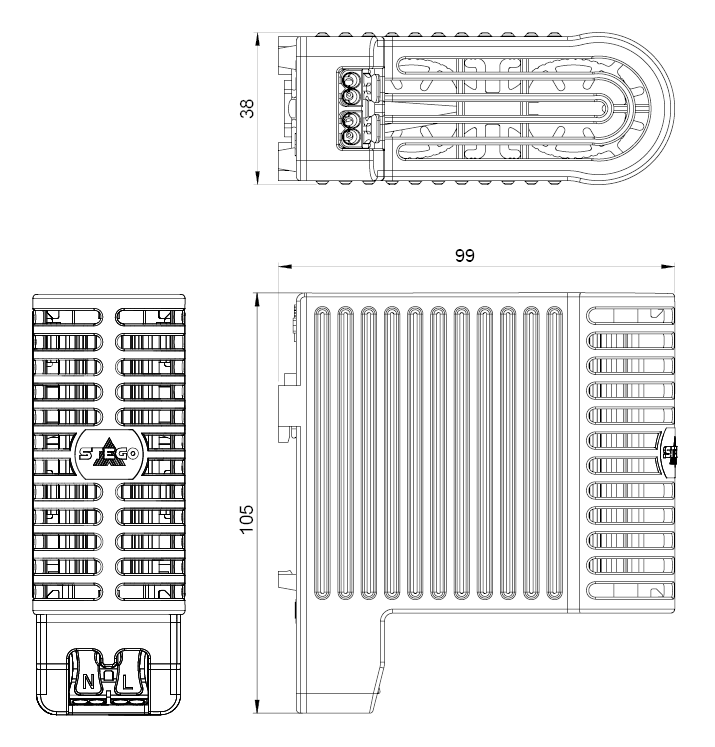

Height	105 mm
Width	38 mm
Depth	99 mm
Weight	200 g
Note	Surface temperature according to VDE 0100, excluding upper grid surface Surface temperature according to VDE 0100, excluding upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature.

Product variants

Article number	Device name	Device type	Series	Protection class	Protection type	Heating element	Casing	AC/DC	Operating voltage	Operating voltage tolerance	Inrush current maximum	Recommended backup fuse	Frequency	Heating capacity minimum	Surface temperature	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection type	Connection	Mounting	Installation position	Height	Width	Depth	Weight	Note	Datasheet
06401.0-00	Enclosure heater	Convection heaters Touchsafe	LTS 064	II	IP20	PTC resistor (PTC)	Plastic to UL94 V-0, black and white	AC DC	120 V - 240 V	110 V - 265 V	2 A	4 A	50;60 Hz	20 W	< + 80 °C	-45 °C - 70 °C	≤90 % RH	≤90 % RH	-45 °C - 70 °C	Connection terminal	2 x pressure clamps for 0.5 - 1.5 mm² stranded wire (with wire end ferrule) and 0.5 - 2.5 mm² rigid wire	Clip for 35 mm DIN rail	Airflow direction "in" vertical / connection at the bottom	105 mm	38 mm	99 mm	200 g	Surface temperature according to VDE 0100, excluding upper grid surface Surface temperature according to VDE 0100, excluding upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature.	LTS064-06401.0-00-Datasheet-EN.pdf
06402.0-00	Enclosure heater	Convection heaters Touchsafe	LTS 064	II	IP20	PTC resistor (PTC)	Plastic to UL94 V-0, black and white	AC DC	120 V - 240 V	110 V - 265 V	2 A	4 A	50;60 Hz	30 W	< + 80 °C	-45 °C - 70 °C	≤90 % RH	≤90 % RH	-45 °C - 70 °C	Connection terminal	2 x pressure clamps for 0.5 - 1.5 mm² stranded wire (with wire end ferrule) and 0.5 - 2.5 mm² rigid wire	Clip for 35 mm DIN rail	Airflow direction "in" vertical / connection at the bottom	105 mm	38 mm	99 mm	200 g	Surface temperature according to VDE 0100, excluding upper grid surface Surface temperature according to VDE 0100, excluding upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature.	LTS064-06402.0-00-Datasheet-EN.pdf
06403.0-00	Enclosure heater	Convection heaters Touchsafe	LTS 064	II	IP20	PTC resistor (PTC)	Plastic to UL94 V-0, black and white	AC DC	120 V - 240 V	110 V - 265 V	4 A	6 A	50;60 Hz	40 W	< + 80 °C	-45 °C - 70 °C	≤90 % RH	≤90 % RH	-45 °C - 70 °C	Connection terminal	2 x pressure clamps for 0.5 - 1.5 mm² stranded wire (with wire end ferrule) and 0.5 - 2.5 mm² rigid wire	Clip for 35 mm DIN rail	Airflow direction "in" vertical / connection at the bottom	105 mm	38 mm	99 mm	200 g	Surface temperature according to VDE 0100, excluding upper grid surface Surface temperature according to VDE 0100, excluding upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature.	LTS064-06403.0-00-Datasheet-EN.pdf
