Enclosure heater

LT 065

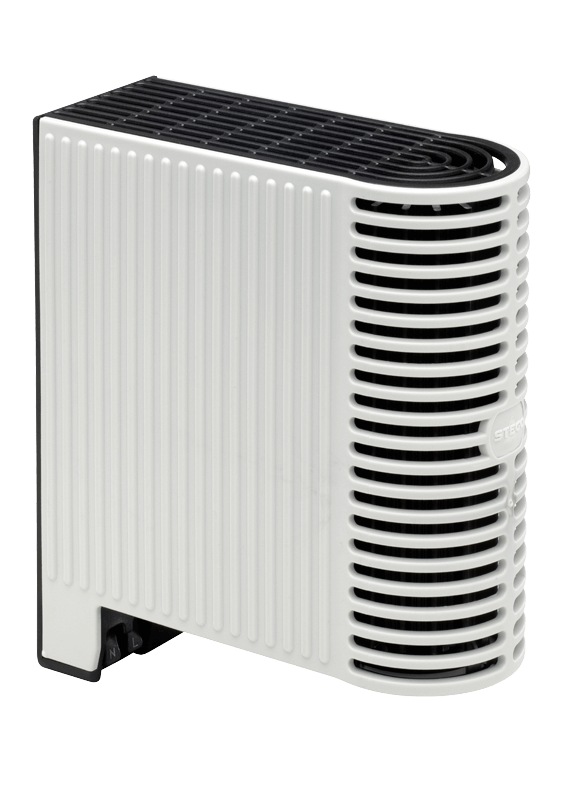

Compact loop heater for heating casings with electrical and electronic installations. Good self-convection due to high hot air flow. Touch-safe plastic casing minimizes surface temperatures to 80 °C. Also available in designs with thermostat (LTF 065 series).

Shock and vibration proof according to railroad standard DIN EN IEC 61373:2011-04, Cat. 1 B
Quick installation with clip fixing and pressure clamp
Low surface temperature
Double insulated (plastic housing)
Wide voltage range
Heater body in loop design for optimum temperature distribution

Overview technical data

Device type	Convection heaters Touchsafe
Protection class	II
Protection type	IP20
Heating element	PTC resistor (PTC)
Casing	Plastic to UL94 V-0, black and white
AC/DC	AC DC
Operating voltage	120 V - 240 V
Operating voltage tolerance	110 V - 265 V
Frequency	50;60 Hz
Surface temperature	< + 80 °C
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C
Connection type	Connection terminal
Connection	2 x pressure clamps for 0.5 - 1.5 mm² stranded wire (with wire end ferrule) and 0.5 - 2.5 mm² rigid wire
Mounting	Clip for 35 mm DIN rail
Installation position	Airflow direction "in" vertical / connection at the bottom

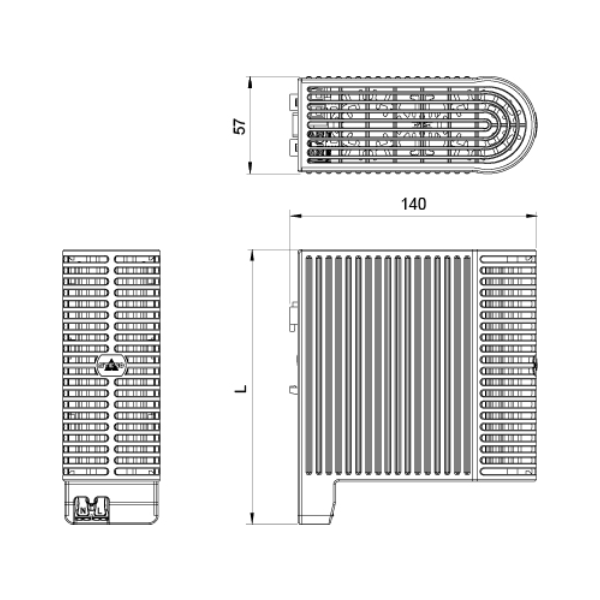

Width	57 mm
Depth	140 mm
Note	Surface temperature according to VDE 0100, excluding upper grid surface Surface temperature according to VDE 0100, excluding upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature.

Product variants

Article number	Inrush current maximum	Recommended backup fuse	Heating capacity minimum	Height	Weight	Datasheet
06500.0-00	4 A	6 A	50 W	101 mm	400 g	LT065-06500.0-00-Datasheet-EN.pdf
06503.0-00	6 A	8 A	100 W	161 mm	750 g	LT065-06503.0-00-Datasheet-EN.pdf
06504.0-00	8 A	10 A	150 W	161 mm	750 g	LT065-06504.0-00-Datasheet-EN.pdf
