LED enclosure lamp
LED 025

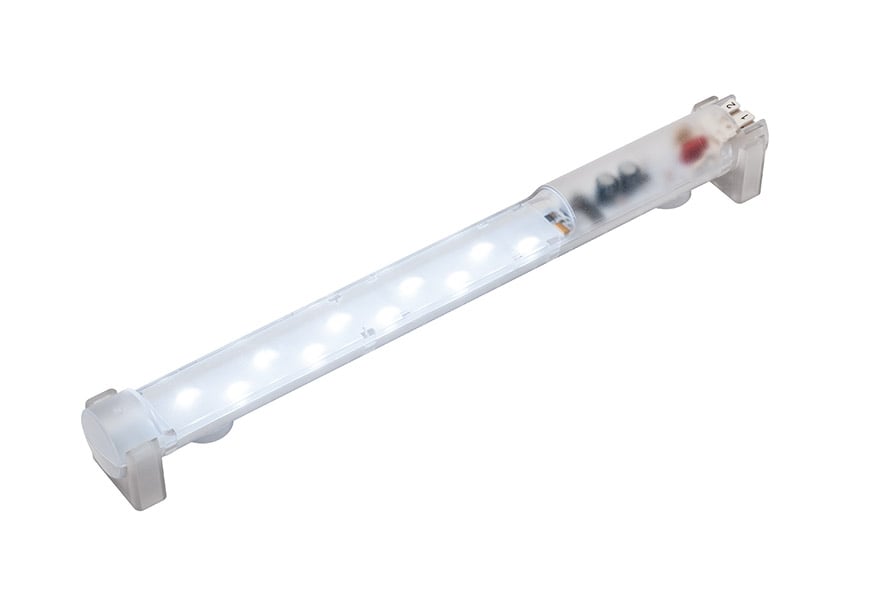

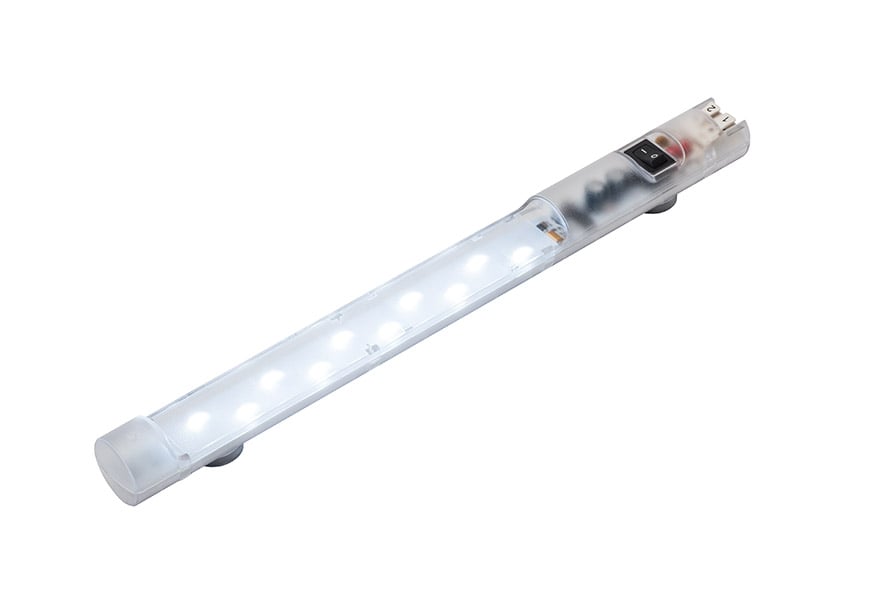

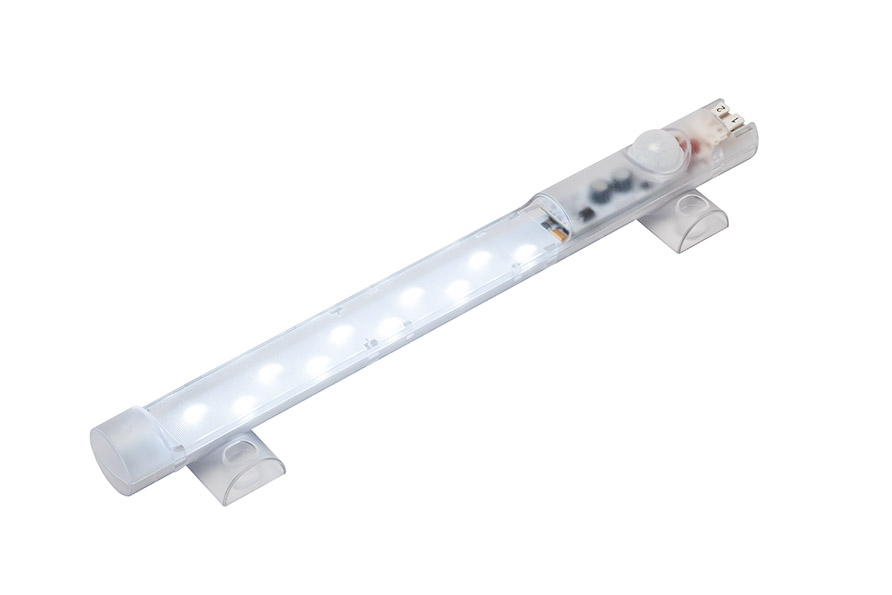

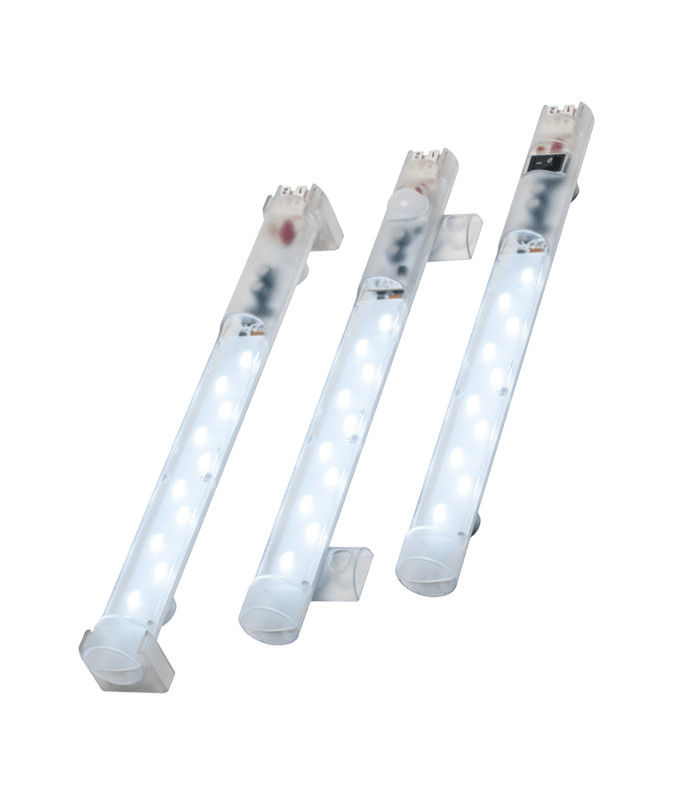

Space-saving Ecoline LED enclosure lamp for use in enclosures, casings and technical installation spaces with high component density. High service life of the switch cabinet lamp (LED) of 60,000 hours, mounting by magnet, clip or screw fixing. Pressure clamps for the electrical connection and daisy chain.
- Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)
- Wide-range voltage
- Luminous flux 400 Lm, daylight white: 6000 to 7000 K
- Pressure clamp connections
Overview technical data
| Device name | LED enclosure lamp |
| Series | LED 025 |
| Illuminant | LED |
| Protection class | II |
| Protection type | IP20 |
| Casing | Plastic, transparent |
| Frequency | 50;60 Hz |
| Power consumption | <4 W |
| Luminous colour | 6000 - 7000 K |
| Luminous flux | 400 Lm |
| Service life | >60000 h |
| Operating temperature | -40 °C - 60 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection type | Connector plug |

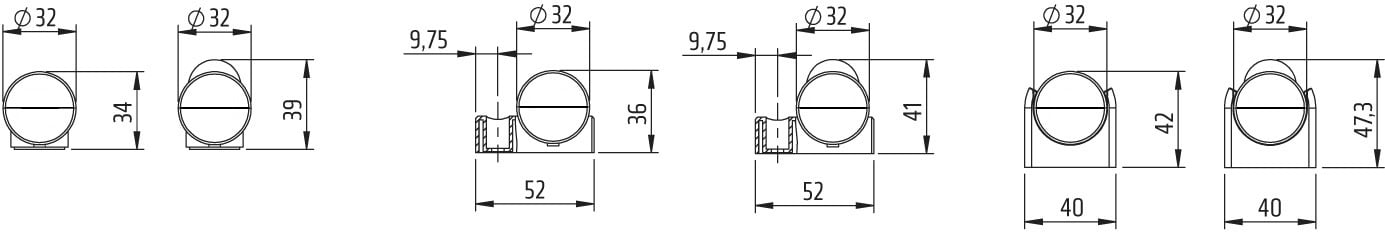

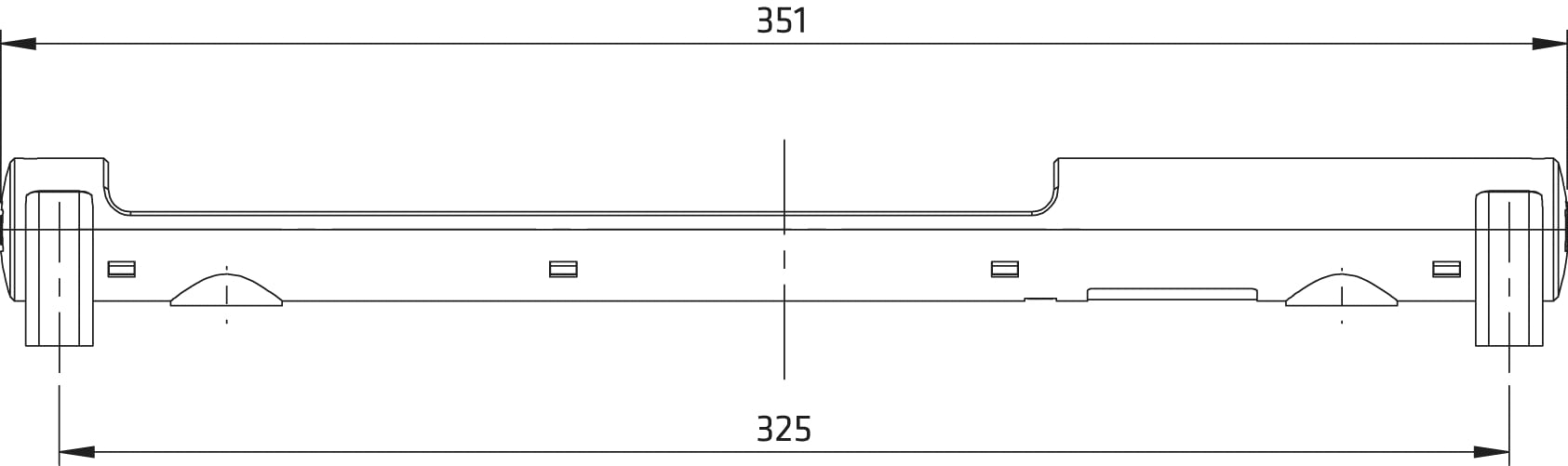

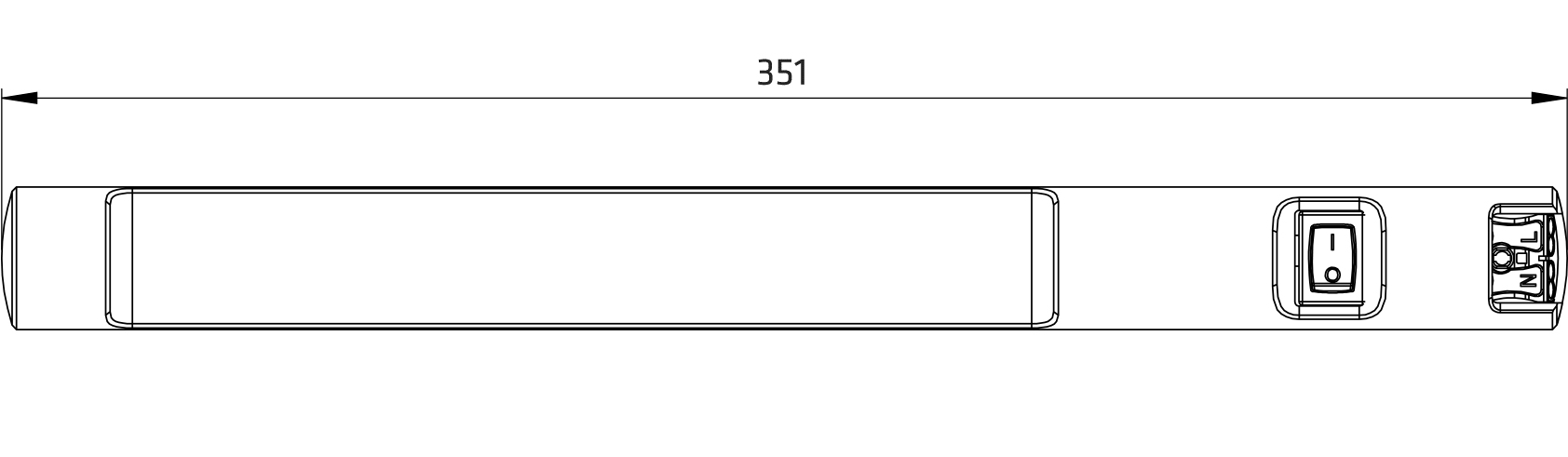

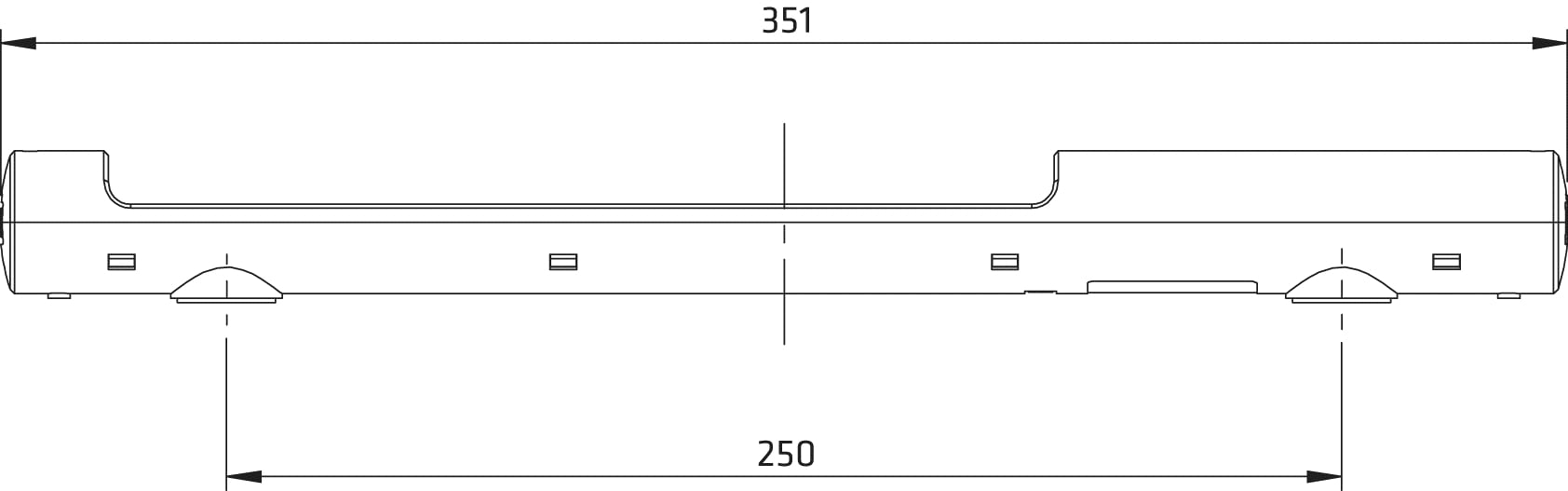

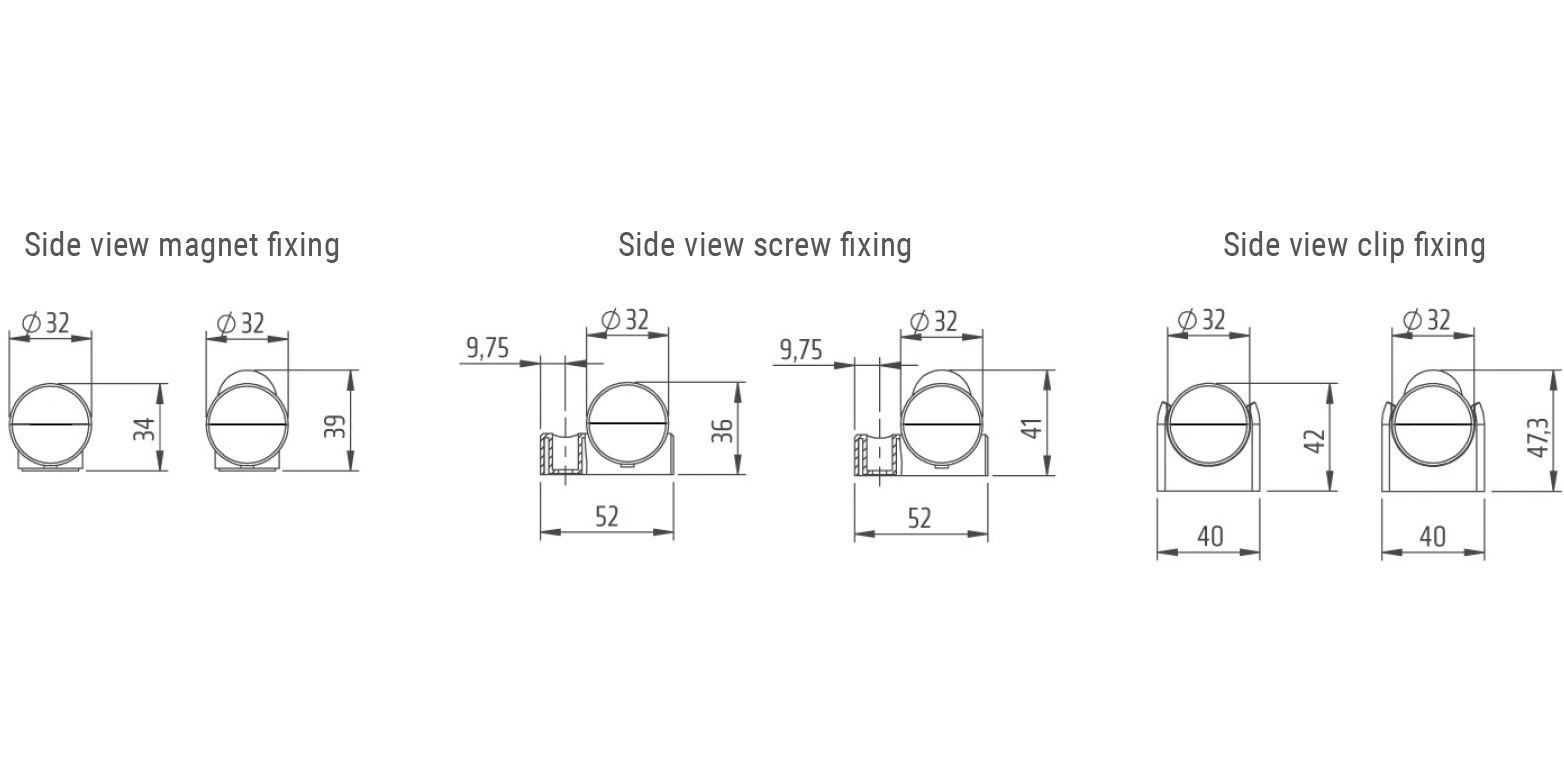

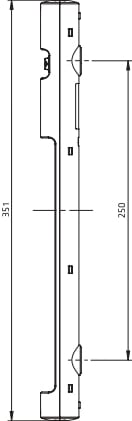

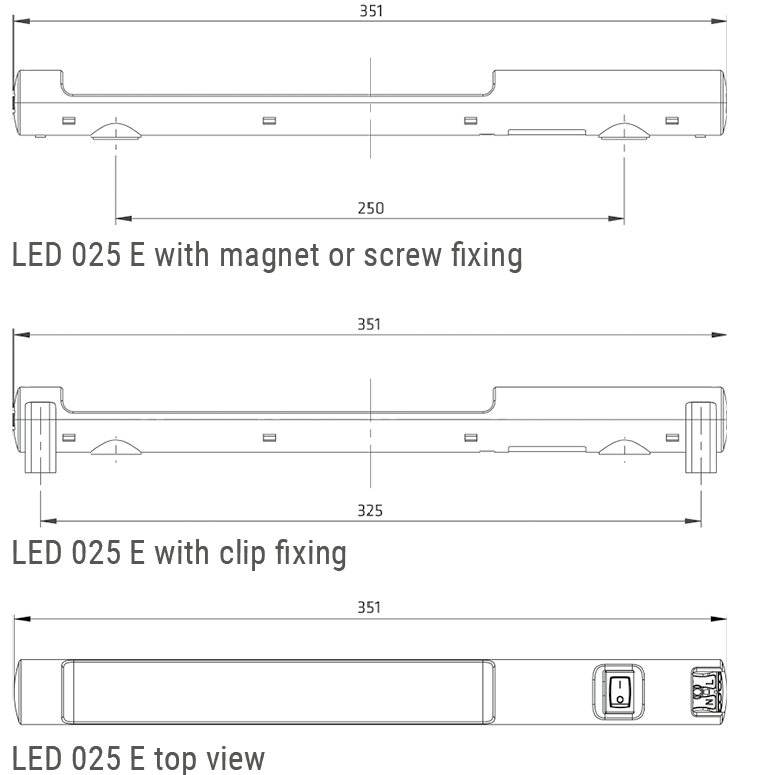

| Depth | 351 mm |
| Weight | 200 g |
| CCC | CCC approved |
Product variants
| Article number | Device type | Switch | AC/DC | Operating voltage | Operating voltage tolerance | Connection | Mounting | Height | Width | Note | Request | CAD | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02540.3-13 | LED enclosure lamps | On/off switch | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Clip | 47.3 mm | 40 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02540.3-13-LED025-Datasheet-EN.pdf | ||
| 02542.3-11 | LED enclosure lamps | without | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Screw | 41 mm | 52 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02542.3-11-LED025-Datasheet-EN.pdf | ||
| 02540.3-10 | LED enclosure lamps | On/off switch | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm² | Magnet | 36 mm | 32 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02540.3-10-LED025-Datasheet-EN.pdf | ||
| 02541.3-10 | LED enclosure lamps | Motion detector | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Magnet | 36 mm | 32 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02541.3-10-LED025-Datasheet-EN.pdf | ||
| 02540.3-11 | LED enclosure lamps | On/off switch | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Screw | 41 mm | 52 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02540.3-11-LED025-Datasheet-EN.pdf | ||
| 02541.3-11 | LED enclosure lamps | Motion detector | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Screw | 41 mm | 52 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02541.3-11-LED025-Datasheet-EN.pdf | ||
| 02542.3-13 | LED enclosure lamps | without | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Clip | 47.3 mm | 40 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02542.3-13-LED025-Datasheet-EN.pdf | ||
| 02541.1-10 | LED enclosure lamps DC applications | Motion detector | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Magnet | 36 mm | 32 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02541.1-10-LED025-Datasheet-EN.pdf | ||
| 02542.3-10 | LED enclosure lamps | without | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Magnet | 36 mm | 32 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02542.3-10-LED025-Datasheet-EN.pdf | ||
| 02540.1-10 | LED enclosure lamps DC applications | On/off switch | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Magnet | 36 mm | 32 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02540.1-10-LED025-Datasheet-EN.pdf | ||
| 02541.3-13 | LED enclosure lamps | Motion detector | AC | 100 V - 240 V | 90 V - 265 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Clip | 47.3 mm | 40 mm | DC 90 - 110 V (min. DC 80 V, max. DC 125 V) The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02541.3-13-LED025-Datasheet-EN.pdf | ||
| 02540.1-11 | LED enclosure lamps DC applications | On/off switch | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Screw | 41 mm | 52 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02540.1-11-LED025-Datasheet-EN.pdf | ||
| 02541.1-11 | LED enclosure lamps DC applications | Motion detector | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Screw | 41 mm | 52 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02541.1-11-LED025-Datasheet-EN.pdf | ||
| 02541.1-13 | LED enclosure lamps DC applications | Motion detector | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Clip | 47.3 mm | 40 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02541.1-13-LED025-Datasheet-EN.pdf | ||
| 02542.1-10 | LED enclosure lamps DC applications | without | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Magnet | 36 mm | 32 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02542.1-10-LED025-Datasheet-EN.pdf | ||
| 02542.1-11 | LED enclosure lamps DC applications | without | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Screw | 41 mm | 52 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02542.1-11-LED025-Datasheet-EN.pdf | ||
| 02540.1-13 | LED enclosure lamps DC applications | On/off switch | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Clip | 47.3 mm | 40 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02540.1-13-LED025-Datasheet-EN.pdf | ||
| 02542.1-13 | LED enclosure lamps DC applications | without | DC | 24 V - 48 V | 20 V - 60 V | 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm | Clip | 47.3 mm | 40 mm | The light must not be used for household lighting The light is simply snapped into the clip holder and can be rotated in both directions. With a total rotation angle of 180°, this enables optimum illumination. | 02542.1-13-LED025-Datasheet-EN.pdf |
