LED enclosure lamp
LED 025

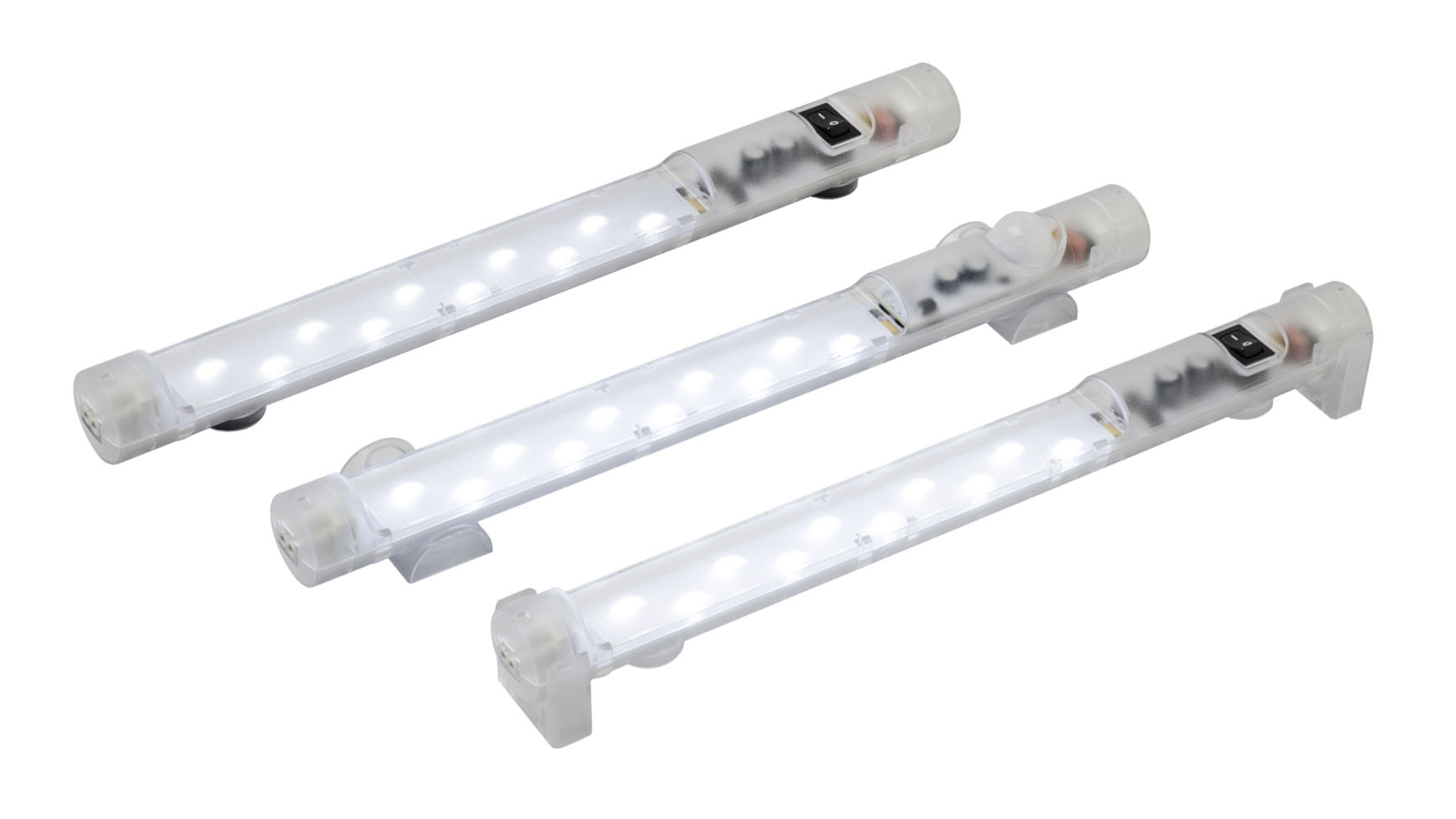

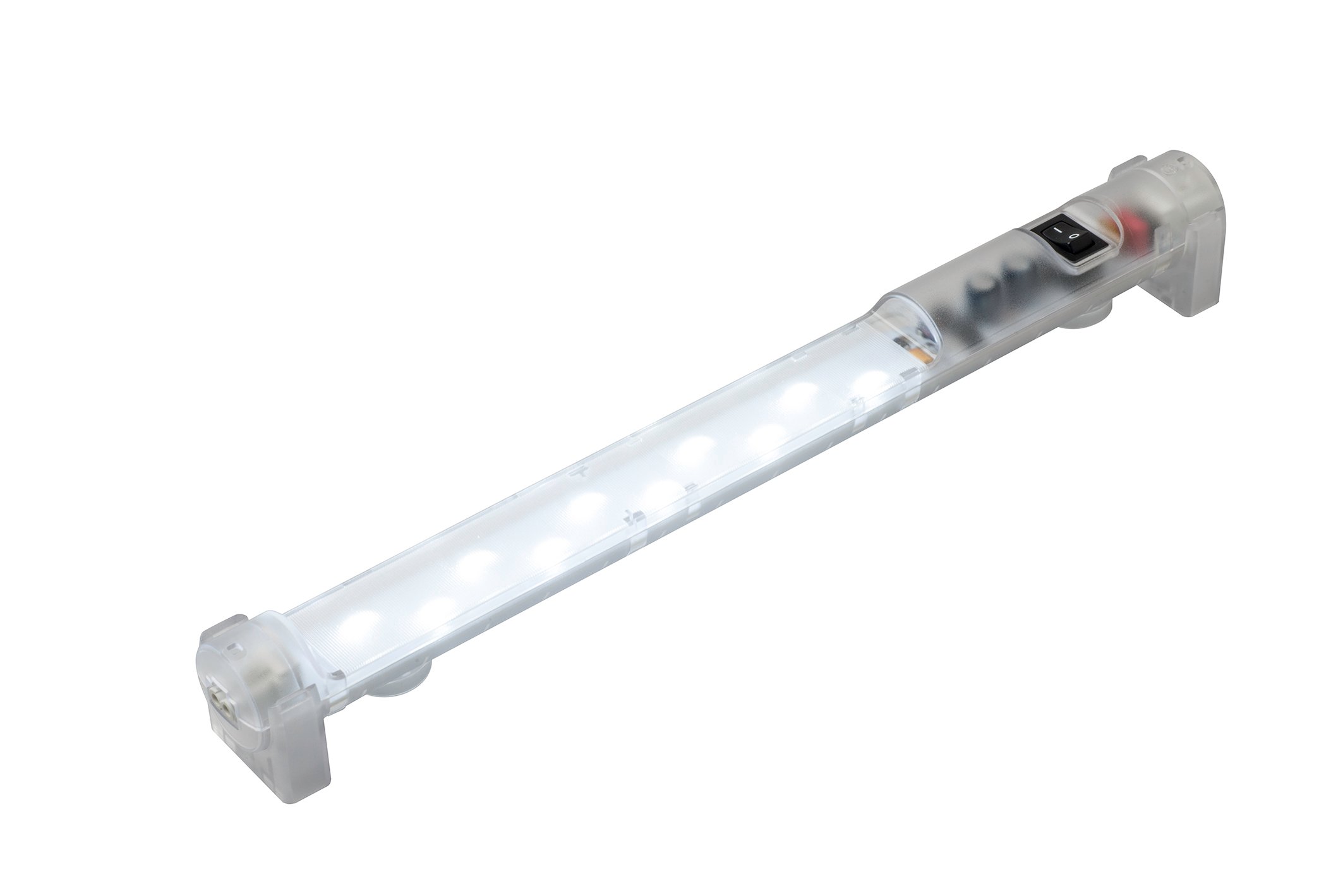

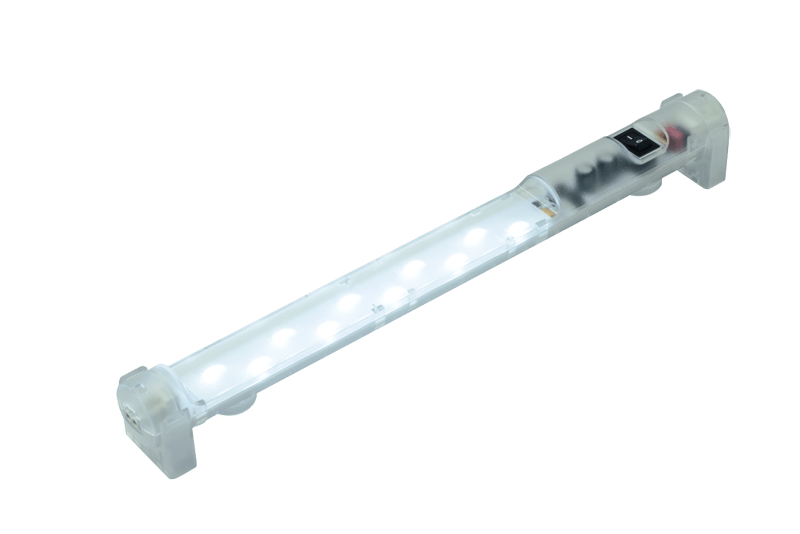

Compact LED enclosure lamp. Electrical connection via male connector with snap lock. High service life of the switch cabinet lamp (LED) of 60,000 hours. Mounting by magnet, clip or screw fixing. Luminaire body can be rotated through 180°, angle of radiation 120° for optimum illumination.

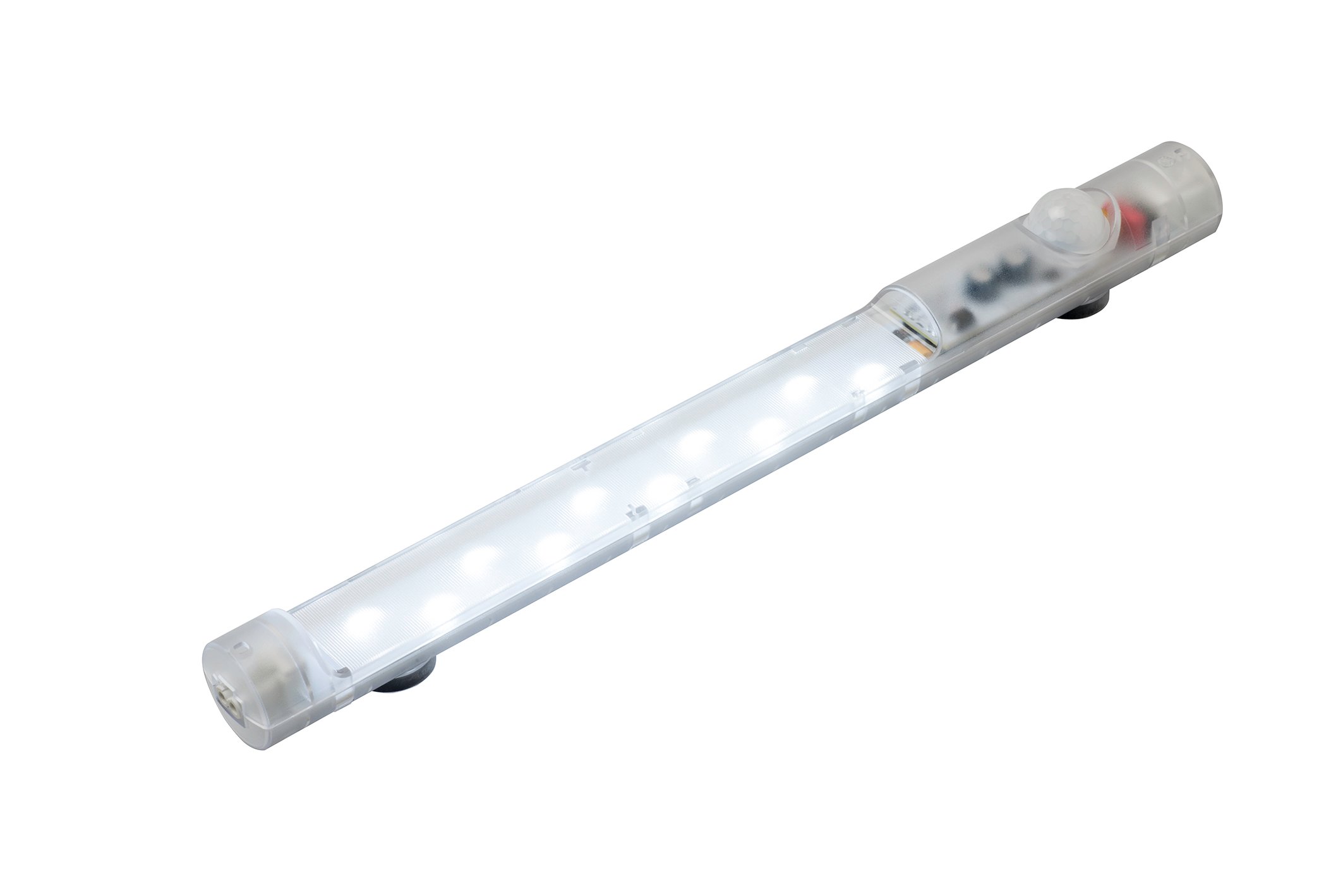

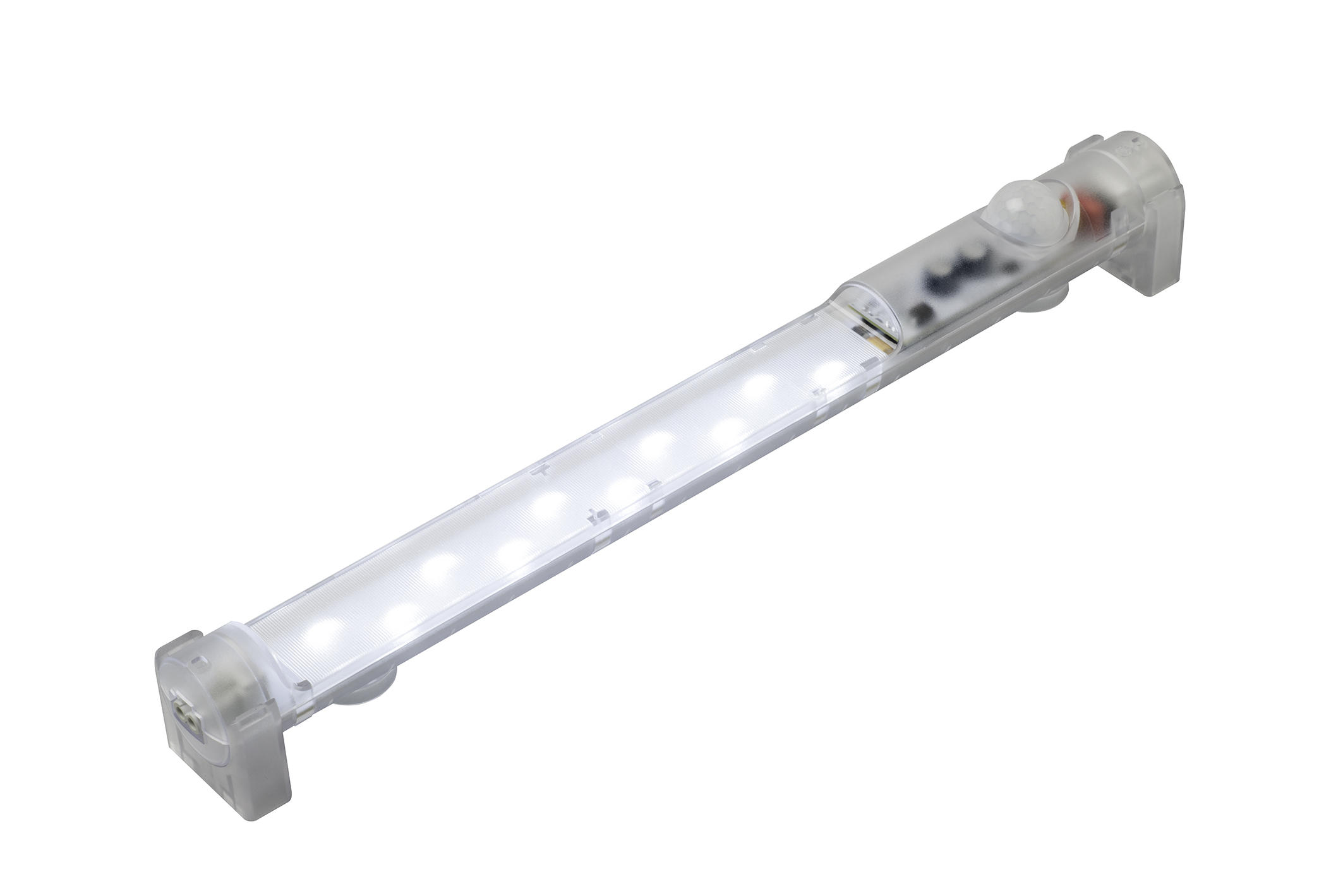

- Switching options: PIR motion detector, on/off switch
- Wide-range voltage
- Luminous flux 400 Lm
- Luminous color: 6000 to 7000 K (daylight white)

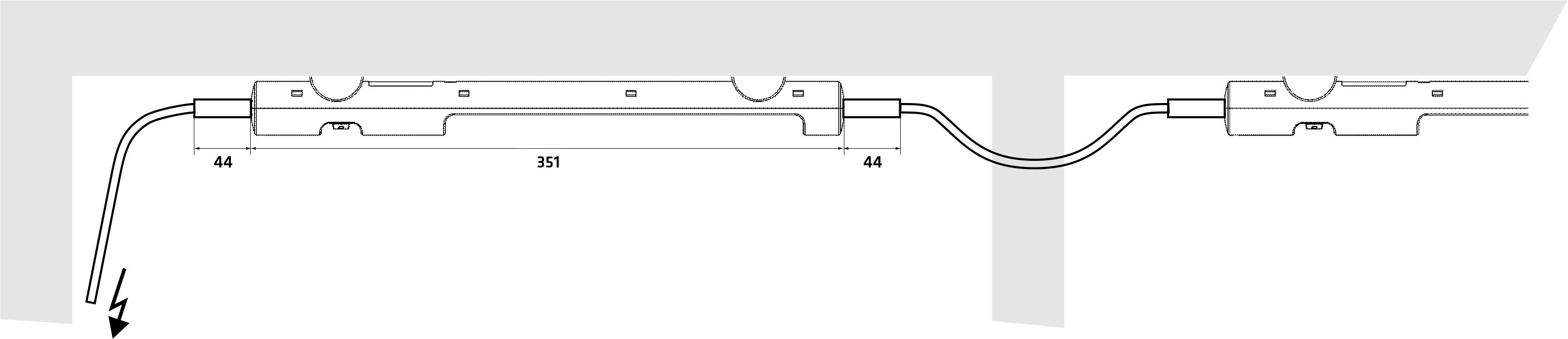

- Daisy chain
Overview technical data
| Device name | LED enclosure lamp |
| Series | LED 025 |
| Illuminant | LED |
| Protection class | II |
| Protection type | IP20 |
| Casing | Plastic, transparent |
| Frequency | 50;60 Hz |
| Power consumption | <4 W |
| Luminous colour | 6000 - 7000 K |
| Luminous flux | 400 Lm |
| Service life | >60000 h |
| Operating temperature | -40 °C - 60 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection type | Connector plug |
| Connection | 2-pole connector with snap lock |

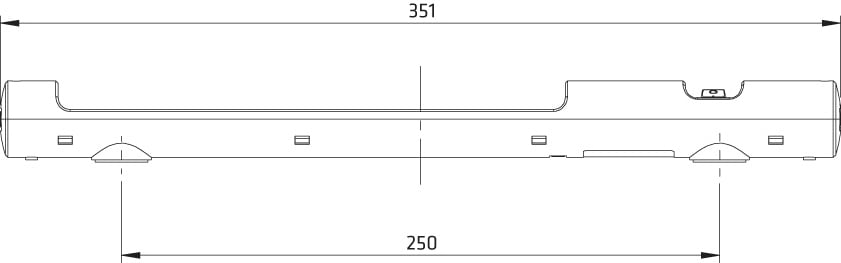

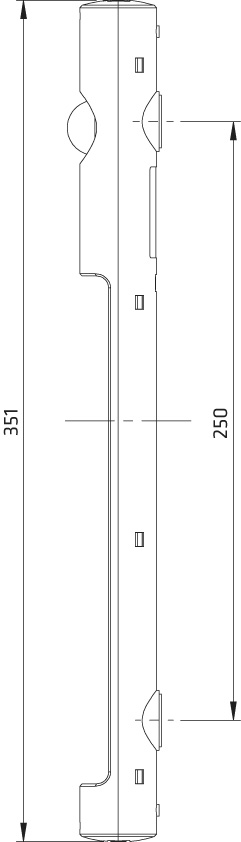

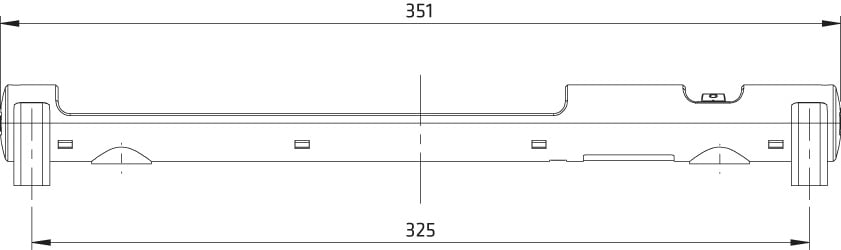

| Depth | 351 mm |
| Weight | 200 g |
| Accessory 1 | Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m |
| Accessory 2 | Connection cable 2 x AWG 16 with female connector, 2 m |
| Accessory 3 | Separate female connector for cable connection |
| Accessory 4 | Separate male connector for cable connection |
| Note | The light must not be used for household lighting. |
| CCC | CCC approved |
