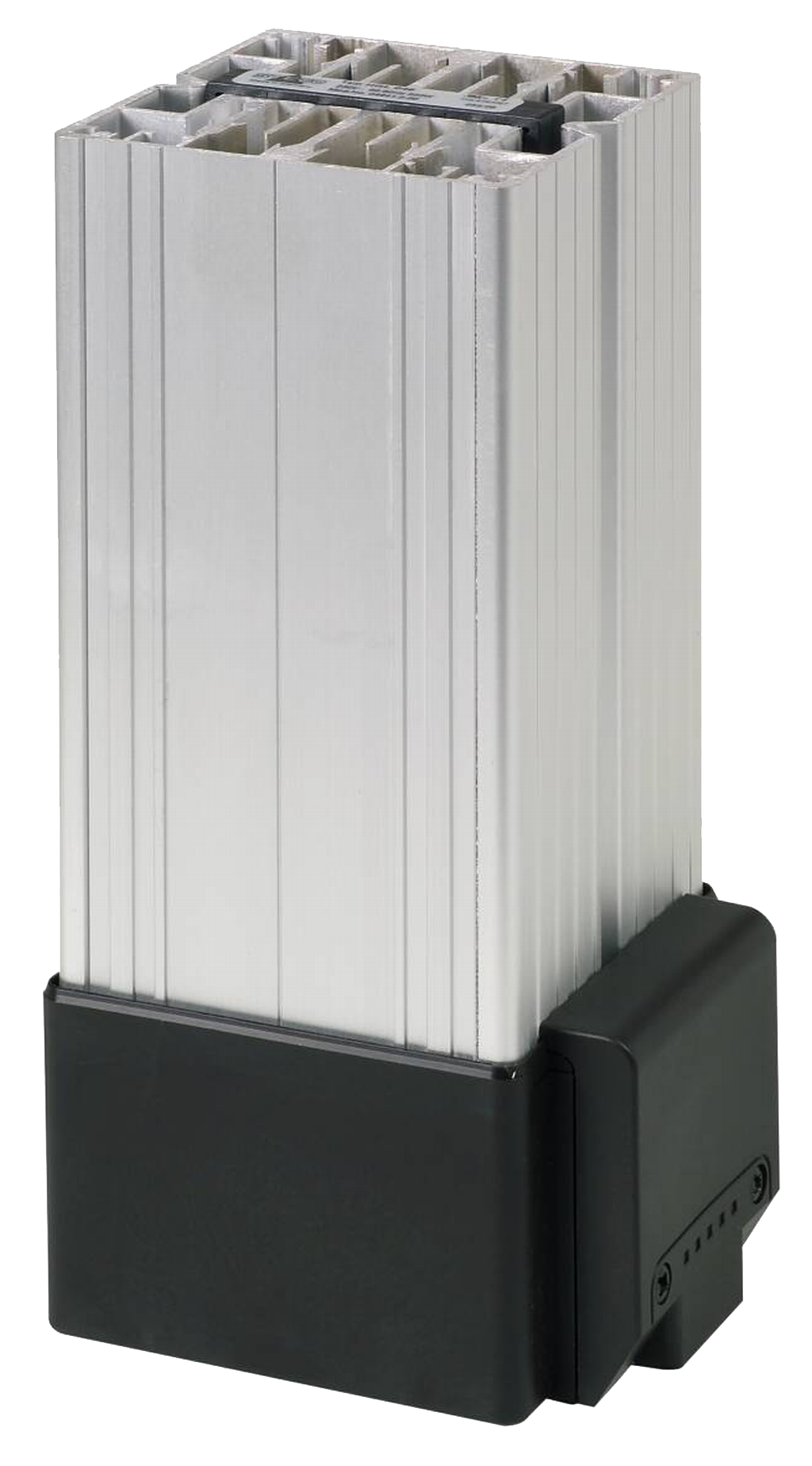

The compact fan heater heats the air inside the enclosure or casing to protect against harmful condensation. The convection effect of this resistance heater is maximized by the integrated fan.
| Device type | Fan heater |
| Temperature monitoring | Overheating protection in the event of fan failure with automatic reset |
| Protection class | I |
| Protection type | IP20 |
| Connection case | Plastic to UL94 V-0, black |
| Heating element | Resistance heater |
| Heater element | Aluminium profile, anodised |
| AC/DC | AC |
| Frequency | 50;60 Hz |
| Service life | >50000 h |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |

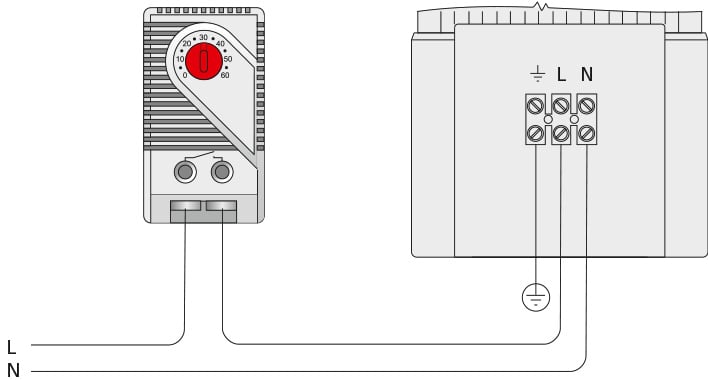

| Connection type | Connection terminal |
| Connection | Internal connection terminal 1.5 mm² with strain relief |
| Mounting | Clip for 35 mm DIN rail |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

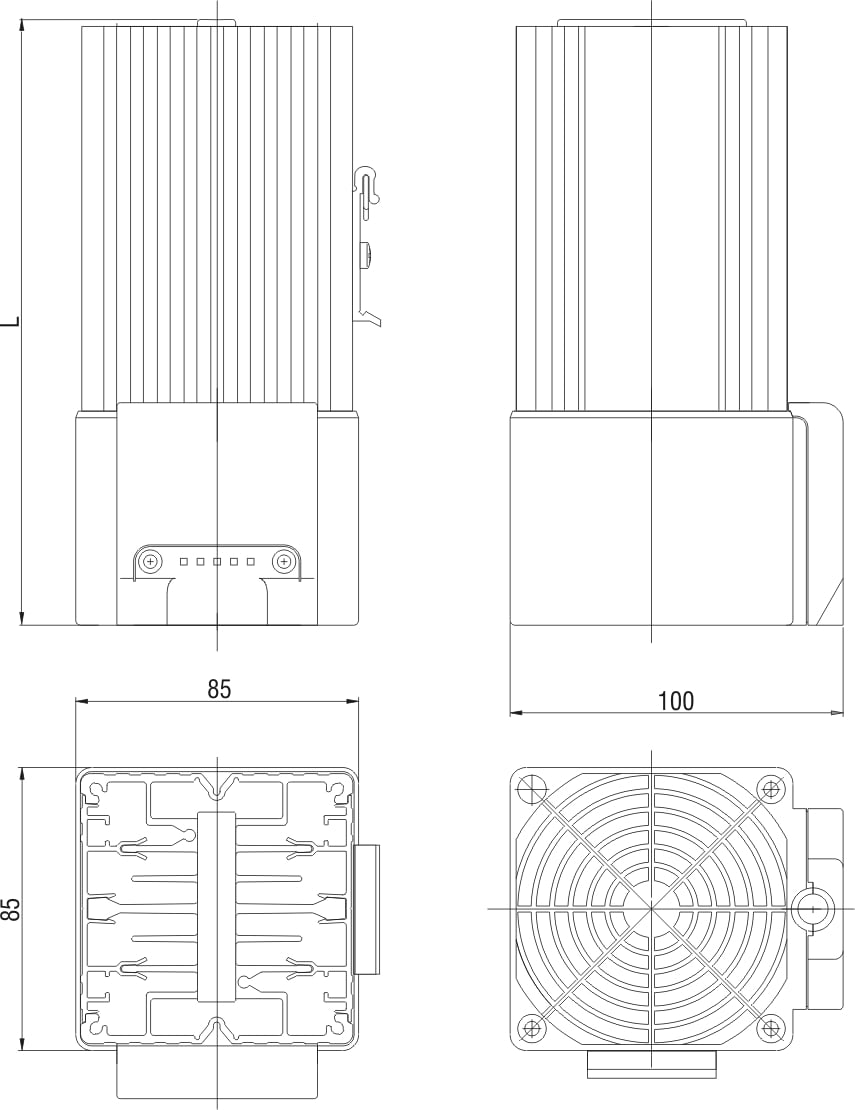

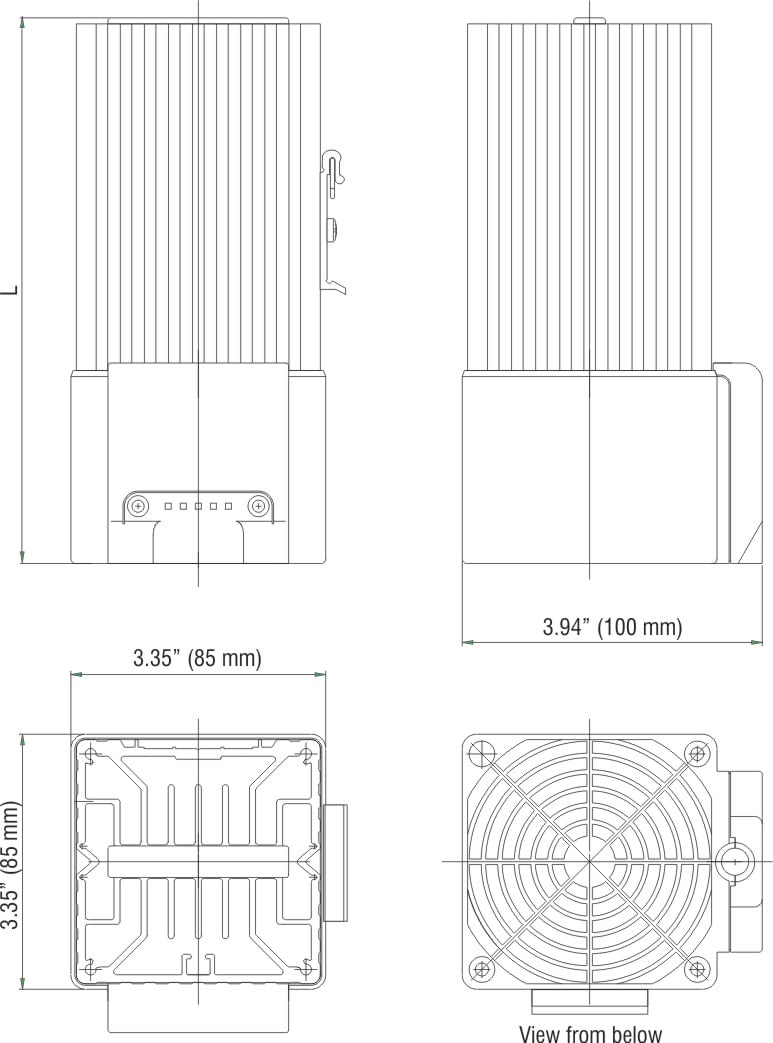

| Width | 85 mm |
| Depth | 100 mm |
| Note | Other voltages on request;Note: according to UL 508A, NITW file on request |
| Article number | Operating voltage | Heating capacity | Surface temperature | Height | Weight | Operating voltage tolerance | Recommended backup fuse | Interactions |
|---|---|---|---|---|---|---|---|---|

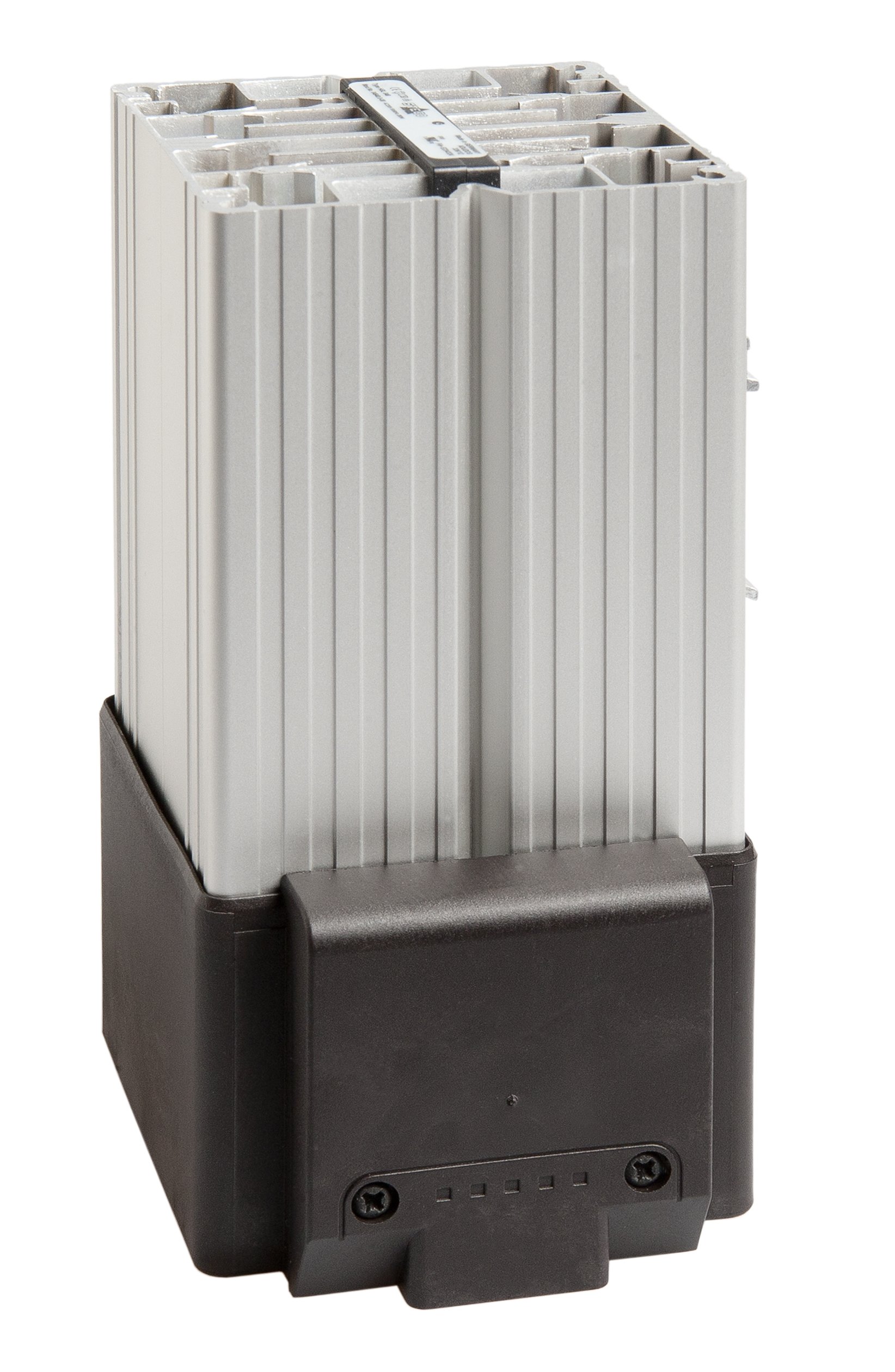

| 04640.0-00 | 230 V | 250 W | < + 70 °C | 182 mm | 1100 g | 208 V - 253 V | 2 A | |
| 04640.9-00 | 120 V | 250 W | < + 70 °C | 182 mm | 1100 g | 108 V - 132 V | 4 A | |
| 04641.0-00 | 230 V | 400 W | < + 75 °C | 222 mm | 1400 g | 208 V - 253 V | 2 A | |
| 04641.9-00 | 120 V | 400 W | < + 75 °C | 222 mm | 1400 g | 108 V - 132 V | 6,3 A |
