The compact fan heater heats the air inside the enclosure or casing to protect against harmful condensation. The convection effect of this resistance heater is maximized by the integrated fan.
| Device type | Fan heater |
| Temperature monitoring | Overheating protection in the event of fan failure with automatic reset |
| Protection class | I |
| Protection type | IP20 |
| Connection case | Plastic to UL94 V-0, black |
| Heating element | Resistance heater |
| Heater element | Aluminium profile, anodised |
| AC/DC | AC |
| Frequency | 50;60 Hz |
| Service life | >50000 h |
| Operating temperature | -49 °F - 158 °F |
| Operating humidity | ≤90 % rF |
| Storage humidity | ≤90 % rF |
| Storage temperature | -49 °F - 158 °F |
| Connection type | Connection terminal |
| Connection | Internal connection terminal 1.5 mm² with strain relief |
| Mounting | Clip for 35 mm DIN rail |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

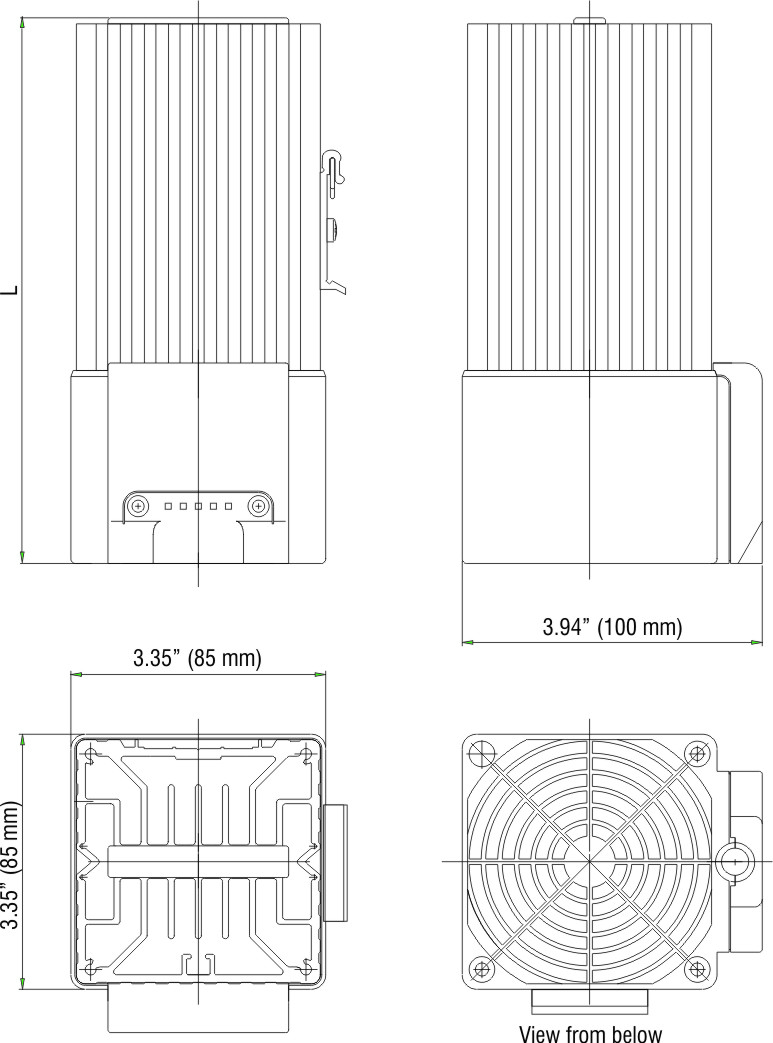

| Width | 3.3 in |
| Depth | 3.9 in |
| Note | Other voltages on request;Note: according to UL 508A, NITW file on request |
