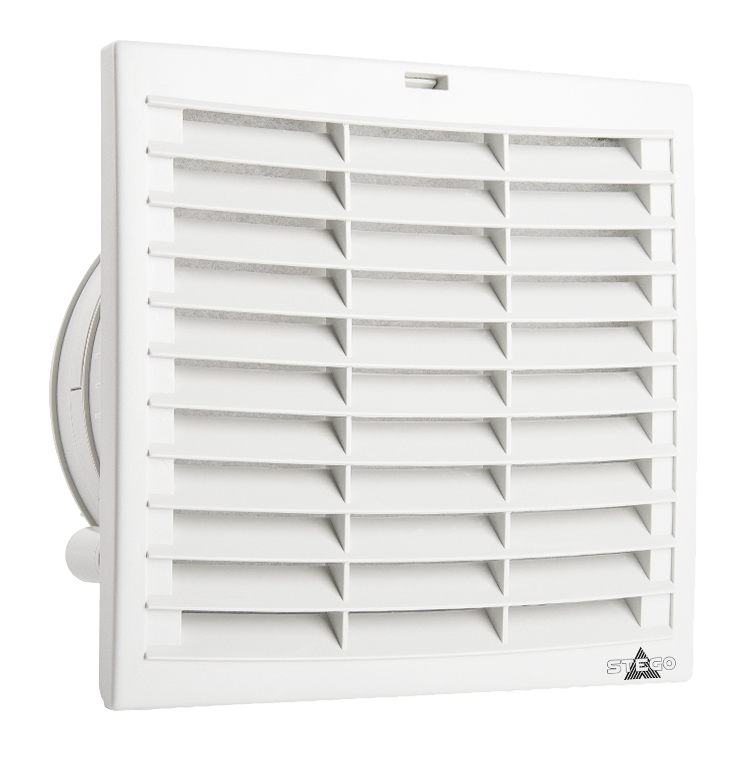

Filter fan Plus - size 4 (223 X 223 mm)
FPO 018
Filter fan FPO size 4 (223 x 223 mm) for air conditioning enclosures and casings. Configuration: FPO - airflow direction "in" (design: intaking). Optimum filter fan for enclosures: The Filter Fan Plus draws the heating air from the enclosure to the outside. Cooler outside air enters the enclosure via the inlet filter. The air flow protects the electrical components.
- Filter fan with self-closing flaps as air outlet
- Only one filter mat required (on the inlet filter)
- Easy installation thanks to mounting frame with twist locks
- Effective air circulation
- Accessories: Hose-proof hood to increase the protection type to IP56
Overview technical data
| Device name | Filter fan Plus - size 4 (223 X 223 mm) |
| Device type | Filter fan Plus (AC) |
| Series | FPO 018 |
| Protection class | I |
| Protection type | IP54 |
| Material hood | Plastic to UL94 V-0, light grey |
| Filter material | Plastic fibre with progressive structure |
| Filter mat | Flaps |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | AC |
| Axial fan | Fan body aluminium, rotor metal |
| Service life | >56000 h |
| Operating temperature | -25 °C - 65 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 70 °C |
| Torque | 0.8 Nmmax. |
| Connection | 3-pin connection terminal 2.5 mm², torque 0.8 Nm max. |
| Mounting frame | With 4 built-in rotary latches for locking |

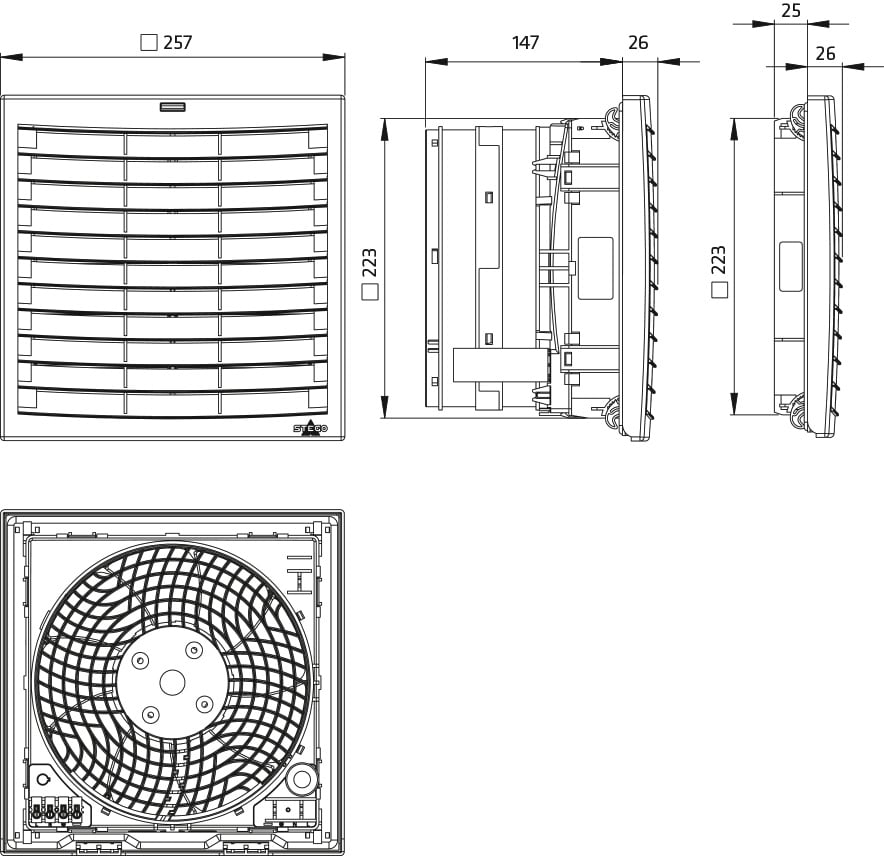

| Height | 257 mm |
| Width | 257 mm |
| Depth | 171 mm |
| Installation depth | 147 mm |
| Weight | 2400 g |
| Mounting cut-out | 223 x 223 mm |
| Item number accessories 1 | 08636.0-00 |
| Item number accessories 2 | 11883.0-30 |
| Item number accessories 3 | 08673.0-00 |
| Accessory 1 | Replacement filter mat FM 086 |
| Accessory 2 | Exit filter FP0 118 with filter mat G3 |
| Accessory 3 | Water jet protection hood FFH 086 |
| Note | Drilling pattern for screw fixing marked on mounting frame. |
| Protection type UL | NEMA Type 12 |
