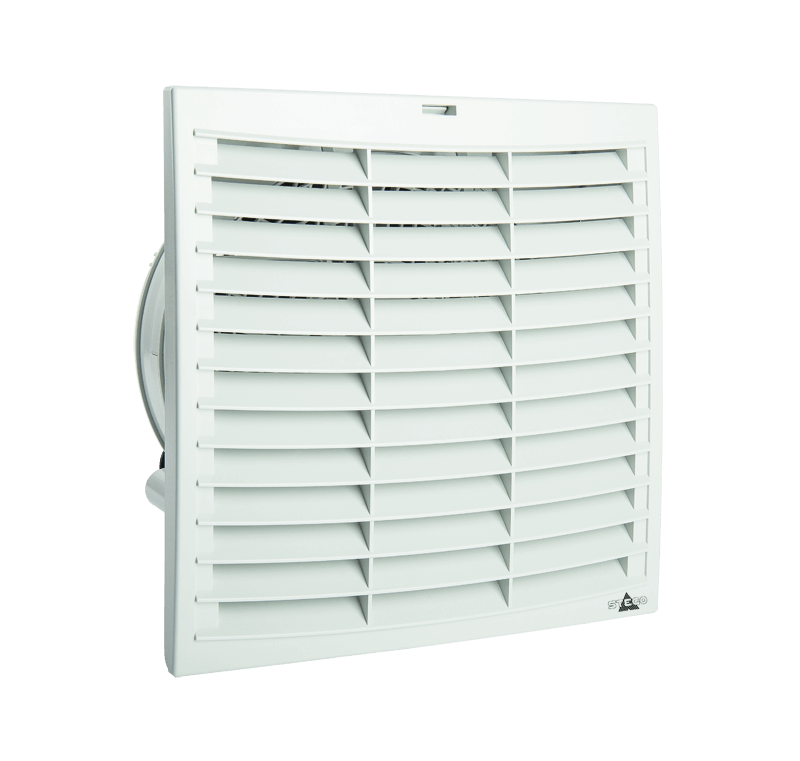

Filter fan Plus - size 5 (291 X 291 mm)

FPI 018

Filter fan FPI size 5 (291 x 291 mm) for air conditioning enclosures and casings. Configuration: FPI - airflow direction "in" (standard version: blowing). Optimum air conditioning for your enclosure: The Filter Fan Plus blows cooler outside air into the enclosure. The warmer air inside the enclosure is discharged via the exit filter. The resulting air flow cools the enclosure and protects the components from overheating.

Only one filter mat required (on the filter fan)
Easy installation thanks to mounting frame with twist locks
Effective air circulation
Accessories: Hose-proof hood to increase the protection type to IP56

overview_technical_specifications

device_type	Filter fan Plus (AC)
protection_class	I
protection_type	IP54
material_hood	Plastic to UL94 V-0, light grey
filter_material	Plastic fibre with progressive structure
filter_mat	G3
casing	Plastic to UL94 V-0, light grey
ac_dc	AC
axial_fan	Fan body aluminium, rotor metal
operating_humidity	≤90 % RH
storage_humidity	≤90 % RH
storage_temperature	-40 °C - 70 °C
torque	0.8 Nmmax.
connection	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.
mounting_frame	With 4 built-in rotary latches for locking

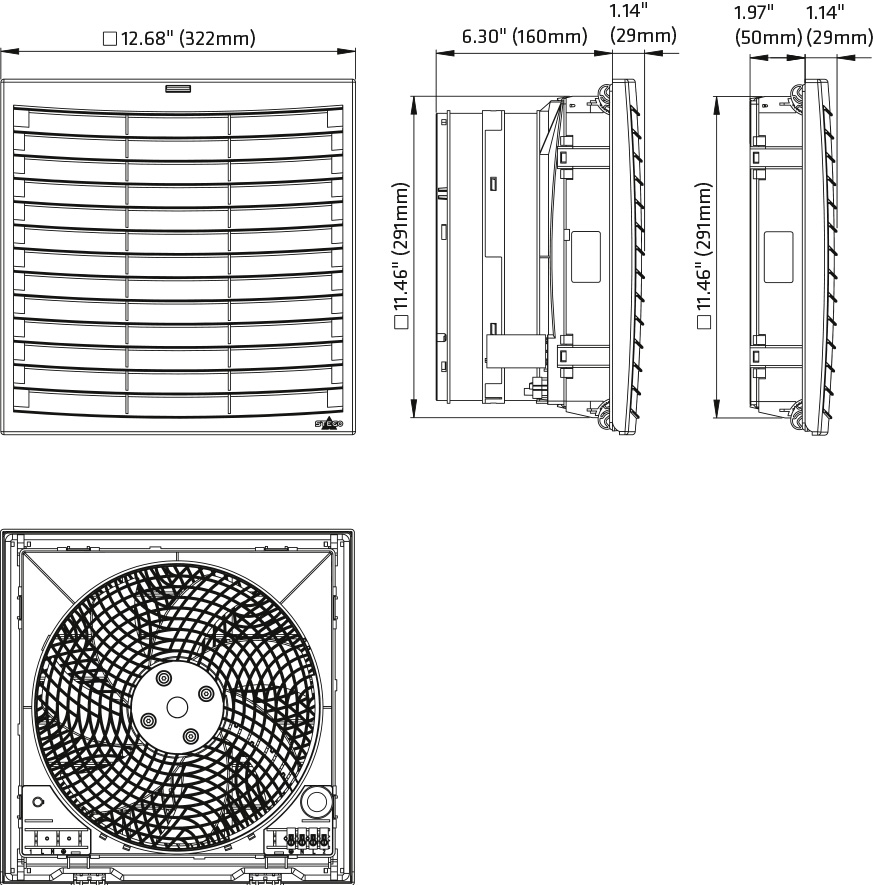

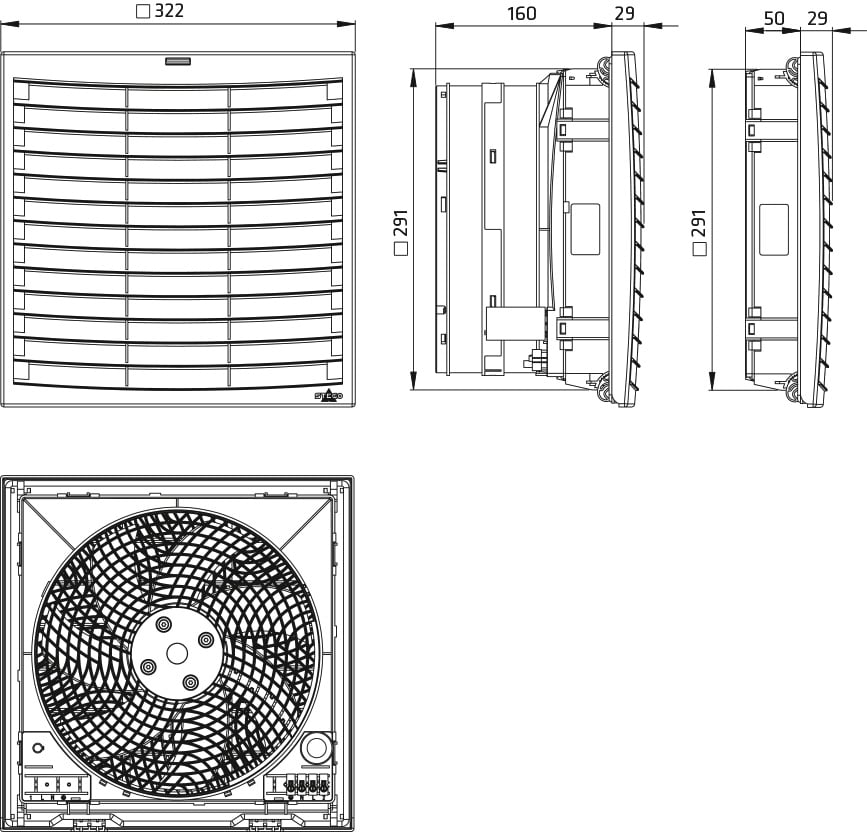

height	322 mm
width	322 mm
depth	189 mm
installation_depth	160 mm
mounting_cutout	291 x 291 mm
item_number_accessories_1	08637.0-00
item_number_accessories_2	11874.0-00
item_number_accessories_3	08674.0-00
accessory_1	Replacement filter mat FM 086
accessory_2	FPI 118 exit filter with air-flap outlet technology
accessory_3	Water jet protection hood FFH 086
protection_type_ul	NEMA Type 12

product_variants

external_id	operating_voltage_minimum	operating_voltage_tolerance	frequency	power_consumption	cooling_airflow_rate_outlet_filter	cooling_airflow_rate_blowing	average_emission_sound_pressure_level	lifetime	operating_temperature	weight	note	data_sheet
01874.0-30	230 V	208 V - 253 V	50 Hz	95 W	373 m³/h	433 m³/h	62 dB(A)	>76000 h	-25 °C - 55 °C	3100 g	Other voltages on request Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.0-30-Datasheet-EN.pdf
01874.9-30	115 V	104 V - 126 V	60 Hz	90 W	339 m³/h	394 m³/h	61 dB(A)	>76000 h	-25 °C - 35 °C	3100 g	Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.9-30-Datasheet-EN.pdf
01874.9-31	115 V	104 V - 126 V	60 Hz	165 W	593 m³/h	665 m³/h	72 dB(A)	>76000 h	-25 °C - 50 °C	3300 g	Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.9-31-Datasheet-EN.pdf
01874.0-31	230 V	208 V - 253 V	50 Hz	140 W	560 m³/h	624 m³/h	70 dB(A)	>54000 h	-25 °C - 55 °C	3300 g	Other voltages on request Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.0-31-Datasheet-EN.pdf
