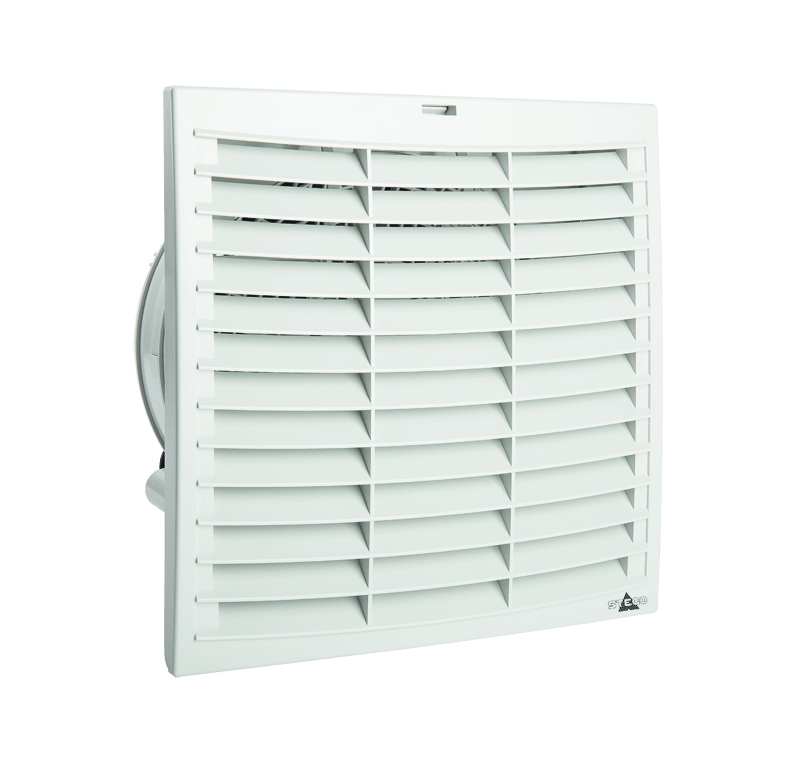

Filter fan Plus - size 5 (291 X 291 mm)

FPI 018

Filter fan FPI size 5 (291 x 291 mm) for air conditioning enclosures and casings. Configuration: FPI - airflow direction "in" (standard version: blowing). Optimum air conditioning for your enclosure: The Filter Fan Plus blows cooler outside air into the enclosure. The warmer air inside the enclosure is discharged via the exit filter. The resulting air flow cools the enclosure and protects the components from overheating.

Only one filter mat required (on the filter fan)
Easy installation thanks to mounting frame with twist locks
Effective air circulation
Accessories: Hose-proof hood to increase the protection type to IP56

Overview technical data

Device type	Filter fan Plus (AC)
Protection class	I
Protection type	IP54
Material hood	Plastic to UL94 V-0, light grey
Filter material	Plastic fibre with progressive structure
Filter mat	G3
Casing	Plastic to UL94 V-0, light grey
AC/DC	AC
Axial fan	Fan body aluminium, rotor metal
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °F - 158 °F
Torque	0.8 Nmmax.
Connection	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.
Mounting frame	With 4 built-in rotary latches for locking

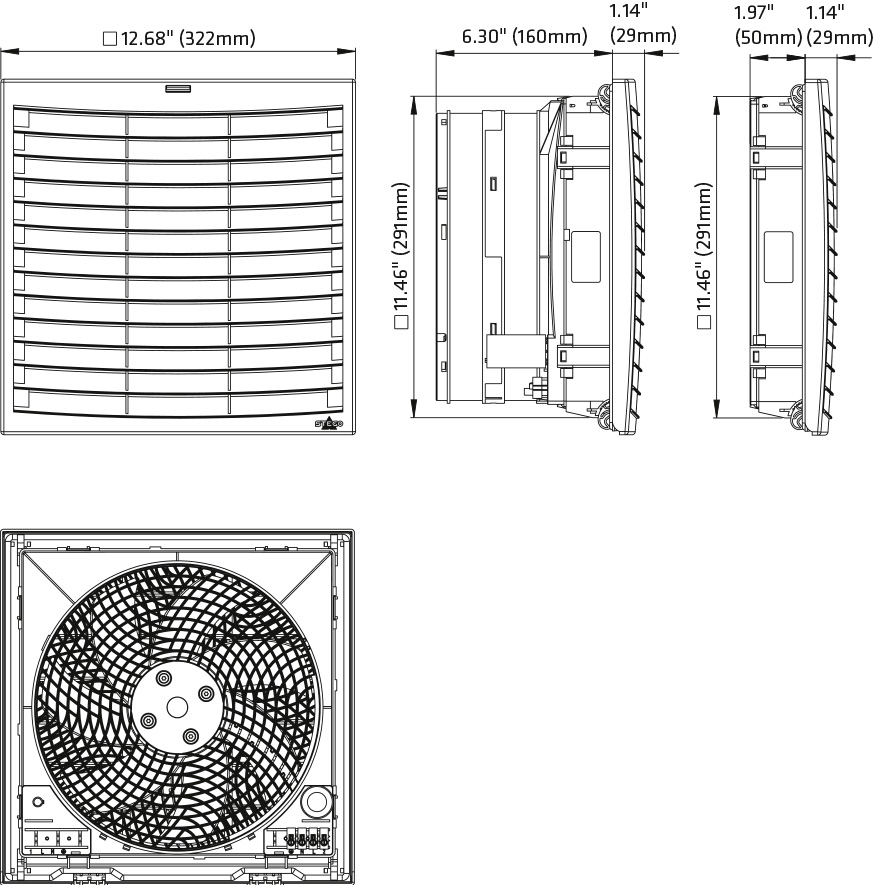

Height	12.7 in
Width	12.7 in
Depth	7.4 in
Installation depth	6.3 in

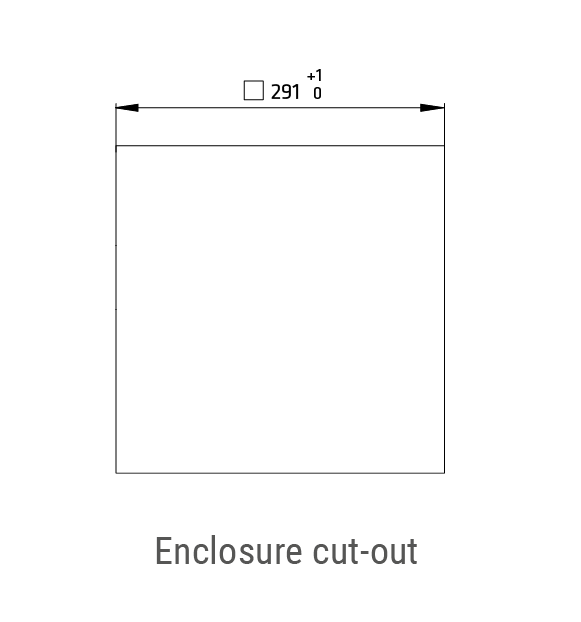

Mounting cut-out	291 x 291 mm
Item number accessories 1	08637.0-00
Item number accessories 2	11874.0-00
Item number accessories 3	08674.0-00
Accessory 1	Replacement filter mat FM 086
Accessory 2	FPI 118 exit filter with air-flap outlet technology
Accessory 3	Water jet protection hood FFH 086
Protection type UL	NEMA Type 12

Product variants

Article number	Minimum operating voltage	Operating voltage tolerance	Frequency	Power consumption	Cooling airflow rate outlet filter	Cooling airflow rate blowing	Average emission sound pressure level	Service life	Operating temperature	Weight	Note	Datasheet
01874.0-30	230 V	208 V - 253 V	50 Hz	95 W	219.5 cfm	254.9 cfm	62 dB(A)	>76000 h	-13 °F - 131 °F	109.3 oz	Other voltages on request Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.0-30-Datasheet-EN-US.pdf
01874.9-30	115 V	104 V - 126 V	60 Hz	90 W	199.5 cfm	231.9 cfm	61 dB(A)	>76000 h	-13 °F - 95 °F	109.3 oz	Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.9-30-Datasheet-EN-US.pdf
01874.9-31	115 V	104 V - 126 V	60 Hz	165 W	349 cfm	391.4 cfm	72 dB(A)	>76000 h	-13 °F - 122 °F	116.4 oz	Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.9-31-Datasheet-EN-US.pdf
01874.0-31	230 V	208 V - 253 V	50 Hz	140 W	329.6 cfm	367.3 cfm	70 dB(A)	>54000 h	-13 °F - 131 °F	116.4 oz	Other voltages on request Drilling pattern for screw fixing marked on mounting frame.	FPI018-01874.0-31-Datasheet-EN-US.pdf
