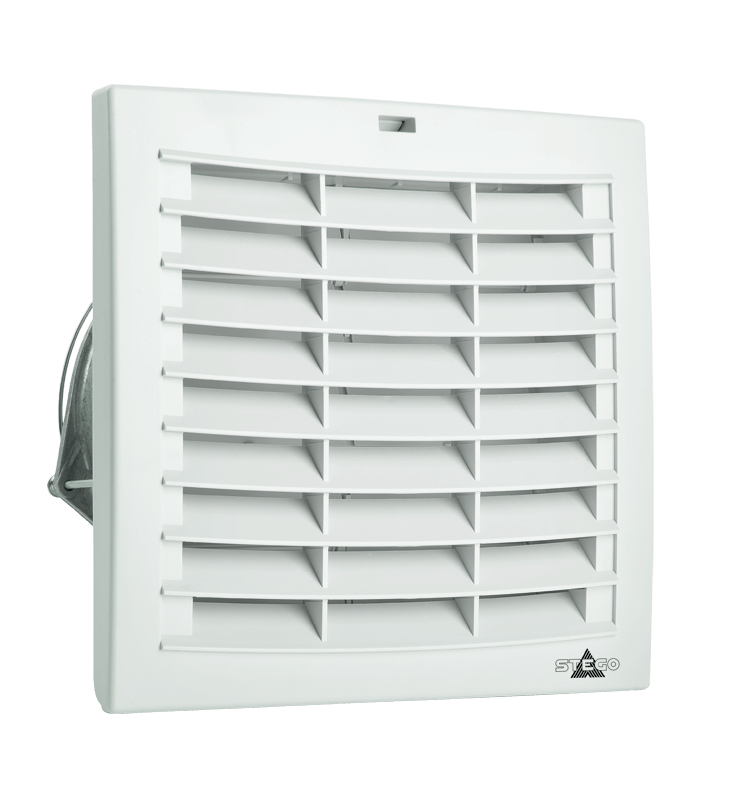

fpi-fpo-176x176-filterluefter-filter-fan-feature

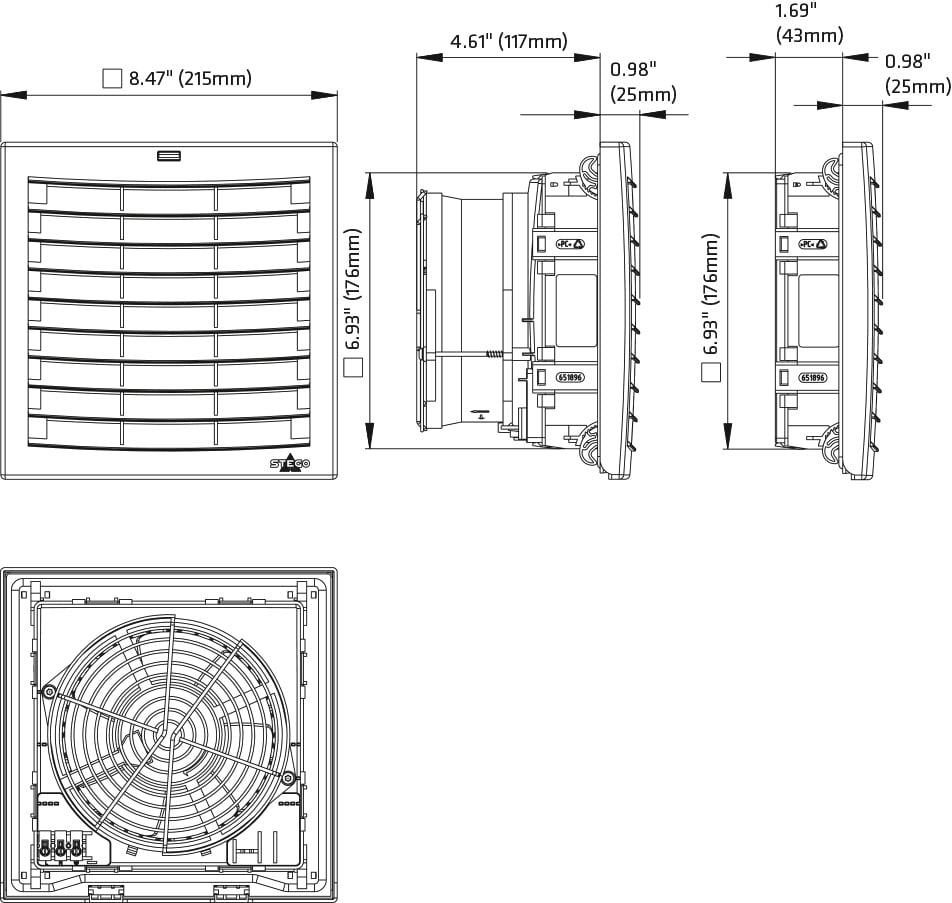

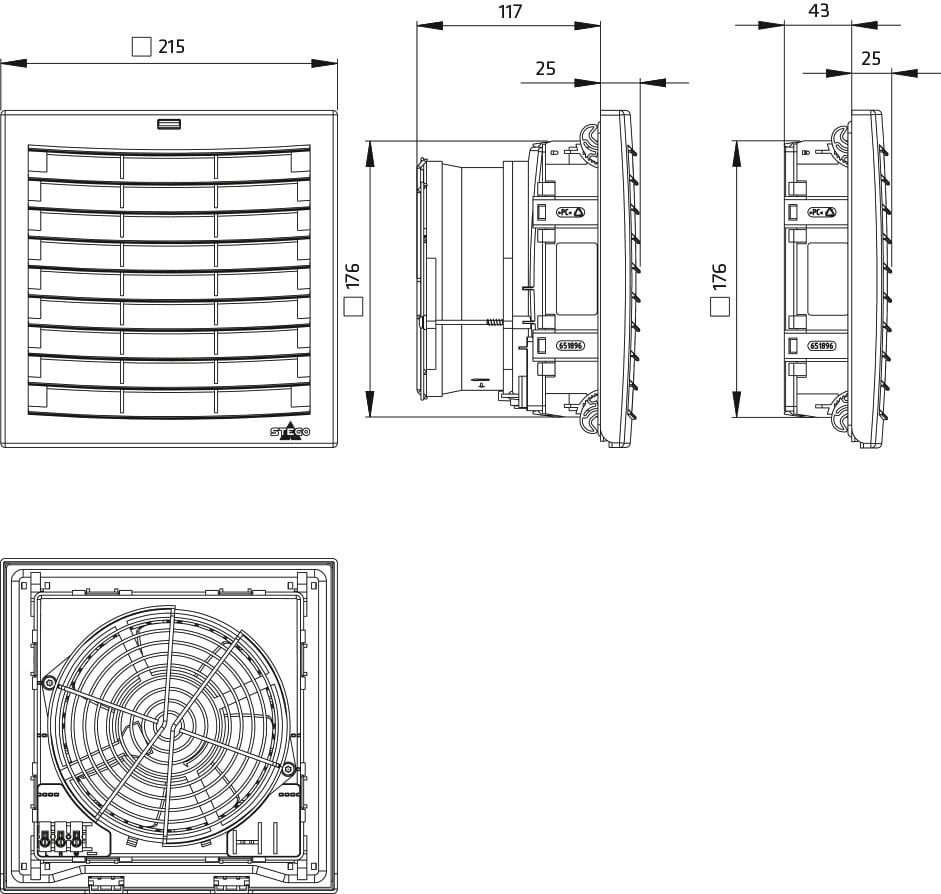

2016-10-fpi018-fpi118-ac-dc-176x176-drawing

Filter fan Plus - size 3 (176 X 176 mm)

FPI 018

Filter fan FPI size 3 (176 x 176 mm) for air conditioning enclosures and casings. Configuration: FPI - airflow direction "in" (standard version: blowing). Optimum air conditioning for your enclosure: The Filter Fan Plus blows cooler outside air into the enclosure. The warmer air inside the enclosure is discharged via the exit filter. The resulting air flow cools the enclosure and protects the components from overheating.

Only one filter mat required (on the filter fan)
Easy installation thanks to mounting frame with twist locks
Effective air circulation
Accessories: Hose-proof hood to increase the protection type to IP56

Overview technical data

Device type	Filter fan Plus (AC)
Protection class	I
Protection type	IP54
Material hood	Plastic to UL94 V-0, light grey
Filter material	Plastic fibre with progressive structure
Filter mat	G3
Casing	Plastic to UL94 V-0, light grey
AC/DC	AC
Axial fan	Fan body aluminium, rotor metal
Service life	>65000 h
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °C - 70 °C
Torque	0,8 Nmmax.
Connection	3-pin connection terminal 2.5 mm², torque 0.8 Nm max.
Mounting frame	With 4 built-in rotary latches for locking
Height	215 mm
Width	215 mm
Depth	142 mm
Installation depth	117 mm
Weight	1600 g
Mounting cut-out	176 x 176 mm
Item number accessories 1	08635.0-00
Item number accessories 2	11872.0-00
Item number accessories 3	08672.0-00
Accessory 1	Replacement filter mat FM 086
Accessory 2	FPI 118 exit filter with air-flap outlet technology
Accessory 3	Water jet protection hood FFH 086
Note	Other voltages on request;Drilling pattern for screw fixing marked on mounting frame.
Protection type UL	NEMA Type 12

Product variants

Article number	Operating voltage	Operating voltage tolerance	Frequency	Power consumption	Cooling airflow rate outlet filter	Cooling airflow rate blowing	Average emission sound pressure level	Operating temperature	Interactions
01872.0-30	230 V	208 V - 253 V	50 Hz	45 W	139 m³/h	170 m³/h	55 dB(A)	-25 °C - 50 °C
01872.9-30	115 V	104 V - 126 V	60 Hz	38 W	187 m³/h	204 m³/h	58 dB(A)	-25 °C - 70 °C
