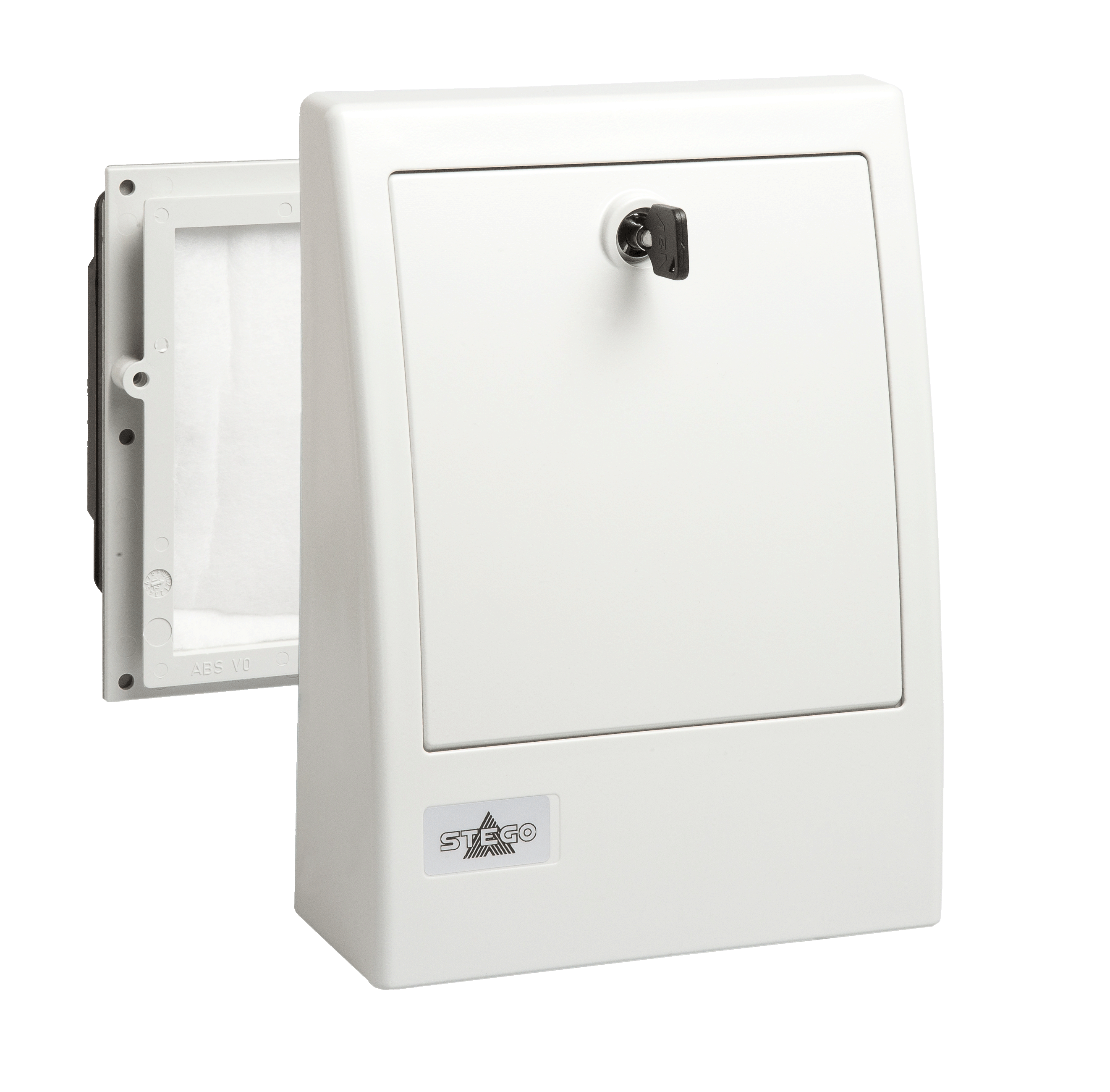

Outdoor filter fan
FF 018
The outdoor filter fan is used in outdoor cabinets and casings from which warm air needs to be extracted due to increased heat development (solar radiation, heat loss from built-in components). The casing material is highly weather proof and UV light resistant. To clean or change the filter mat, only the lockable flaps of the outdoor hood need to be opened; there is no need to open the enclosure (safety risk).
- Filter mat change from outside
- Secure, lockable
- Impact-resistant
- Weather proof and UV light resistant
Overview technical data
| Device type | Filter fan |
| Follow-up article | 01871.0-30 |
| Protection class | I |
| Protection type | IP55 |
| Material hood | Plastic to UL94 V-0, light grey |
| Filter material | Plastic fibre with progressive structure |
| Filter mat | M5 |
| Casing | UL94 V-0 plastic, light grey |
| AC/DC | AC |
| Power consumption | 15 W |
| Axial fan | Fan body aluminium, rotor plastic |
| Average emission sound pressure level | 40 dB(A) |
| Service life | >50000 h |
| Operating temperature | -10 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 70 °C |
| Connection | 2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps |

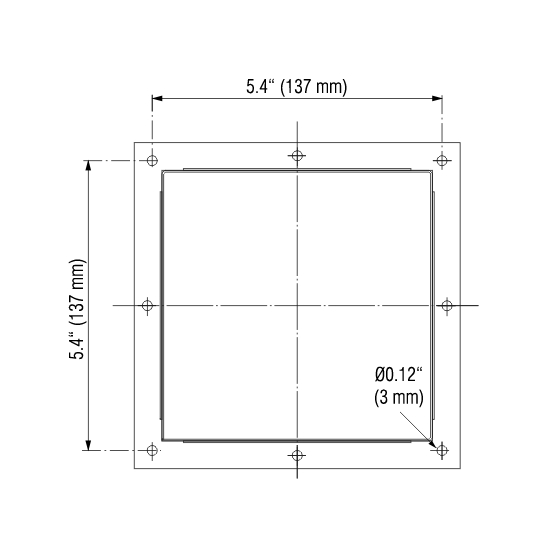

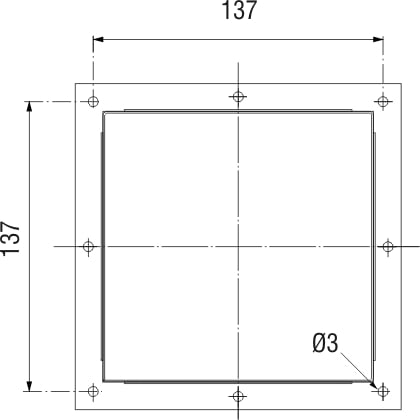

| Drill hole spacing | 137 mm |

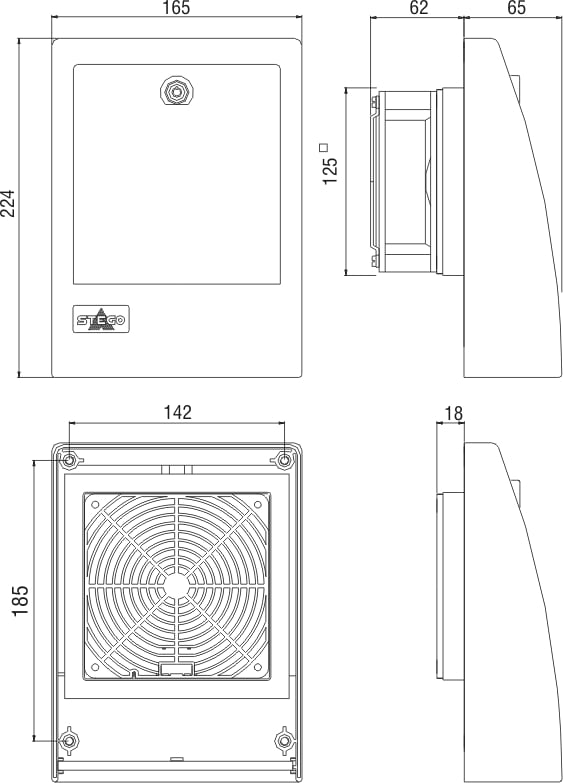

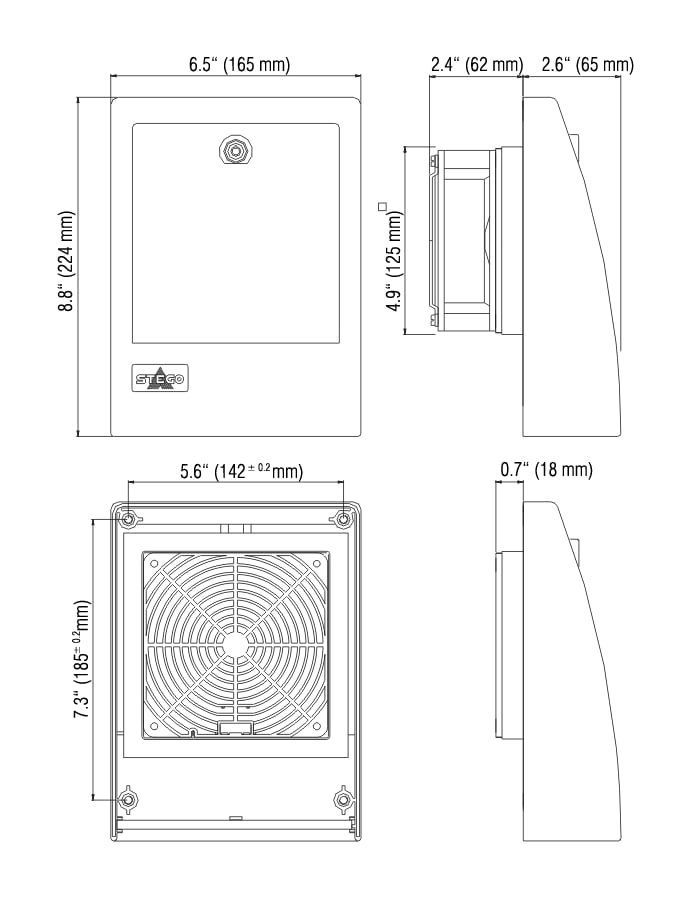

| Height | 170 mm |
| Width | 157 mm |
| Depth | 127 mm |
| Installation depth | 62 mm |
| Weight | 1000 g |
| Mounting cut-out | 125 x 125 mm |
| Item number accessories 1 | 08607.0-00 |
| Item number accessories 2 | 11821.0-00 |
| Accessory 1 | Replacement filter mat FM 086 (3 pcs.) |
| Accessory 2 | Exit filter EF 118 |
