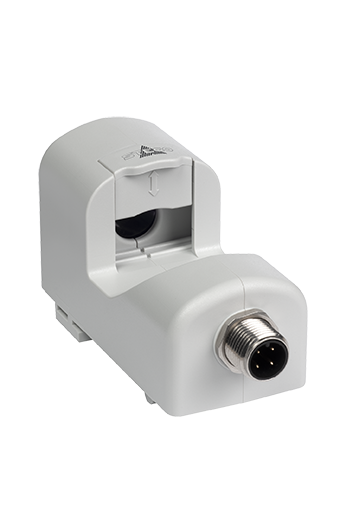

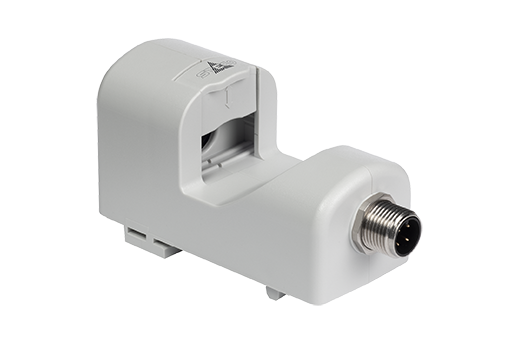

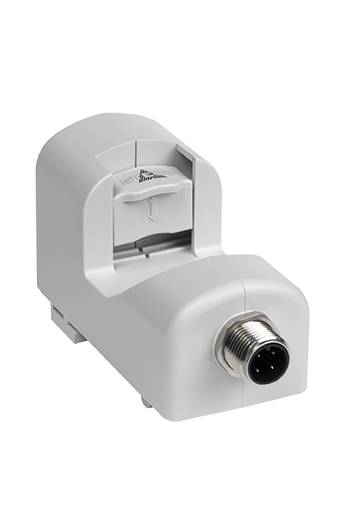

Smart current sensor
ESS 076

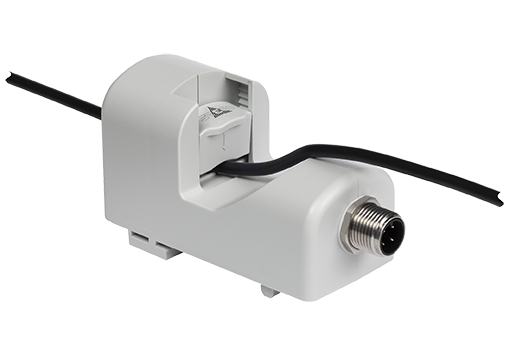

The ESS 076 smart current sensor measures the AC current of cables without contact. Measured data is output in analog (4-20 mA signal) or digital (IO-Link) form. Measured and processed data - such as power and energy - is made available to higher-level systems such as machine control systems or edge computers for condition monitoring via the IO-Link interface.
- Measures AC current up to 100 A contactless
- Cable diameter up to 11.4 mm
- Internal processing of measured values
- Analog/digital interface in one device
Overview technical data

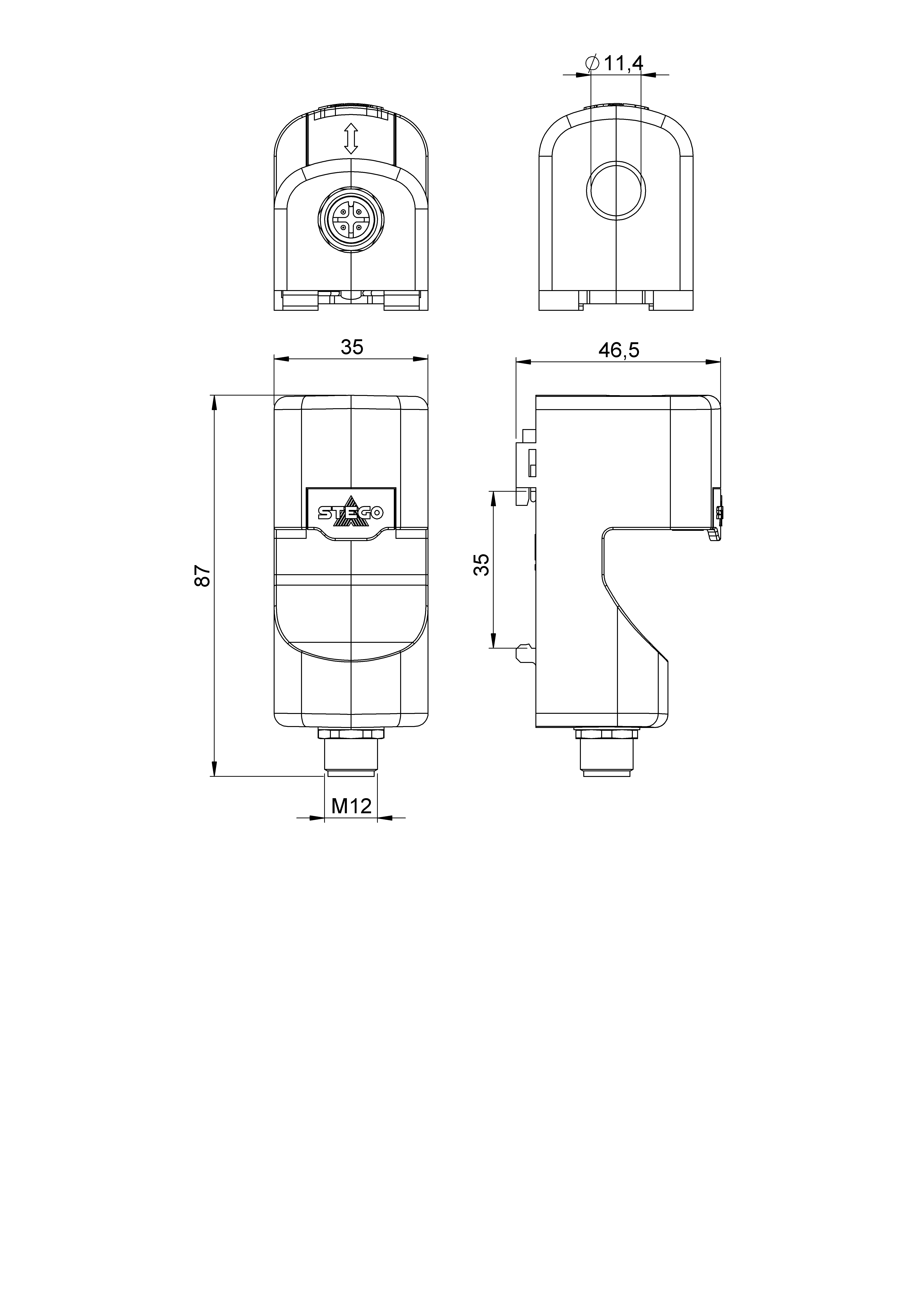

| Device name | Smart current sensor |
| Device type | IO-Link products |
| Series | ESS 076 |
| Article number | 07600.2-00 |
| Measurement signal | Amperage |
| Electrical protection | Reverse polarity protection, short-circuit proof, overvoltage protection |
| Protection class | III |
| Protection type | IP30 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | DC |
| Operating voltage minimum | 24 V |
| Operating voltage tolerance | 18 V - 30 V |
| Frequency | 50; 60 Hz |
| Power consumption | 0.95 W |
| Measurement range | 0 A - 100 A |
| Measurement range tolerance | ± 0,5 A |
| Load resistance external | ≤ 500 Ω |
| Operating temperature | -40 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection | M12 round plug, IEC 61076-2-101, 4-pin, A-coded, shielded |
| Design | IO-Link (version 1.1), 4 - 20 mA |
| Mounting | Clip for 35 mm DIN rail, EN 60715 |
| Installation position | variable |
| Height | 86 mm |
| Width | 35 mm |
| Depth | 46.5 mm |
| Weight | 100 g |
| Note | Conductor diameter 11.4 mm. Tolerances measured at DC 24 V. |
