Enclosure heater with fan

DCR 130

This resistance heater with fan is designed for connection to a DC voltage supply. Optionally with adjustabl integrated thermostat or hygrostat. Accessories: external sensor. Installation type: either clip or screw fixing.

Push-in terminals for quick electrical connection
User safety: touch-safe thanks to touch-safe plastic coating
Accessories: external sensor

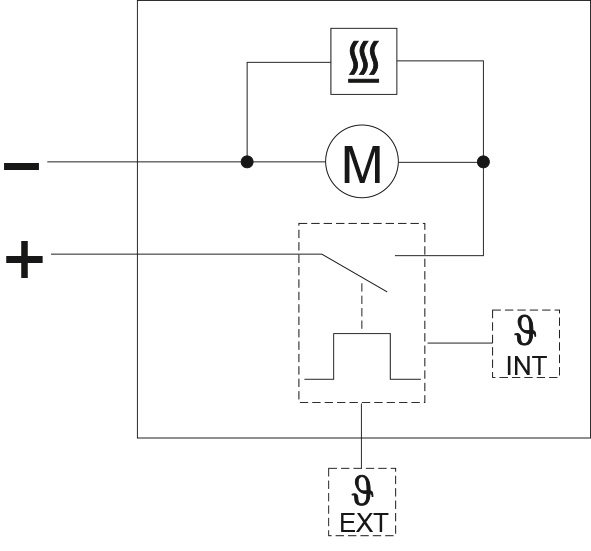

Integrated switch module: Thermostat or hygrostat

Overview technical data

Device name	Enclosure heater with fan
Device type	Fan heater DC applications Integrated control Touchsafe
Series	DCR 130
Temperature monitoring	Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
Protection class	II
Protection type	IP20
Heating element	High-performance heating cartridge
Heater element	Aluminum profile
Casing	Plastic to UL94 V-0, black
AC/DC	DC
Axial fan	160 m³/h
Service life	>50000 h
Switching differential tolerance
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C
Connection type	Connection terminal
Connection	2-pole "push-in" connection terminal Stranded wire1 1.5 mm² (AWG 16) with strain relief max. 2.5 mm² (AWG 12)
Mounting	Clip for 35 mm DIN rail Screw fixing
Installation position	Airflow direction "in" vertical / connection at the bottom

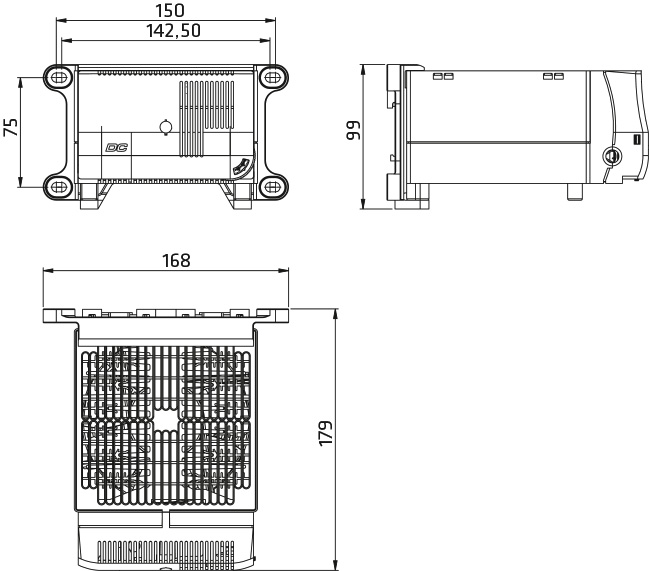

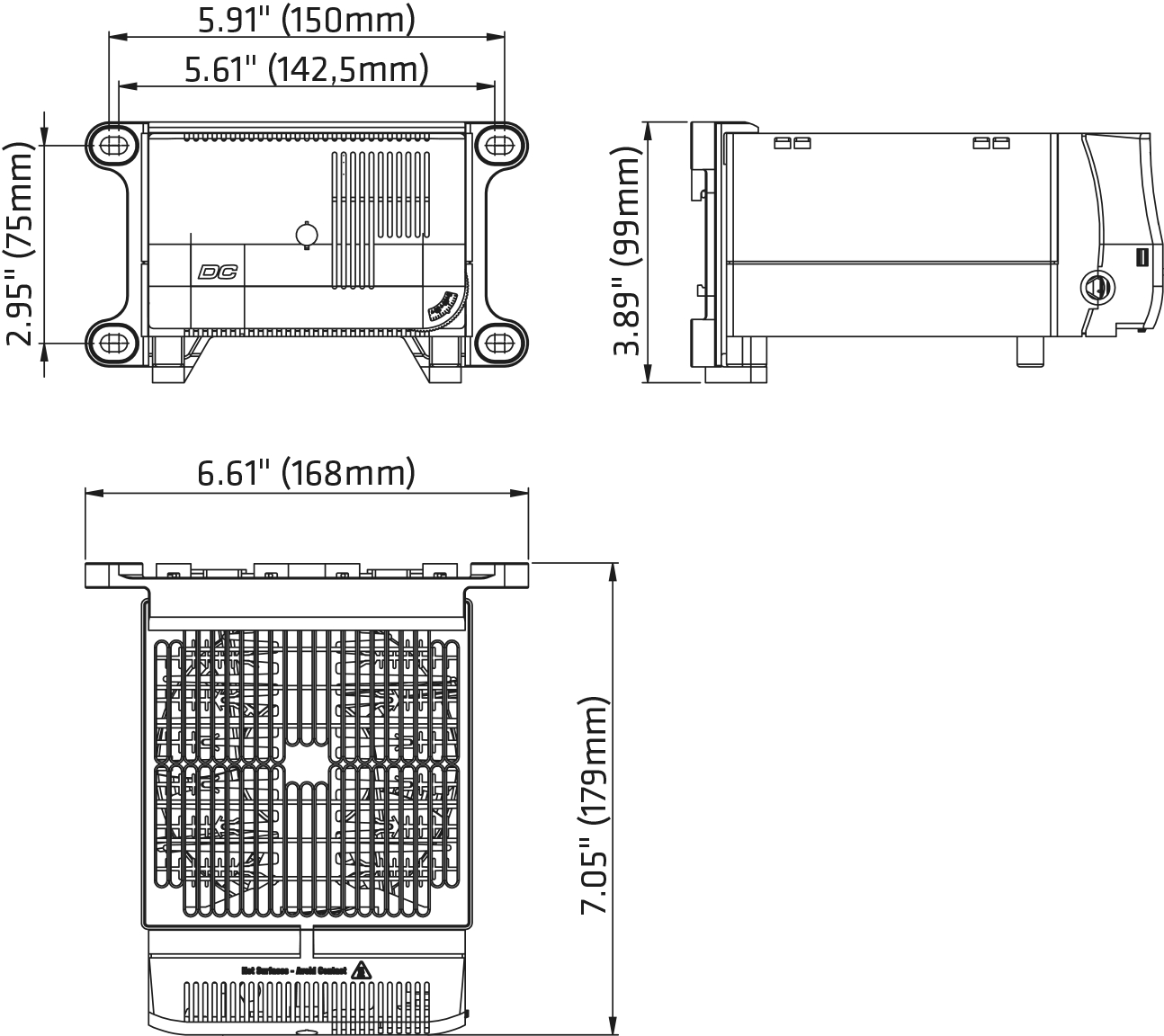

Height	99 mm
Width	168 mm
Depth	179 mm
Weight	1300 g

Product variants

Article number	Operating voltage minimum	Operating voltage tolerance	Recommended backup fuse	Heating capacity minimum	Setting range	Switching differential	Design	Item number accessories 1	Item number accessories 2	Item number accessories 3	Accessory 1	Accessory 2	Accessory 3	Note	Datasheet
13092.1-03	24 V	26 V - 22 V	16 A	200 W	40 % RH - 90 % RH	4 % RH	Fan heater with integrated hygrostat with connection for external humidity sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request tolerance ±1% rH	13092.1-03-DCR130-Datasheet-EN.pdf
13092.1-12	24 V	26 V - 22 V	16 A	200 W	-20 °C - 40 °C	3 K	Fan heater with integrated thermostat with internal temperature sensor							Fan heater with thermostat other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request tolerance ±1 K	13092.1-12-DCR130-Datasheet-EN.pdf
13092.1-13	24 V	26 V - 22 V	16 A	200 W	-20 °C - 40 °C	3 K	Fan heater with integrated thermostat with connection for external temperature sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request tolerance ±1 K	13092.1-13-DCR130-Datasheet-EN.pdf
13095.3-03	56 V	61 V - 51 V	20 A	600 W	40 % RH - 90 % RH	4 % RH	Fan heater with integrated hygrostat with connection for external humidity sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request tolerance ±1% rH	13095.3-03-DCR130-Datasheet-EN.pdf
13097.3-12	56 V	61 V - 51 V	20 A	800 W	-20 °C - 40 °C	3 K	Fan heater with integrated thermostat with internal temperature sensor							Fan heater with thermostat other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request tolerance ±1 K	13097.3-12-DCR130-Datasheet-EN.pdf
13097.3-13	56 V	61 V - 51 V	20 A	800 W	-20 °C - 40 °C	3 K	Fan heater with integrated thermostat with connection for external temperature sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request tolerance ±1 K	13097.3-13-DCR130-Datasheet-EN.pdf
