Enclosure heater with fan

DCR 130

This resistance heater with fan is designed for connection to a DC voltage supply. Optionally with adjustabl integrated thermostat or hygrostat. Accessories: external sensor. Installation type: either clip or screw fixing.

Push-in terminals for quick electrical connection
User safety: touch-safe thanks to touch-safe plastic coating
Accessories: external sensor
Integrated switch module: Thermostat or hygrostat

Overview technical data

Device type	Fan heater;DC applications;Integrated control;Touchsafe
Temperature monitoring	Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
Protection class	II
Protection type	IP20
Heating element	High-performance heating cartridge
Heater element	Aluminum profile
Casing	Plastic to UL94 V-0, black
AC/DC	DC
Axial fan	94.2 cfm
Service life	>50000 h
Switching differential tolerance
Operating temperature	-49 °F - 158 °F
Operating humidity	≤90 % rF
Storage humidity	≤90 % rF
Storage temperature	-49 °F - 158 °F
Connection type	Connection terminal
Connection	2-pole "push-in" connection terminal Stranded wire1 1.5 mm² (AWG 16) with strain relief; max. 2.5 mm² (AWG 12)
Mounting	Clip for 35 mm DIN rail;Screw fixing
Installation position	Airflow direction "in" vertical / connection at the bottom

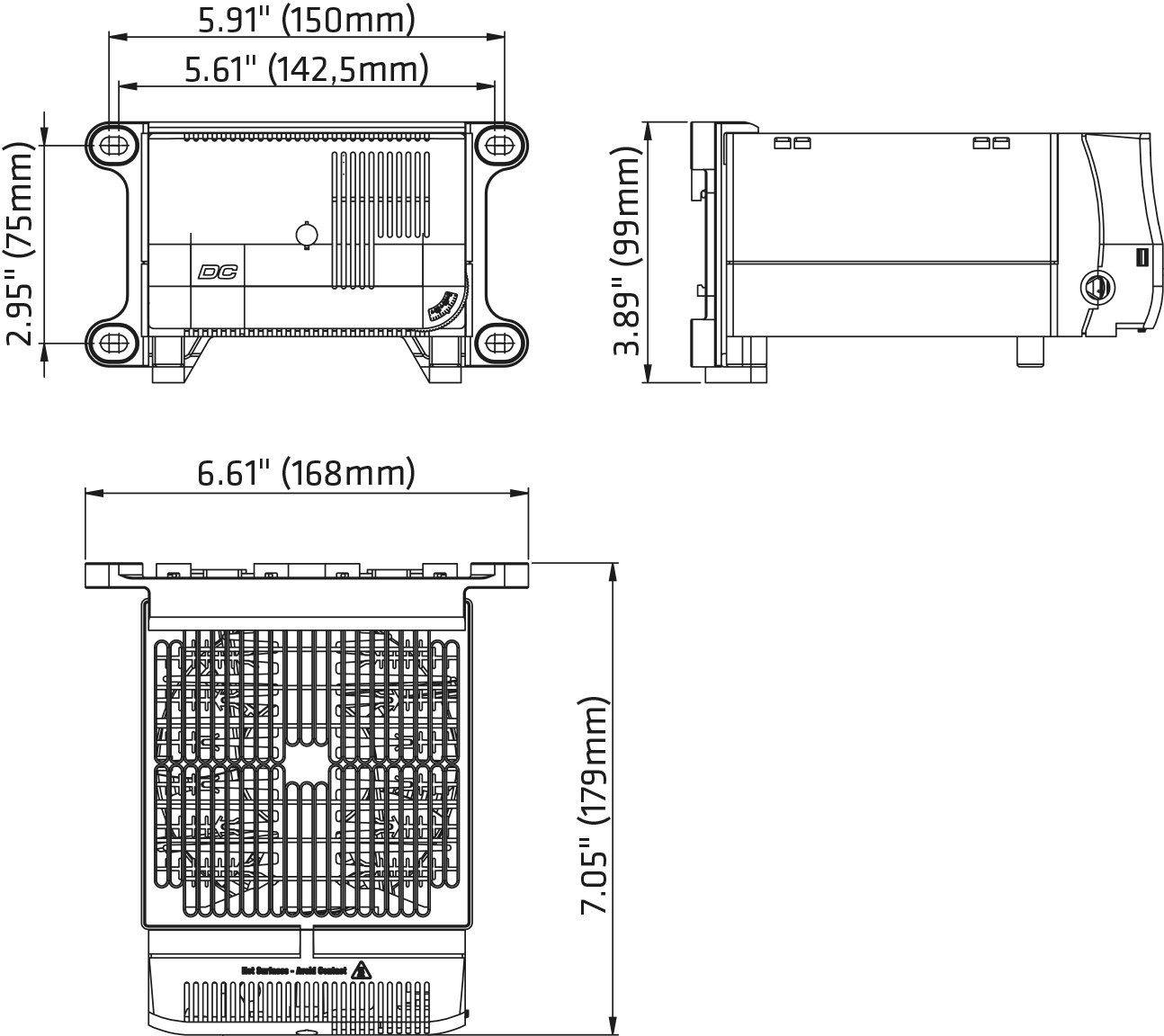

Height	3.9 in
Width	6.6 in
Depth	7 in
Weight	45.9 oz

Product variants

Article number	Operating voltage	Operating voltage tolerance	Recommended backup fuse	Heating capacity	Setting range	Switching differential	Design	Item number accessories 1	Item number accessories 2	Item number accessories 3	Accessory 1	Accessory 2	Accessory 3	Note
13092.1-03	24 V	22 V - 26 V	16 A	200 W	40 % rF - 90 % rF	4 % rF	Fan heater with integrated hygrostat with connection for external humidity sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat;other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request;tolerance ±1% rH
13092.1-12	24 V	22 V - 26 V	16 A	200 W	-4 °F - 104 °F	3 K	Fan heater with integrated thermostat with internal temperature sensor							Fan heater with thermostat;other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request;tolerance ±1 K
13092.1-13	24 V	22 V - 26 V	16 A	200 W	-4 °F - 104 °F	3 K	Fan heater with integrated thermostat with connection for external temperature sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat;other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request;tolerance ±1 K
13095.3-03	56 V	61 V - 51 V	20 A	600 W	40 % rF - 90 % rF	4 % rF	Fan heater with integrated hygrostat with connection for external humidity sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat;other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request;tolerance ±1% rH
13097.3-12	56 V	61 V - 51 V	20 A	800 W	-4 °F - 104 °F	3 K	Fan heater with integrated thermostat with internal temperature sensor							Fan heater with thermostat;other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request;tolerance ±1 K
13097.3-13	56 V	61 V - 51 V	20 A	800 W	-4 °F - 104 °F	3 K	Fan heater with integrated thermostat with connection for external temperature sensor	267071	267072	267126	external sensor, 1m	external sensor, 2m	external sensor, 3m	Fan heater with thermostat;other designs (heating capacities, setting ranges) and operating voltage DC 48 V on request;tolerance ±1 K
