Snap-in pressure compensation element
DA 284
Passive pressure compensation element for casings and enclosures. Levels temperature-induced pressure differences between the inside and outside of the enclosure. Air humidity escapes through a waterproof membrane. The formation of condensate is prevented.
- Thread sizes: M12 and M40
- NBR membrane
- Water and dirt-proof, IP66
Overview technical data
| Device type | Pressure compensation element |
| Protection type | IP66/IPX9K(EN40050-9) |
| Material sealing | EPDM |
| Material hood | Plastic, light grey |
| Filter mat | waterproof membrane |
| Casing | Plastic, light grey |
| Air permeability | 2000 l/h |
| Operating temperature | -35 °C - 70 °C |
| Storage temperature | -35 °C - 70 °C |

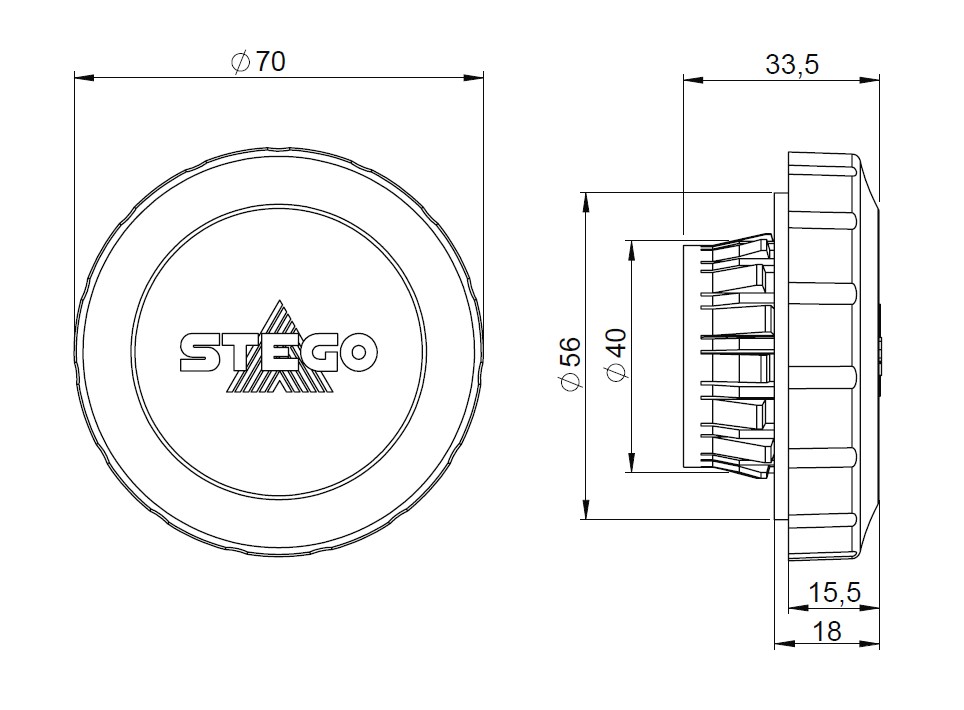

| Cut-out dimension | Ø40,5 +0,5 mm |
| Mounting | Ø40 Snap-In |
| Height | Ø70 mm |
| Width | Ø70 mm |
| Depth | 33.5 mm |
| Installation depth | <15 mm |
| Weight | 45 g |
| Item number accessories 1 | 283038 |
| Accessory 1 | Disassembly tool |
