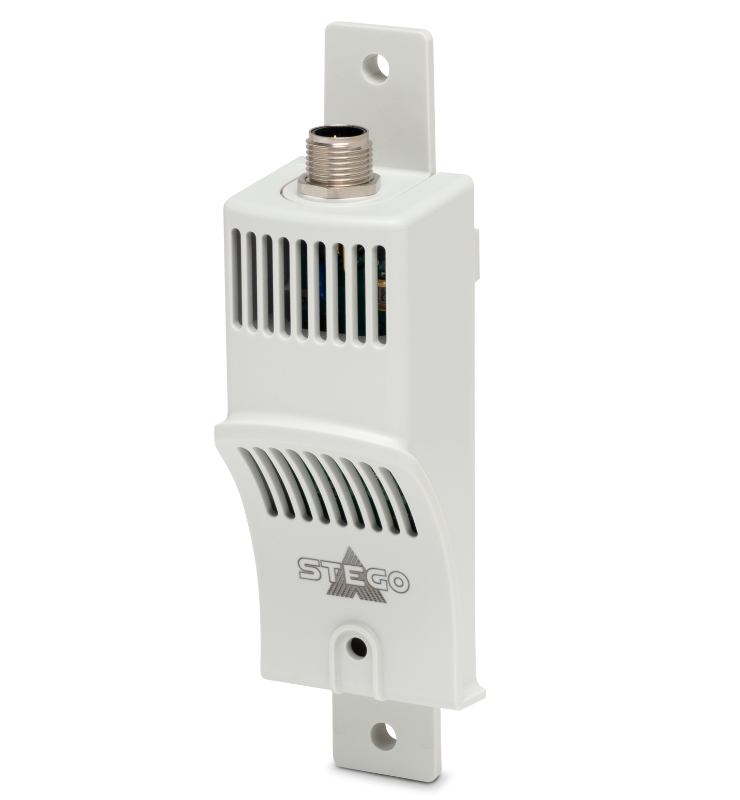

Smart sensor climate digital

CSS 014

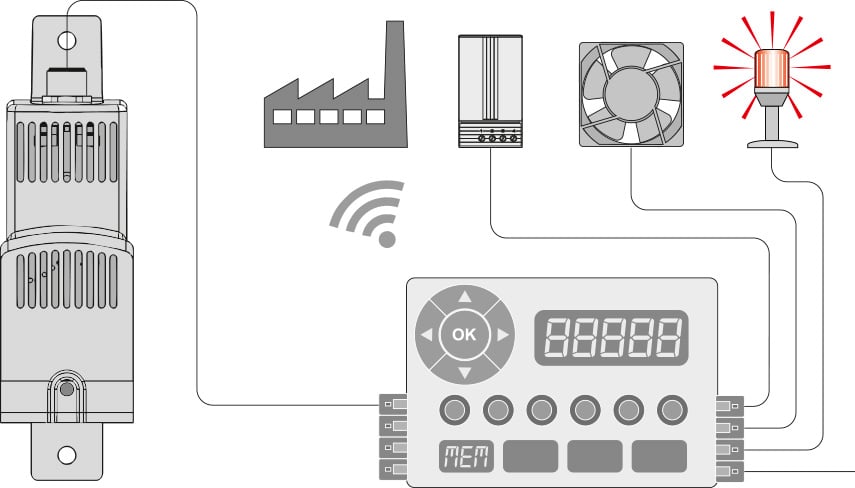

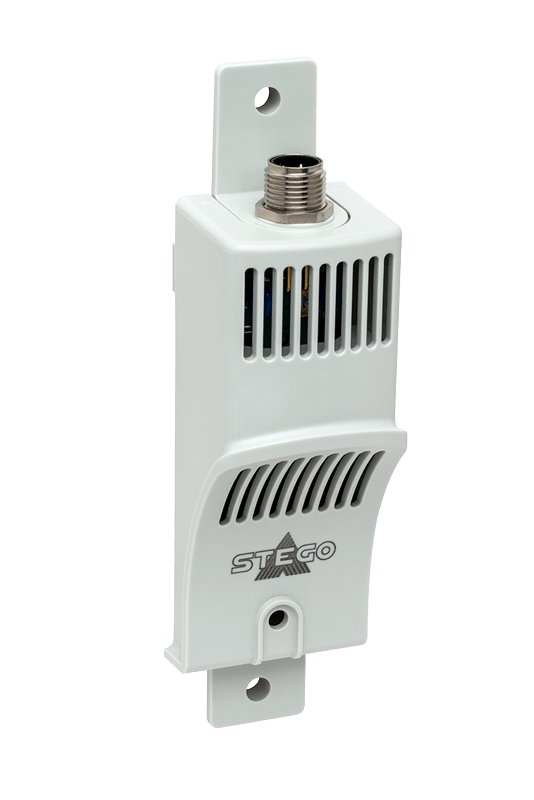

The smart sensor measures temperature and air humidity and transmits signals digitally. The converted measured values are passed on as a standardized digital IO-Link signal. Control and monitoring units for industrial systems and machines receive the data from the smart sensor.

Digital interface
Quick connection: M12 male connector
High measurement range and accuracy
Compact dimensions
Easy to attach: Clip or screw fixing

Overview technical data

Device type	IO-Link products
Measurement signal	Temperature, air humidity, event data, diagnostic data, device data
Electrical protection	Reverse polarity protection, short-circuit proof, overvoltage protection
Protection class	III
Protection type	IP20
Casing	Plastic to UL94 V-0, light grey
AC/DC	DC
Operating voltage minimum	24 V
Operating voltage tolerance	18 V - 30 V
Power consumption	0.3 W
Measurement range	-40 °C - 80 °C
Measurement range tolerance	± 0,3 K
Measurement range 2	0 % RH - 100 % RH
Measurement range 2 tolerance	± 3 %
Reaction time	1: t60 <195 s / 2: t60 <14 s
Operating temperature	-40 °C - 80 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °C - 85 °C

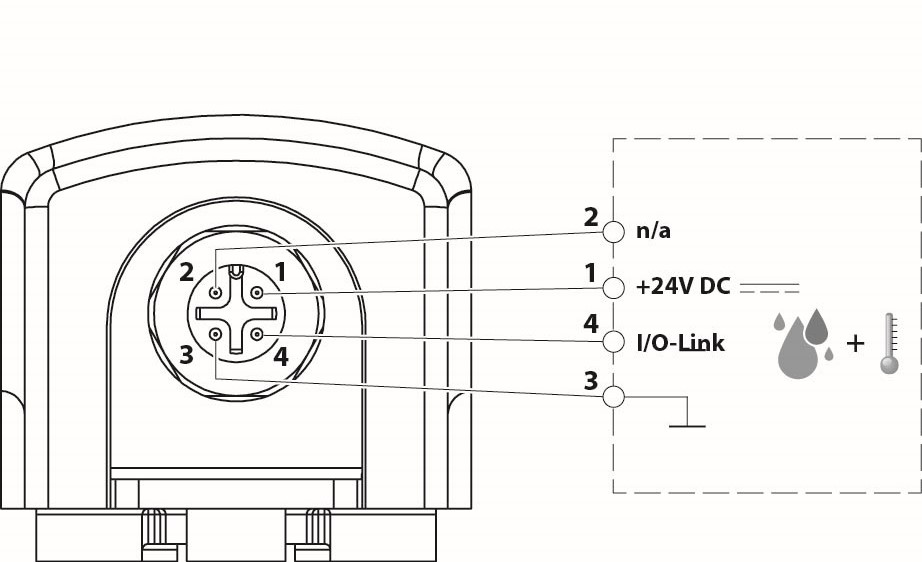

Connection	M12 round plug, IEC 61076-2-101, 4-pin, A-coded, shielded
Design	IO-Link (version 1.1) SSP 4.1.2
Mounting	Clip for 35 mm DIN rail, EN 60715 and M5 screw fixing

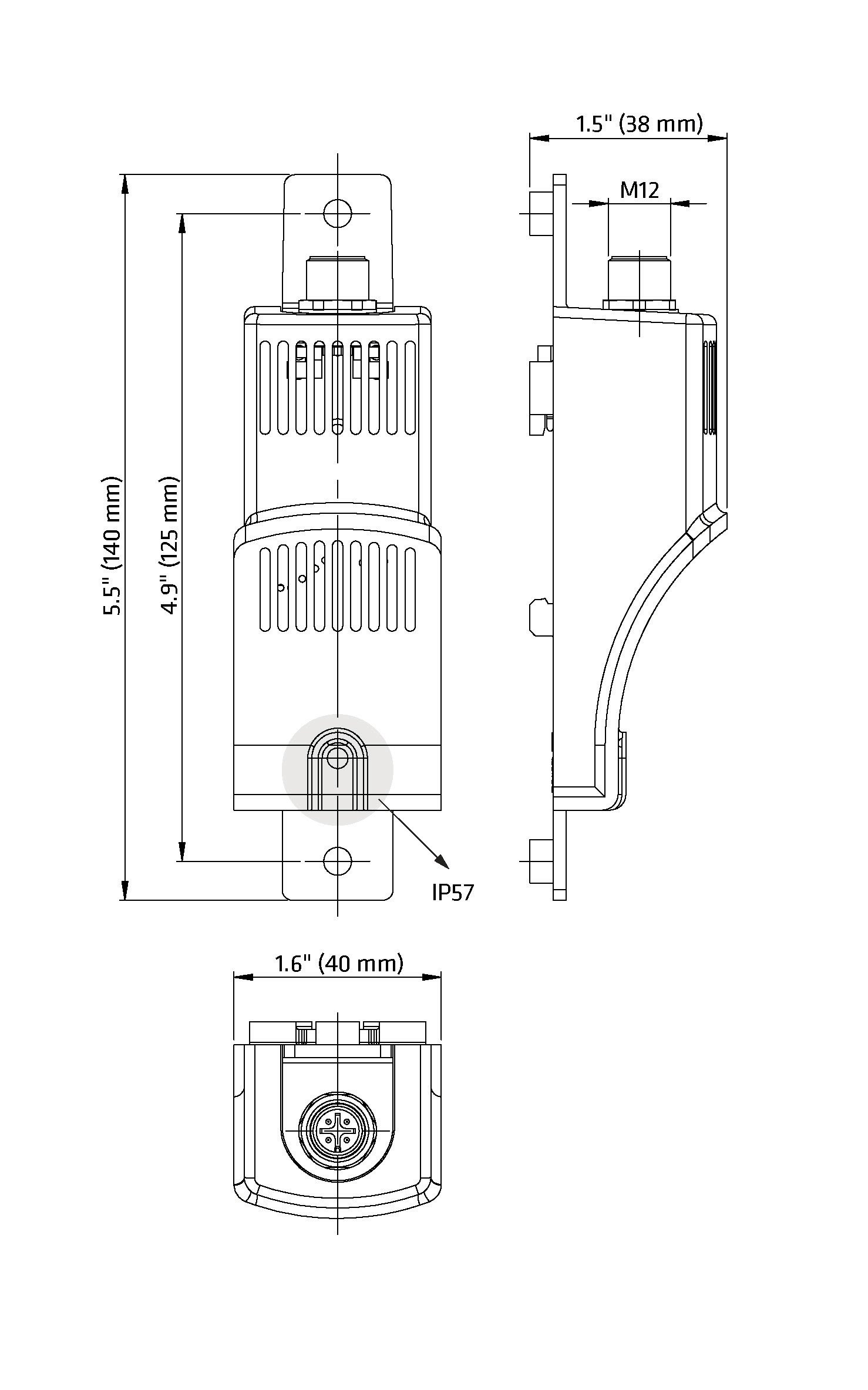

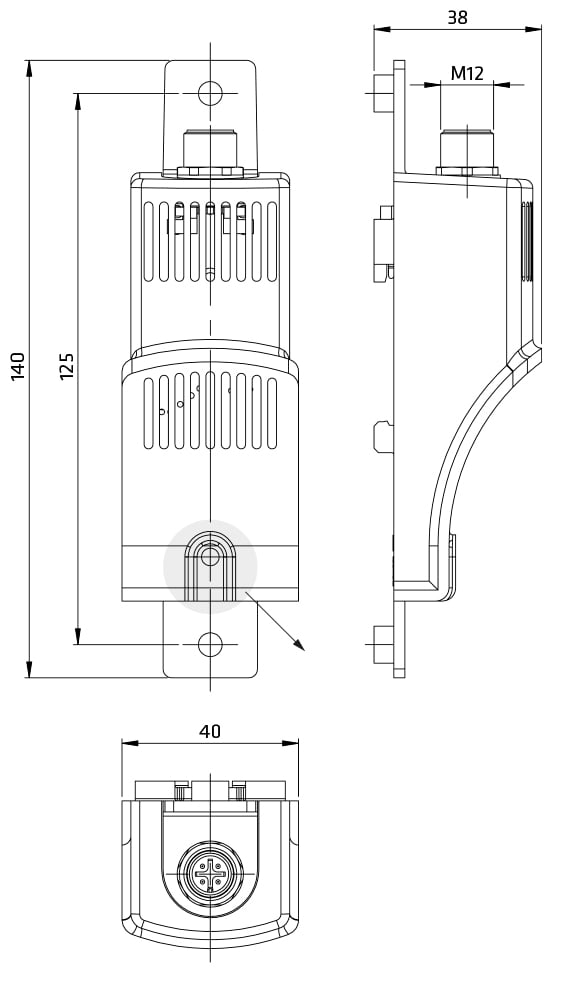

Height	140 mm
Width	40 mm
Depth	38 mm
Weight	50 g
Note	Tolerance from +5 to +60°C (please request diagrams to view tolerances outside these ranges) / tolerance from 20 to 80% RH. The circuit board is painted on both sides with a certified protective lacquer to protect against condensation and thus corrosion and to increase creepage resistance.

Product variants

Article number	Device name	Device type	Series	Measurement signal	Electrical protection	Protection class	Protection type	Casing	AC/DC	Operating voltage minimum	Operating voltage tolerance	Power consumption	Measurement range	Measurement range tolerance	Measurement range 2	Measurement range 2 tolerance	Reaction time	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection	Design	Mounting	Height	Width	Depth	Weight	Note	Request	CAD	Datasheet
01411.2-01	Smart sensor climate digital	IO-Link products	CSS 014	Temperature, air humidity, event data, diagnostic data, device data	Reverse polarity protection, short-circuit proof, overvoltage protection	III	IP20	Plastic to UL94 V-0, light grey	DC	24 V	18 V - 30 V	0.3 W	-40 °C - 80 °C	± 0,3 K	0 % RH - 100 % RH	± 3 %	1: t60 <195 s / 2: t60 <14 s	-40 °C - 80 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	M12 round plug, IEC 61076-2-101, 4-pin, A-coded, shielded	IO-Link (version 1.1) SSP 4.1.2	Clip for 35 mm DIN rail, EN 60715 and M5 screw fixing	140 mm	40 mm	38 mm	50 g	Tolerance from +5 to +60°C (please request diagrams to view tolerances outside these ranges) / tolerance from 20 to 80% RH. The circuit board is painted on both sides with a certified protective lacquer to protect against condensation and thus corrosion and to increase creepage resistance.			CSS014-01411.2-01-Datasheet-EN.pdf
