Enclosure heater
CS 060
This is a compact enclosure heater with a PTC heating element for reliable protection against condensation in enclosures and casings. The convection heater is safe to touch thanks to its plastic sheathing and thus protects applications from the effects of heat. This heater is also available as a series with a fixed thermostat (tamper-proof thermostat): CSF 060
- Safe to touch, low surface temperature
- Rail installation on 35 mm DIN rail
- This enclosure heater is designed for continuous operation
- PTC heating element
Overview technical data
| Device name | Enclosure heater |
| Device type | Convection heaters Touchsafe |
| Series | CS 060 |
| Protection class | II |
| Protection type | IP20 |
| Heating element | PTC resistor (PTC) |
| Casing | Plastic to UL94 V-0, black |
| AC/DC | AC DC |
| Operating voltage | 120 V - 240 V |
| Operating voltage tolerance | 110 V - 265 V |
| Frequency | 50;60 Hz |
| Surface temperature | < + 80 °C |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection type | Connection terminal |
| Torque | 0.8 Nmmax. |
| Connection | 4-pole clamp 2.5 mm², torque 0.8 Nm |
| Mounting | Clip for 35 mm DIN rail |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

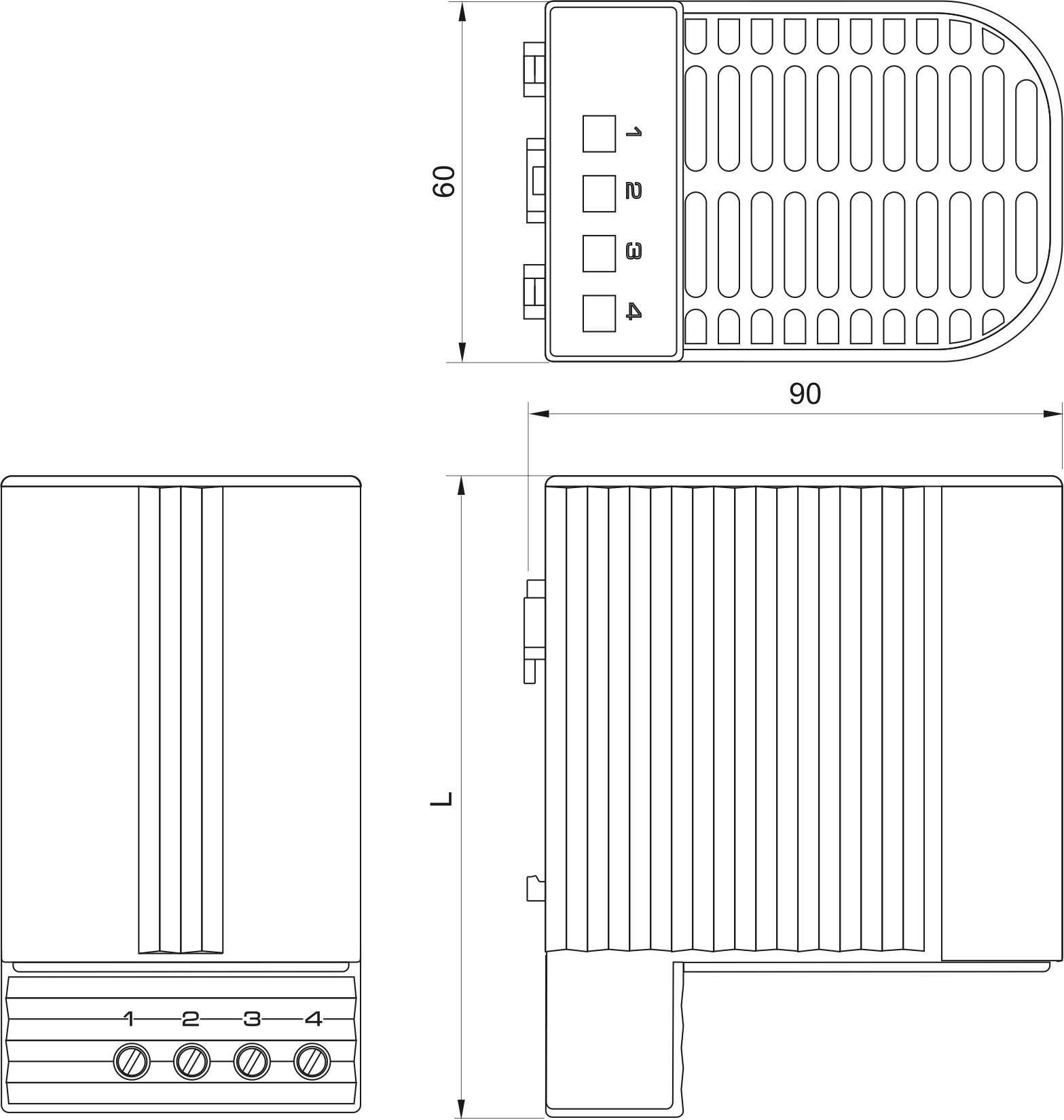

| Width | 60 mm |
| Depth | 90 mm |

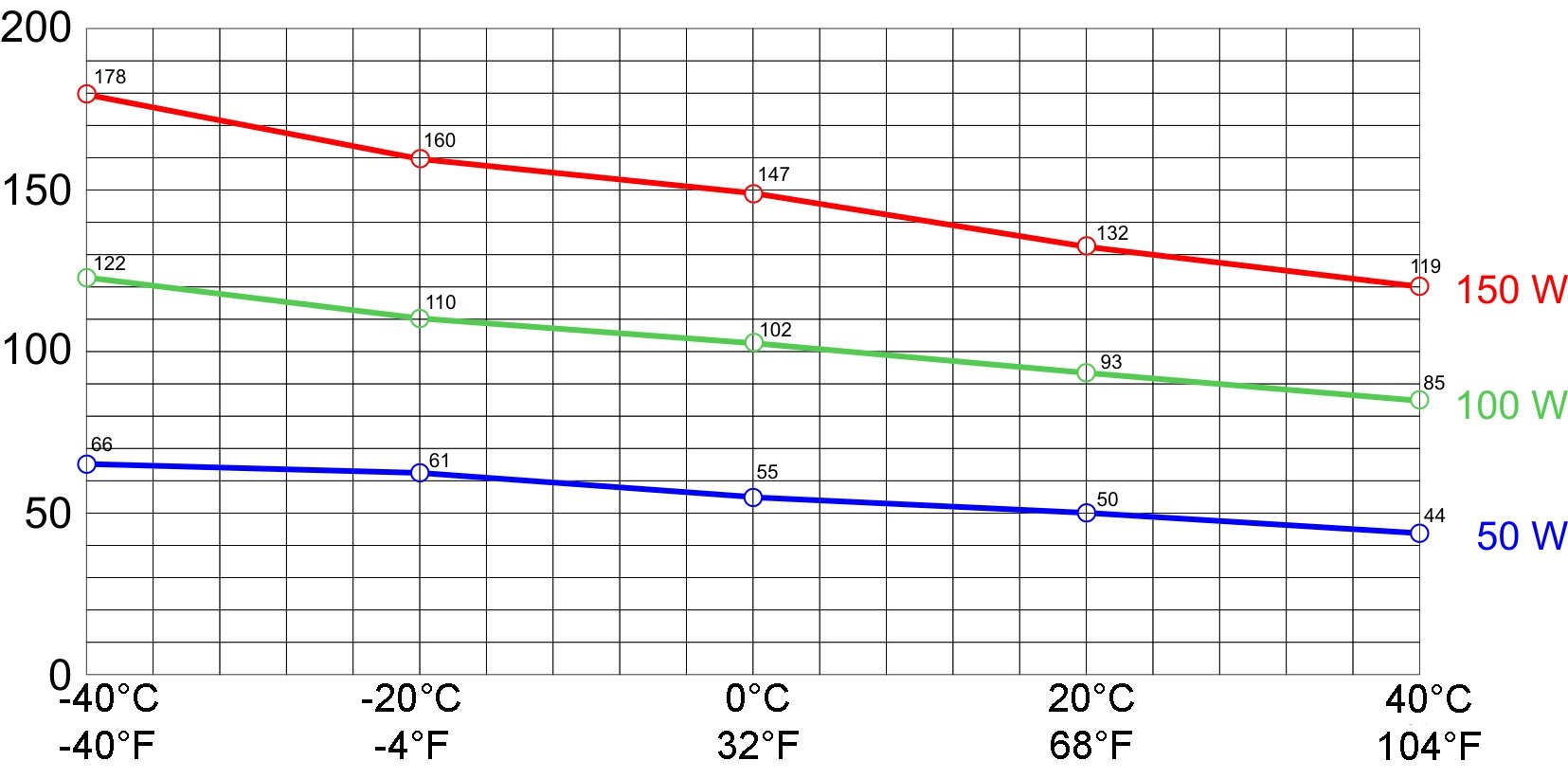

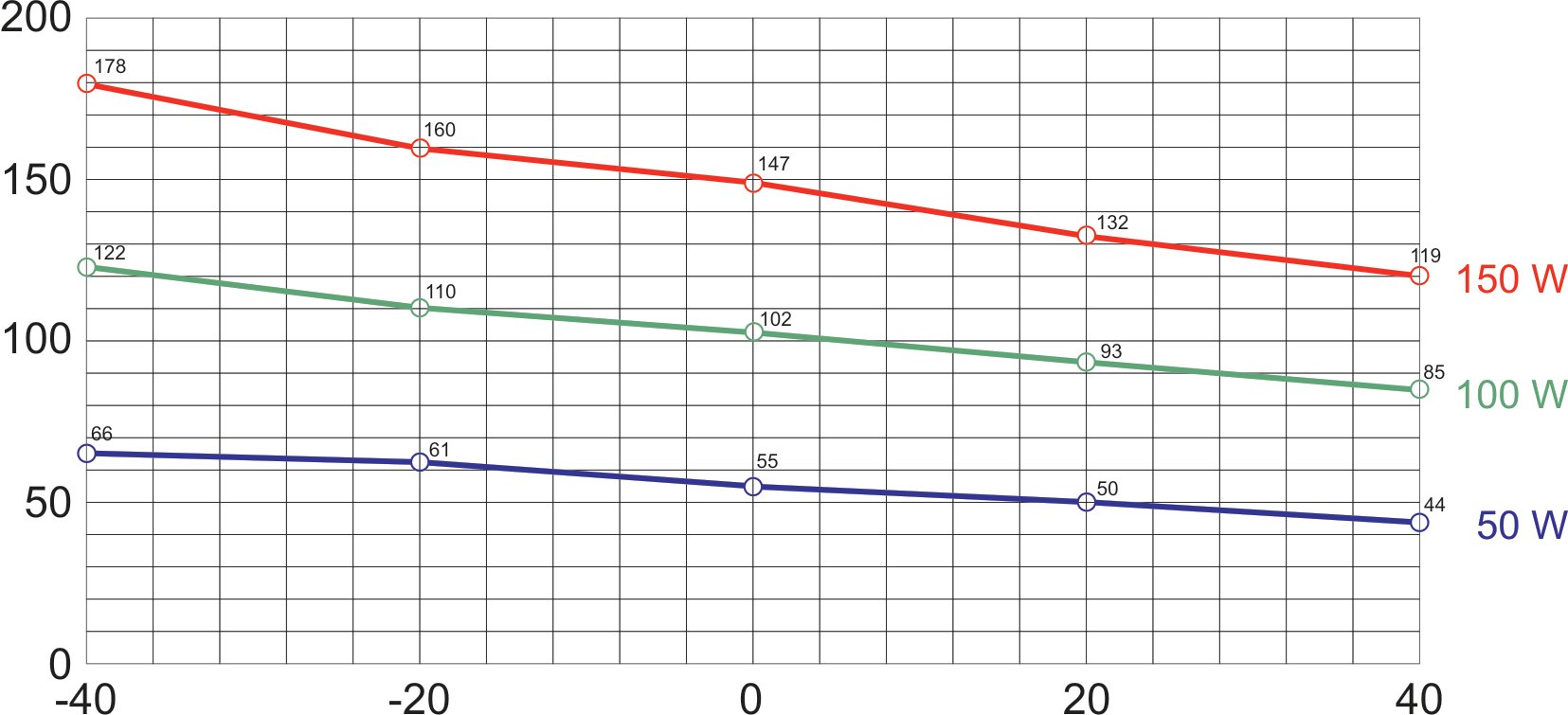

| Note | Other voltages on request When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 % Heating capacity at ambient temperature-see performance/ambient temperature diagram air outlet temperature 50 mm from the protective grille. |
