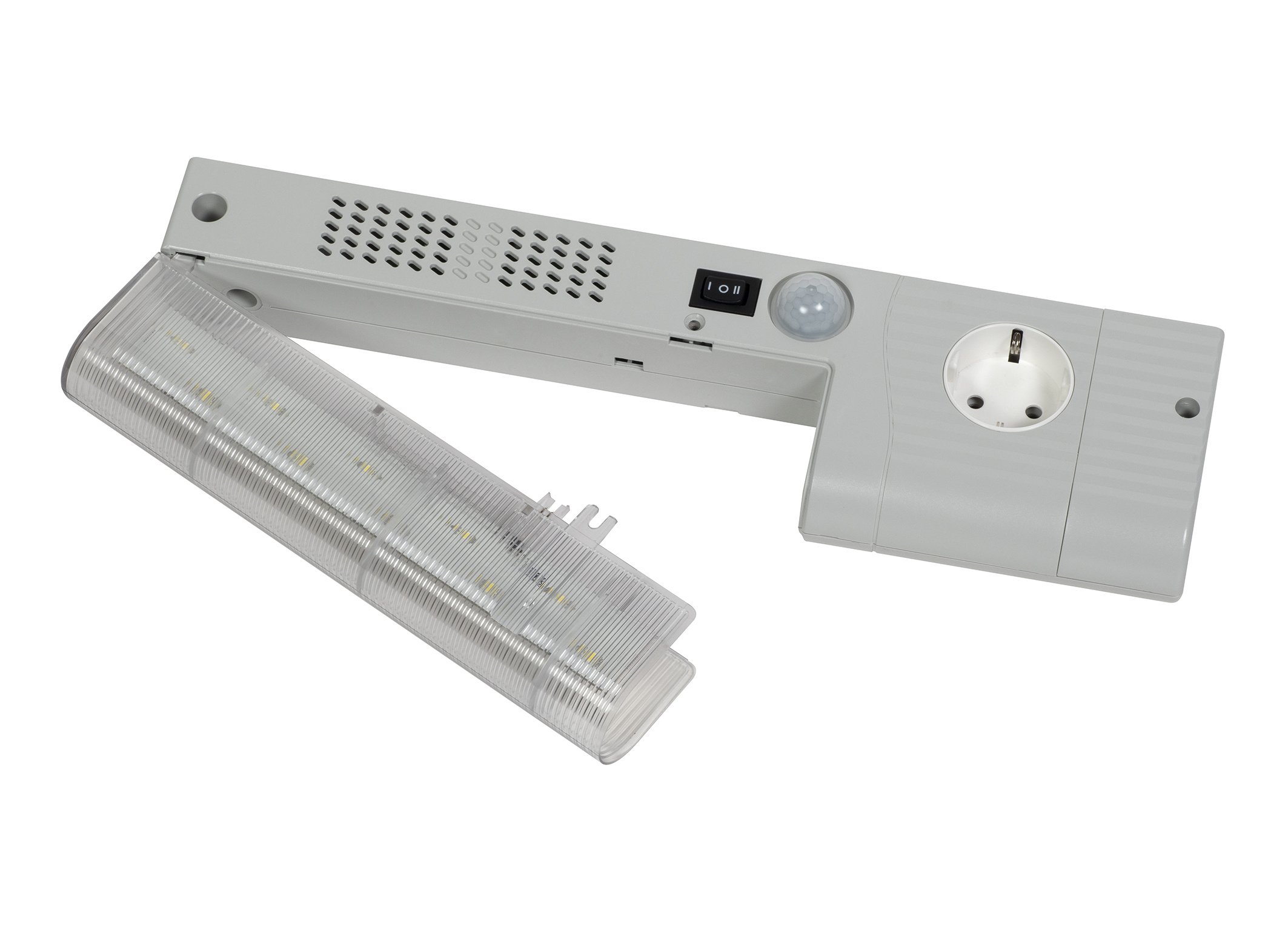

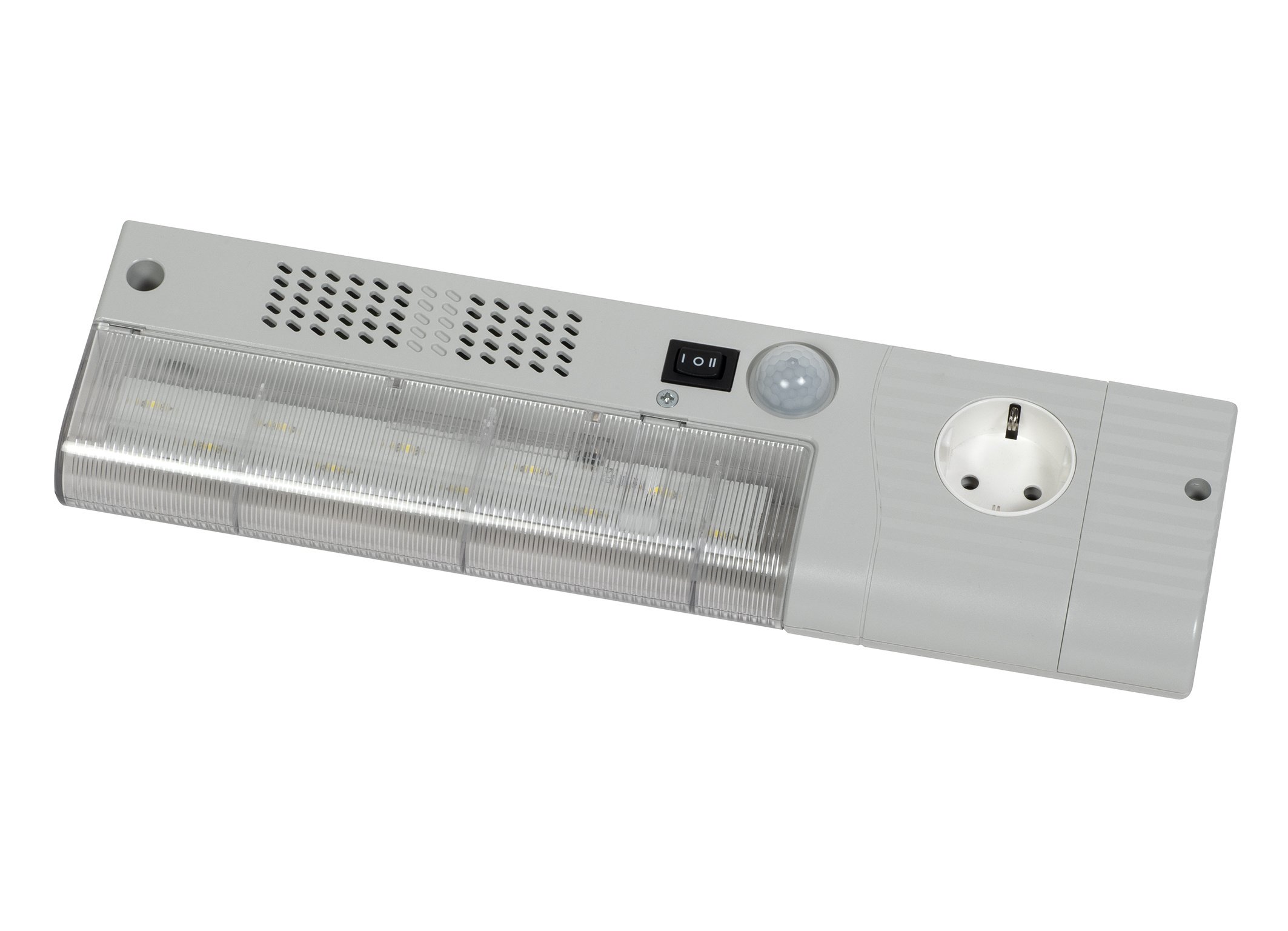

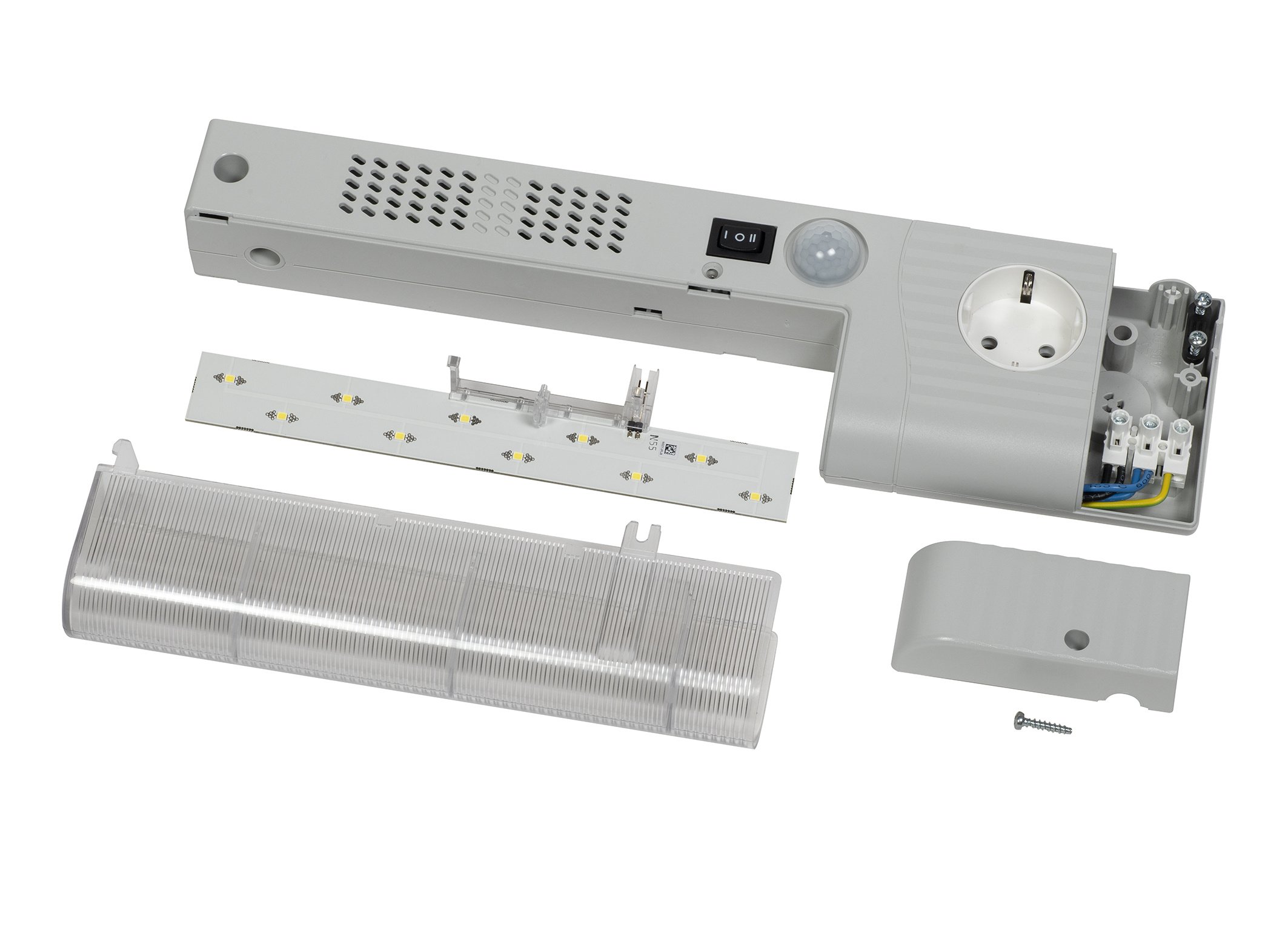

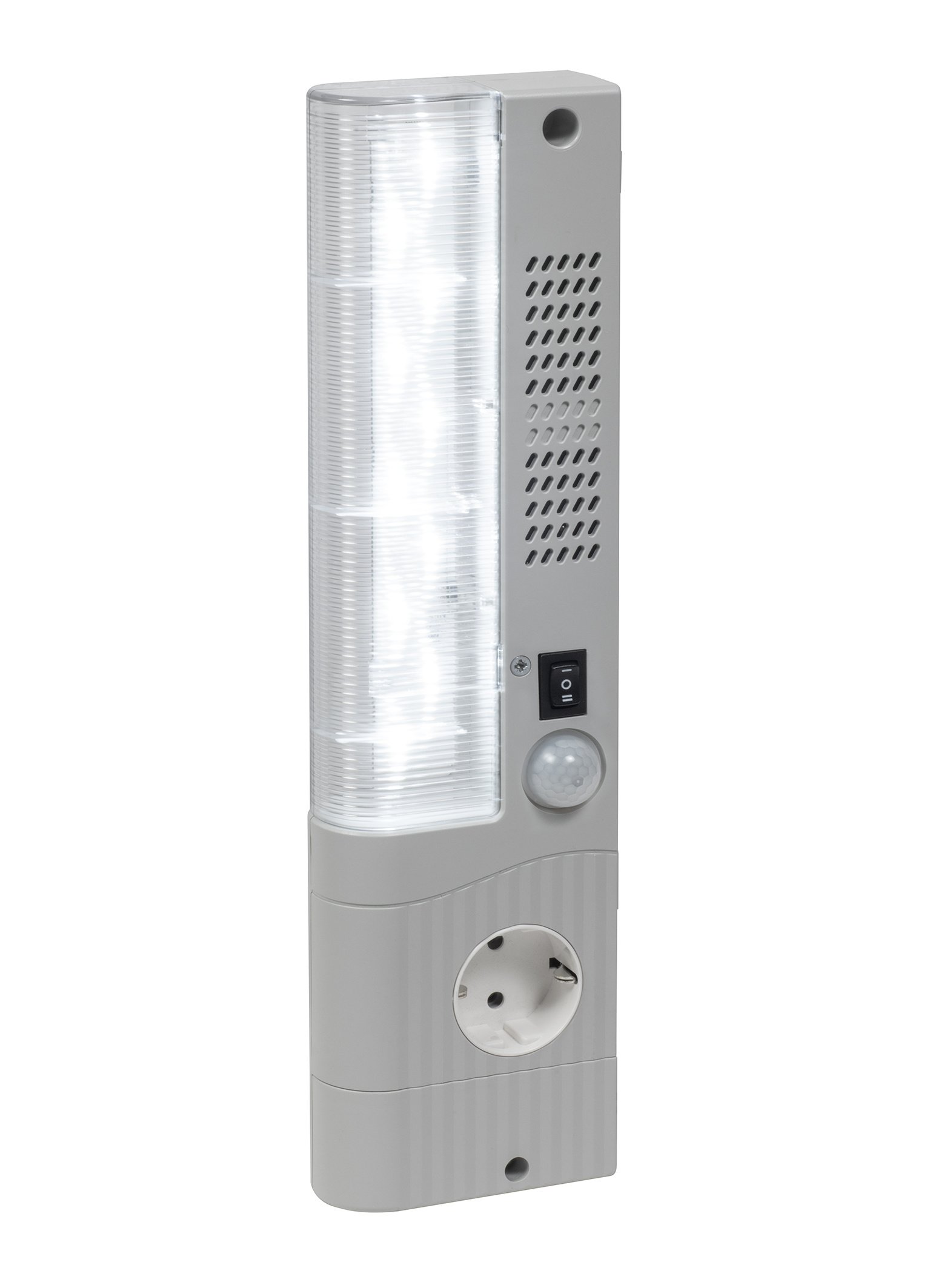

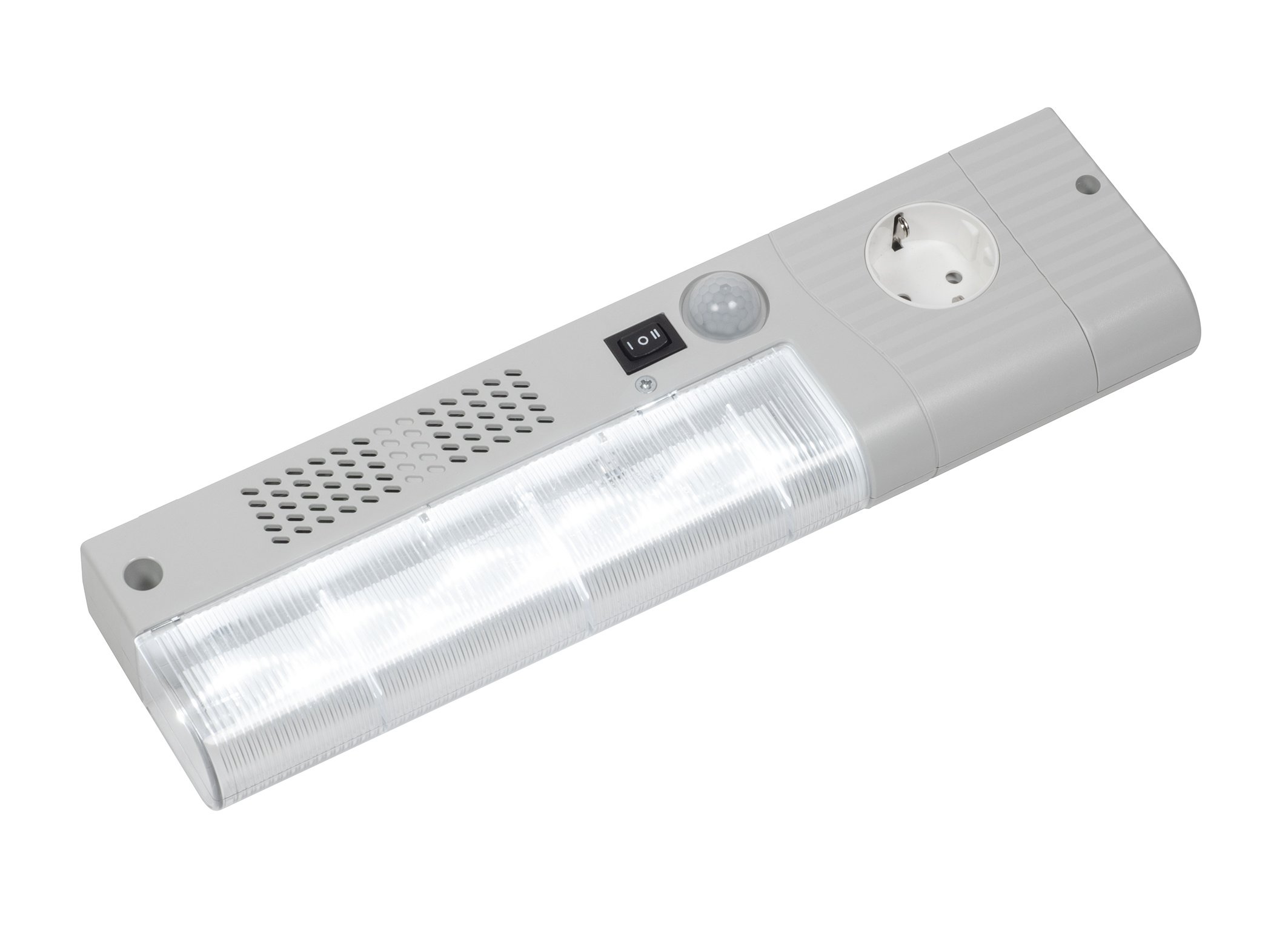

The flat LED light SL 025 with on/off switch and motion detector is ideal for use in cabinets and casings with electrical/electronic components with a high component density. It can be mounted narrow-sided or wide-sided with screws, or with magnet fixing at any desired position in steel cabinets without installation effort. Thanks to its integrated socket, the SL025 enables the operation of additional electrical devices. The integrated motion detector also replaces a door switch.
Flat casing
Wide voltage range
Light with socket
Screw and magnet fixing
LED lighting element
Switch and motion detector in one device
Can be used worldwide certified
Overview technical data
Device type
LED enclosure lamps
Switch
On/off switch and motion detector
Illuminant
LED
Protection class
I
Protection type
IP20
Casing
Plastic to UL94 V-0, light grey
AC/DC
AC
Frequency
50;60 Hz
Power consumption
4 W
Luminous colour
6000 - 7000 K
Luminous flux
560 Lm
Service life
>60000 h
Operating temperature
-40 °C - 60 °C
Operating humidity
≤90 % RH
Storage humidity
≤90 % RH
Storage temperature
-40 °C - 85 °C
Torque
0.8 Nmmax.

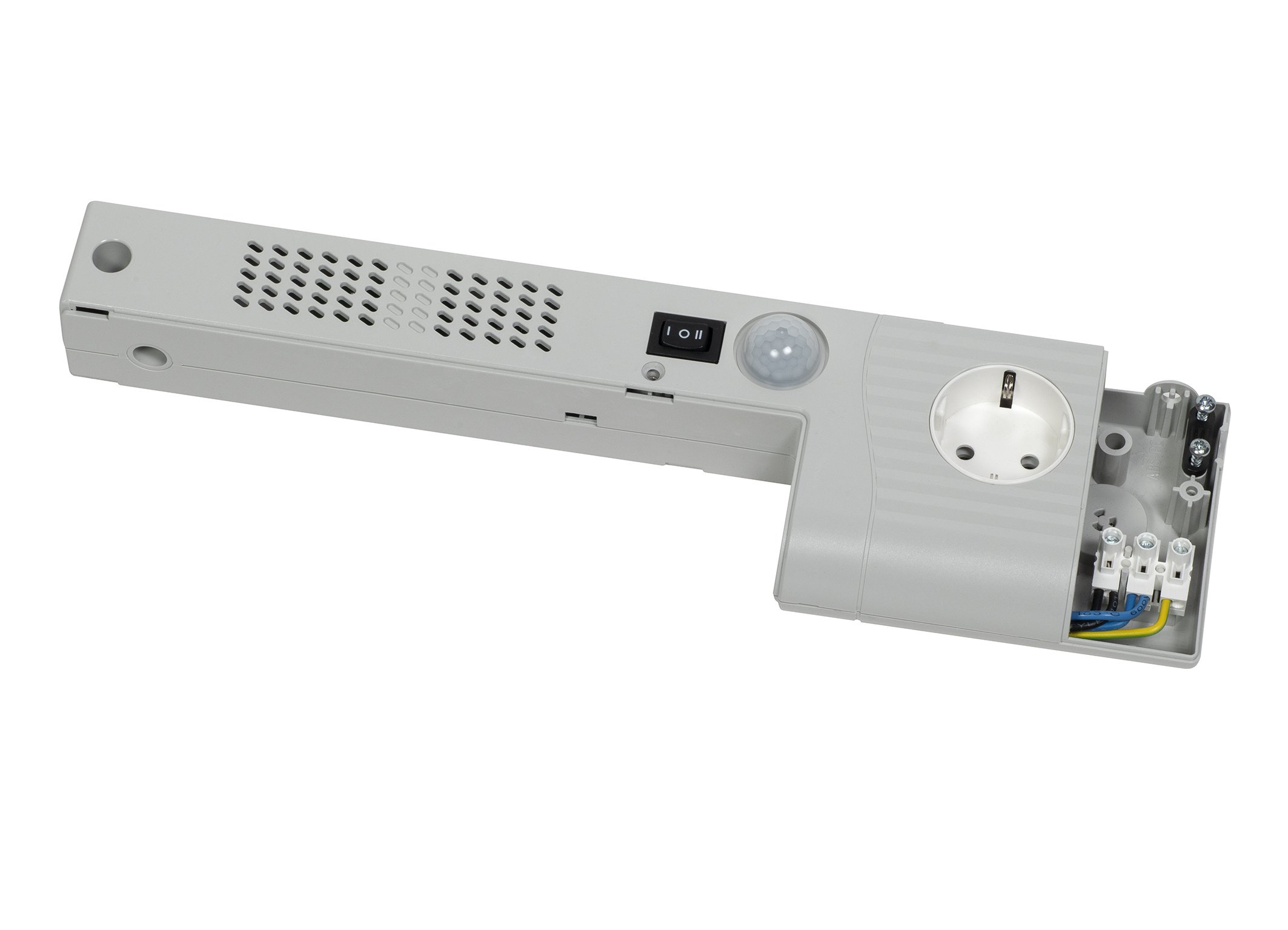

Connection
Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.
Mounting
Screw / magnet
Installation position
variable
Height
91 mm
Width
40 mm
Depth
345 mm
Weight
385 g
Note
The socket is operated with mains voltage connected
motion detector has approx. 5 min. fixed duty cycle
motion detector cannot detect movement through glass doors.
Product variants
Article number
Device name
Device type
Series
Switch
Illuminant
Socket
Protection class
Protection type
Casing
AC/DC
Operating voltage
Operating voltage tolerance
Frequency
Power consumption
Luminous colour
Luminous flux
Operating socket
Nominal current socket
Service life
Operating temperature
Operating humidity
Storage humidity
Storage temperature
Torque
Connection
Mounting
Installation position
Height
Width
Depth
Weight
Note
Request
CAD
Datasheet
02530.1-00
New: LED enclosure lamp
LED enclosure lamps
SL 025
On/off switch and motion detector
LED
DE/RU
I
IP20
Plastic to UL94 V-0, light grey
AC
100 V - 240 V
90 V - 265 V
50;60 Hz
4 W
6000 - 7000 K
560 Lm
250 V
16 A
>60000 h
-40 °C - 60 °C
≤90 % RH
≤90 % RH
-40 °C - 85 °C
0.8 Nmmax.
Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.
Screw / magnet
variable
91 mm
40 mm
345 mm
385 g
The socket is operated with mains voltage connected
motion detector has approx. 5 min. fixed duty cycle
motion detector cannot detect movement through glass doors.
