Stegofix Plus device holder

SFP 095

The STEGOFIX PLUS device holder is a flexible alternative to the 35 mm DIN rail. It enables quick and easy installation of small or additional devices that are designed for mounting on DIN rails. The STEGOFIX PLUS is suitable for devices with a clip width of max. 66 mm and with its versions - screw fixing in 25 mm increments, high-performance adhesive tape and rubberized neodymium magnets - offers the right mounting method for almost any application.

  • Alternative to 35 mm DIN rail
  • Simple, flexible installation

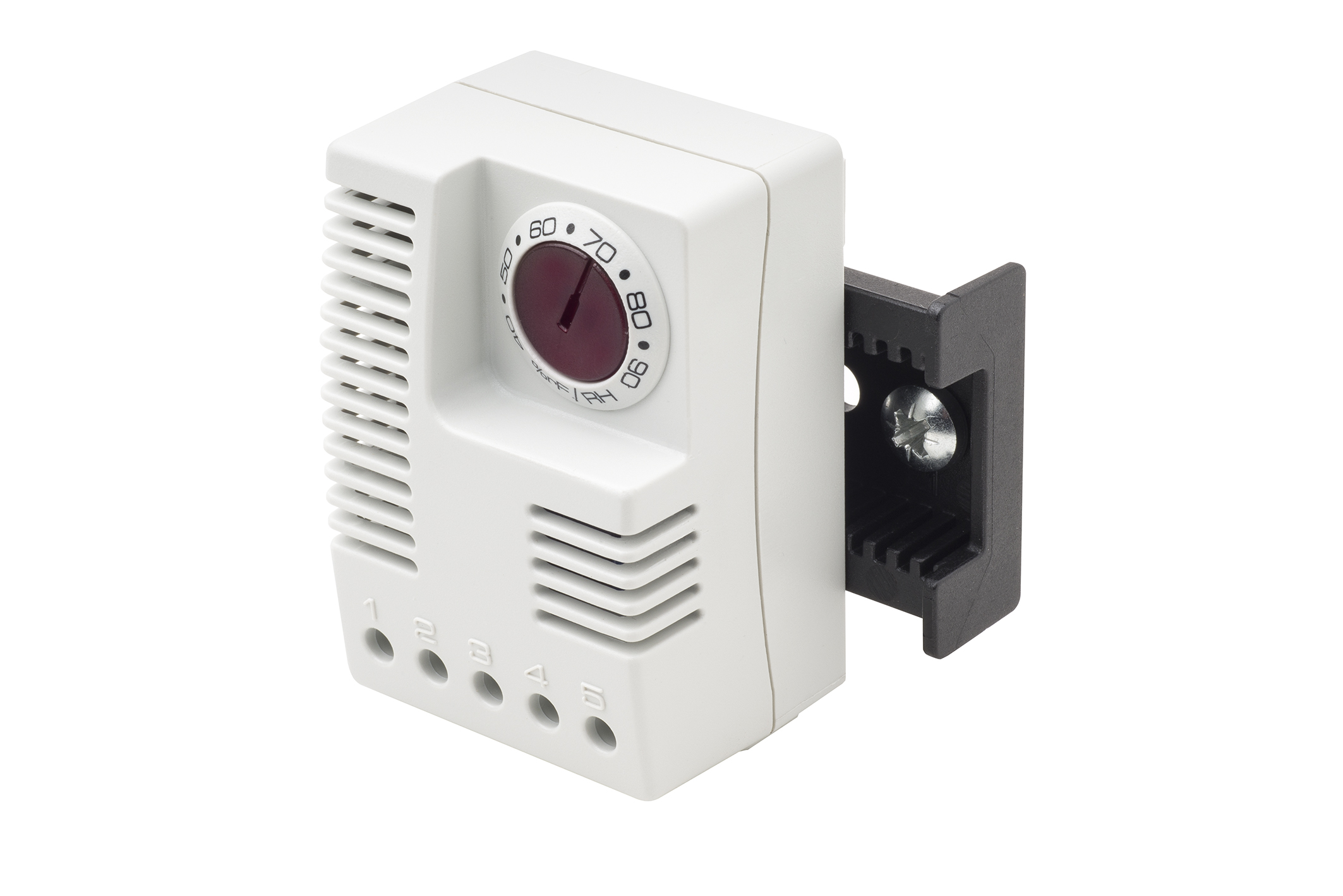

  • For devices and sockets with DIN rail clip
  • Screw fixing
  • self-adhesive tape mounting
  • Magnet fixing
EAC

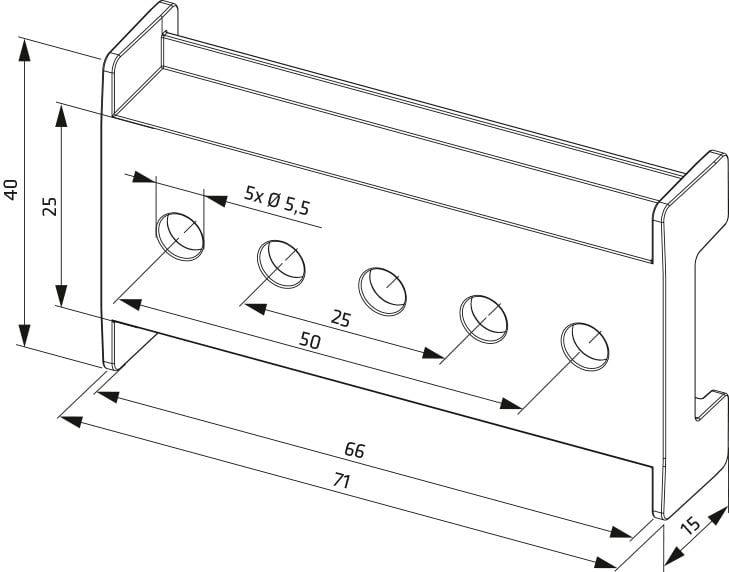

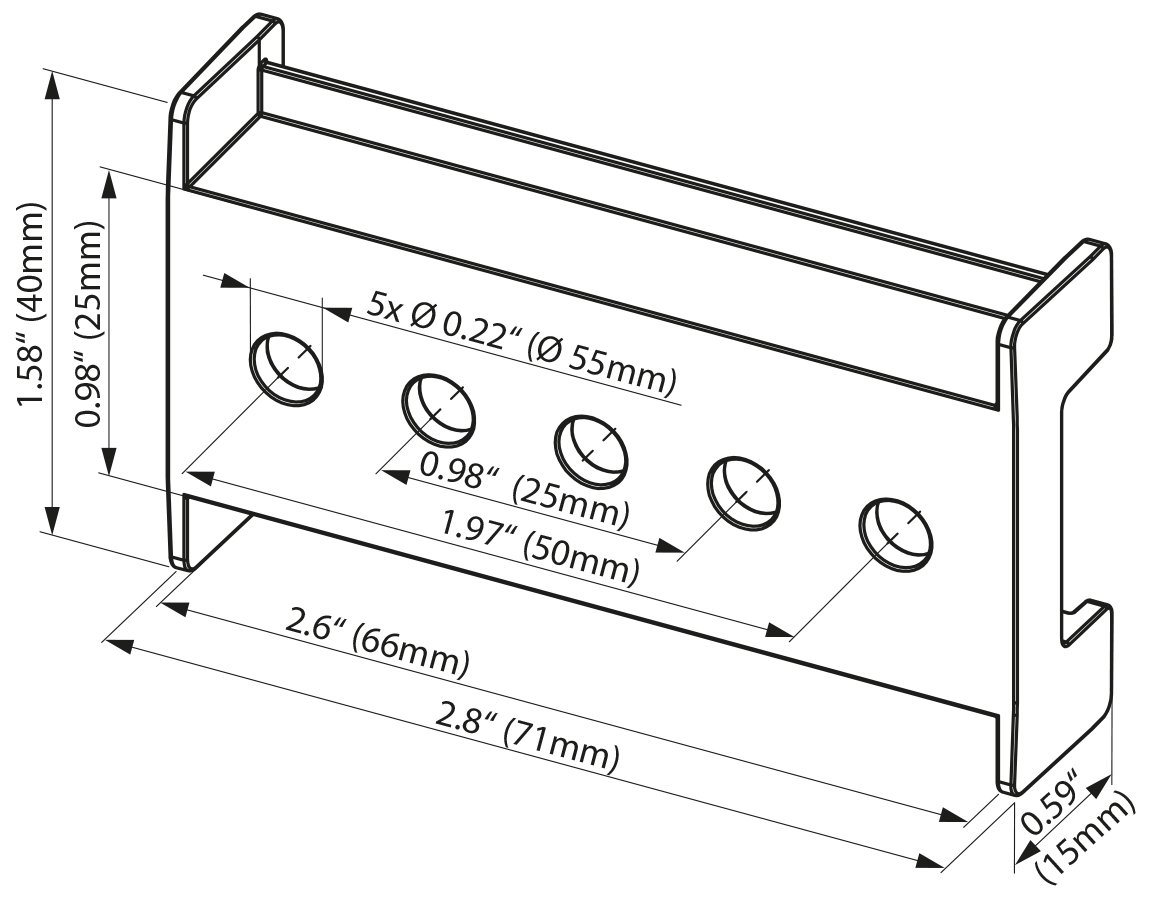

Overview technical data

Device nameStegofix Plus device holder
Device typeOther accessories
SeriesSFP 095
CasingPlastic to UL94 V-0, black
Operating temperature-35 °C - 75 °C
Storage temperature
Height 40 mm
Width 71 mm
Depth 15 mm
Weight 13 g
Notemax. clip width 66 mm screws not included

Product variants

Article numberMountingRequestCADDatasheet
09550.0-05M5 screw fixing
09550.0-05-SFP095-Datasheet-EN.pdf

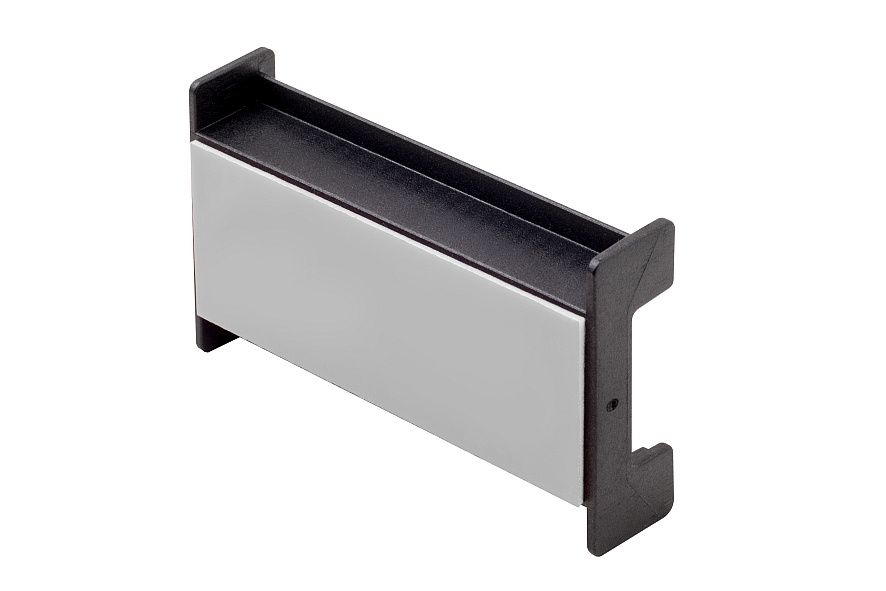

09550.1-05Adhesive fixing
09550.1-05-SFP095-Datasheet-EN.pdf

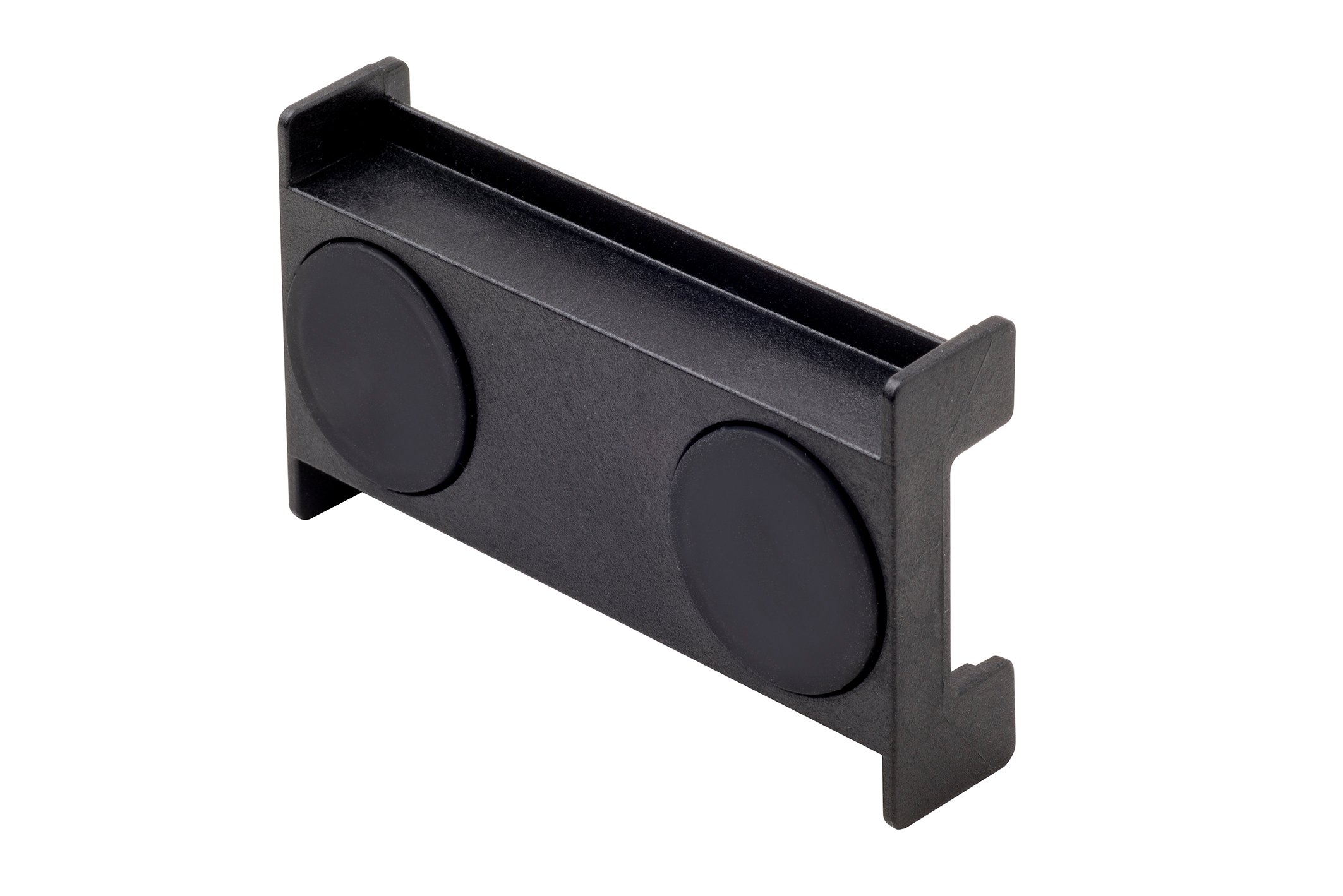

09550.2-05Magnet fixing
09550.2-05-SFP095-Datasheet-EN.pdf
