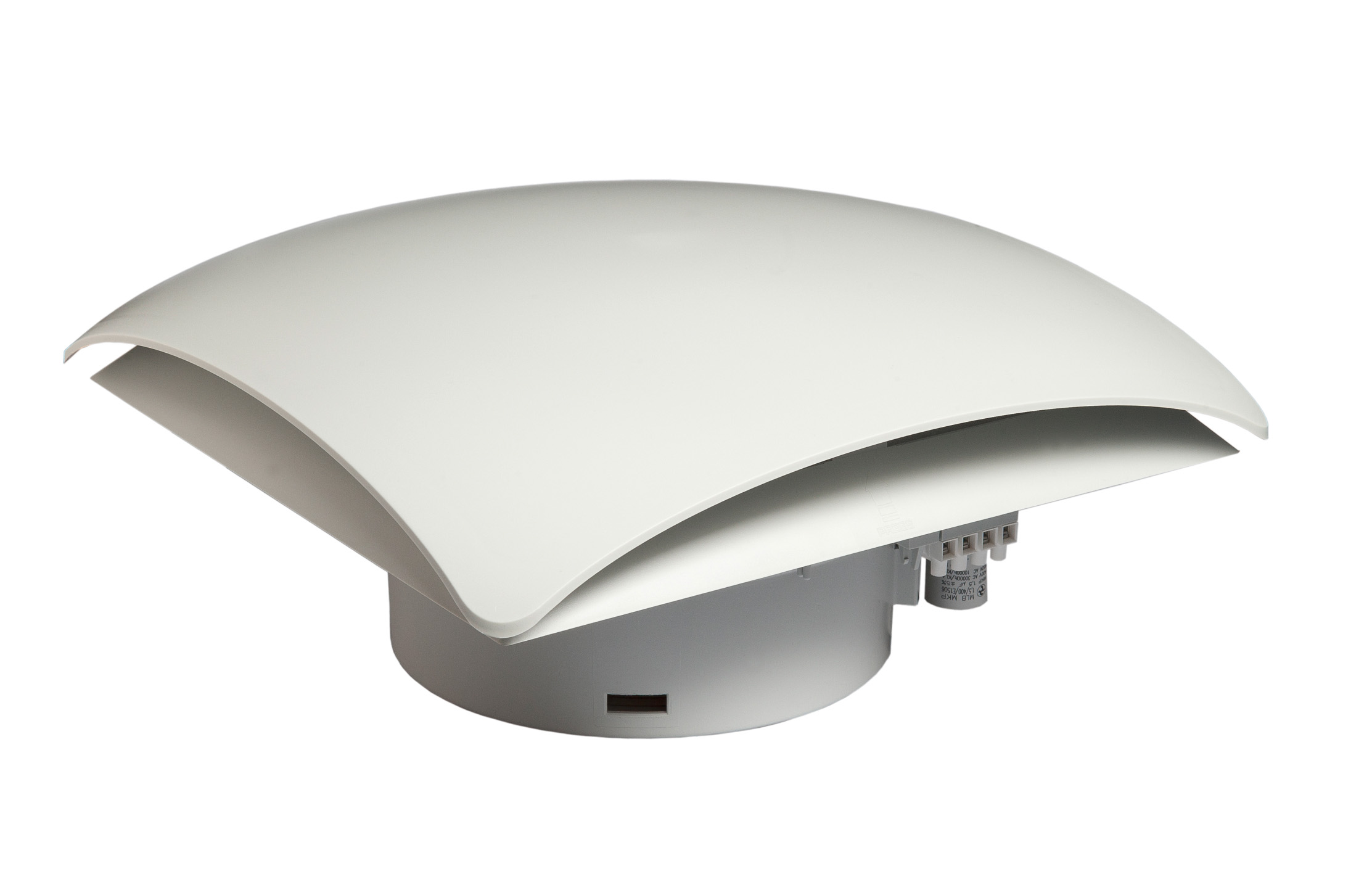

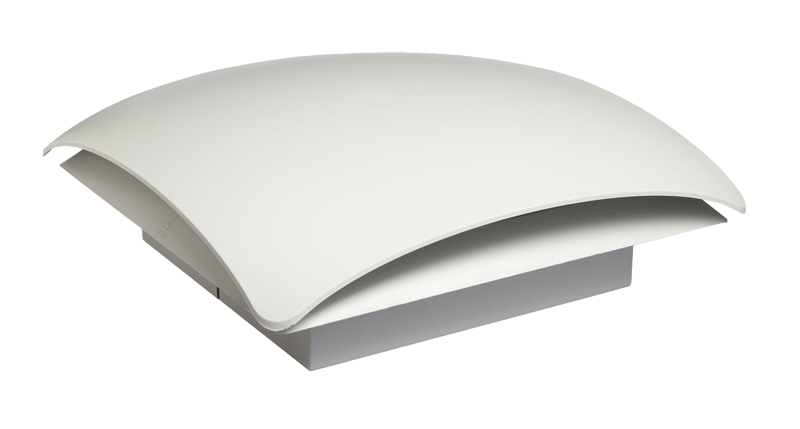

Roof filter fan
RFP 018
The roof filter fan ensures uniform air circulation in the enclosure or casing. The resulting air flow cools the electrical components. Note: The application of roof filter fans always requires pressure compensation. Either in combination with an inlet filter or an inlet filter fan.
- Low installation depth
- Quiet in operation with a high air through-flow rate
- High operational reliability
- Time-saving installation and filter mat replacement
Overview technical data
| Device name | Roof filter fan |
| Device type | Accessories |
| Series | RFP 018 |
| Protection class | I |
| Protection type | IP32 |
| Filter material | Plastic fibre with progressive structure |
| Filter mat | G3 |
| Casing | Plastic to UL94 V-0, light grey UV light resistant to UL746C (f1) |
| AC/DC | AC |
| Axial fan | Fan body aluminium, rotor plastic |
| Service life | >50000 h |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Torque | 0.8 Nmmax. |
| Connection | 3-pole clamp 2.5 mm², torque 0.8 Nm max. |

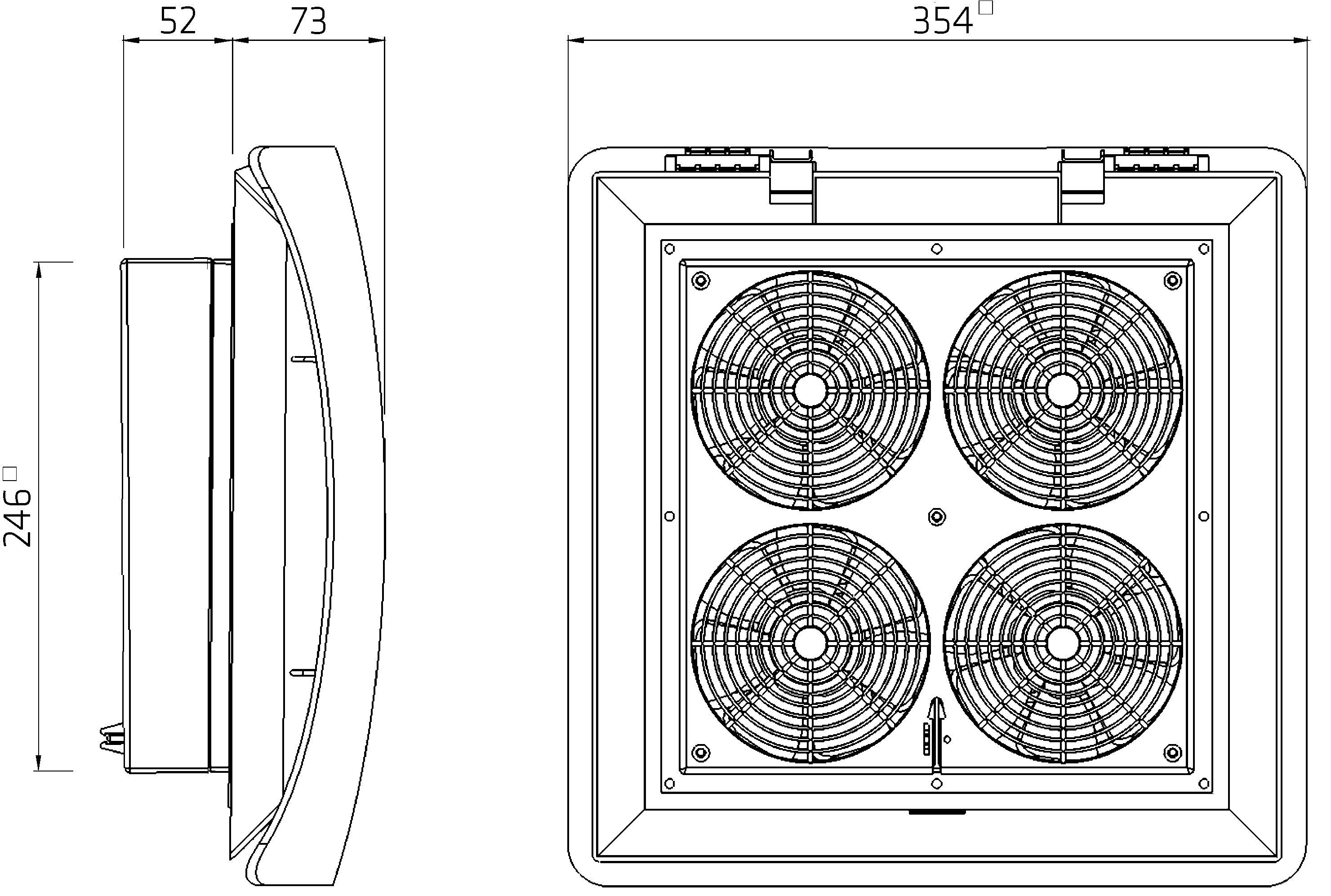

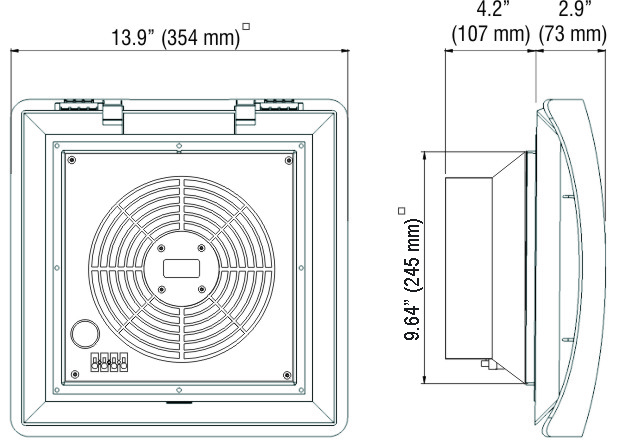

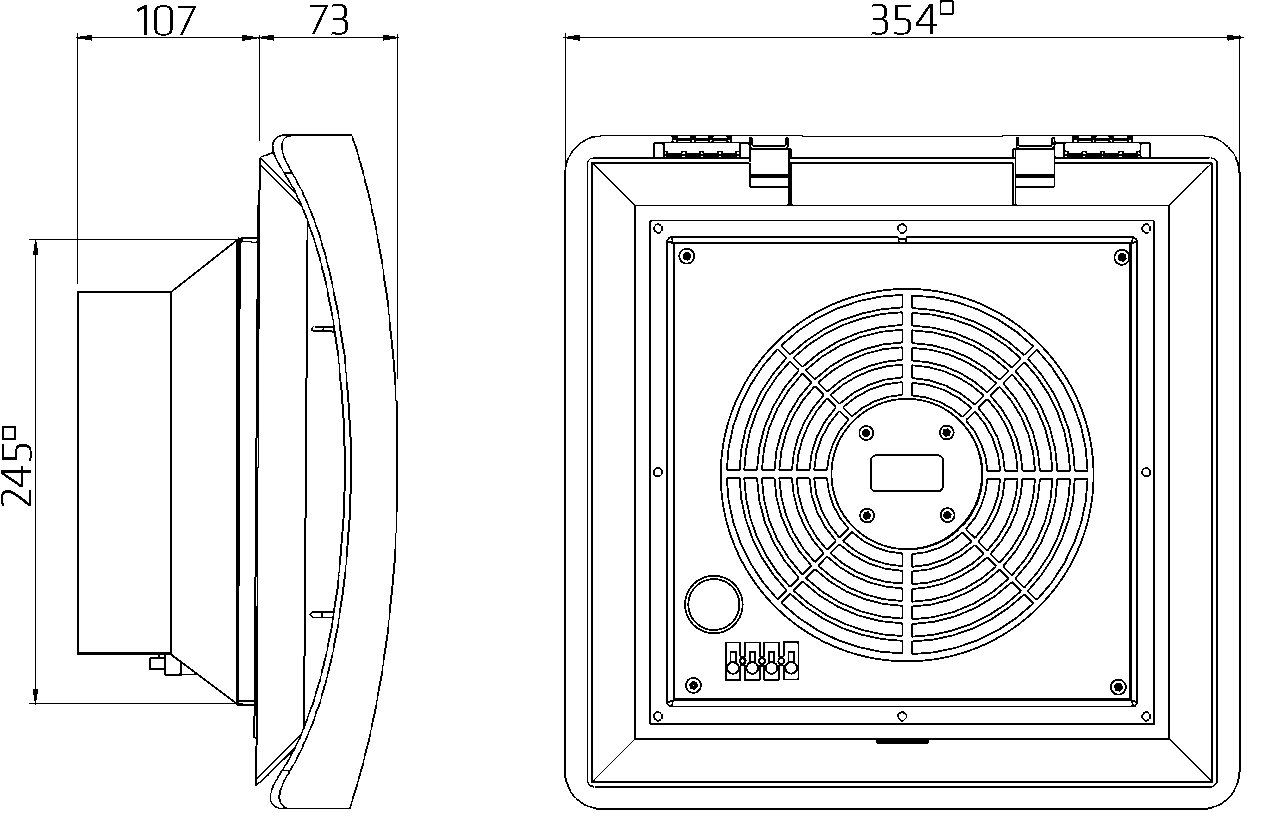

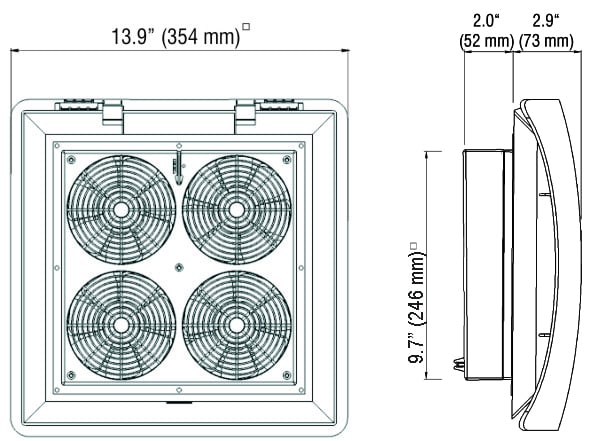

| Width | 354 mm |
| Depth | 354 mm |
| Mounting cut-out | 246 x 246 mm |
| Item number accessories 1 | 11860.0-00 |
| Item number accessories 2 | 08613.0-01 |
| Accessory 1 | Roof exit filter RFP 018 |
| Accessory 2 | Replacement filter mat FM 086 |
| Note | The roof filter fan must always be operated in combination with an inlet filter (e.g. Art. 11803.0-00) or an inlet filter fan (e.g. Art. No. 01803.0-00) for pressure compensation in the enclosure. |
