The roof filter fan ensures uniform air circulation in the enclosure or casing. The resulting air flow cools the electrical components. Note: The application of roof filter fans always requires pressure compensation. Either in combination with an inlet filter or an inlet filter fan.
| Device type | Accessories |
| Protection class | I |
| Protection type | IP32 |
| Filter material | Plastic fibre with progressive structure |
| Filter mat | G3 |
| Casing | Plastic to UL94 V-0, light grey; UV light resistant to UL746C (f1) |
| AC/DC | AC |
| Axial fan | Fan body aluminium, rotor plastic |
| Service life | >50000 h |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Torque | 0,8 Nm max. |
| Connection | 3-pole clamp 2.5 mm² max. |
| Width | 354 mm |
| Depth | 354 mm |
| Mounting cut-out | 246 x 246 mm |
| Item number accessories 1 | 11860.0-00 |
| Item number accessories 2 | 08613.0-01 |
| Accessory 1 | Roof exit filter RFP 018 |
| Accessory 2 | Replacement filter mat FM 086 |
| Note | The roof filter fan must always be operated in combination with an inlet filter (e.g. Art. 11803.0-00) or an inlet filter fan (e.g. Art. No. 01803.0-00) for pressure compensation in the enclosure. |
| Article number | Operating voltage | Frequency | Power consumption | Cooling airflow rate blowing | Average emission sound pressure level | Operating temperature | Storage temperature | Connection type | Height | Installation depth | Weight | Interactions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

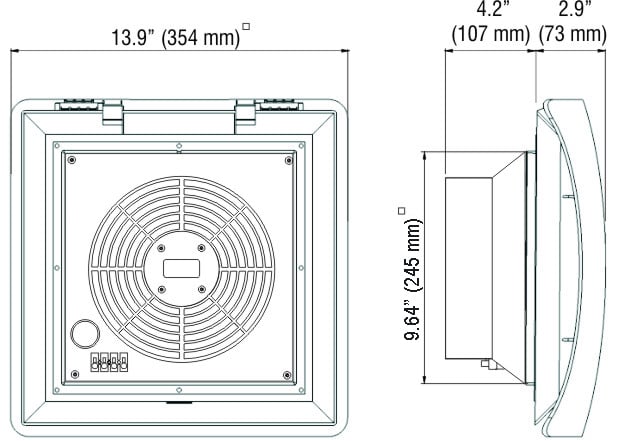

| 01861.0-00 | 230 V | 50 Hz | 64 W | 500 m³/h | 67 dB(A) | -25 °C - 70 °C | -25 °C - 70 °C | 180 mm | 107 mm | 2600 g | ||

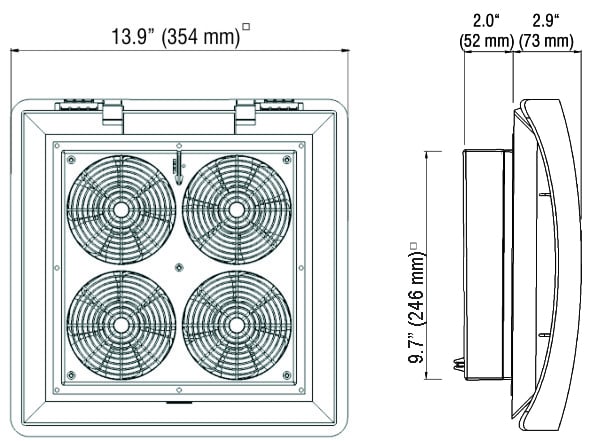

| 01860.0-00 | 230 V | 50 Hz | 68 W | 300 m³/h | 55 dB(A) | -10 °C - 70 °C | -40 °C - 70 °C | Connection terminal | 125 mm | 52 mm | 3300 g | |
| 01860.0-02 | 120 V | 60 Hz | 60 W | 345 m³/h | 55 dB(A) | -10 °C - 70 °C | -40 °C - 70 °C | 125 mm | 52 mm | 3300 g | ||
| 01861.0-02 | 120 V | 60 Hz | 85 W | 575 m³/h | 67 dB(A) | -25 °C - 70 °C | -25 °C - 70 °C | 180 mm | 107 mm | 2600 g |
