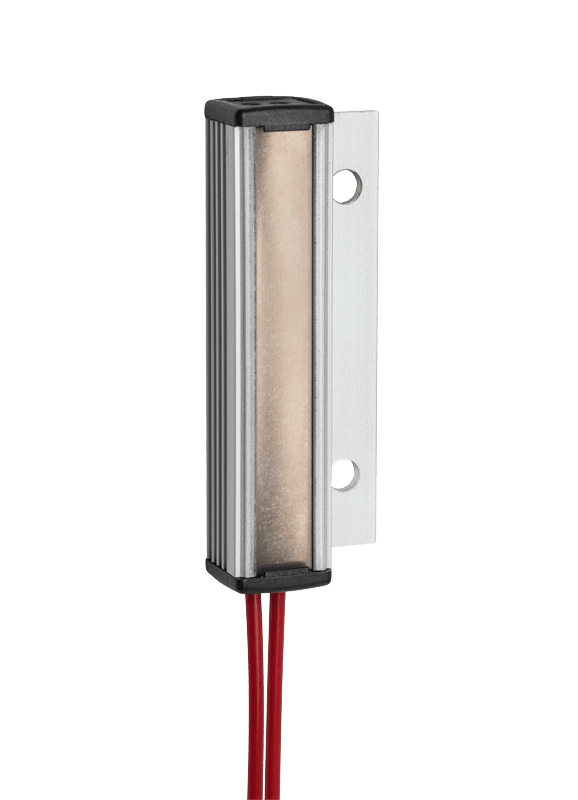

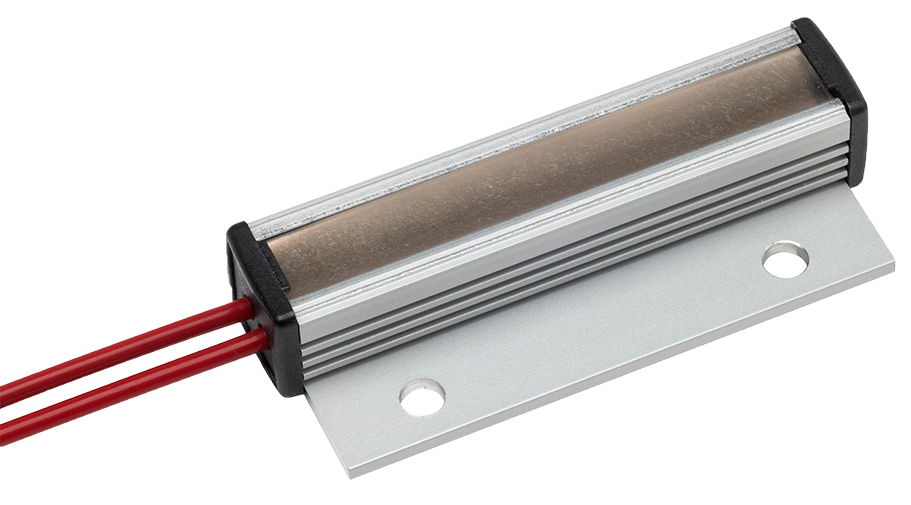

Flat enclosure heater
RC 016
This small and flat enclosure heater offers optimum condensation protection in small enclosures, casings and installation spaces. The PTC heating element transfers its heat to an anodised aluminum profile. The compact contact heating is designed for continuous operation.
- Wide voltage range for electrical connection
- PTC heating element with dynamic response behavior
- Compact dimensions, use: e.g. as a camera heater
- High heating capacity per volume
Overview technical data
| Device name | Flat enclosure heater |
| Device type | Convection heaters |
| Series | RC 016 |
| Protection class | II |
| Protection type | IP40 |
| Heating element | PTC resistor (PTC) |
| Heater element | Aluminium profile, anodised |
| AC/DC | AC DC |
| Operating voltage | 120 V - 240 V |
| Operating voltage tolerance | 110 V - 265 V |
| Frequency | 50;60 Hz |
| Surface temperature | < + 180 °C |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection type | Connection cable |
| Connection | 2x AWG 20, 300 mm |
| Mounting | Screw fixing |
| Installation position | variable |

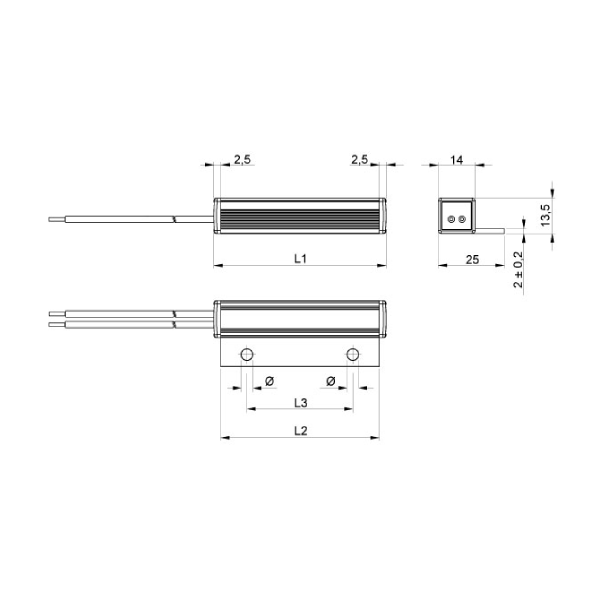

| Height | 13.5 mm |
| Width | 25 mm |
| Depth | 35 mm |
| Note | Heating capacity measured at +20°C (+68°F) ambient temperature When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 %. |
