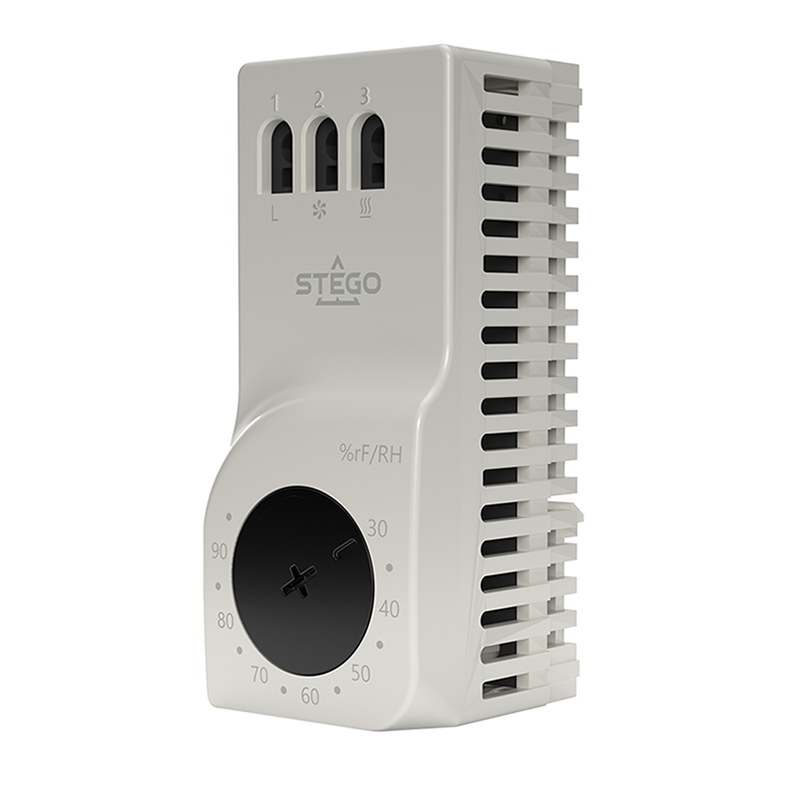

MFR-012-2

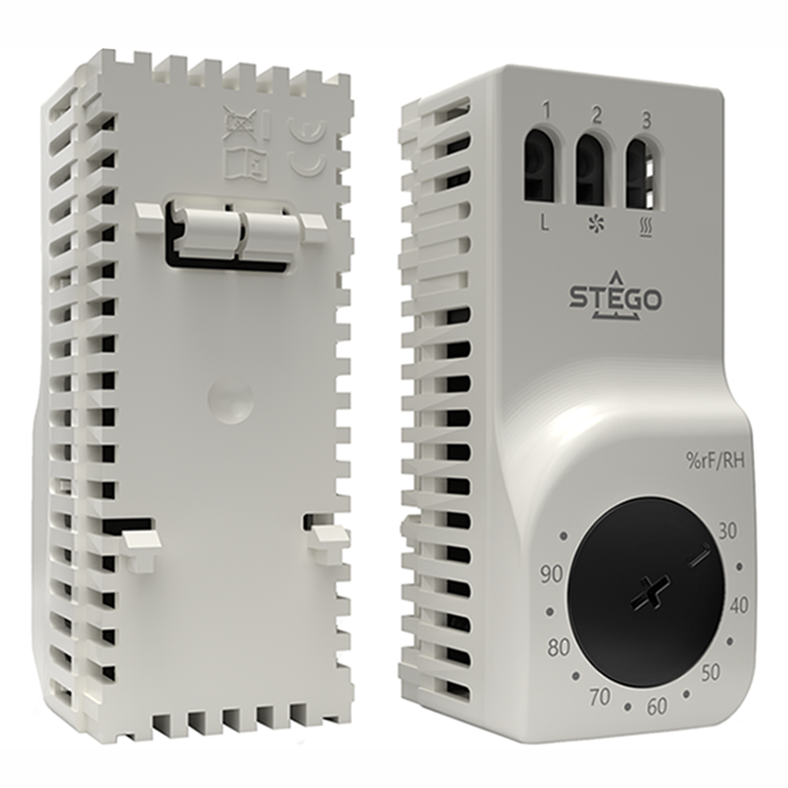

MFR-012-2-front-and-back

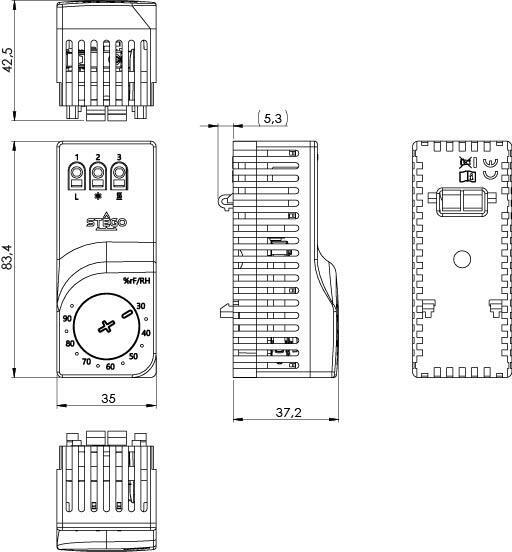

MFR-012-2-technical-drawing

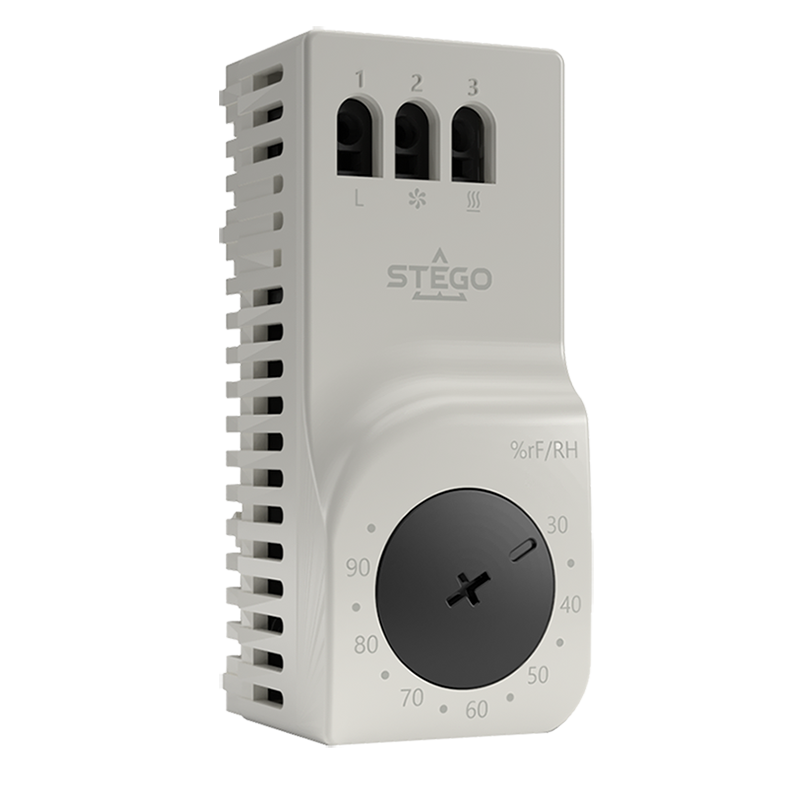

New: Mechanical hygrostat

MFR 012

The hygrostat is used to prevent condensate and regulates heating and fans. From a critical relative air humidity of 65 %, the temperature is increased so that the dew point is raised.

  • Adjustable relative air humidity
  • Changeover contact (heating or cooling)
  • High switching capacity
  • Clip mounting
CEUKCAEACUL

Overview technical data

Device typeHygrostat
Setting range30 % RH - 95 % RH
Contact typeSnap-action contact
Protection typeIP30
CasingPlastic to UL94 V-0, light grey
AC/DCAC
Operating voltage tolerance maximumAC 250 V
Inrush current maximum16 A
Inrush current duration 10 s
Switching capacityAC 5 A DC 20 W
Switching current ohmic 10 A
Reference voltage ohmic maximum250 VAC
Reference voltage 2 ohmic maximum120 VAC
Switching current dc ohmic 0.6 A
Reference voltage dc ohmic maximum30 VDC
Reference voltage minimum20 V
Switching current 0.1 A
Service life10 A 10000 cycles 6 A 50000 cycles
Switching differential 4 % RH
Switching differential tolerance ± 1,5 % RH
Operating temperature0 °C - 60 °C
Operating humidity ≤95 % RH
Storage humidity ≤95 % RH
Storage temperature-40 °C - 60 °C
Connection typeConnection terminal (push-in)
Connection3 x stranded wire 1.0 - 2.5 mm² (with wire end ferrule) and rigid wire 1.0 - 2.5 mm²
DesignChanger
MountingClip for 35 mm DIN rail, EN 60715
Height 84 mm
Width 35 mm
Depth 43 mm
Weight 45 g
NoteSwitching differential related to 50 % rH. Wire end ferrules must be used for connections with stranded wires.
