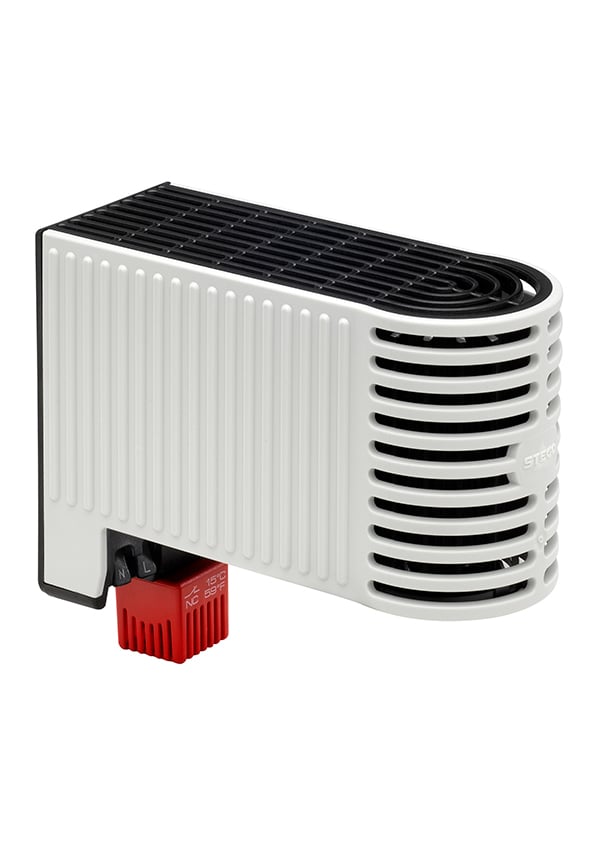

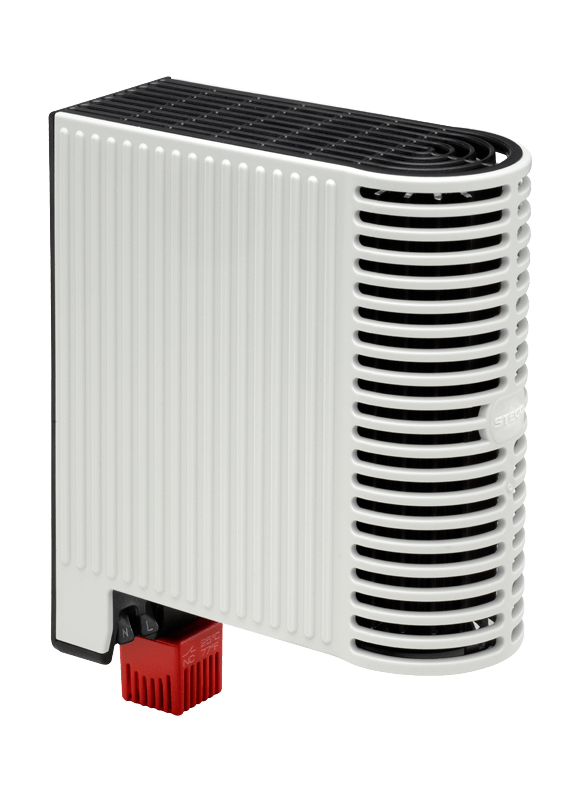

Enclosure heater
LTF 065
Compact loop heater based on PTC heating elements for heating casings with electrical or electronic components. The heater can be used to prevent both low temperatures and condensation on built-in components. Fast electrical contacting through pressure clamps.
- Quick installation with clip fixing and pressure clamp
- Low surface temperature
- Double insulated (plastic housing)
- Wide voltage range
- Integrated tamper-proof thermostat
- Heater body in loop design for optimum temperature distribution
- Shock and vibration proof
Overview technical data
| Device name | Enclosure heater |
| Device type | Convection heaters Integrated control Touchsafe |
| Series | LTF 065 |
| Protection class | II |
| Protection type | IP20 |
| Heating element | PTC resistor (PTC) |
| Casing | Plastic to UL94 V-0, black and white |
| AC/DC | AC |
| Operating voltage | 120 V - 240 V |
| Operating voltage tolerance | 110 V - 265 V |
| Frequency | 50;60 Hz |
| Surface temperature | < + 80 °C |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection type | Connection terminal |

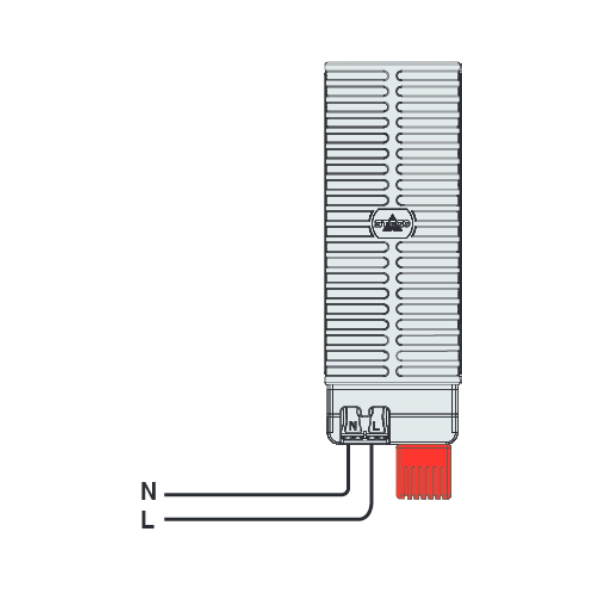

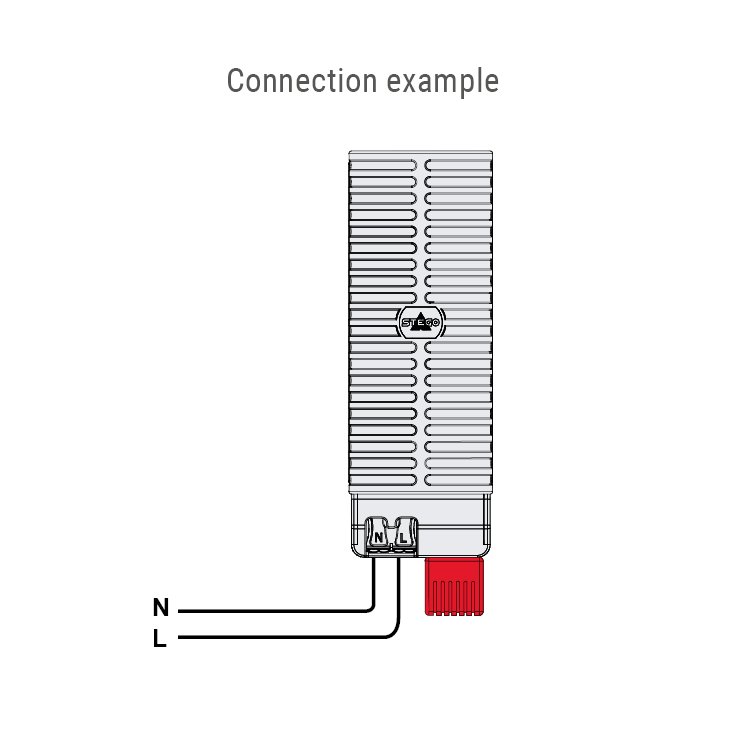

| Connection | 2 x pressure clamps for 0.5 - 1.5 mm² stranded wire (with wire end ferrule) and 0.5 - 2.5 mm² rigid wire |
| Mounting | Clip for 35 mm DIN rail |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

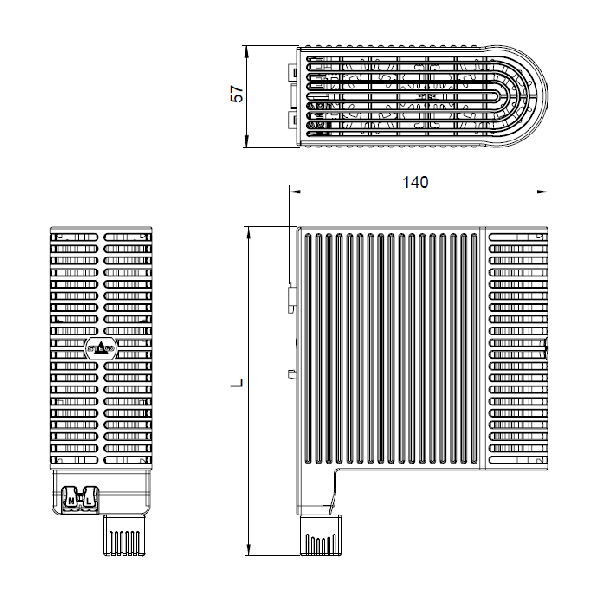

| Width | 57 mm |
| Depth | 140 mm |
| Note | Surface temperature according to VDE 0100, except upper grid surface surface temperature according to VDE 0100, except upper grid surface heating capacity measured at +20°C (+68°F) ambient temperature switch-on temperature tolerance at +5K. |
