LED enclosure lamp
LED 022
The optimum lamp for enclosures: the compact and powerful Varioline LED enclosure lamp. With up to 1700 Lm luminous flux for good visibility and work safety in large enclosures. The glare-free, 360° rotatable light body is equipped with mid-power LEDs. Long, maintenance-free service life of 60,000 hours.
- Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)

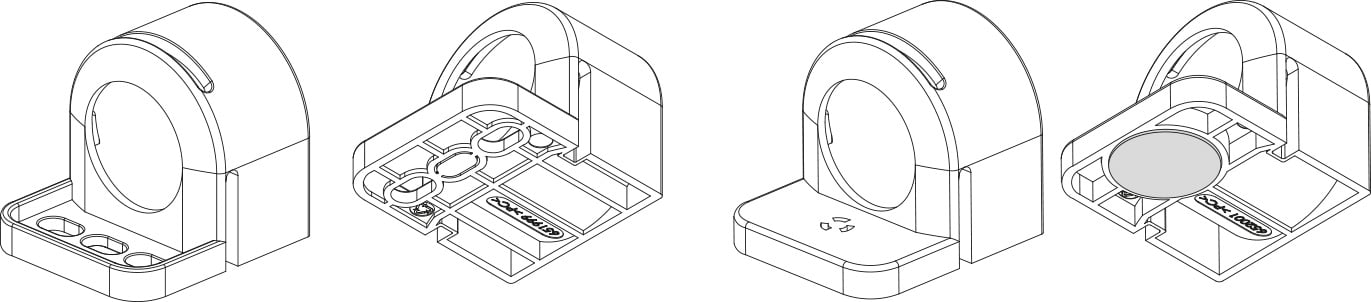

- Magnet or screw fixing
- Integrated power unit, daisy chain
- Available in two lengths: 400 and 600 mm
- Emitted luminous color 6,500 K (daylight); angle of radiation 120°
Overview technical data
| Device name | LED enclosure lamp |
| Device type | LED enclosure lamps |
| Series | LED 022 |
| Illuminant | LED |
| Protection class | II |
| Protection type | IP20 |
| Casing | Plastic, translucent |
| AC/DC | AC |
| Operating voltage | 100 V - 240 V |
| Operating voltage tolerance | 90 V - 265 V |
| Frequency | 50;60 Hz |
| Power consumption | 16 W |
| Luminous colour | 6500 K |
| Luminous flux | 1730 Lm |
| Service life | >60000 h |
| Operating temperature | -40 °C - 40 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection type | Connector plug |
| Connection | 2-pole connector with snap lock |
| Mounting | Screw |

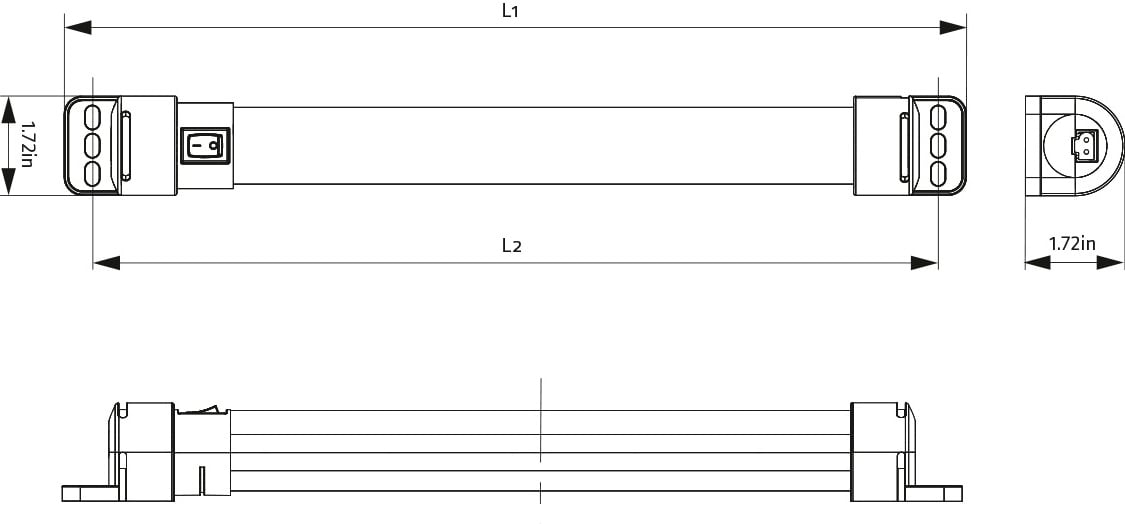

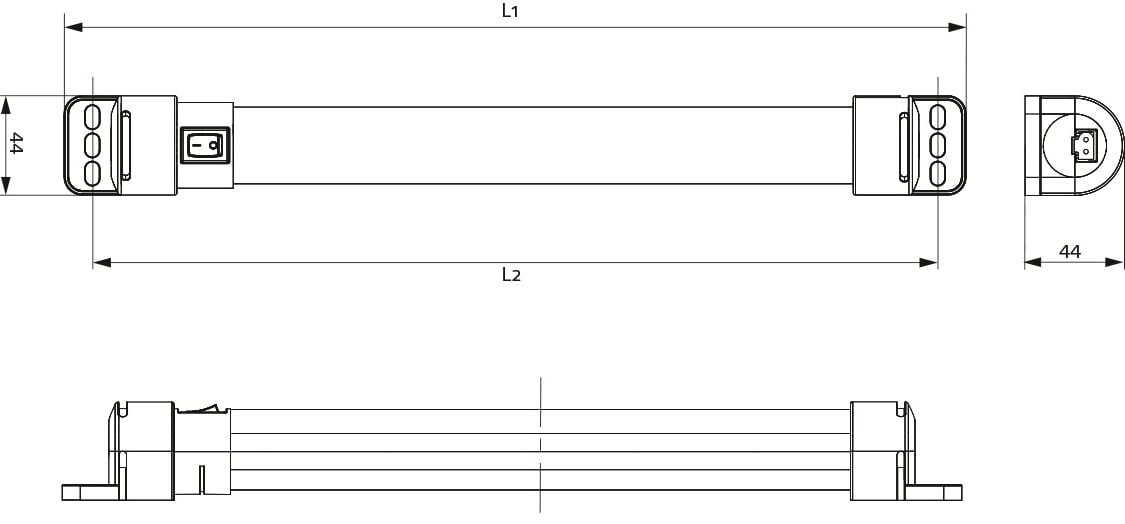

| Height | 44 mm |
| Width | 44 mm |
| Depth | 600 mm |
| Weight | 300 g |
| Item number accessories 1 | 244359 |
| Item number accessories 2 | 244357 |
| Item number accessories 3 | 264057 |
| Item number accessories 4 | 264058 |
| Accessory 1 | Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m |
| Accessory 2 | Connection cable 2 x AWG 16 with female connector, 2 m |
| Accessory 3 | Separate female connector for cable connection |
| Accessory 4 | Separate male connector for cable connection |
