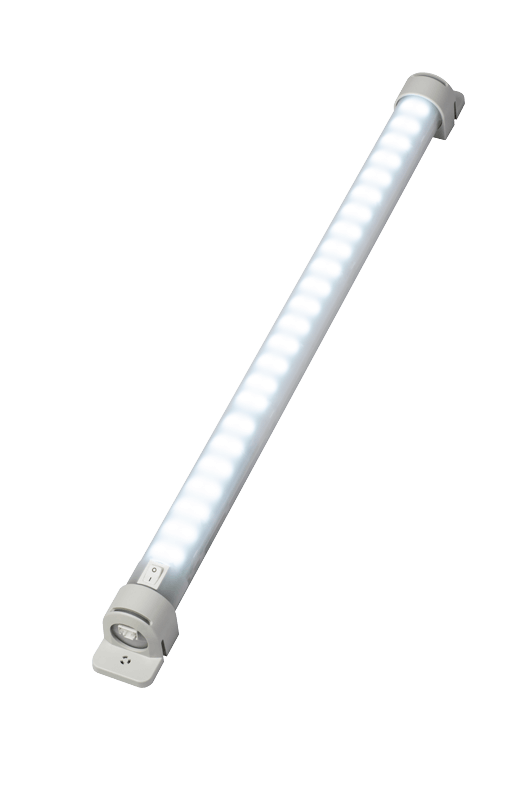

LED enclosure lamp

LED 022

The optimum lamp for enclosures: the compact and powerful Varioline LED enclosure lamp. With up to 1700 Lm luminous flux for good visibility and work safety in large enclosures. The glare-free, 360° rotatable light body is equipped with mid-power LEDs. Long, maintenance-free service life of 60,000 hours.

  • Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)

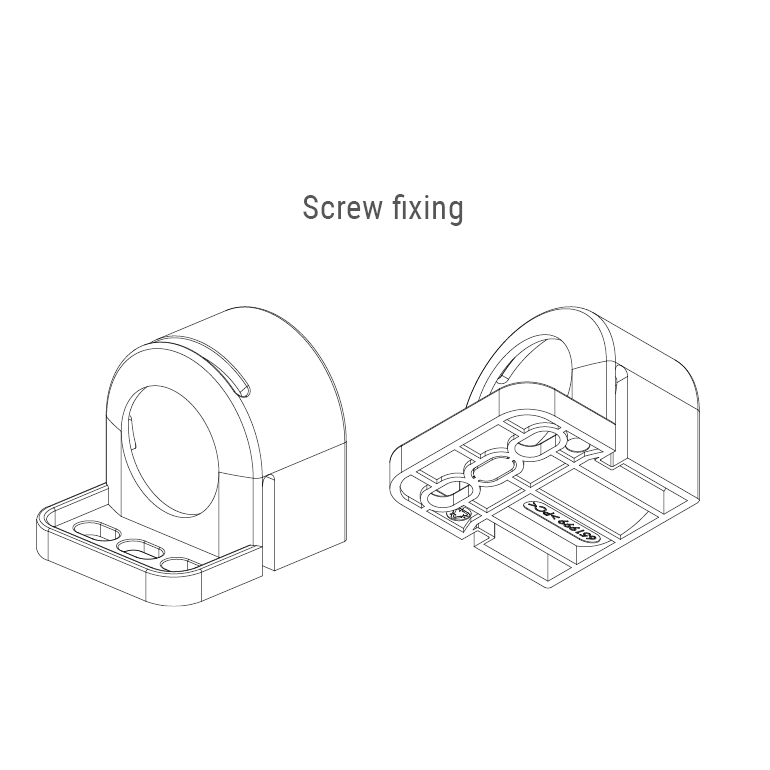

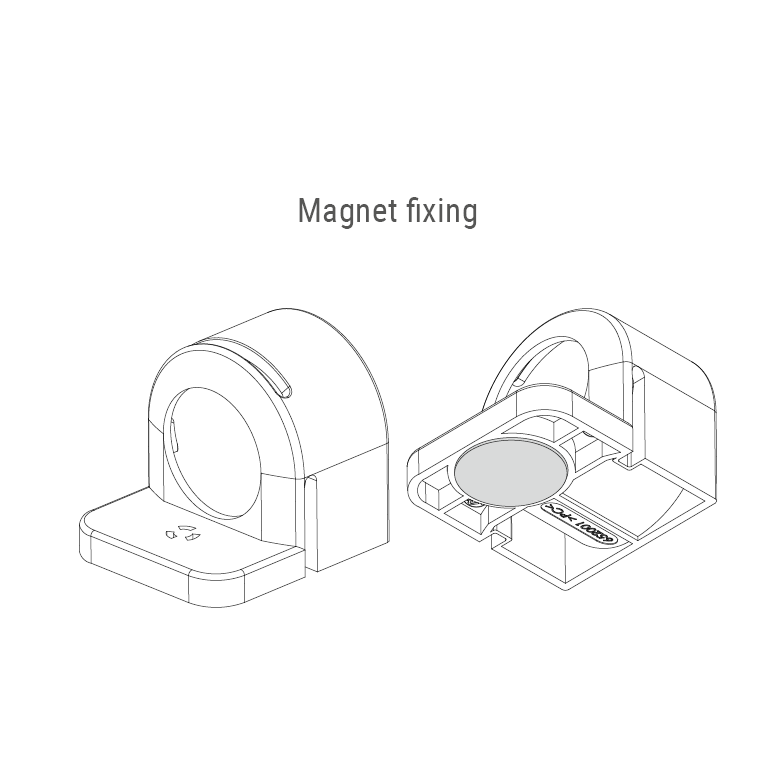

  • Magnet or screw fixing

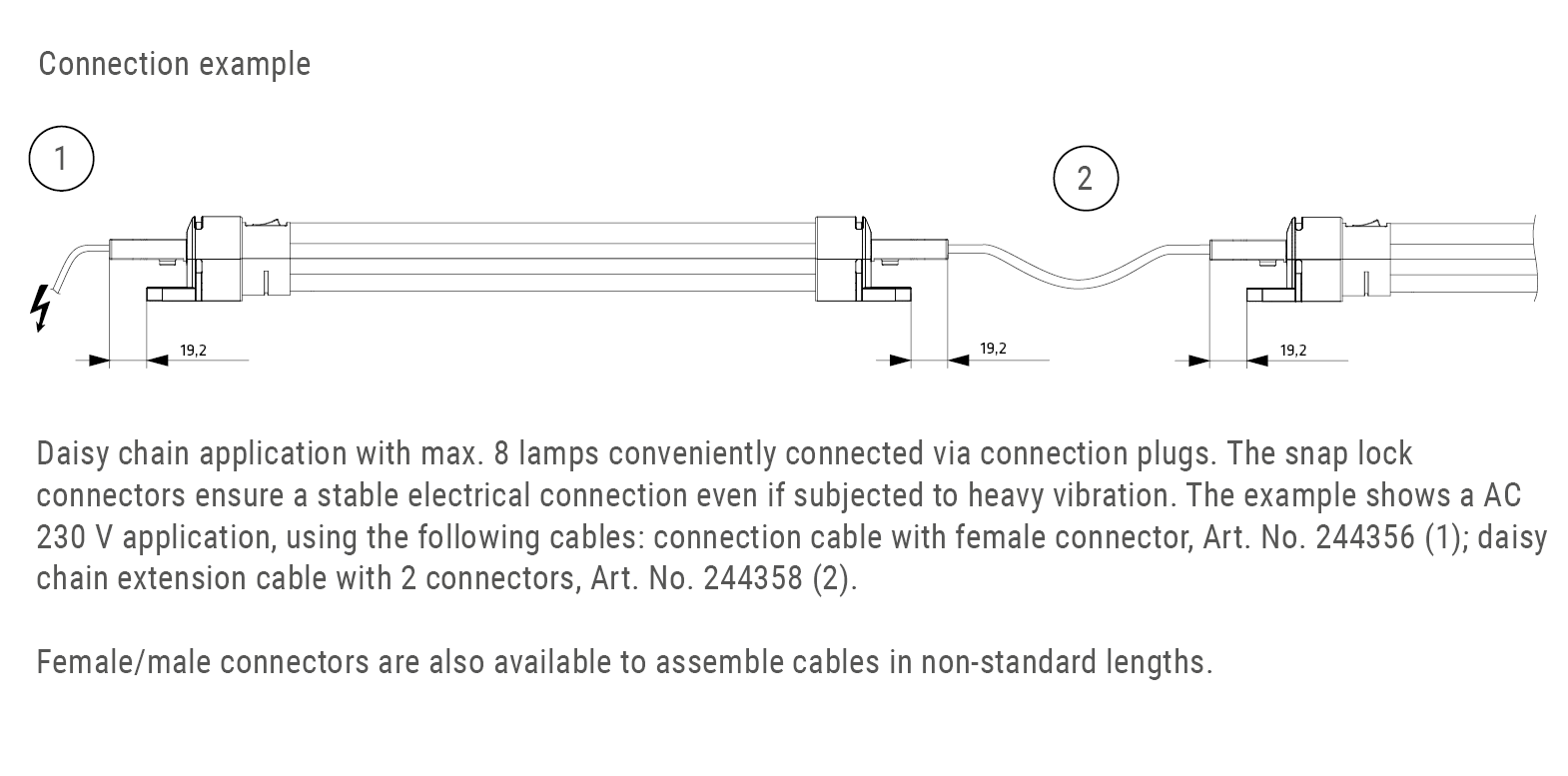

  • Integrated power unit, daisy chain
  • Available in two lengths: 400 and 600 mm
  • Emitted luminous color 6,500 K (daylight); angle of radiation 120°
CEUKCAULVDE

Overview technical data

Device typeLED enclosure lamps
IlluminantLED
Protection classII
Protection typeIP20
CasingPlastic, translucent
AC/DCAC
Operating voltage100 V - 240 V
Operating voltage tolerance90 V - 265 V
Frequency 50;60 Hz
Power consumption 16 W
Luminous colour 6500 K
Luminous flux 1730 Lm
Service life>60000 h
Operating temperature-40 °F - 104 °F
Operating humidity ≤90 % RH
Storage humidity ≤90 % RH
Storage temperature-40 °F - 185 °F
Connection typeConnector plug
Connection2-pole connector with snap lock
MountingScrew

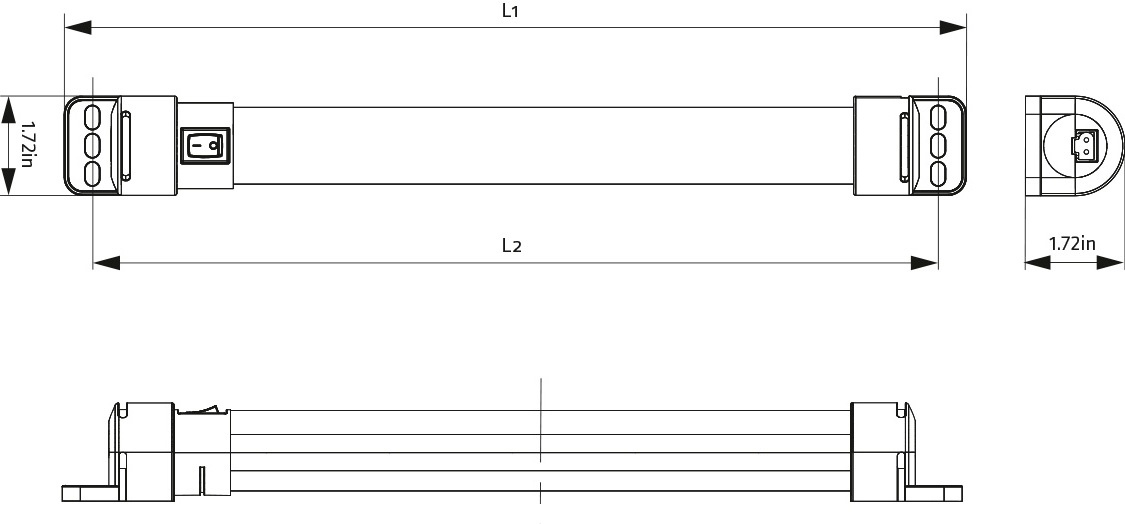

Height 1.7 in
Width 1.7 in
Depth 23.6 in
Weight 10.6 oz
Item number accessories 1244359
Item number accessories 2244357
Item number accessories 3264057
Item number accessories 4264058

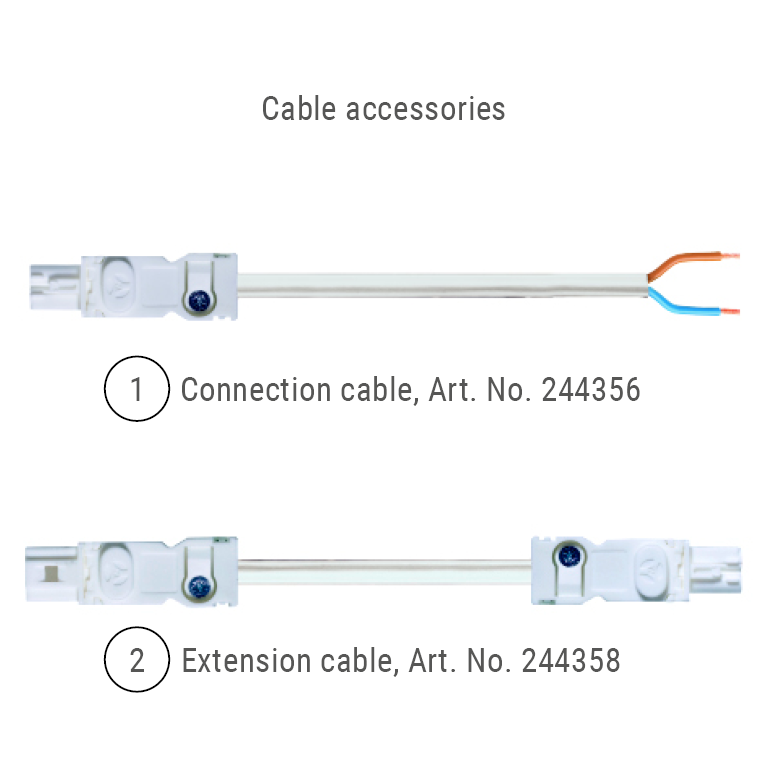

Accessory 1Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m
Accessory 2Connection cable 2 x AWG 16 with female connector, 2 m

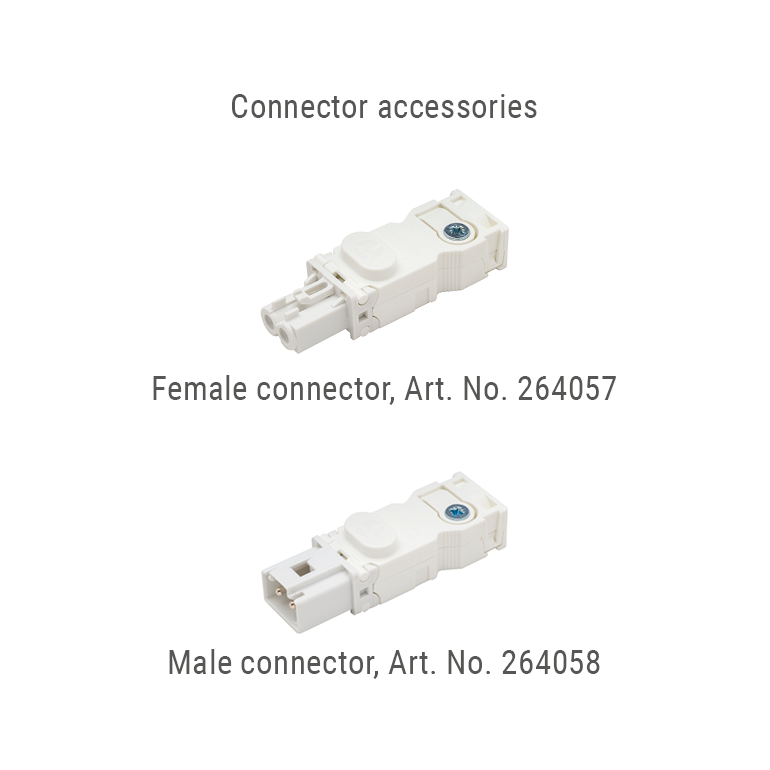

Accessory 3Separate female connector for cable connection
Accessory 4Separate male connector for cable connection

Product variants

Article numberSwitchRequestCADDatasheet
02220.0-00without
LED022-02220.0-00-Datasheet-EN-US.pdf
02200.0-00On/off switch
LED022-02200.0-00-Datasheet-EN-US.pdf
