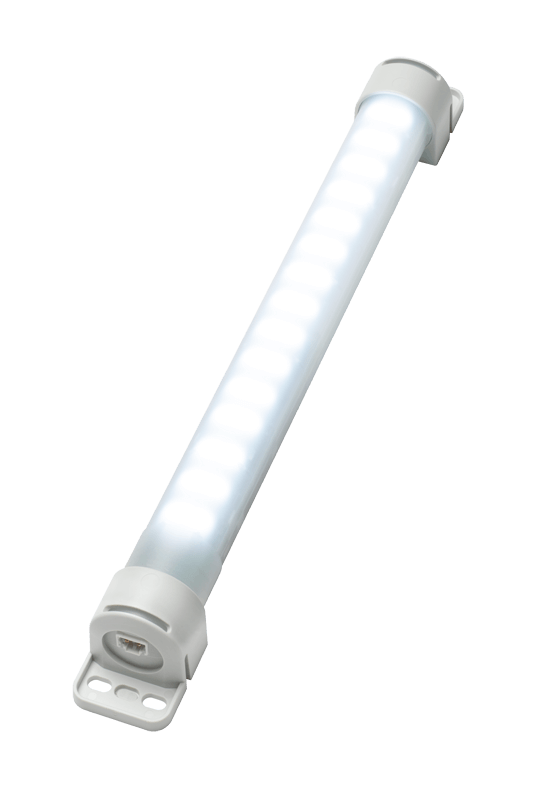

LED enclosure lamp

LED 021

The optimum lamp for enclosures: the compact and powerful Varioline LED enclosure lamp. With up to 1700 Lm luminous flux for good visibility and work safety in large enclosures. The glare-free, 360° rotatable light body is equipped with mid-power LEDs. Long, maintenance-free service life of 60,000 hours.

Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)

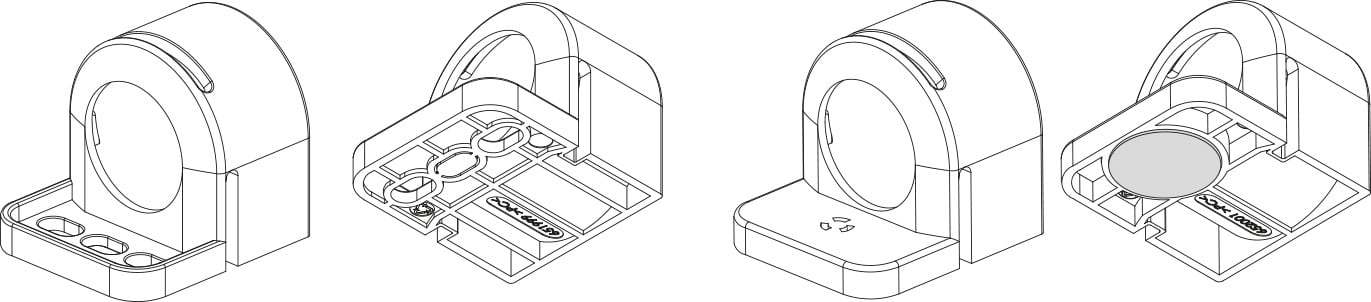

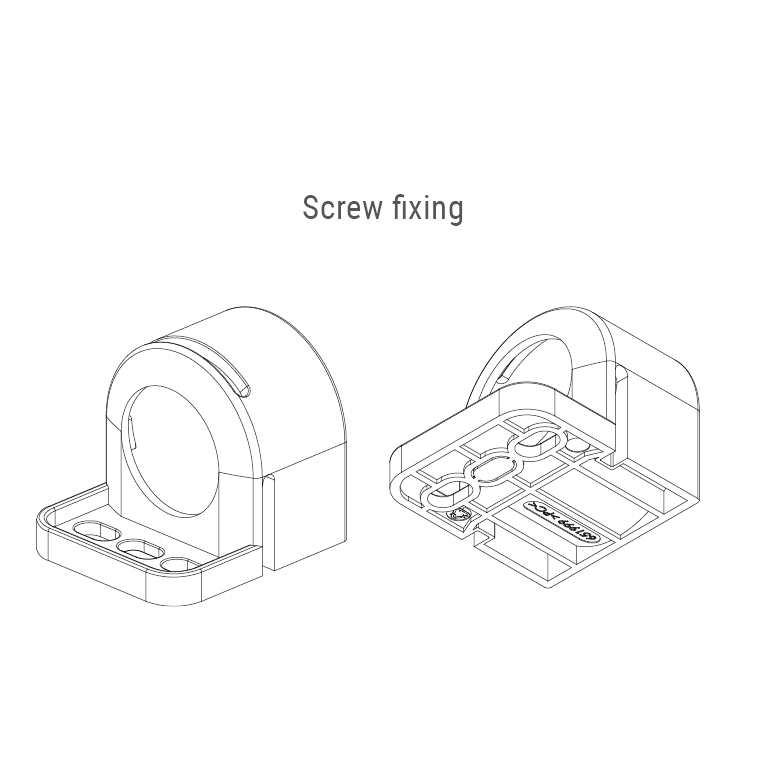

Magnet or screw fixing

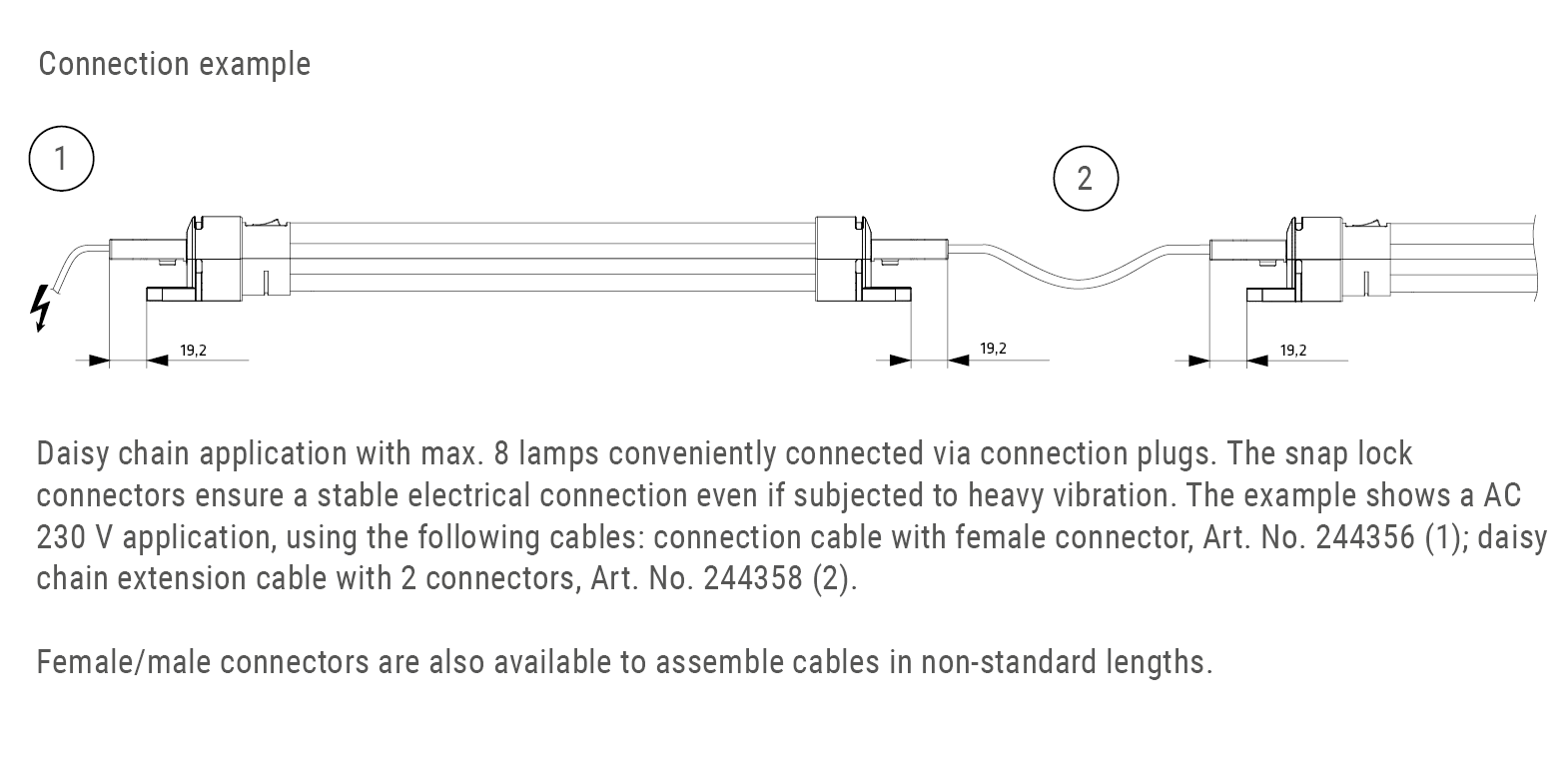

Integrated power unit, daisy chain

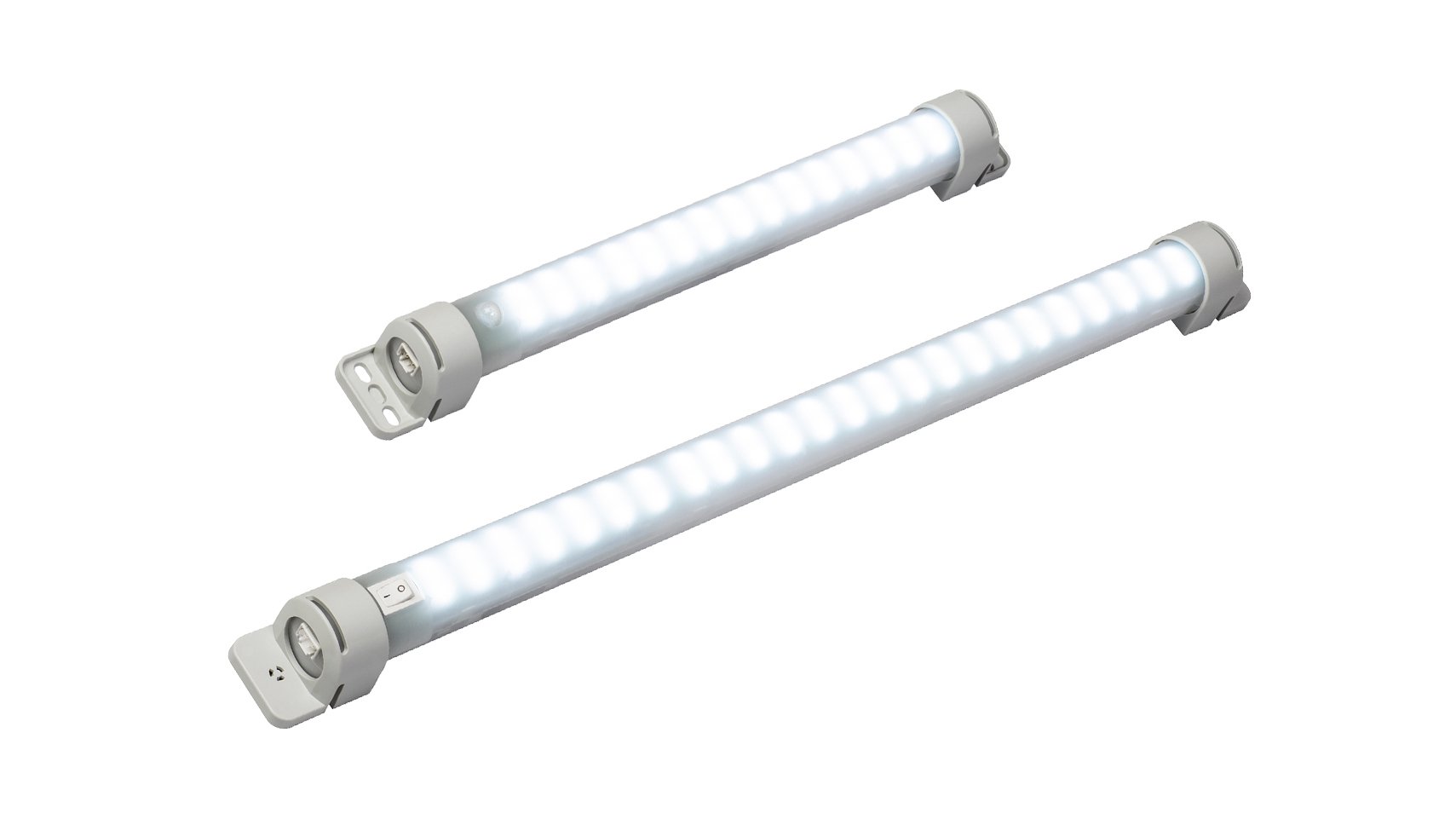

Available in two lengths: 400 and 600 mm
Emitted luminous color 6,500 K (daylight); angle of radiation 120°

Overview technical data

Device type	LED enclosure lamps
Illuminant	LED
Protection class	II
Protection type	IP20
Casing	Plastic, translucent
AC/DC	AC
Operating voltage	100 V - 240 V
Operating voltage tolerance	90 V - 265 V
Frequency	50;60 Hz
Power consumption	11 W
Luminous colour	6500 K
Luminous flux	1080 Lm
Service life	>60000 h
Operating temperature	-40 °C - 40 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °C - 85 °C
Connection type	Connector plug
Connection	2-pole connector with snap lock

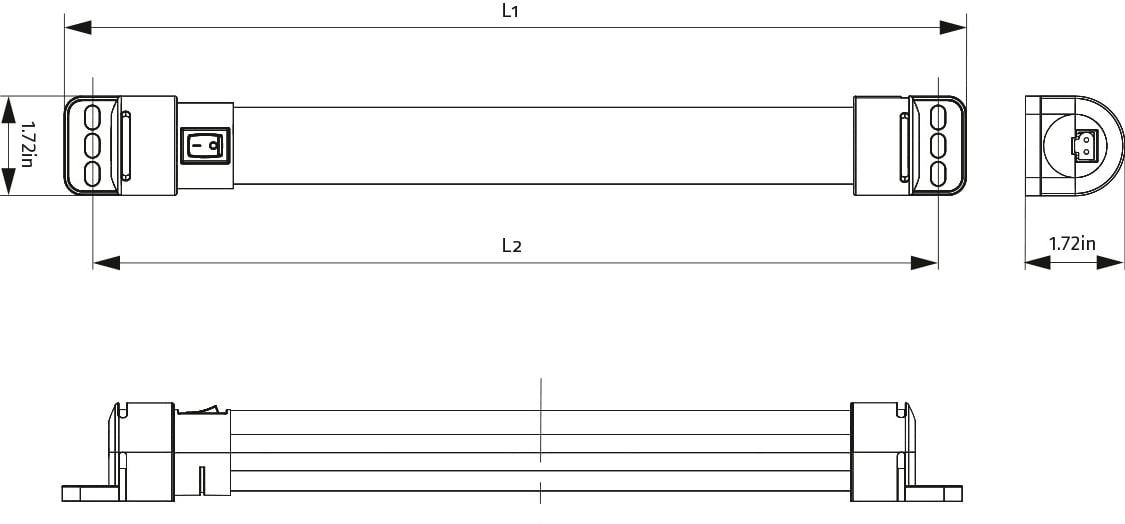

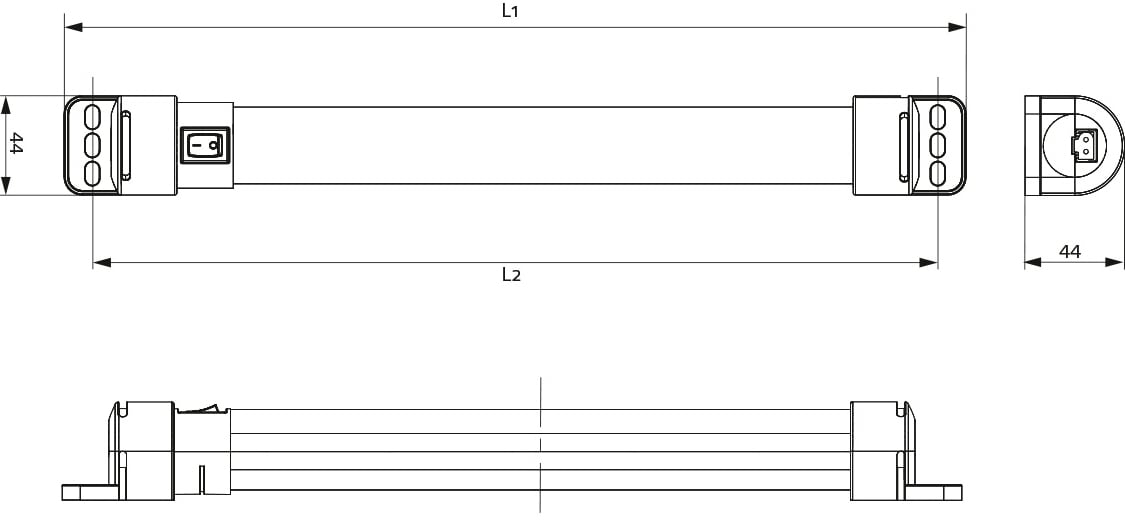

Height	44 mm
Width	44 mm
Depth	400 mm
Weight	200 g
Item number accessories 1	244359
Item number accessories 2	244357
Item number accessories 3	264057
Item number accessories 4	264058
Accessory 1	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m
Accessory 2	Connection cable 2 x AWG 16 with female connector, 2 m
Accessory 3	Separate female connector for cable connection
Accessory 4	Separate male connector for cable connection
Note	The light must not be used for household lighting A rotation angle of 360° ensures optimally adjustabl illumination.

Product variants

Article number	Device name	Device type	Series	Switch	Illuminant	Protection class	Protection type	Casing	AC/DC	Operating voltage	Operating voltage tolerance	Frequency	Power consumption	Luminous colour	Luminous flux	Service life	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection type	Connection	Mounting	Height	Width	Depth	Weight	Item number accessories 1	Item number accessories 2	Item number accessories 3	Item number accessories 4	Accessory 1	Accessory 2	Accessory 3	Accessory 4	Note	Datasheet
02110.0-30	LED enclosure lamp	LED enclosure lamps	LED 021	Motion detector	LED	II	IP20	Plastic, translucent	AC	100 V - 240 V	90 V - 265 V	50;60 Hz	11 W	6500 K	1080 Lm	>60000 h	-40 °C - 40 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock	Magnet	44 mm	44 mm	400 mm	200 g	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection	The light must not be used for household lighting A rotation angle of 360° ensures optimally adjustabl illumination.	LED021-02110.0-30-Datasheet-EN.pdf
02100.0-00	LED enclosure lamp	LED enclosure lamps	LED 021	On/off switch	LED	II	IP20	Plastic, translucent	AC	100 V - 240 V	90 V - 265 V	50;60 Hz	11 W	6500 K	1080 Lm	>60000 h	-40 °C - 40 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock	Screw	44 mm	44 mm	400 mm	200 g	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection	The light must not be used for household lighting A rotation angle of 360° ensures optimally adjustabl illumination.	LED021-02100.0-00-Datasheet-EN.pdf
02110.0-00	LED enclosure lamp	LED enclosure lamps	LED 021	Motion detector	LED	II	IP20	Plastic, translucent	AC	100 V - 240 V	90 V - 265 V	50;60 Hz	11 W	6500 K	1080 Lm	>60000 h	-40 °C - 40 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock	Screw	44 mm	44 mm	400 mm	200 g	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection	The light must not be used for household lighting A rotation angle of 360° ensures optimally adjustabl illumination.	LED021-02110.0-00-Datasheet-EN.pdf
02120.0-00	LED enclosure lamp	LED enclosure lamps	LED 021	without	LED	II	IP20	Plastic, translucent	AC	100 V - 240 V	90 V - 265 V	50;60 Hz	11 W	6500 K	1080 Lm	>60000 h	-40 °C - 40 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock	Screw	44 mm	44 mm	400 mm	200 g	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection	The light must not be used for household lighting A rotation angle of 360° ensures optimally adjustabl illumination.	LED021-02120.0-00-Datasheet-EN.pdf
02100.0-30	LED enclosure lamp	LED enclosure lamps	LED 021	On/off switch	LED	II	IP20	Plastic, translucent	AC	100 V - 240 V	90 V - 265 V	50;60 Hz	11 W	6500 K	1080 Lm	>60000 h	-40 °C - 40 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock	Magnet	44 mm	44 mm	400 mm	200 g	244359	244357	264057	264058	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection	Separate male connector for cable connection	The light must not be used for household lighting A rotation angle of 360° ensures optimally adjustabl illumination.	LED021-02100.0-30-Datasheet-EN.pdf
