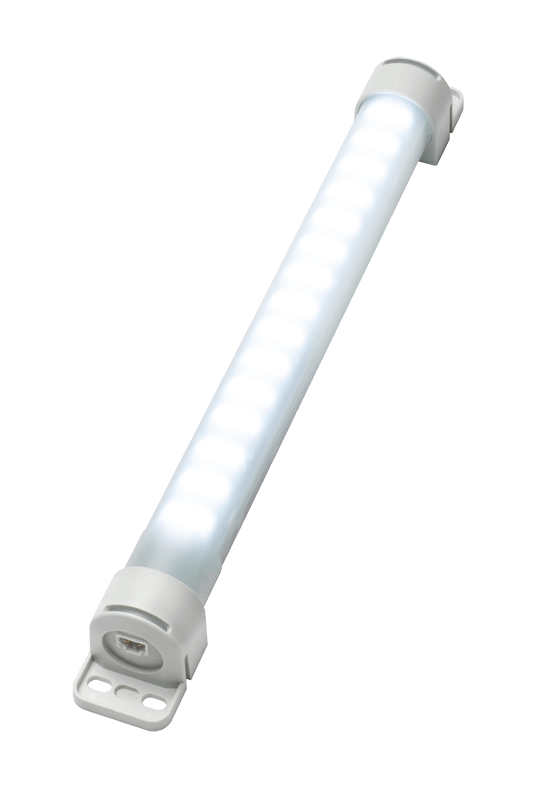

LED enclosure lamp

LED 021

The optimum lamp for enclosures: the compact and powerful Varioline LED enclosure lamp. With up to 1700 Lm luminous flux for good visibility and work safety in large enclosures. The glare-free, 360° rotatable light body is equipped with mid-power LEDs. Long, maintenance-free service life of 60,000 hours.

Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)

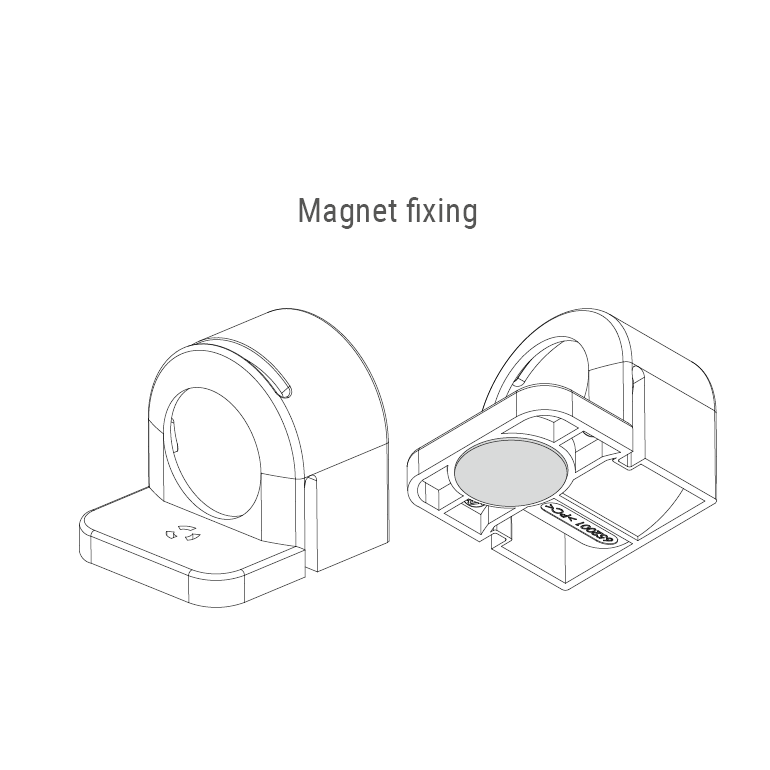

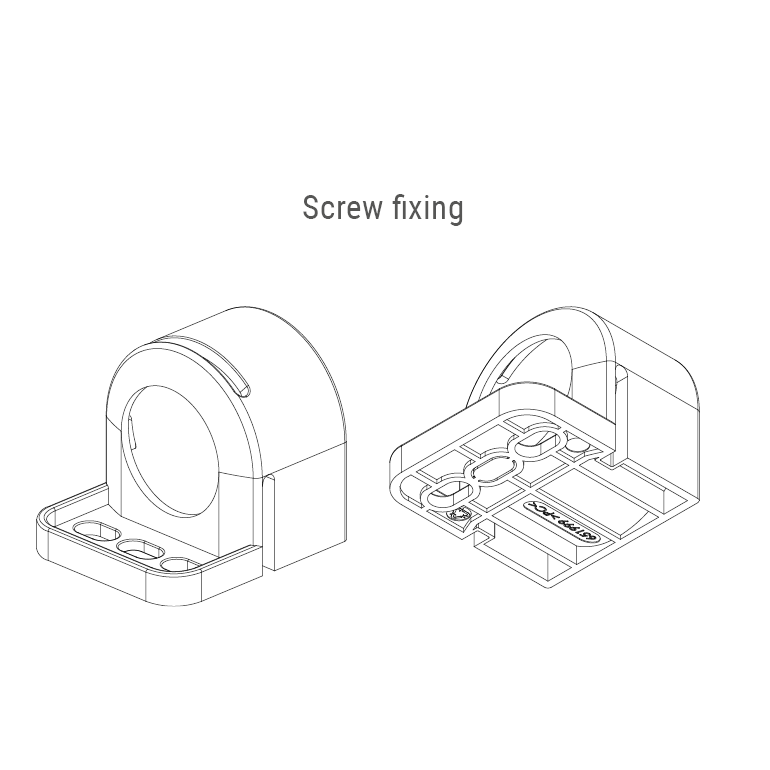

Magnet or screw fixing

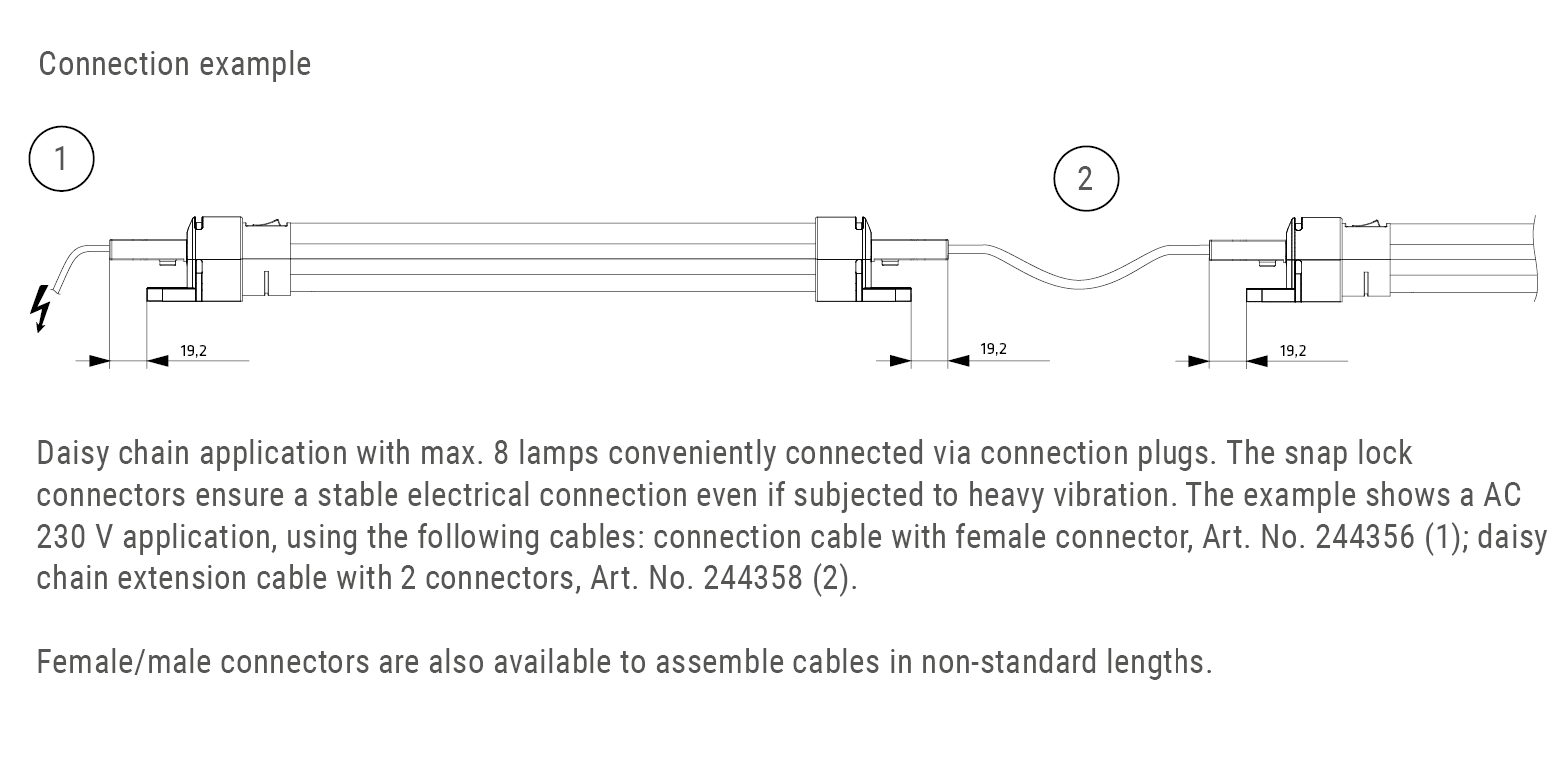

Integrated power unit, daisy chain
Available in two lengths: 400 and 600 mm
Emitted luminous color 6,500 K (daylight); angle of radiation 120°

Overview technical data

Device type	LED enclosure lamps
Illuminant	LED
Protection class	II
Protection type	IP20
Casing	Plastic, translucent
AC/DC	AC
Operating voltage	100 V - 240 V
Operating voltage tolerance	90 V - 265 V
Frequency	50;60 Hz
Power consumption	11 W
Luminous colour	6500 K
Luminous flux	1080 Lm
Service life	>60000 h
Operating temperature	-40 °F - 104 °F
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-40 °F - 185 °F
Connection type	Connector plug
Connection	2-pole connector with snap lock
Height	1.7 in
Width	1.7 in
Depth	15.7 in
Weight	7.1 oz
Item number accessories 1	244359
Item number accessories 2	244357
Item number accessories 3	264057
Item number accessories 4	264058
Accessory 1	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m
Accessory 2	Connection cable 2 x AWG 16 with female connector, 2 m

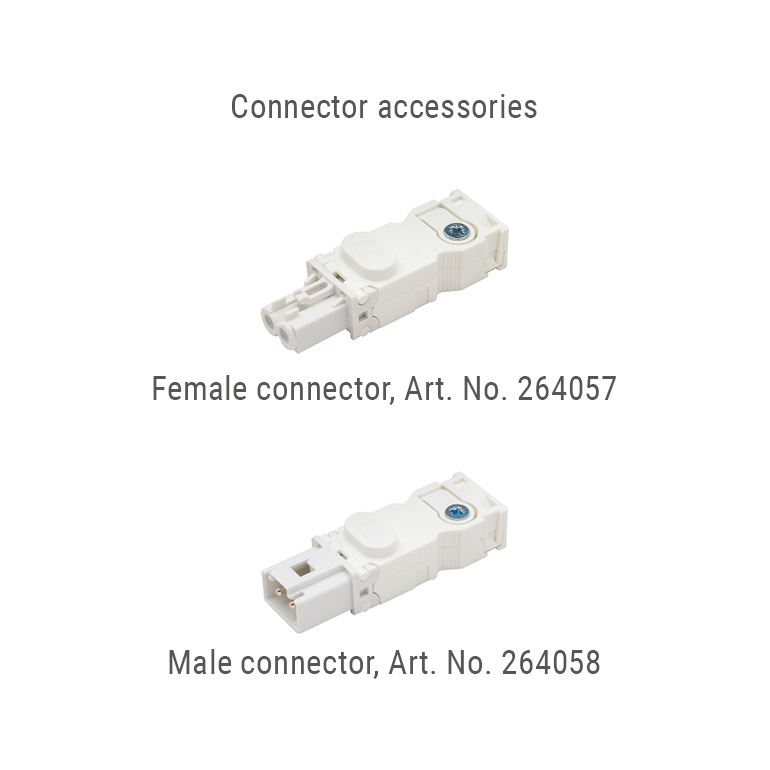

Accessory 3	Separate female connector for cable connection
Accessory 4	Separate male connector for cable connection
Note	The light must not be used for household lighting A rotation angle of 360° ensures optimally adjustabl illumination.

Product variants

Article number	Switch	Mounting	Datasheet
02110.0-30	Motion detector	Magnet	LED021-02110.0-30-Datasheet-EN-US.pdf
02100.0-00	On/off switch	Screw	LED021-02100.0-00-Datasheet-EN-US.pdf
02110.0-00	Motion detector	Screw	LED021-02110.0-00-Datasheet-EN-US.pdf
02120.0-00	without	Screw	LED021-02120.0-00-Datasheet-EN-US.pdf
02100.0-30	On/off switch	Magnet	LED021-02100.0-30-Datasheet-EN-US.pdf
