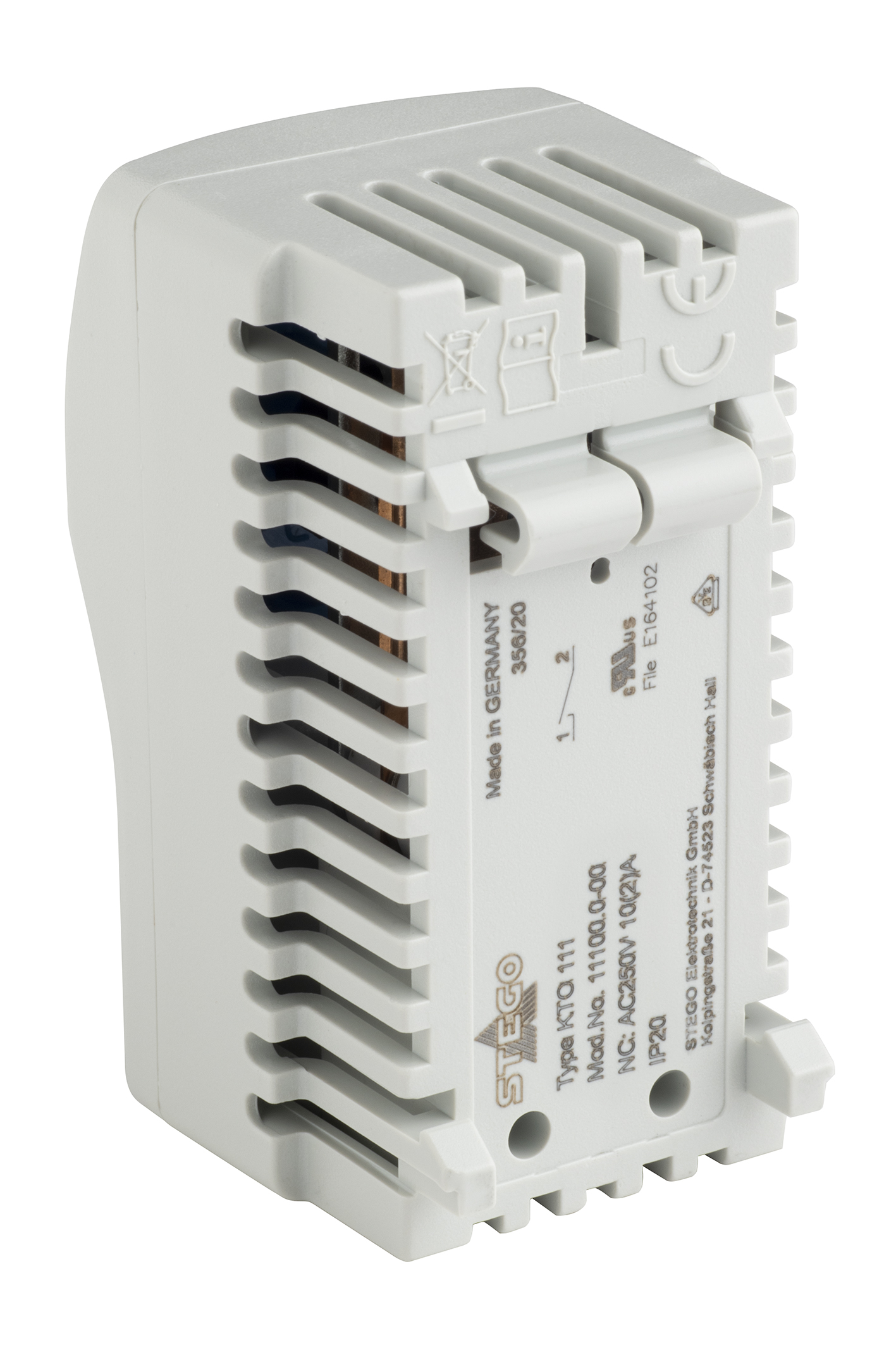

2021-kto111-photo-back-pr

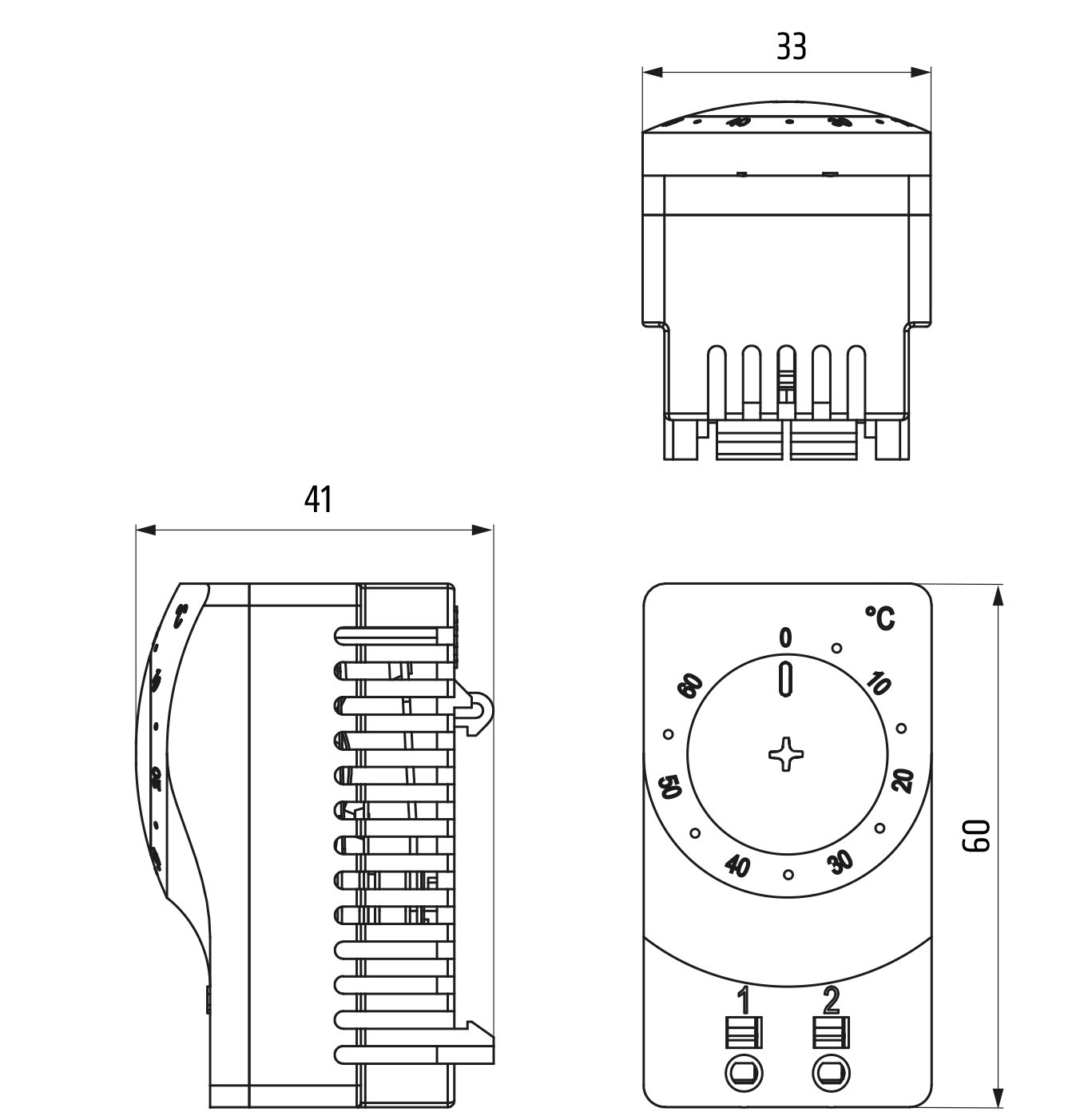

2020-kto111-kts111-drawing

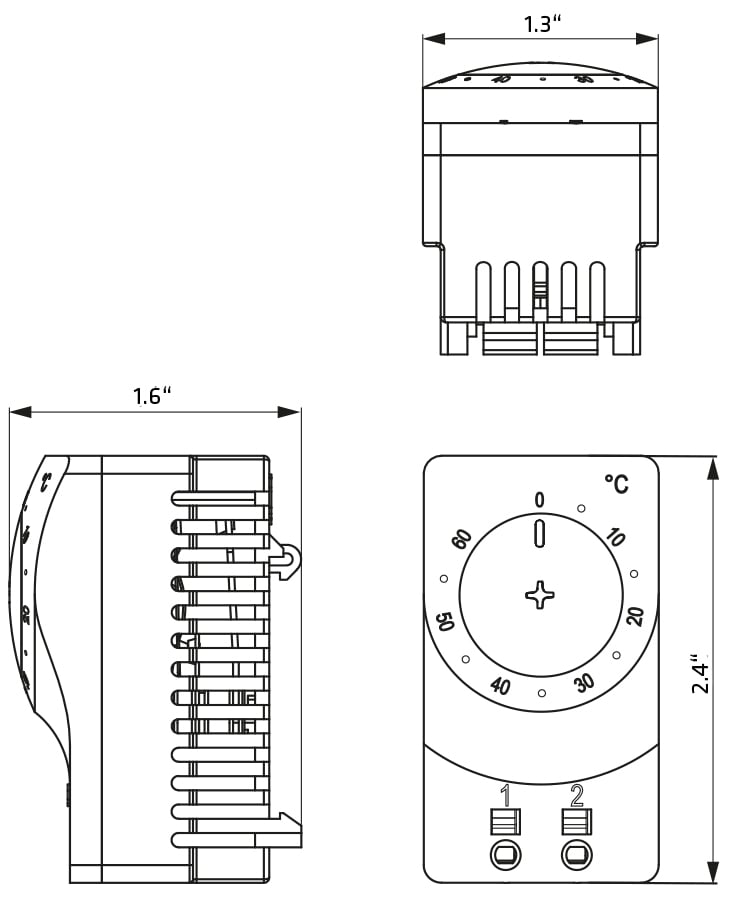

2020_kto111_kts111_drawing_inches

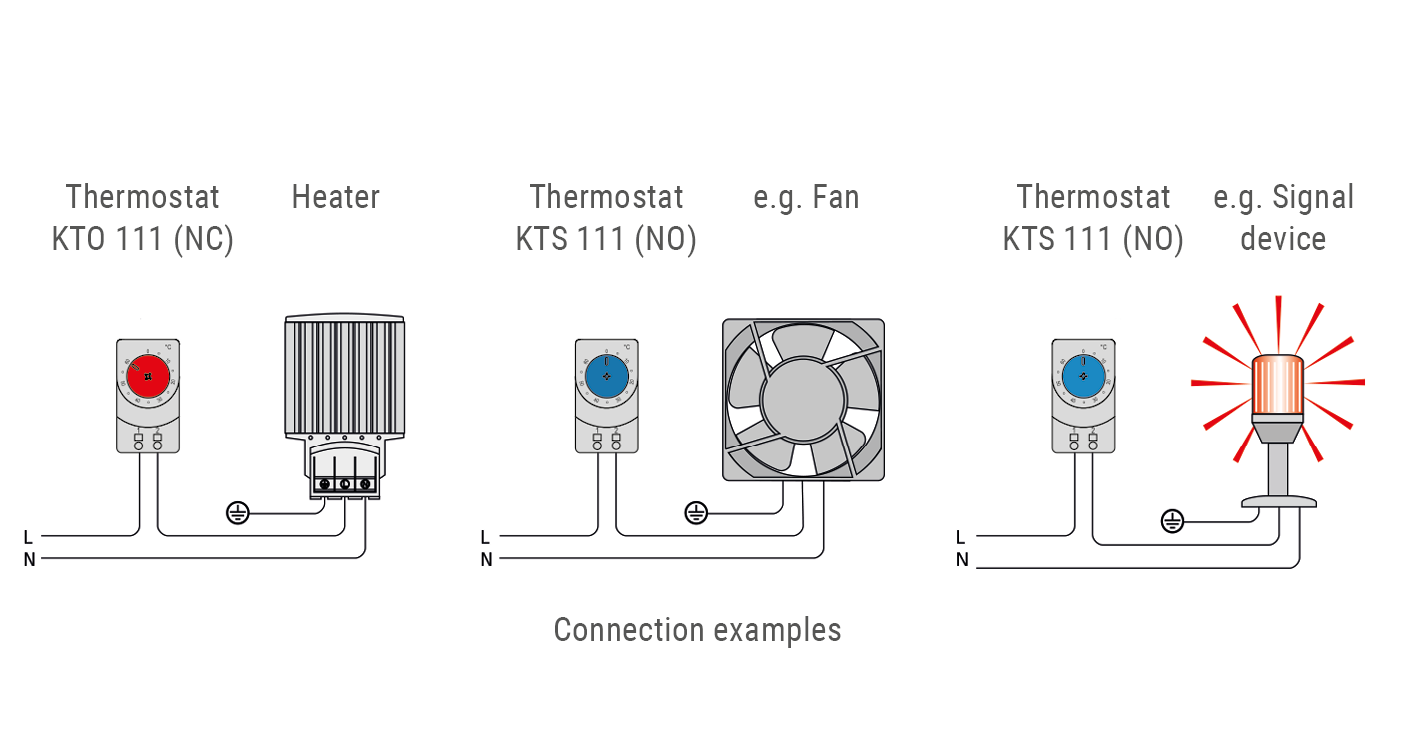

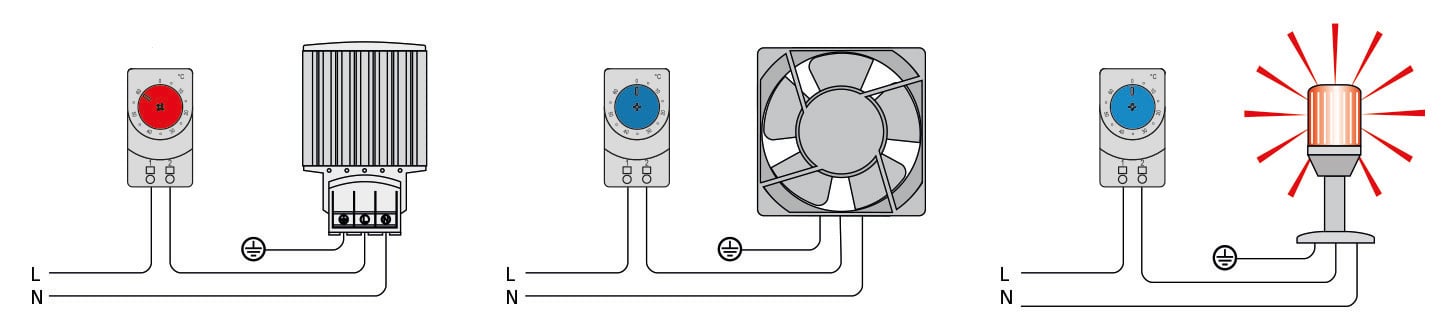

2020_KTO111_KTS111_ConnectionExample

Thermostat switch (NC)

KTO 111

The mechanical NC thermostat opens when the temperature rises and is used to control heaters or to switch signal transmitters when the temperature undershoots. The use of push-in terminals prevents the supply lines from coming loose.

Fixed supply lines thanks to push-in terminals
Time saving thanks to tool-free connection
Large adjustment wheel enables convenient adjustablility
Optimized air inlets
Can be used at altitudes of up to 5000 meters

UKCA

EAC

VDE

Overview technical data

Protection type	IP20

Product variants

Article number	Device type	Setting range	Contact type	Casing	AC/DC	Operating voltage tolerance	Inrush current	Inrush current duration	Switching capacity	Switching current ohmic	Reference voltage ohmic	Reference voltage 2 ohmic	Switching current dc ohmic	Reference voltage dc ohmic	Reference voltage	Switching current	Service life	Switching differential	Switching differential tolerance	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection type	Connection	Design	Mounting	Height	Width	Depth	Weight	Note	Classe de proteção	Material da capa	Filtro	Tensão operacional	Potência de consumo	Ventilador axial	Taxa de fluxo de ar de resfriamento filtro de saída	Taxa de fluxo de ar de resfriamento soprando	Nível médio de pressão sonora de emissão	Estrutura de montagem	Profundidade de instalação	Furação do invólucro	Número do item acessórios 1	Número do item acessórios 2	Número do item acessórios 3	Acessório 1	Acessório 2	Acessório 3	Grau de proteção UL	Artigo de substituição	Anschlussgehäuse	Heating element	Heater element	Recommended backup fuse	Frequência	Heating capacity	Installation position	Torque	Temperature monitoring	Surface temperature	Switch	Item number accessories 4	CCC	Switch-off temperature	Switch-on temperature	Air outlet temperature	Material do filtro	Espaçamento entre furos	Sensor	Switching current inductive	reference_voltage_inductive	Reference voltage 2	Minimal switching capacity	Interactions
02541.0-00	LED enclosure lamps			Plastic, transparent	AC	90 V - 265 V	9 A										>60000 h			-40 °C - 60 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock		Magnet	39 mm	32 mm	351 mm	200 g	The light must not be used for household lighting.	II			100 V - 240 V	<4 W								244359	244357	264057	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection		16504.0-00	Kunststoff nach UL94 V-0, schwarz	Kaltleiter (PTC)	Aluminiumprofil, eloxiert	10 A	50;60 Hz	150 W	Luftstromrichtung vertikal / Anschluss unten				Motion detector	264058	CCC approved
02541.0-03	LED enclosure lamps			Plastic, transparent	AC	90 V - 265 V											>60000 h			-40 °C - 60 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock		Clip	47,3 mm	40 mm	351 mm	200 g	The light must not be used for household lighting.	II			100 V - 240 V	<4 W								244359	244357	264057	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection							50;60 Hz						Motion detector	264058	CCC approved
02541.0-01	LED enclosure lamps			Plastic, transparent	AC	90 V - 265 V											>60000 h			-40 °C - 60 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock		Screw	41 mm	52 mm	351 mm	200 g	The light must not be used for household lighting.	II			100 V - 240 V	<4 W								244359	244357	264057	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection							50;60 Hz						Motion detector	264058	CCC approved
11100.0-00	Thermostats	0 °C - 60 °C	Snap-action contact	Plastic to UL94 V-0, light grey	AC;DC	AC 250 V (VDE), AC 120 V (UL) V	16 A	10 s	AC 250 V: 10 (2) A; AC 120 V: 15 (2) A; DC 24-72V: 30 W	10 A	250 VAC	120 VAC	1 A	30 VDC	24 V	20 mA	>100000 cycles	7 K	± 4 K	-45 °C - 80 °C	≤90 % RH	≤90 % RH	-45 °C - 80 °C	Connection cable	2 Push-In Klemmen Starrdrahtleitung 2,5 mm² (AWG 14) Litzenleitung 1,5 mm² (AWG 16)	Normally closed (NC)	Clip for 35 mm DIN rail, EN 60715	60 mm	33 mm	41 mm	40 g	Overvoltage category: II: up to 5000 m; III: up to 2000 m.;The controller's contact system is exposed to the effects of the environment, which can change the contact resistance. This can lead to a voltage drop and/or self-heating of the contacts. Stripped length of rigid wire cable: 8 to 12 mm. Wire end ferrules (square or trapezoidal crimped) must be used for connections with stranded wires. Length of wire end ferrule: 8 mm or 12 mm. The height of the current has an influence on the tolerance accuracy, values specified: Switching resistive load (switching inductive load).	I	Plástico de acordo com UL94 V-0, cinza claro	G4	230 V	15 W	Corpo do ventilador em alumínio, rotor plástico	68 m³/h	102 m³/h	39 dB(A)	Com 4 fechos rotativos incorporados para bloquear	86 mm	176 x 176 mm	08602.0-00	11802.0-00	08672.0-00	Elemento filtrante de substituição FM 086 (3 peças)	Filtro de saída EF 118	Castelo de proteção contra jato de água FFH 086	NEMA Type 12	01871.0-30	Kunststoff nach UL94 V-0, schwarz	PTC resistor (PTC)	Aluminium	2 A	50 Hz	5 W	variable		Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse	< + 165 °C	On/off switch	264058	CQC	59 °F	41 °F	186.8 °F	Fibra plástica com estrutura progressiva	188 mm	Thermostatic bimetal	2 A	250 VAC	120 VAC	0,48 W
02541.1-00	LED enclosure lamps;DC applications			Plastic, transparent	DC	20 V - 60 V											>60000 h			-40 °C - 60 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock		Magnet	39 mm	32 mm	351 mm	200 g	The light must not be used for household lighting.	II			24 V - 48 V	<4 W								244363	244361	264059	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection							50;60 Hz						Motion detector	264060	CCC approved
02541.1-01	LED enclosure lamps;DC applications			Plastic, transparent	DC	20 V - 60 V											>60000 h			-40 °C - 60 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock		Screw	41 mm	52 mm	351 mm	200 g	The light must not be used for household lighting.	II			24 V - 48 V	<4 W								244363	244361	264059	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection							50;60 Hz						Motion detector	264060	CCC approved
02541.1-03	LED enclosure lamps;DC applications			Plastic, transparent	DC	20 V - 60 V											>60000 h			-40 °C - 60 °C	≤90 % RH	≤90 % RH	-40 °C - 85 °C	Connector plug	2-pole connector with snap lock		Clip	47,3 mm	40 mm	351 mm	200 g	The light must not be used for household lighting.	II			24 V - 48 V	<4 W								244363	244361	264059	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection							50;60 Hz						Motion detector	264060	CCC approved
11100.0-02	Thermostats	20 °C - 80 °C	Snap-action contact	Plastic to UL94 V-0, light grey	AC;DC	AC 250 V (VDE), AC 120 V (UL) V	16 A	10 s	AC 250 V: 3 (2) A; AC 120 V: 3 (2) A; DC 24-72V: 30 W	3 A	250 VAC	120 VAC	1 A	30 VDC	24 V	20 mA	>100000 cycles	7 K	± 4 K	-45 °C - 80 °C	≤90 % RH	≤90 % RH	-45 °C - 80 °C	Connection terminal	2 Push-In Klemmen Starrdrahtleitung 2,5 mm² (AWG 14) Litzenleitung 1,5 mm² (AWG 16)	Normally closed (NC)	Clip for 35 mm DIN rail, EN 60715	60 mm	33 mm	41 mm	40 g	Overvoltage category: II: up to 5000 m; III: up to 2000 m.;The controller's contact system is exposed to the effects of the environment, which can change the contact resistance. This can lead to a voltage drop and/or self-heating of the contacts. Stripped length of rigid wire cable: 8 to 12 mm. Wire end ferrules (square or trapezoidal crimped) must be used for connections with stranded wires. Length of wire end ferrule: 8 mm or 12 mm. The height of the current has an influence on the tolerance accuracy, values specified: Switching resistive load (switching inductive load).	I	Plástico de acordo com UL94 V-0, cinza claro	G4	230 V	45 W	Corpo do ventilador em alumínio, rotor plástico	125 m³/h	200 m³/h	52 dB(A)	Con 4 pestillos giratorios incorporados para el bloqueo	95 mm	176 x 176 mm	08602.0-00	11802.0-00	264057	Elemento filtrante de substituição FM 086 (3 peças)	Filtro de saída EF 118	Separate female connector for cable connection	NEMA Type 12	01871.0-30	Kunststoff nach UL94 V-0, schwarz	PTC resistor (PTC)	Aluminium profile, anodised	8 A	50 Hz	100 W	Airflow direction "in" vertical / connection at the bottom	0,8 Nmmax.		< + 176 °F	On/off switch	264058	CQC	59 °F	41 °F	248 °F	Fibra plástica com estrutura progressiva	188 mm	Thermostatic bimetal	2 A	250 VAC	120 VAC	0,48 W
06022.0-00	Convection heaters;Integrated control;Touchsafe			Plastic to UL94 V-0, black	AC	110 V - 265 V	8 A										>60000 h			-49 °F - 158 °F	≤90 % rF	≤90 % rF	-49 °F - 158 °F	Connection terminal	2-pole clamp 2.5 mm²		Clip for 35 mm DIN rail	5.9 in	2.4 in	3.5 in	17.6 oz	Other switch-off and switch-on temperatures on request. ;Switch-on temperature tolerance at +5K.;Operation below AC 140 V reduces the heating capacity by approx. 10 %.;Heating capacity at ambient temperature - see power/ambient temperature diagram; air outlet temperature 50 mm from the protective grille;	II			120 V - 240 V	<4 W								244363	244361	264059	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection		06524.0-00	Kunststoff nach UL94 V-0, schwarz	PTC resistor (PTC)	Aluminiumprofil, eloxiert	10 A	50;60 Hz	150 W	Airflow direction "in" vertical / connection at the bottom	0.8 Nmmax.		< + 176 °F	On/off switch	264060	CCC approved	77 °F	59 °F	248 °F
11100.0-01	Thermostats	-10 °C - 50 °C	Snap-action contact	Plastic to UL94 V-0, light grey	AC;DC	AC 250 V (VDE), AC 120 V (UL) V	16 A	10 s	AC 250 V: 10 (2) A; AC 120 V: 15 (2) A; DC 24-72V: 30 W	10 A	250 VAC	120 VAC	1 A	30 VDC	24 V	20 mA	>100000 cycles	7 K	± 4 K	-45 °C - 80 °C	≤90 % RH	≤90 % RH	-45 °C - 80 °C	Connection terminal	2 Push-In Klemmen Starrdrahtleitung 2,5 mm² (AWG 14) Litzenleitung 1,5 mm² (AWG 16)	Normally closed (NC)	Clip for 35 mm DIN rail, EN 60715	60 mm	33 mm	41 mm	40 g	Overvoltage category: II: up to 5000 m; III: up to 2000 m.;The controller's contact system is exposed to the effects of the environment, which can change the contact resistance. This can lead to a voltage drop and/or self-heating of the contacts. Stripped length of rigid wire cable: 8 to 12 mm. Wire end ferrules (square or trapezoidal crimped) must be used for connections with stranded wires. Length of wire end ferrule: 8 mm or 12 mm. The height of the current has an influence on the tolerance accuracy, values specified: Switching resistive load (switching inductive load).	I	Plástico de acordo com UL94 V-0, cinza claro	G4	120 V	15 W	Corpo do ventilador em alumínio, rotor plástico	78 m³/h	117 m³/h	39 dB(A)	Com 4 fechos rotativos incorporados para bloquear	86 mm	176 x 176 mm	08602.0-00	11802.0-00	08672.0-00	Elemento filtrante de substituição FM 086 (3 peças)	Filtro de saída EF 118	Castelo de proteção contra jato de água FFH 086	NEMA Type 12	01872.9-30	Kunststoff nach UL94 V-0, schwarz	PTC resistor (PTC)	Aluminium profile, anodised	4 A	60 Hz	50 W	Airflow direction "in" vertical / connection at the bottom		Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse	< + 176 °F	On/off switch	264058	CQC	77 °F	59 °F	186.8 °F	Fibra plástica com estrutura progressiva	188 mm	Thermostatic bimetal	2 A	250 VAC	120 VAC	0,48 W
11100.9-00	Thermostats	32 °F - 140 °F	Snap-action contact	Plastic to UL94 V-0, light grey	AC;DC	AC 250 V (VDE), AC 120 V (UL) V	16 A	10 s	AC 250 V: 10 (2) A; AC 120 V: 15 (2) A; DC 24-72V: 30 W	10 A	250 VAC	120 VAC	1 A	30 VDC	24 V	20 mA	>100000 cycles	7 K	± 4 K	-45 °C - 80 °C	≤90 % RH	≤90 % RH	-45 °C - 80 °C	Connection terminal	2 Push-In Klemmen Starrdrahtleitung 2,5 mm² (AWG 14) Litzenleitung 1,5 mm² (AWG 16)	Normally closed (NC)	Clip for 35 mm DIN rail, EN 60715	60 mm	33 mm	41 mm	40 g	Overvoltage category: II: up to 5000 m; III: up to 2000 m.;The controller's contact system is exposed to the effects of the environment, which can change the contact resistance. This can lead to a voltage drop and/or self-heating of the contacts. Stripped length of rigid wire cable: 8 to 12 mm. Wire end ferrules (square or trapezoidal crimped) must be used for connections with stranded wires. Length of wire end ferrule: 8 mm or 12 mm. The height of the current has an influence on the tolerance accuracy, values specified: Switching resistive load (switching inductive load).	I	Plástico de acordo com UL94 V-0, cinza claro	G4	120 V	39 W	Corpo do ventilador em alumínio, rotor plástico	143 m³/h	230 m³/h	52 dB(A)	Con 4 pestillos giratorios incorporados para el bloqueo	95 mm	176 x 176 mm	08602.0-00	11802.0-00	264059	Elemento filtrante de substituição FM 086 (3 peças)	Filtro de saída EF 118	Separate female connector for cable connection	NEMA Type 12	01872.9-30	Kunststoff nach UL94 V-0, schwarz	PTC resistor (PTC)	Aluminiumprofil, eloxiert	8 A	60 Hz	100 W	Airflow direction "in" vertical / connection at the bottom	0,8 Nmmax.		< + 176 °F	On/off switch	264060	CQC	77 °F	59 °F	248 °F	Fibra plástica com estrutura progressiva	188 mm	Thermostatic bimetal	2 A	250 VAC	120 VAC	0,48 W
11100.9-01	Thermostats	14 °F - 122 °F	Snap-action contact	Plastic to UL94 V-0, light grey	AC;DC	AC 250 V (VDE), AC 120 V (UL) V	16 A	10 s	AC 250 V: 10 (2) A; AC 120 V: 15 (2) A; DC 24-72V: 30 W	10 A	250 VAC	120 VAC	1 A	30 VDC	24 V	20 mA	>100000 cycles	7 K	± 4 K	-45 °C - 80 °C	≤90 % RH	≤90 % RH	-45 °C - 80 °C	Connection terminal	2 Push-In Klemmen Starrdrahtleitung 2,5 mm² (AWG 14) Litzenleitung 1,5 mm² (AWG 16)	Normally closed (NC)	Clip for 35 mm DIN rail, EN 60715	60 mm	33 mm	41 mm	40 g	Overvoltage category: II: up to 5000 m; III: up to 2000 m.;The controller's contact system is exposed to the effects of the environment, which can change the contact resistance. This can lead to a voltage drop and/or self-heating of the contacts. Stripped length of rigid wire cable: 8 to 12 mm. Wire end ferrules (square or trapezoidal crimped) must be used for connections with stranded wires. Length of wire end ferrule: 8 mm or 12 mm. The height of the current has an influence on the tolerance accuracy, values specified: Switching resistive load (switching inductive load).	II			120 V - 240 V	<4 W								244363	244361	264059	Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m	Connection cable 2 x AWG 16 with female connector, 2 m	Separate female connector for cable connection		06514.0-00	Kunststoff nach UL94 V-0, schwarz	PTC resistor (PTC)	Aluminiumprofil, eloxiert	10 A	50;60 Hz	150 W	Airflow direction "in" vertical / connection at the bottom	0.8 Nmmax.		< + 176 °F	On/off switch	264060	CQC	59 °F	41 °F	248 °F			Thermostatic bimetal	2 A	250 VAC	120 VAC	0,48 W

Certificates
